Toyota Lexus GX470
2002-11 → 2009-08 · chassis UZJ120 · catalogue 781450 · United States
Supported model
Data version 2010-01
Navigation & Front Monitor Display

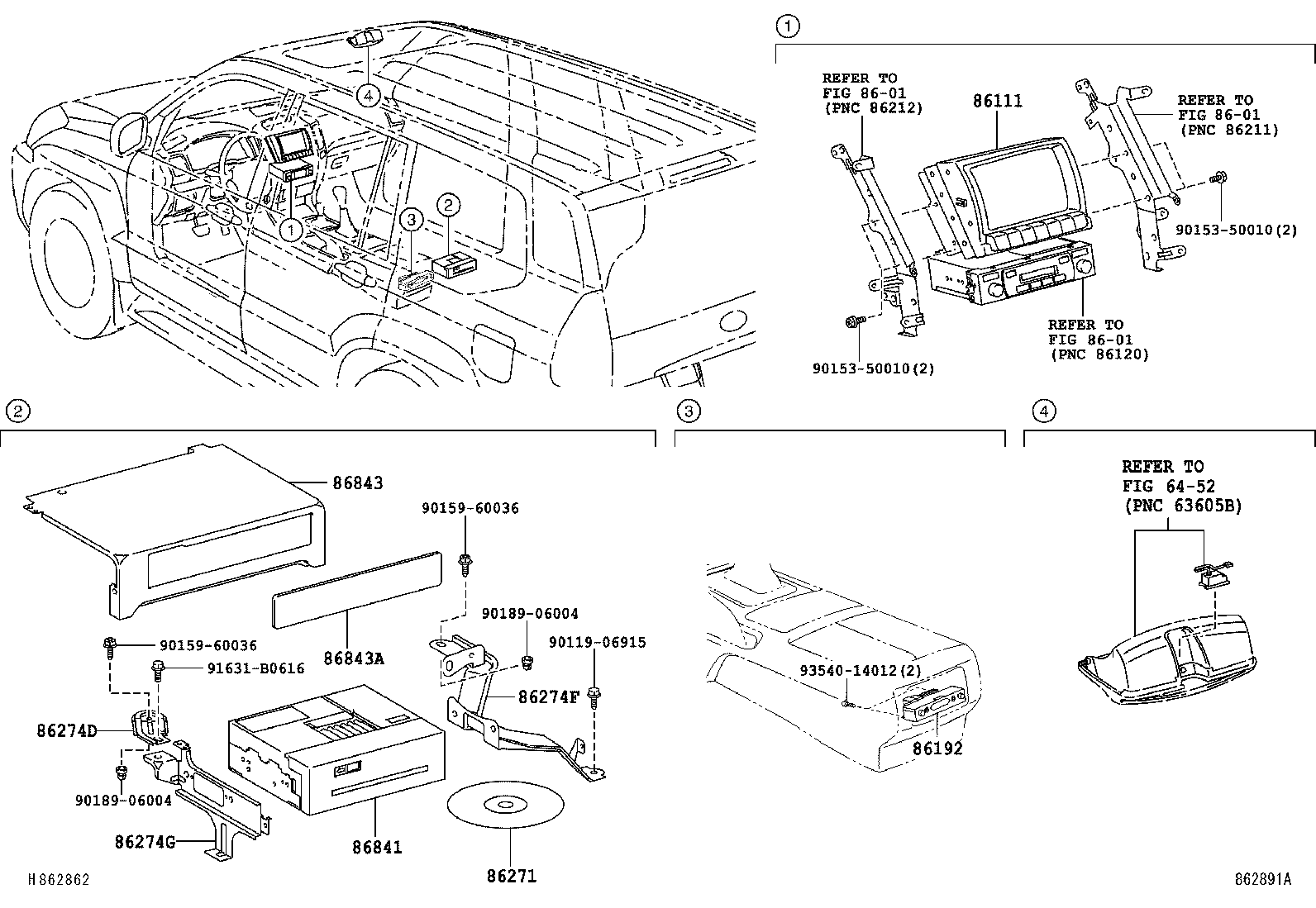

11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86111 | Multi-display |
| 86192 | Terminal, Headphone |
| 86230B | Controller Assy, Stereo Component |
| 86250E | Microphone Assy, Amplifier |
| 86271 | Disc, Disc Player |
| 86274D | Bracket, Disc Player |
| 86274F | Bracket, Disc Player, NO.2 |
| 86274G | Bracket, Disc Player, NO.3 |
| 86841 | Computer, Navigation |
| 86843 | Cover, Navigation Computer |
| 86843A | Cover, Navigation Computer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
