Toyota Lexus GX470
2002-11 → 2009-08 · chassis UZJ120 · catalogue 781450 · United States
Supported model
Data version 2010-01
Camera & Rear Monitor Display
9 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 86104 | Controller Sub-assy, Multi-display |
| 86117A | Bracket, Television Display, A |
| 86118A | Bracket, Television Display, B |

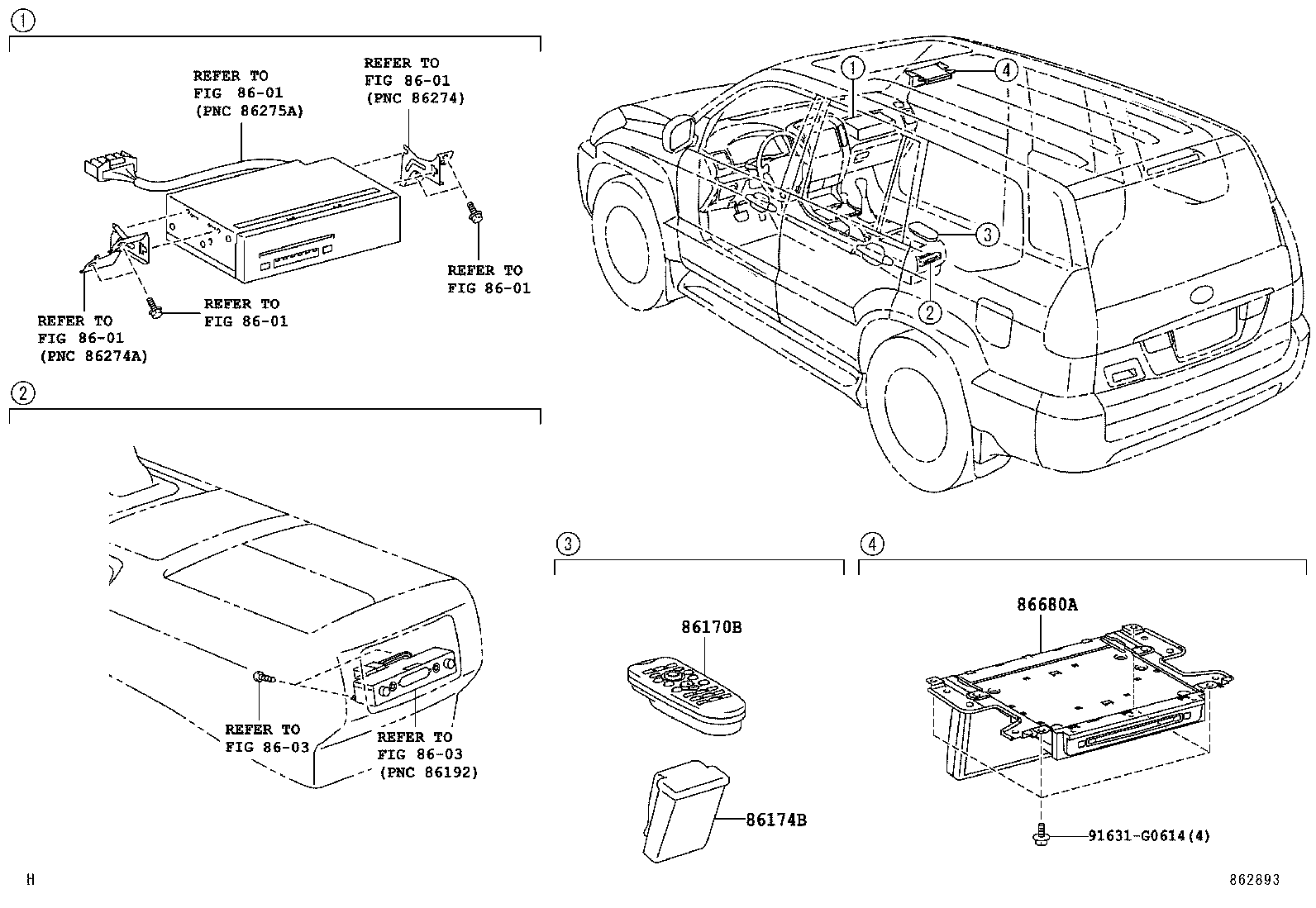

| 86170B | Switch & Volume Assy, Television |
| 86174B | Case, Switch & Volume |
| 86295 | Base, Television |
| 86680A | Display Assy, Television |

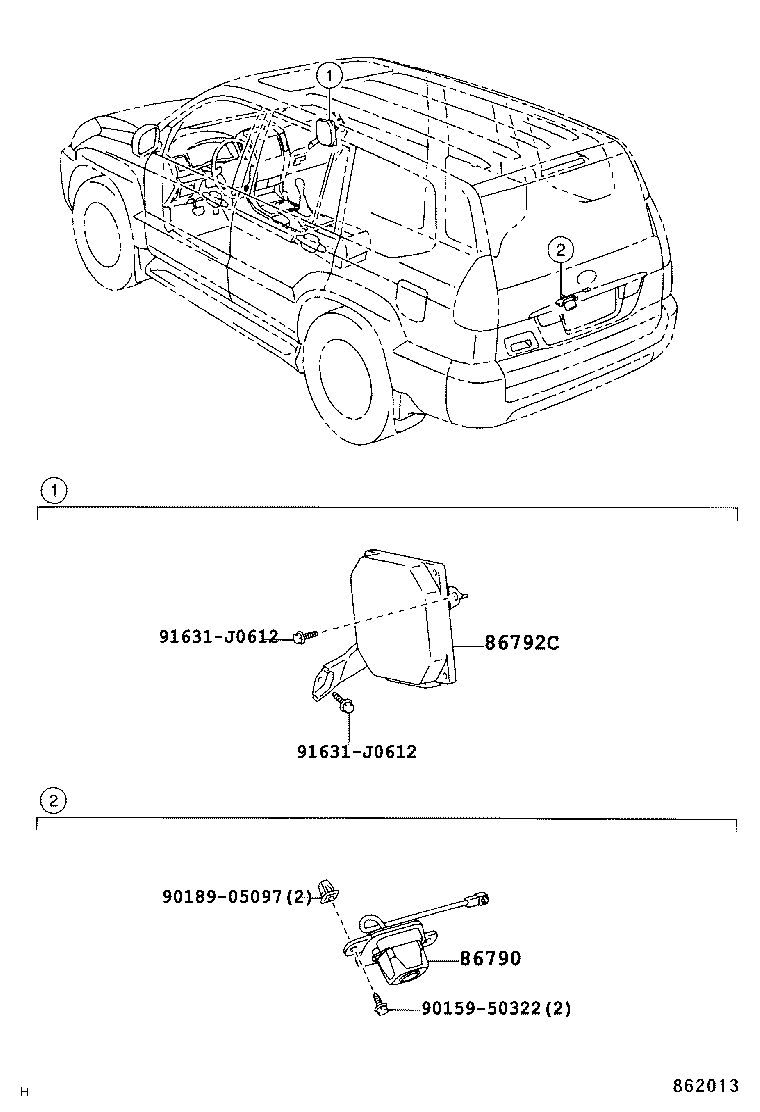

| 86790 | Camera Assy, Television |
| 86792C | Computer, Parking Assist |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
