Toyota Lexus GX470
2002-11 → 2009-08 · chassis UZJ120 · catalogue 781450 · United States
Supported model
Data version 2010-01
Heating & Air Conditioning - Cooler Unit

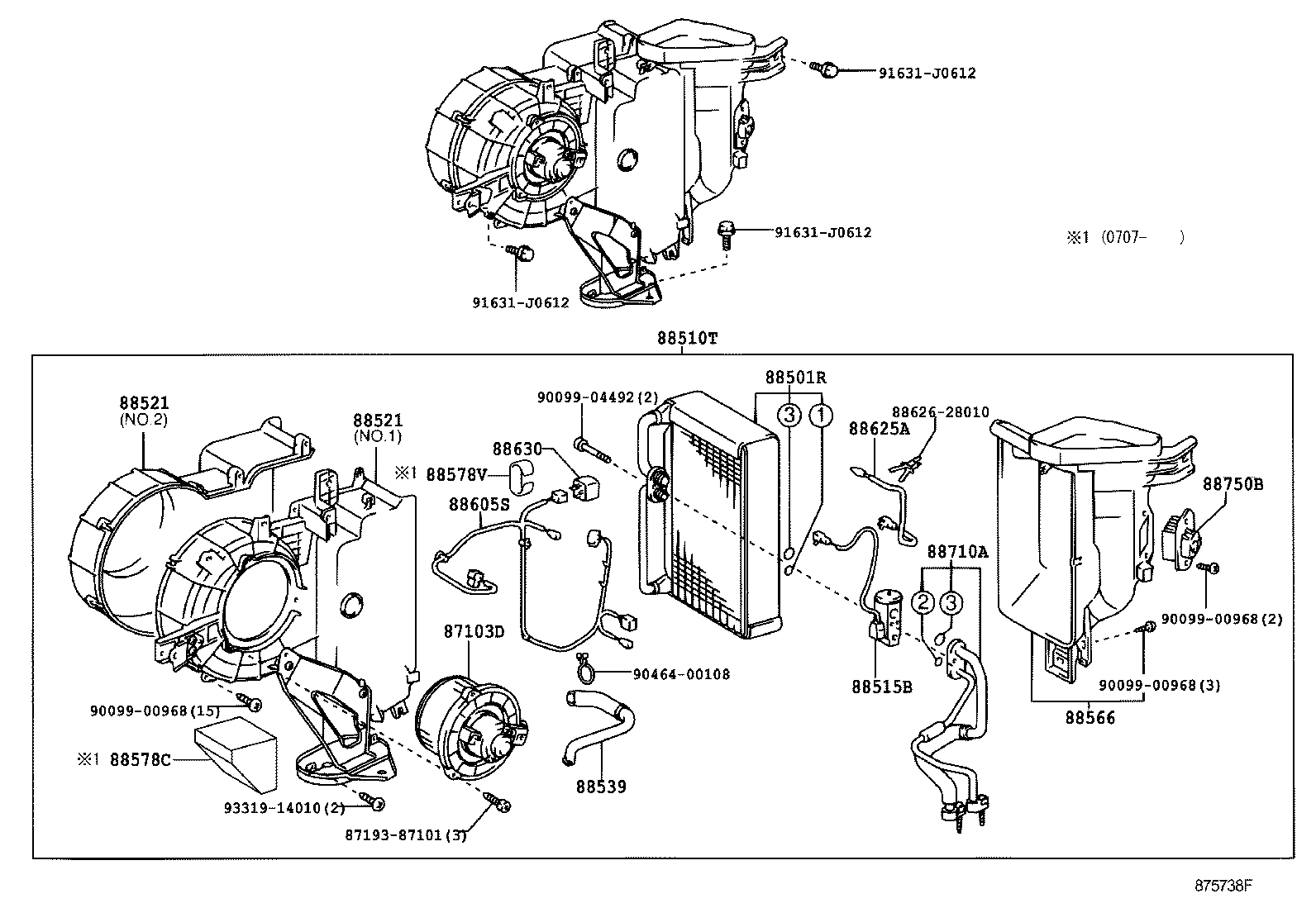

32 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 87050 | Radiator Assy, Air Conditioner |
| 87103A | Motor Sub-assy, Cooling Unit, W/Fan |
| 87103D | Motor Sub-assy, Blower W/Fan(FOR REAR) |
| 87106G | Servo Sub-assy, Damper(FOR BLOWER) |
| 87106H | Servo Sub-assy, Damper(FOR AIRMIX) |
| 87106J | Servo Sub-assy, Damper(FOR MODE) |
| 87106L | Servo Sub-assy, Damper |
| 87107A | Unit Sub-assy, Heater Radiator |
| 87130D | Blower Assy |
| 87139C | Filter, Clean Air |
| 87165C | Control, Blower Motor |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88501R | Evaporator Sub-assy (REAR) |
| 88508 | Filter Sub-assy, Clean Air |
| 88510T | Unit Assy, Cooling (REAR) |
| 88515 | Valve, Cooler Expansion |
| 88515B | Valve, Rear Cooling Unit Expansion |
| 88521 | Case, Cooler Unit |
| 88539 | Hose, Cooler Unit Drain, NO.1 |
| 88566 | Duct, Cooler Air, NO.1 |
| 88578B | Packing, Cooling Unit, NO.1 |
| 88578C | Packing, Cooling Unit, NO.2 |
| 88578V | Packing, Cooling Unit, NO.3 |
| 88605S | Harness Sub-assy, Wiring Air Conditioner |
| 88625 | Thermistor, Cooler, NO.1 |
| 88625A | Thermistor, Cooler NO.2 |
| 88630 | Relay Assy, Cooler |
| 88710A | Tube Assy, Air Conditioner |
| 88710H | Tube & Accessory Assy, Air Conditioner |
| 88750B | Transistor Assy, Blower Resistor |
| 88891S | Cover, Cooler, NO.1 |
| 88899K | Plate, Cover |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
