Toyota Lexus GX470

2002-11 → 2009-08 · chassis UZJ120 · catalogue 781450 · United States

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

25 part groups · 5 illustrations

Illustrations

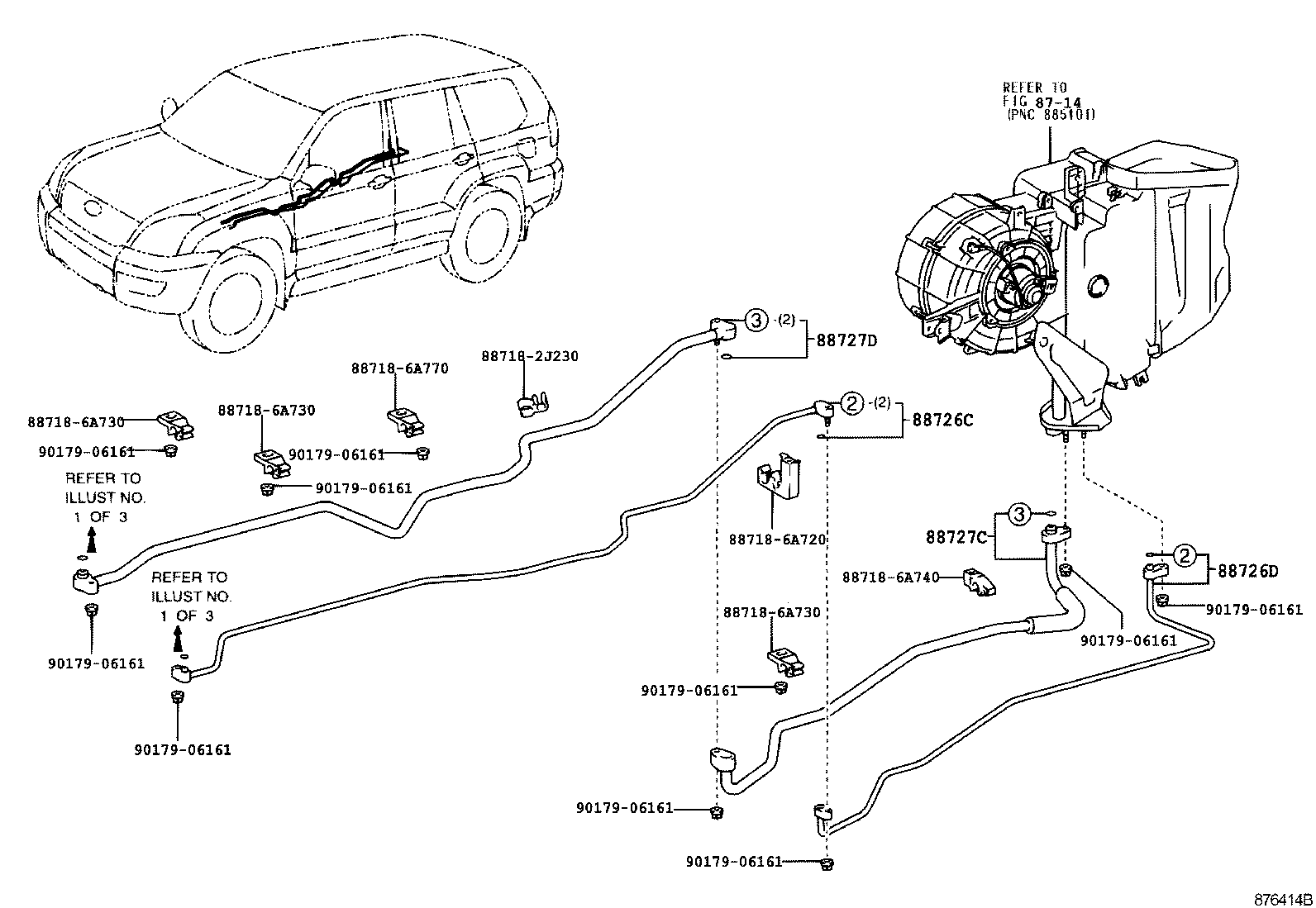

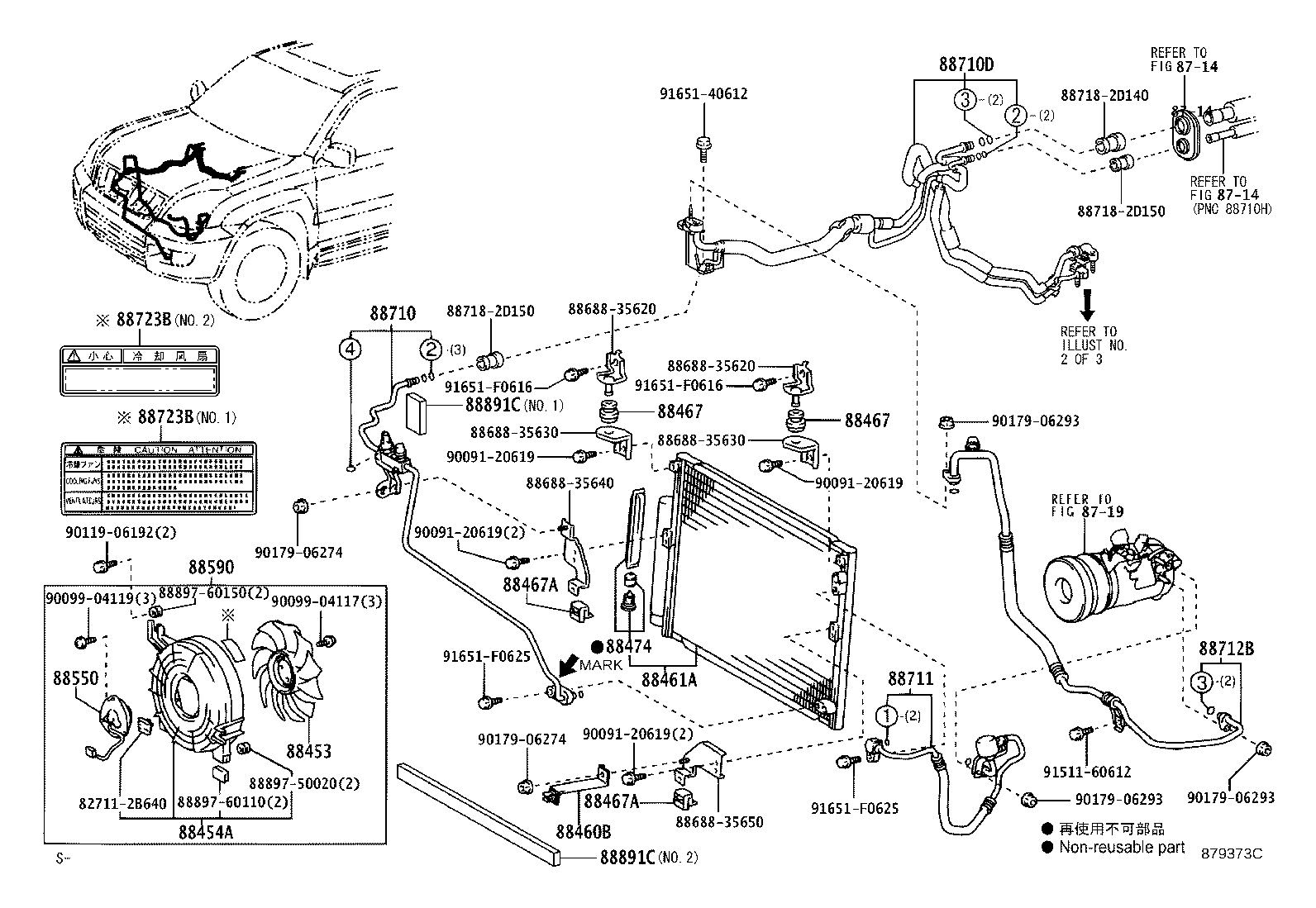

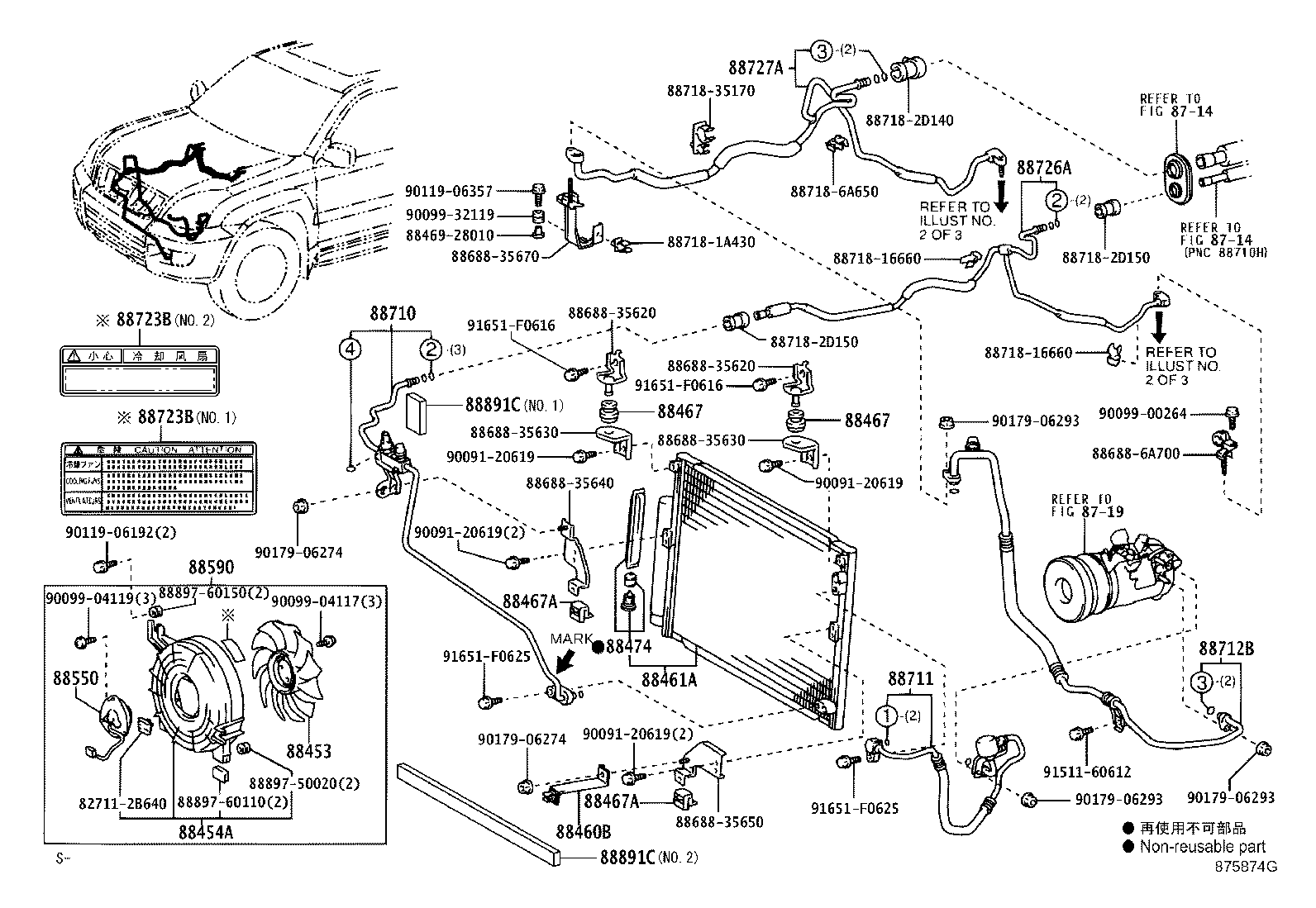

Figure 875873D 875873D 2002-11 → — Figure 875874G 875874G 2002-11 → 2006-01 Figure 879373C 879373C 2006-01 → — Figure 876414C 876414C 2002-11 → — Figure 875787B 875787B 2002-11 → —

Part groups

PNCDescription
88453 Fan, Cooling (FOR CONDENSER)
88454A Shroud, Fan
88460B Bracket, Cooler Condenser, NO.1
88461A Core, Cooler Condenser
88467 Cushion, Cooler Condenser, NO.1
88467A Cushion, Cooler Condenser, NO.2
88474 Dryer, Cooler
88550 Motor Assy, Blower (FOR CONDENSER)
88590 Blower Assy, W/Shroud
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88710 Tube Assy, Air Conditioner
88710D Tube Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712B Hose, Cooler Refrigerant Suction
88716C Pipe, Cooler Refrigerant Liquid, C
88717C Pipe, Cooler Refrigerant Suction, C
88723B Label, Cooler Service Caution
88726A Pipe, Cooler Refrigerant Liquid, A
88726C Pipe, Cooler Refrigerant Liquid, C
88726D Pipe, Cooler Refrigerant Liquid, D
88727A Pipe, Cooler Refrigerant Suction, A
88727C Pipe, Cooler Refrigerant Suction, C
88727D Pipe, Cooler Refrigerant Suction, D
88891C Packing C (FOR COOLER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
