Toyota Land Cruiser
2024-02 → present · chassis TJH250 · catalogue 781490 · United States
Supported model
Data version 2024-02

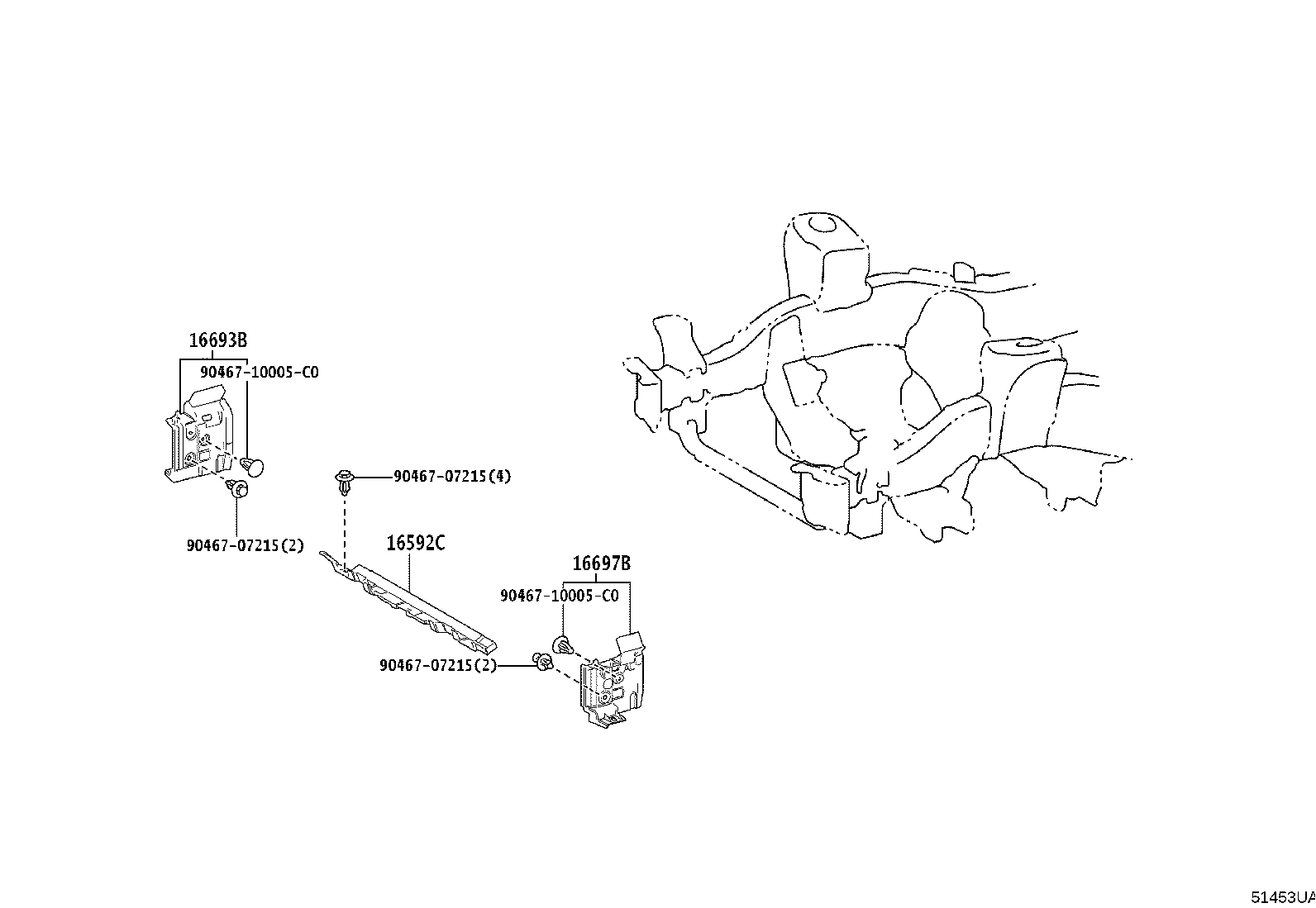

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16592C — Guide, Radiator Air, NO.3 | ||||
| 16592-25070 |
Guide, Radiator Air, NO.3
2024-02 → —
|
T24 TJH250 | — | |
| 16693B — Plate, Radiator Side Air Guide, Rear RH | ||||
| 16693-11010 |
Plate, Radiator Side Air Guide, Rear RH
2024-02 → —
|
T24 TJH250 | — | |
| 16697B — Plate, Radiator Side Air Guide, Rear LH | ||||
| 16697-11010 |
Plate, Radiator Side Air Guide, Rear LH
2024-02 → —
|
T24 TJH250 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
