Radiator & Water Outlet

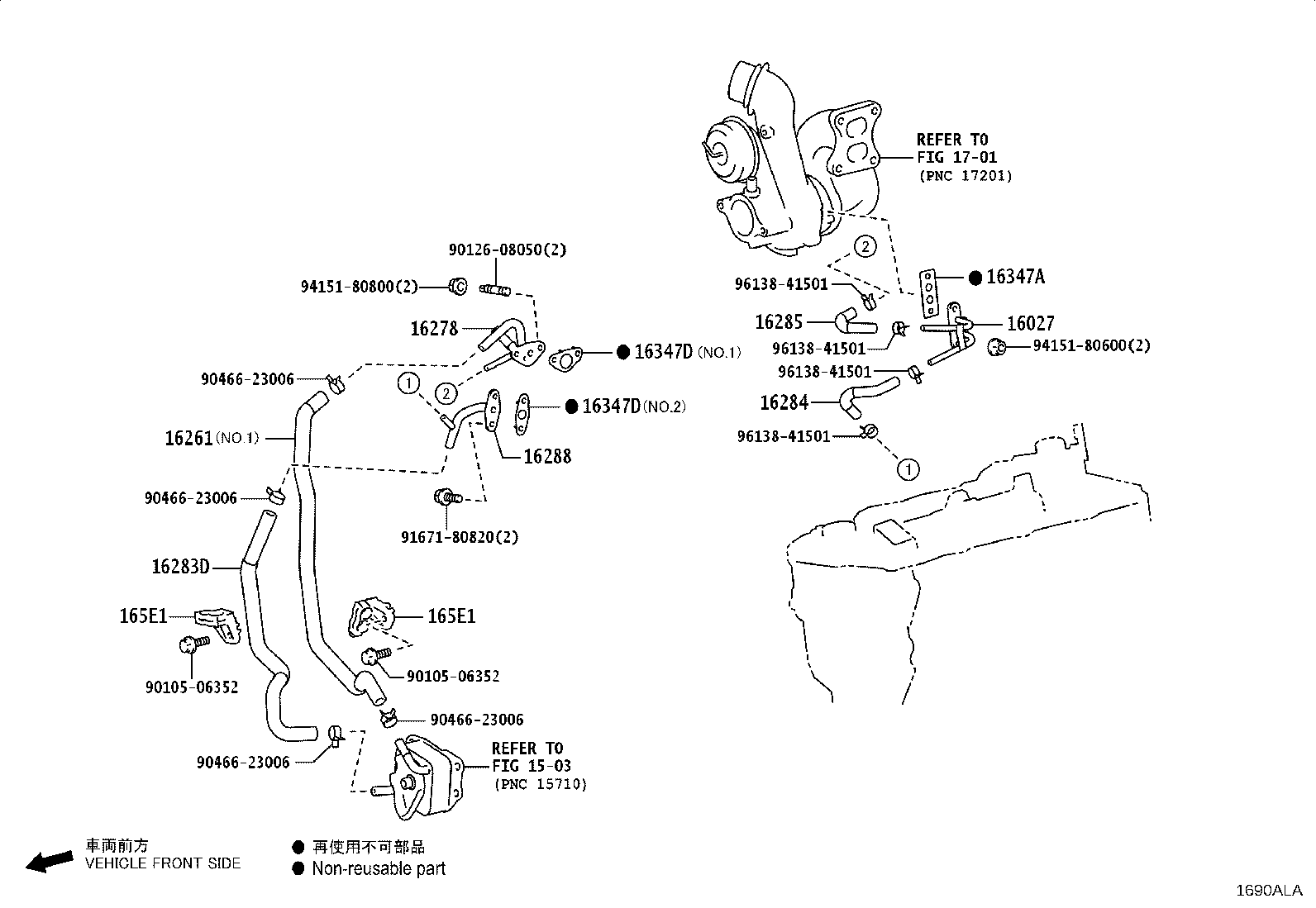

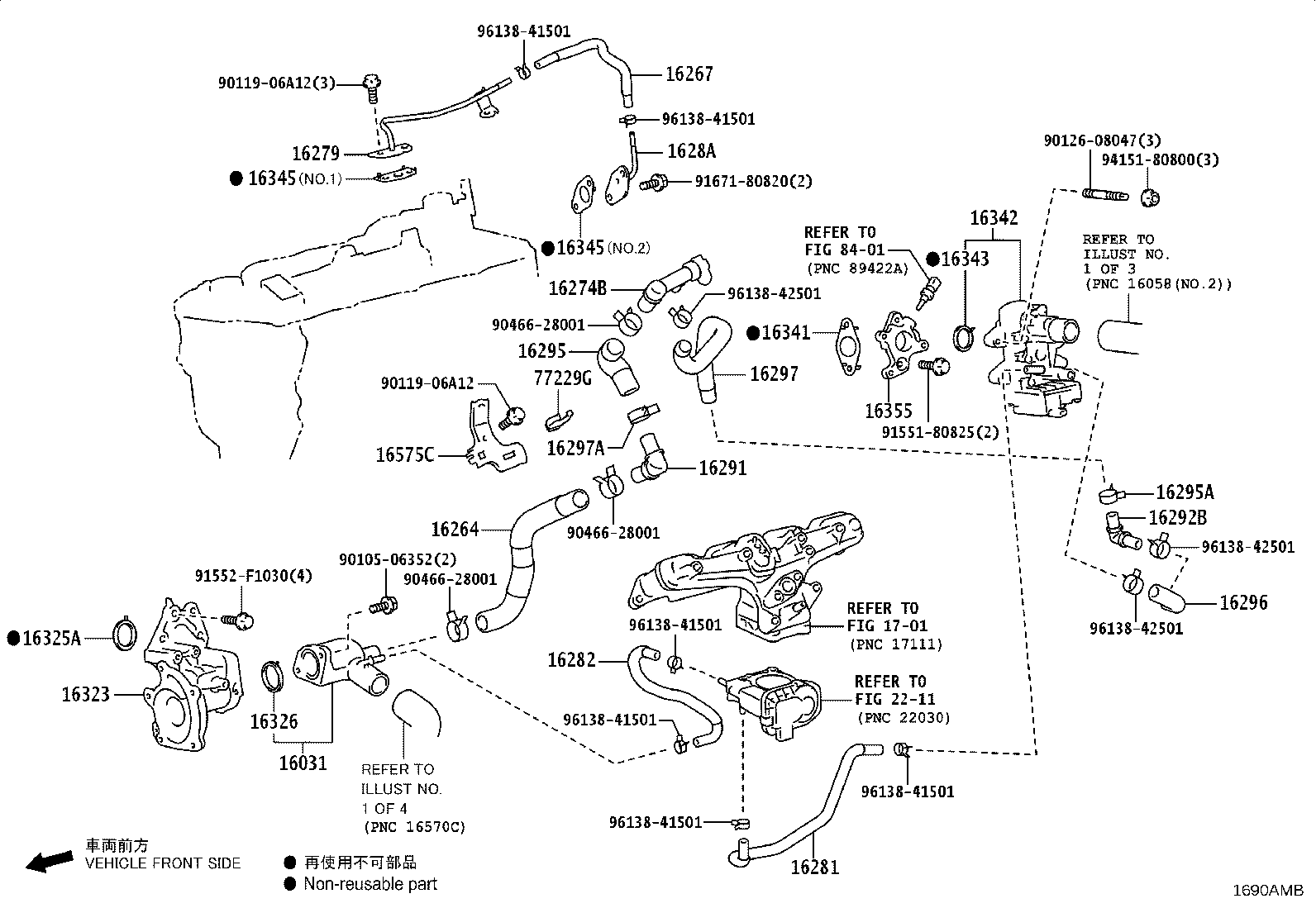

59 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 16027 | Pipe Sub-assy, Turbo Water, NO.1 |
| 16031 | Water Inlet Sub-assy, W/Thermostat |
| 16058 | Hose Sub-assy, Radiator, NO.2 |
| 16261 | Hose, Water By-pass |
| 16261H | Clip(FOR WATER BY-PASS HOSE NO.1) |
| 16264 | Hose, Water By-pass, NO.2 |
| 16264D | Hose, Water By-pass, NO.2 |
| 16267 | Hose, Water By-pass, NO.3 |
| 16267K | Hose, Water By-pass, NO.3 |
| 16274B | Connector, Heater Return Hose |
| 16278 | Pipe, Water By-pass, NO.2 |
| 16279 | Pipe, Water By-pass, NO.3 |
| 16281 | Hose, Water By-pass, NO.4 |
| 16281N | Hose, Water By-pass, NO.4 |
| 16282 | Hose, Water By-pass, NO.5 |
| 16283D | Hose, Water By-pass, NO.6 |
| 16284 | Hose, Turbo Water, NO.1 |
| 16285 | Hose, Turbo Water, NO.2 |
| 16288 | Pipe, Water By-pass, NO.4 |
| 16288C | Clip(FOR WATER BY-PASS PIPE NO.4) |
| 1628A | Pipe, Water By-pass, NO.6 |
| 16291 | Joint, Water Hose |
| 16292B | Connector, Water By-pass Hose |
| 16295 | Hose, Water By-pass, NO.7 |
| 16295A | Clip(FOR WATER BY-PASS HOSE NO.7) |
| 16296 | Hose, Water By-pass, NO.8 |
| 16297 | Hose, Water By-pass, NO.9 |
| 16297A | Clip(FOR WATER BY-PASS HOSE NO.9) |
| 16323 | Housing, Water Inlet |
| 16325A | Gasket, Water Inlet Housing |
| 16326 | Gasket, Water Inlet Housing, NO.2 |
| 16341 | Gasket, Water Outlet |
| 16342 | Valve, Water Control |
| 16343 | Gasket, Water Outlet Housing |
| 16345 | Gasket, Water Outlet Pipe |
| 16347A | Gasket(FOR TURBO WATER PIPE) |
| 16347D | Gasket, Water By-pass |
| 16355 | Joint, Water By-pass, Front |
| 16360A | Fan Assy, W/Motor |
| 16400 | Radiator Assy |
| 16400B | Plug, Radiator Drain Cock |
| 16400F | Packing(FOR RADIATOR DRAIN COCK) |
| 16455 | Bolt, Radiator Side Support Plate |
| 16470M | Grommet |
| 16475A | Cap, Reserve Tank |
| 164A2 | Tank, Reserve Sealed W/O Cap |
| 16570C | Pipe Assy, Radiator, NO.1 |
| 16570D | Pipe Assy, Radiator, NO.2 |
| 16572D | Hose, Radiator, NO.2 |
| 16573C | Clamp OR Clip, Radiator Hose, NO.3 |
| 16575 | Hose, Radiator, NO.5 |
| 16575C | Bracket, Water Hose Clamp, NO.1 |
| 16577C | Pipe, Radiator |
| 16578 | Pipe, Radiator, NO.2 |
| 16579 | Pipe, Radiator, NO.3 |
| 16581C | Clamp, Hose(FOR RADIATOR HOSE NO.2) |
| 165E1 | Clamp, Water By-pass Pipe, NO.1 |
| 77229G | Clamp, Breather Tube |
| 82090D | Wire Assy, Extension |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
