Toyota Land Cruiser
2024-02 → present · chassis TJH250 · catalogue 781490 · United States
Supported model
Data version 2024-02
Manifold
21 part groups · 3 illustrations
Part groups

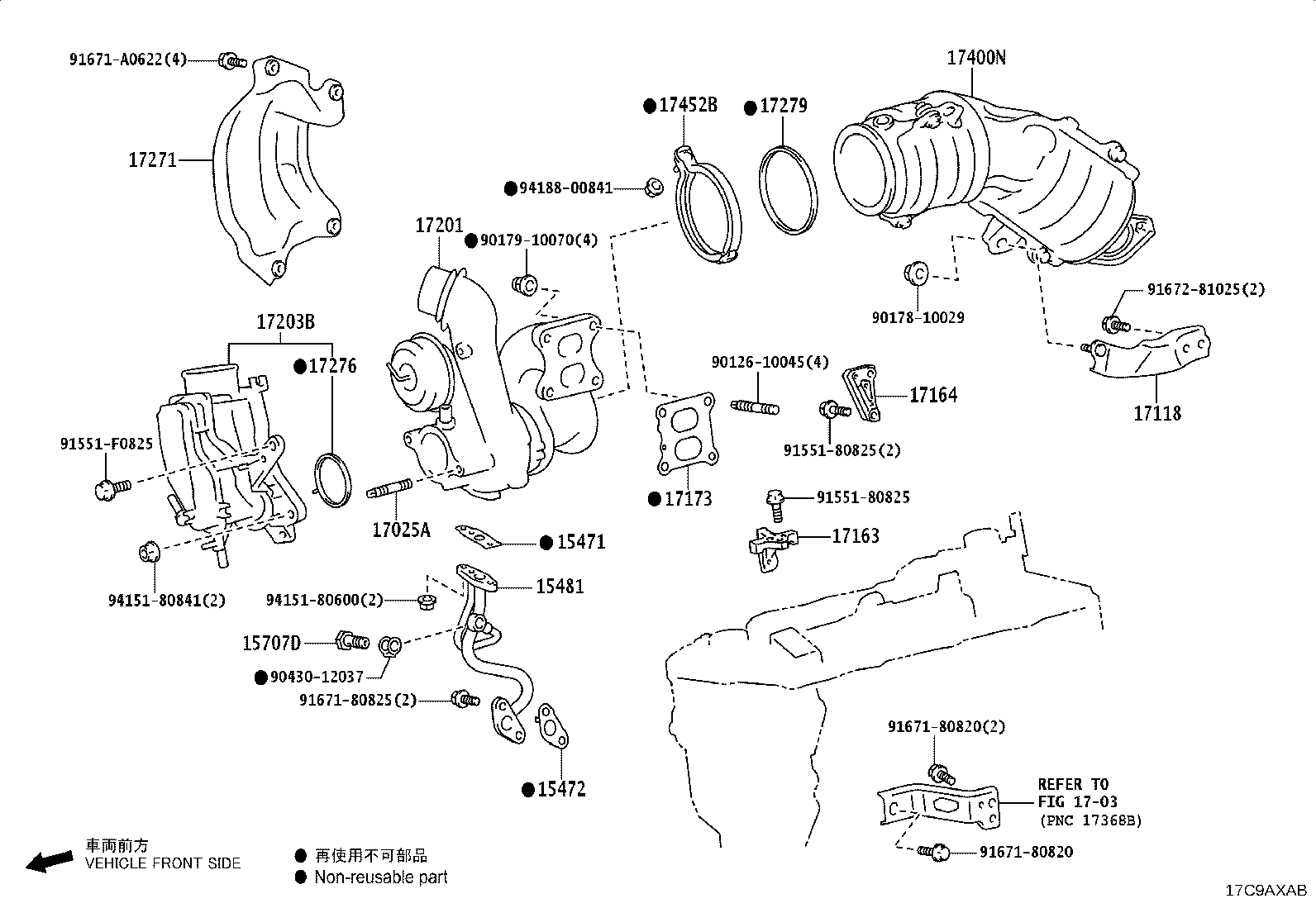

| PNC | Description |
|---|---|

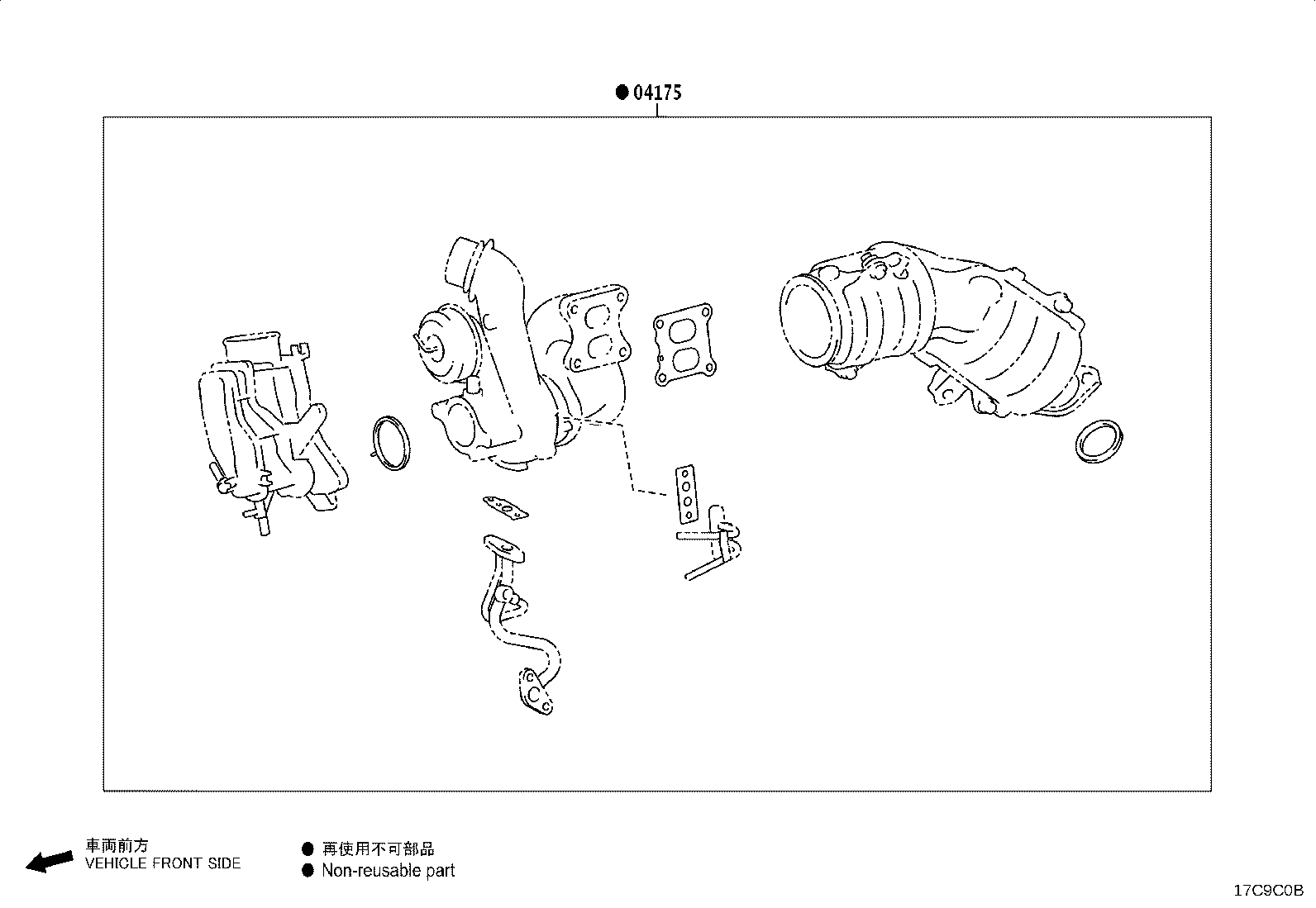

| 04175 | Gasket Kit, Turbocharger |
| 15471 | Gasket, Turbo Oil Inlet |
| 15472 | Gasket, Turbo Oil Outlet, NO.1 |
| 15481 | Pipe, Turbo Oil, NO.1 |
| 15707D | Bolt, Union(FOR OIL PIPE) |
| 17025A | Bolt, Stud(FOR TURBINE HOUSING) |
| 17111 | Manifold, Intake |
| 17118 | Stay, Manifold |
| 17138B | Stay, Intake Manifold |
| 17163 | Bracket, Heat Insulator, NO.1 |
| 17164 | Bracket, Heat Insulator, NO.2 |
| 17173 | Gasket, Exhaust Manifold TO Head |
| 17177 | Gasket, Intake Manifold TO Head, NO.1 |
| 17201 | Turbocharger Sub-assy |
| 17203B | Elbow Sub-assy, Compressor Inlet |
| 17271 | Insulator, Turbo, NO.1 |
| 17276 | Gasket, Compressor Inlet |
| 17279 | Gasket, Turbine Outlet Elbow |
| 17400N | Converter Assy, W/Catalyst |
| 17452B | Clamp, Exhaust Pipe |
| 22271A | Gasket, Throttle Body |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
