Toyota Land Cruiser

2024-02 → present · chassis TJH250 · catalogue 781490 · United States

Supported model Data version 2024-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

7 part groups · 2 illustrations

Illustrations

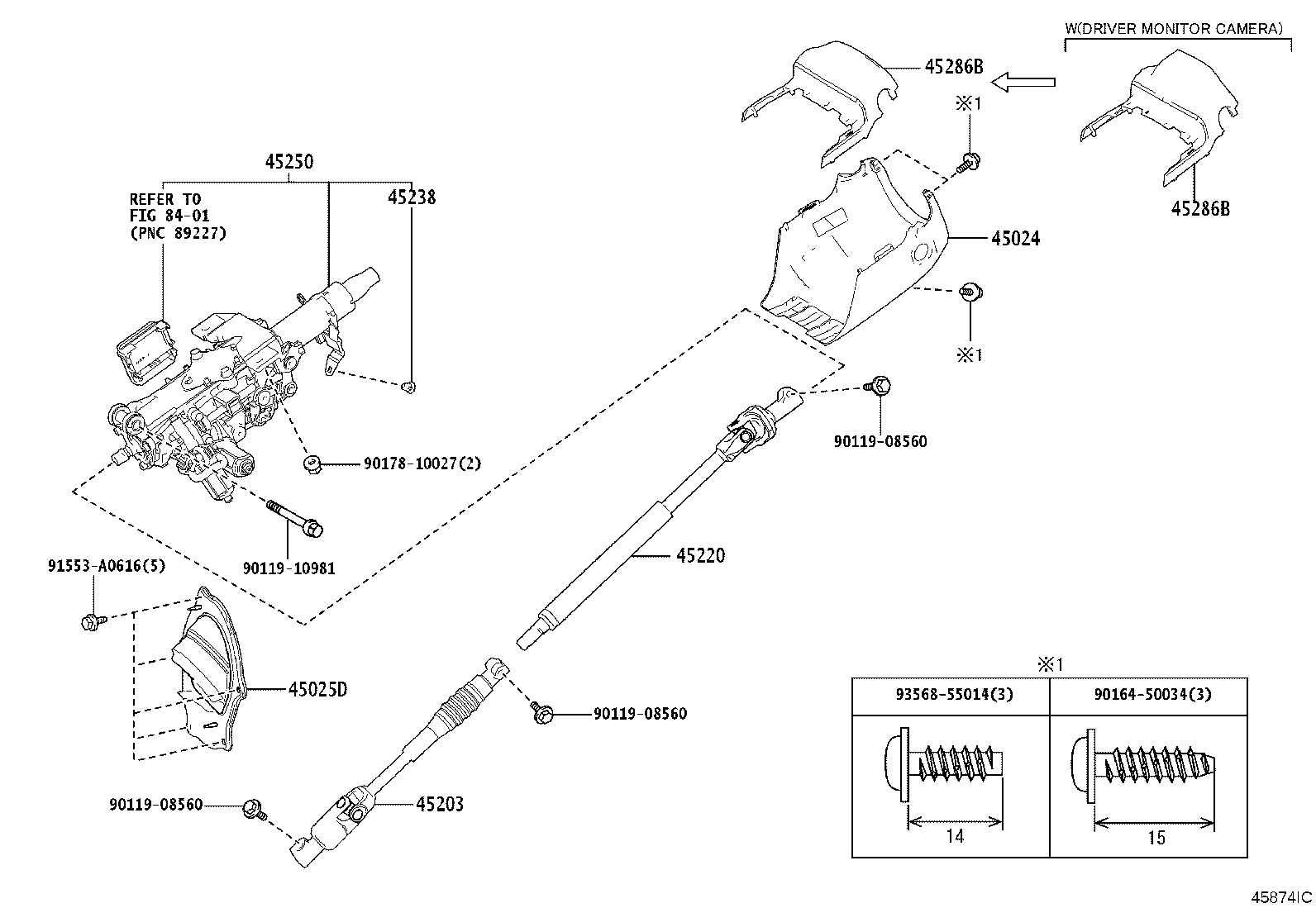

Figure 45874HA 45874HA 2024-02 → — Figure 45874IC 45874IC 2024-02 → —

Part groups

PNCDescription
45024 Cover Sub-assy, Steering Column, Lower
45025D Cover Sub-assy, Steering Column Hole, NO.1
45203 Shaft Sub-assy, Steering Intermediate, NO.2
45220 Shaft Assy, Steering Intermediate
45238 Clamp, Bolt(FOR STEERING FLEXIBLE COUPLING)
45250 Column Assy, Steering
45286B Cover, Steering Column, Upr
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
