Toyota Land Cruiser

2024-02 → present · chassis TJH250 · catalogue 781490 · United States

Supported model Data version 2024-02

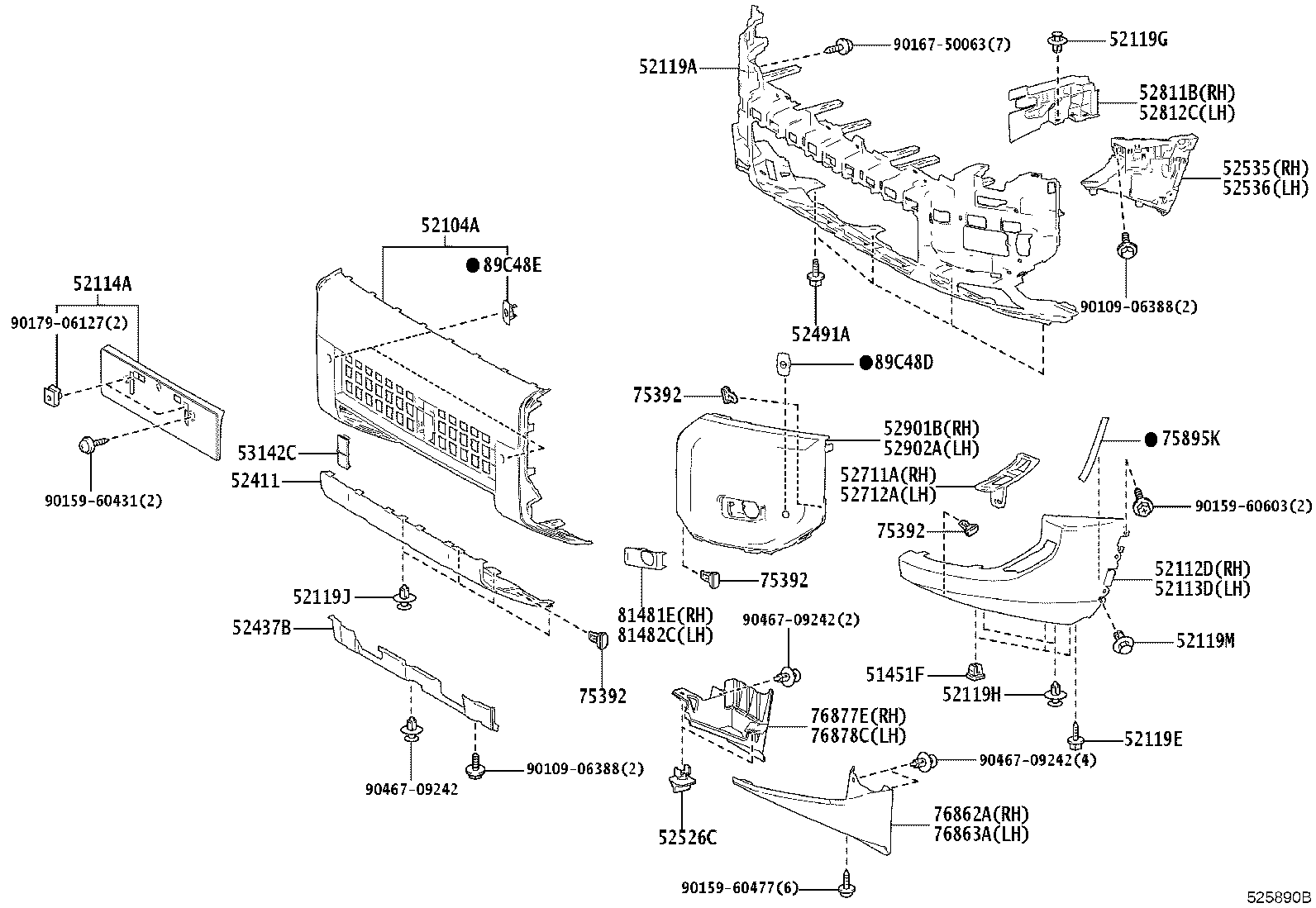

Front Bumper & Bumper Stay

44 part groups · 2 illustrations

PNC	Description
51451F	Grommet, NO.1
52011A	Arm Sub-assy, Front Bumper, RH
52012A	Arm Sub-assy, Front Bumper, LH
52021	Reinforcement Sub-assy, Front Bumper
52104A	Bumper Sub-assy, Front Center
52112D	Extension, Front Bumper, RH
52113D	Extension, Front Bumper, LH
52114A	Bracket, Front Bumper Extension Mounting
52119A	Cover, Front Bumper
52119E	Screw, NO.2
52119G	Clip, NO.1
52119H	Clip, NO.2
52119J	Clip, NO.3
52119M	Clip, NO.4
52147B	Bracket, Front Bumper Mounting
52411	Guard, Front Bumper
52437B	Cover, Front Bumper Guard Base
52491A	Bolt, Bumper Pad
52521	Retainer, Front Bumper, Upper Center
52526C	Retainer, Front Bumper, Lower
52533	Bracket, Front Bumper Retainer, NO.1
52534	Bracket, Front Bumper Retainer, NO.2
52535	Retainer, Front Bumper Side, RH
52536	Retainer, Front Bumper Side, LH
52611	Absorber, Front Bumper Energy
52611B	Clip, Front Bumper Energy Absorber
52618	Absorber, Front Bumper, Lower
52711A	Garnish, Front Bumper
52712A	Garnish, Front Bumper, LH
52811B	Duct, Cool Air Intake, NO.1
52812C	Duct, Cool Air Intake, NO.2
52901B	Bumper Sub-assy, Side, RH
52902A	Bumper Sub-assy, Side, LH
53142C	Garnish, Radiator Grille, NO.2
75392	Retainer, Outside Moulding
75895K	Tape, Moulding, NO.1
76862A	Bracket, Front Spoiler, RH NO.1
76863A	Bracket, Front Spoiler, LH NO.1
76877E	Protector, Front Spoiler Side, RH
76878C	Protector, Front Spoiler Side, LH
81481E	Cover, Fog Lamp, RH
81482C	Cover, Fog Lamp, LH
89C48D	Retainer, Ultrasonic Sensor, Front Corner
89C48E	Retainer, Ultrasonic Sensor, Front Center

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
