Toyota Land Cruiser
2024-02 → present · chassis TJH250 · catalogue 781490 · United States
Supported model
Data version 2024-02

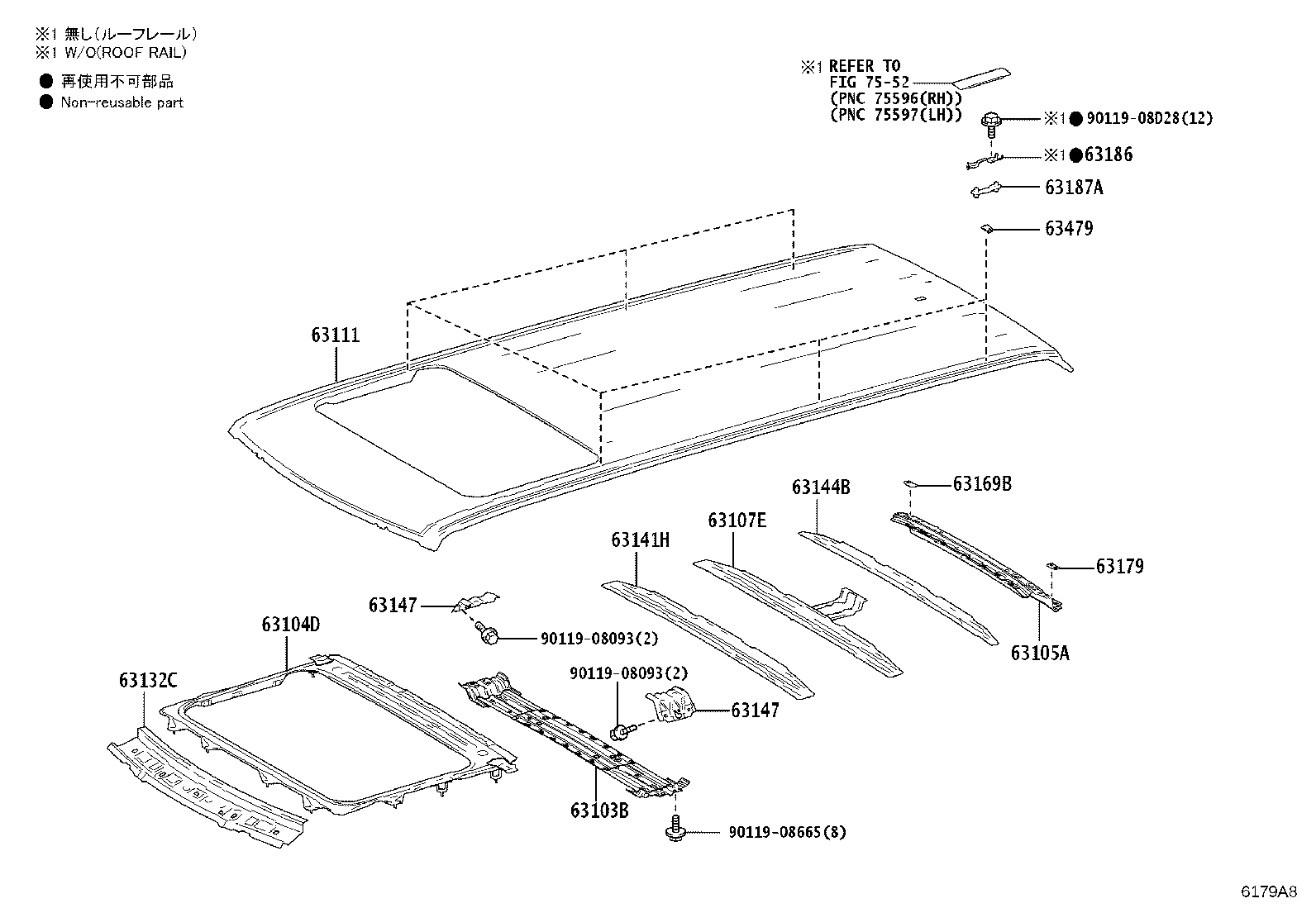

Roof Panel & Back Panel
49 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 63102A | Panel Sub-assy, Windshield Header |
| 63103B | Reinforcement Sub-assy, Roof Panel, Center |
| 63104D | Reinforcement Sub-assy, Roof Panel, NO.2 |
| 63105A | Frame Sub-assy, Back Door Opening |
| 63107E | Reinforcement Sub-assy, Roof Panel, NO.5 |
| 63111 | Panel, Roof |
| 63124 | Reinforcement, Roof Panel, NO.1 |
| 63132C | Panel, Windshield Header, Inner |
| 63141H | Reinforcement, Roof Panel, Center |
| 63144B | Reinforcement, Roof Panel, NO.4 |
| 63146D | Reinforcement, Roof Panel, NO.6 |
| 63147 | Bracket, Roof Panel Reinforcement |
| 63169B | Plate, Roof Panel Reinforcement, RH |
| 63179 | Plate, Roof Panel Reinforcement, LH |
| 63186 | Bracket, Roof Rack, Front |
| 63187A | Bracket, Roof Rack, Rear |

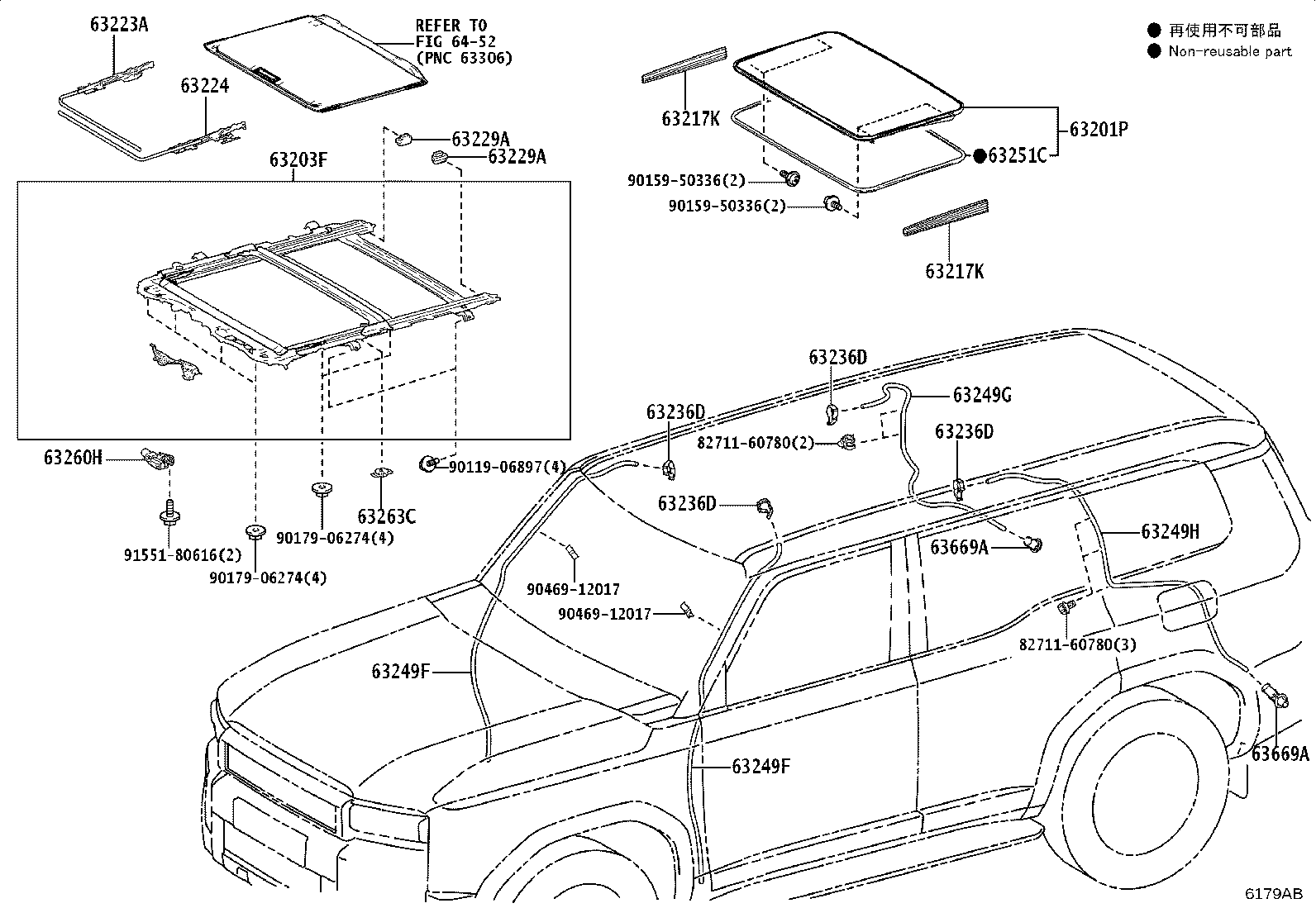

| 63201P | Glass Sub-assy, Sliding Roof |
| 63203F | Housing Sub-assy, Sliding Roof |
| 63217K | Garnish, Sliding Roof Side, RH |
| 63223A | Cable, Sliding Roof Drive, RH |
| 63224 | Cable, Sliding Roof Drive, LH |
| 63229A | Stopper, Sliding Roof Sunshade |
| 63230A | Bolt Assy, Removable Roof |
| 63236D | Clamp, Sliding Roof Drain Hose |
| 63249F | Hose, Sliding Roof Drain |
| 63249G | Hose, Sliding Roof Drain |
| 63249H | Hose, Sliding Roof Drain |
| 63251C | Weatherstrip, Removable Roof |
| 63260H | Gear Assy, Sliding Roof Drive |
| 63263C | Plate, Sliding Roof Lock Catch, RH |
| 63437A | Seal, Roof Carrier, NO.2 |

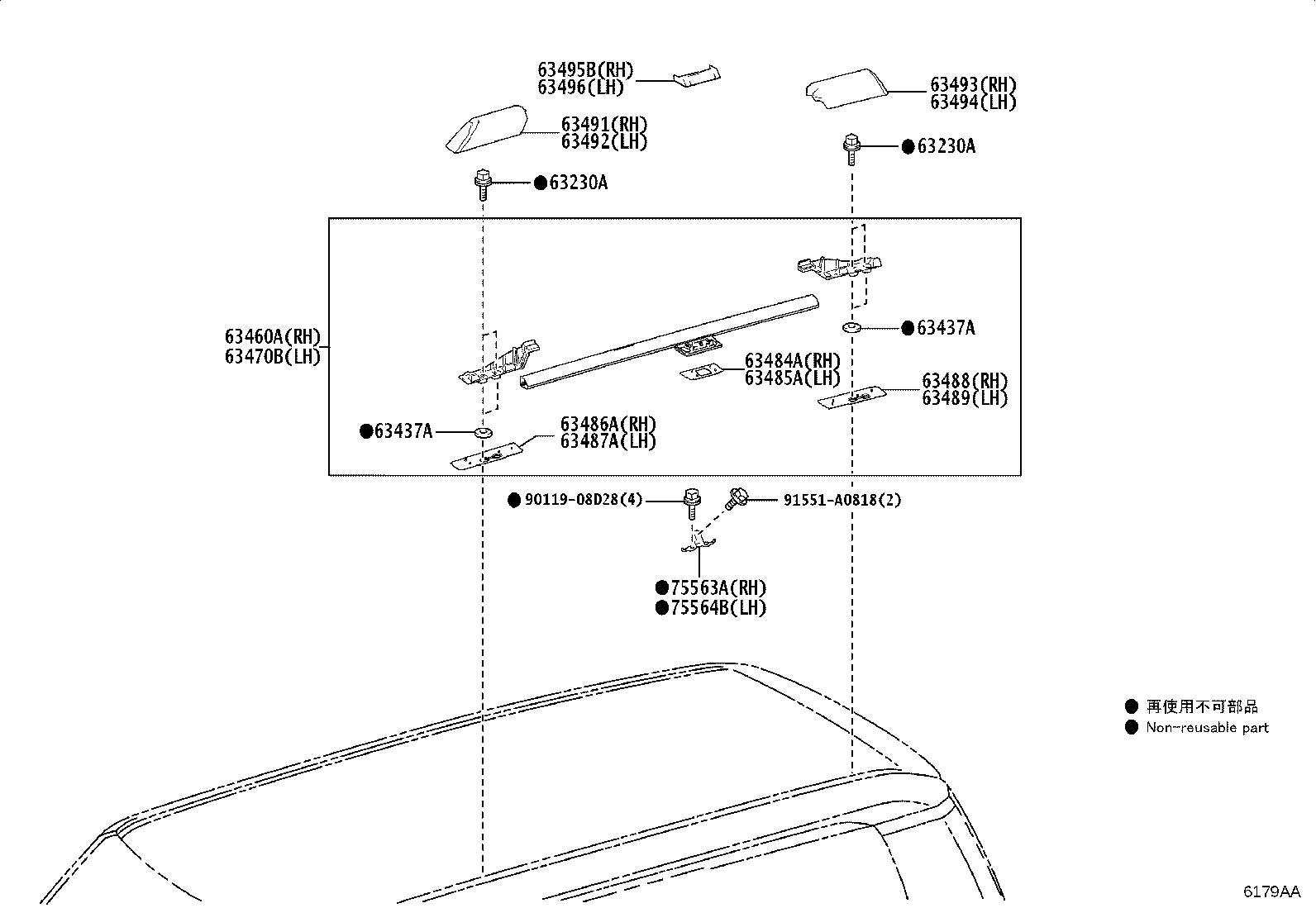

| 63460A | Rack Assy, Roof, RH |
| 63470B | Rack Assy, Roof, LH |
| 63479 | Retainer, Roof Inner Rack |
| 63484A | Cushion, Roof Rack Leg, Center RH |
| 63485A | Cushion, Roof Rack Leg, Center LH |
| 63486A | Cushion, Roof Rack Leg, Front RH |
| 63487A | Cushion, Roof Rack Leg, Front LH |
| 63488 | Cushion, Roof Rack Leg, Rear RH |
| 63489 | Cushion, Roof Rack Leg, Rear LH |
| 63491 | Cover, Roof Rack Leg, Front RH |
| 63492 | Cover, Roof Rack Leg, Front LH |
| 63493 | Cover, Roof Rack Leg, Rear RH |
| 63494 | Cover, Roof Rack Leg, Rear LH |
| 63495B | Cover, Roof Rack Leg, Center RH |
| 63496 | Cover, Roof Rack Leg, Center LH |
| 63669A | Grommet, Sliding Roof Drain |
| 75563A | Retainer, Roof Drip Side Finish Moulding, NO.1 |
| 75564B | Retainer, Roof Drip Side Finish Moulding, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
