Toyota Land Cruiser

2024-02 → present · chassis TJH250 · catalogue 781490 · United States

Supported model Data version 2024-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

12 part groups · 2 illustrations

Illustrations

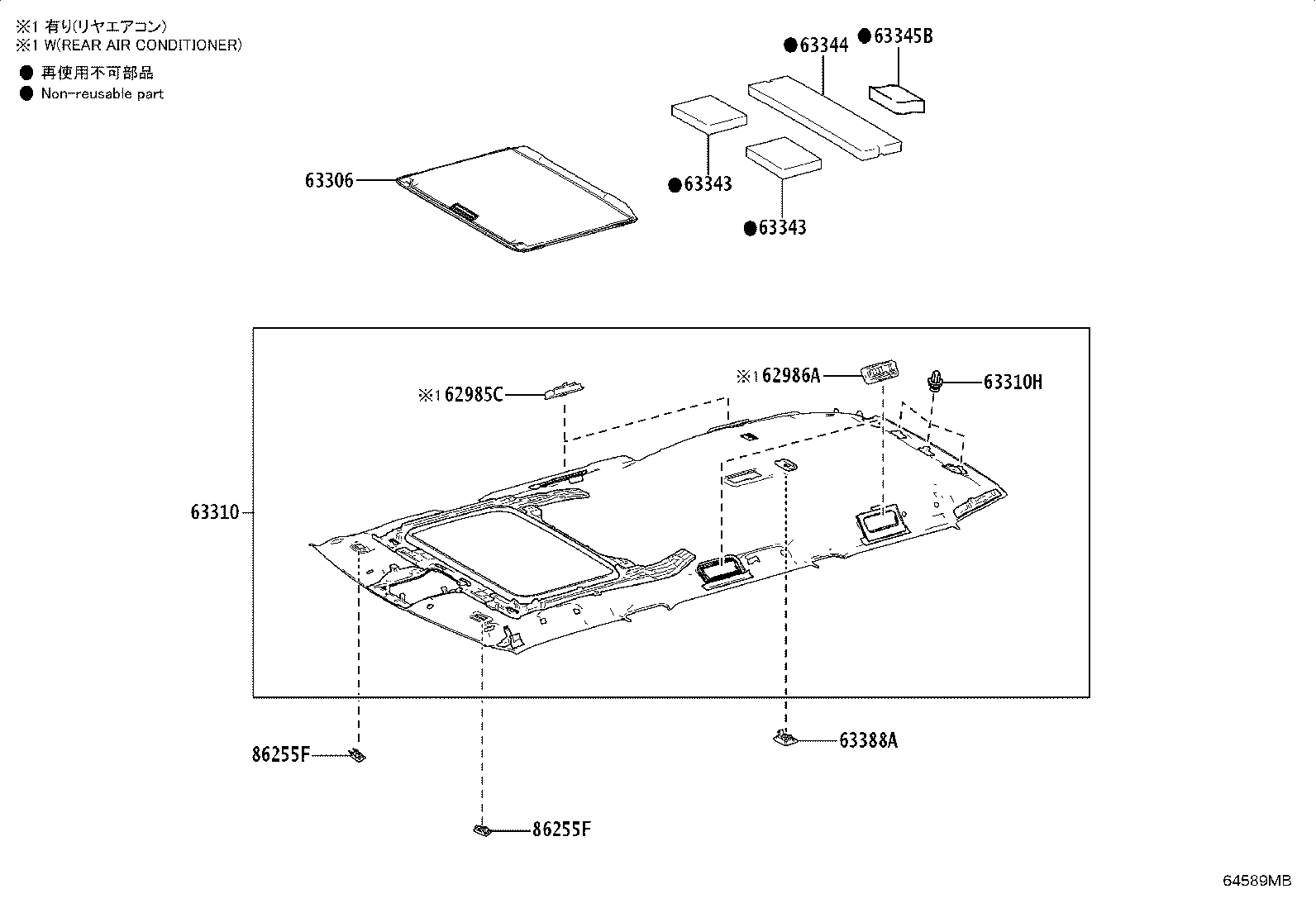

Figure 64589LB 64589LB 2024-02 → — Figure 64589MB 64589MB 2024-02 → —

Part groups

PNCDescription
62985C Register, Roof Side Air Outlet, RH
62986A Register, Roof Side Air Outlet, LH
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310H Clip(FOR ROOF HEADLINING)
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63343 Pad, Roof Silencer, NO.3
63344 Pad, Roof Silencer, NO.4
63345B Pad, Roof Silencer, Center
63388A Cover, Roof Headlining Holder
86255F Case, Microphone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
