Toyota Land Cruiser
2024-02 → present · chassis TJH250 · catalogue 781490 · United States
Supported model
Data version 2024-02

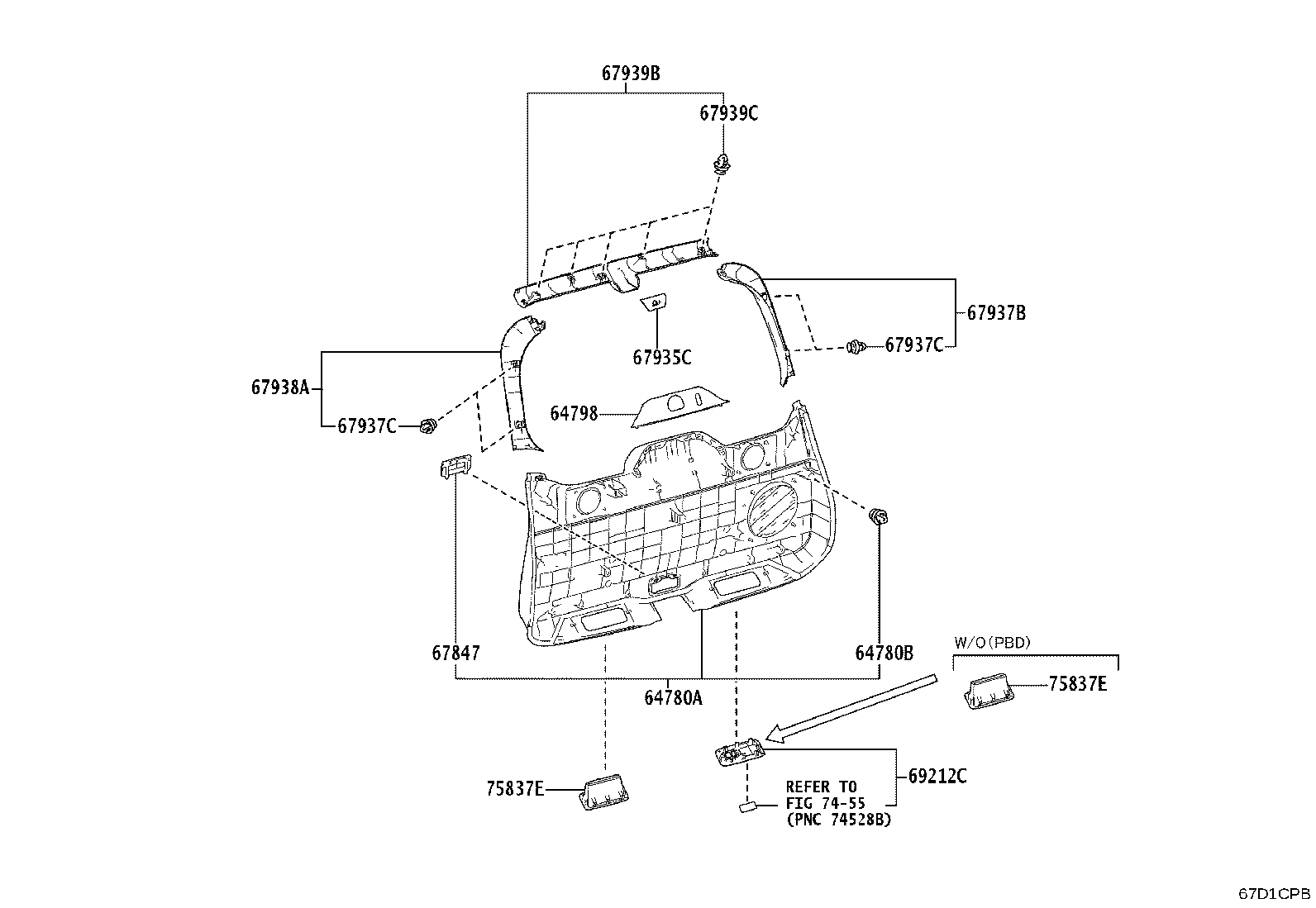

Back Door Panel & Glass
48 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62735P | Retainer, Back Door Window Hinge |
| 64780A | Panel Assy, Back Door Trim |
| 64780B | Clip(FOR BACK DOOR TRIM PANEL) |
| 64798 | Cover, Back Door Lock |
| 64818B | Spacer, Back Door Glass, NO.1 |
| 67005 | Panel Sub-assy, Back Door |
| 67005B | Cushion(FOR BACK DOOR PANEL) |
| 67398B | Guide, Back Door Wire Harness, NO.1 |
| 67398C | Guide, Back Door Wire Harness, NO.2 |
| 67398D | Guide, Back Door Wire Harness, NO.3 |
| 67765A | Cover, Back Door Service Hole, NO.1 |
| 67766 | Cover, Back Door Service Hole, NO.2 |
| 67767B | Cover, Back Door Service Hole, NO.3 |
| 67768C | Cover, Back Door Service Hole, NO.4 |
| 67837L | Seal, Door Dust Proof |
| 67847 | Cover, Back Door Service Hole, RH |
| 67881A | Weatherstrip, Back Door |
| 67882C | Weatherstrip, Back Door, NO.2 |
| 67891A | Seal, Back Door |
| 67891C | Seal, Back Door |
| 67935C | Garnish, Back Door |
| 67937B | Garnish, Back Door Side, RH |
| 67937C | Clip(FOR BACK DOOR SIDE GARNISH) |
| 67938A | Garnish, Back Door Side, LH |
| 67939B | Garnish, Back Door, Center |
| 67939C | Clip(FOR BACK DOOR CENTER GARNISH) |
| 68131 | Glass, Back Door |
| 68825A | Plate, Back Door Hinge, RH |
| 68826 | Plate, Back Door Hinge, LH |
| 69212C | Handle, Back Door Inside |
| 75129C | Cushion, Rear Licence Plate |
| 75573K | Moulding, Back Window, Outside RH |
| 75574B | Moulding, Back Window, Outside LH |
| 75837E | Cover, Back Door Finish |
| 76801 | Garnish Sub-assy, Back Door, Outside |
| 76804 | Garnish Sub-assy, Back Door, Outside Upper LH |
| 76806 | Garnish Sub-assy, Back Door, Outside Lower LH |
| 76811A | Garnish, Back Door, Outside |
| 76812A | Garnish, Back Door, Outside NO.2 |
| 76815C | Moulding, Back Door Outside Garnish, Lwr RH |
| 76816B | Moulding, Back Door Outside Garnish, Lwr LH |
| 76817 | Clip, Back Door Outside Garnish |
| 76821C | Protector, Back Door Garnish Side, RH |
| 76822D | Protector, Back Door Garnish Side, LH |
| 76825 | Protector, Back Door Outside Garnish |
| 76825C | Protector, Back Door Outside Garnish |
| 87912B | Protector, Outer Mirror |
| 89437V | Cover, Sensor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
