Toyota Land Cruiser

2024-02 → present · chassis TJH250 · catalogue 781490 · United States

Supported model Data version 2024-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

78 part groups · 8 illustrations

Illustrations

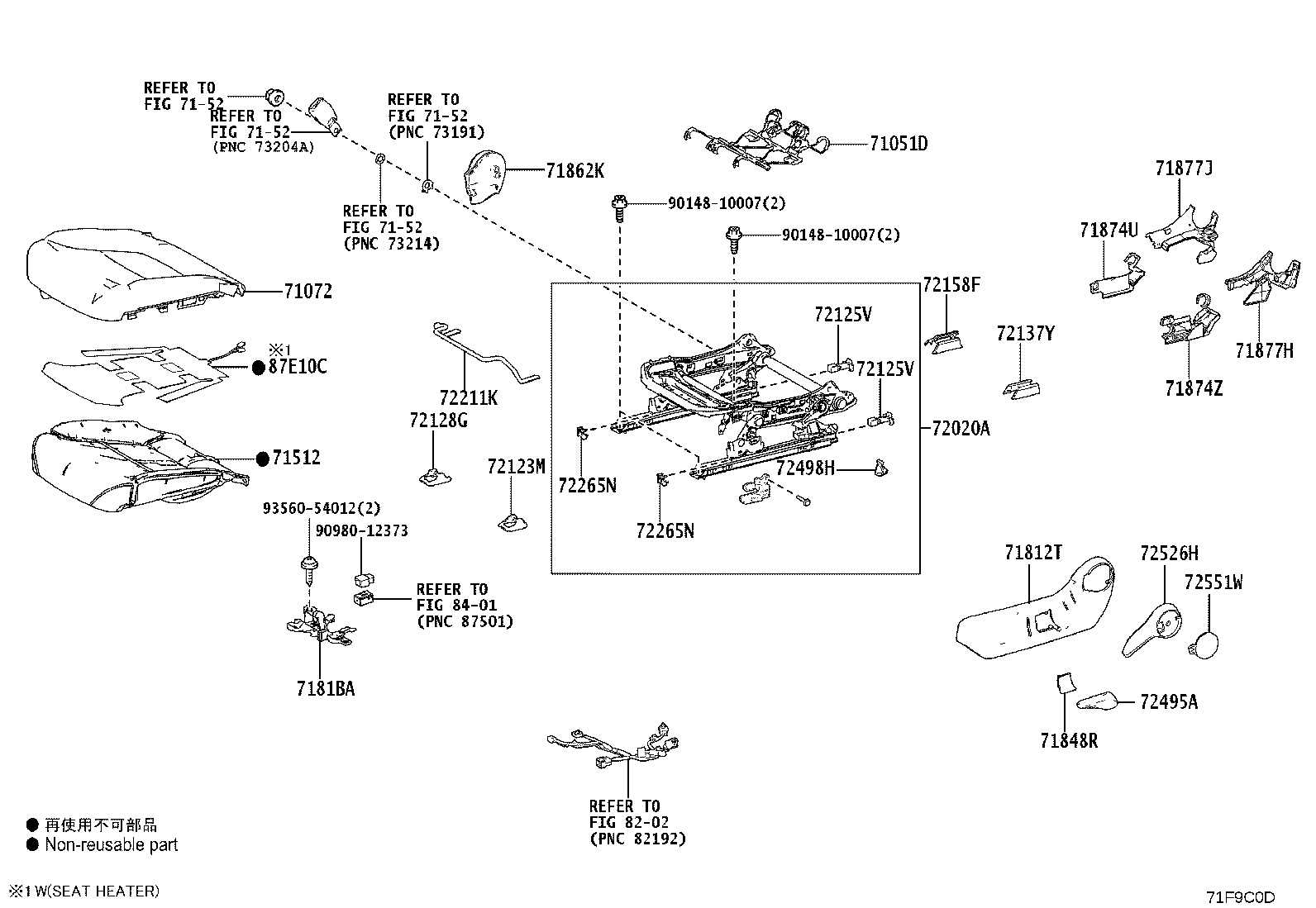

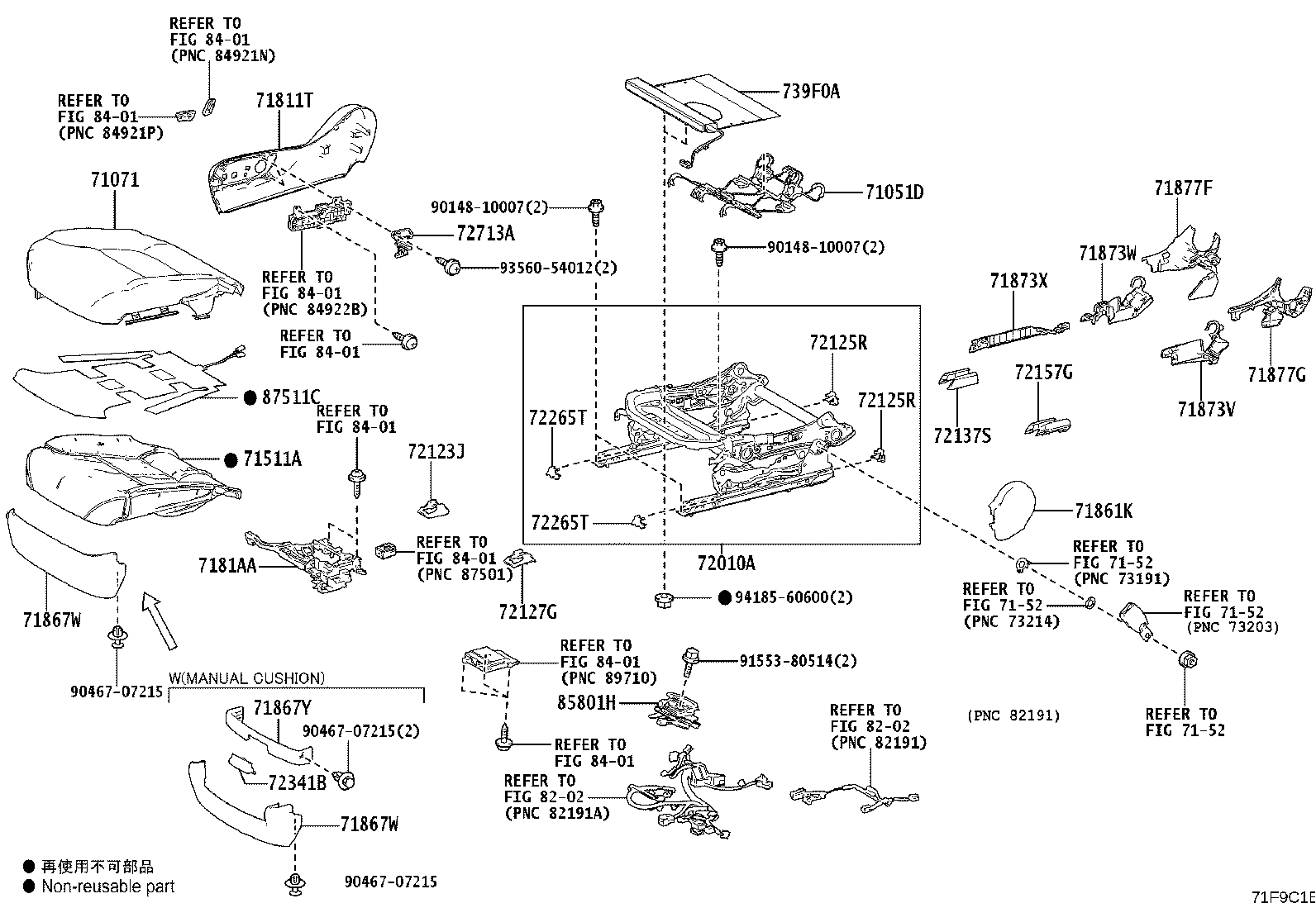

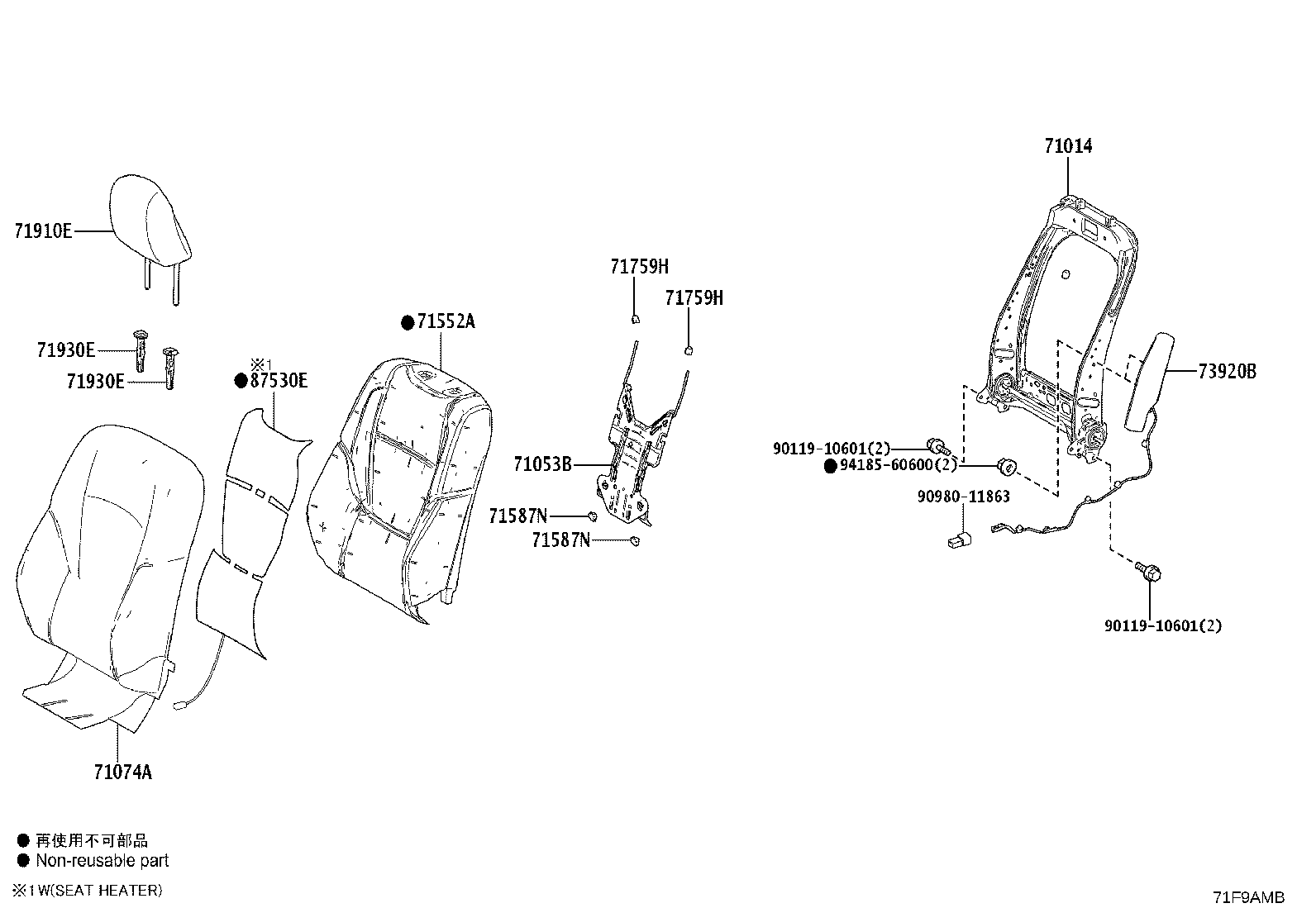

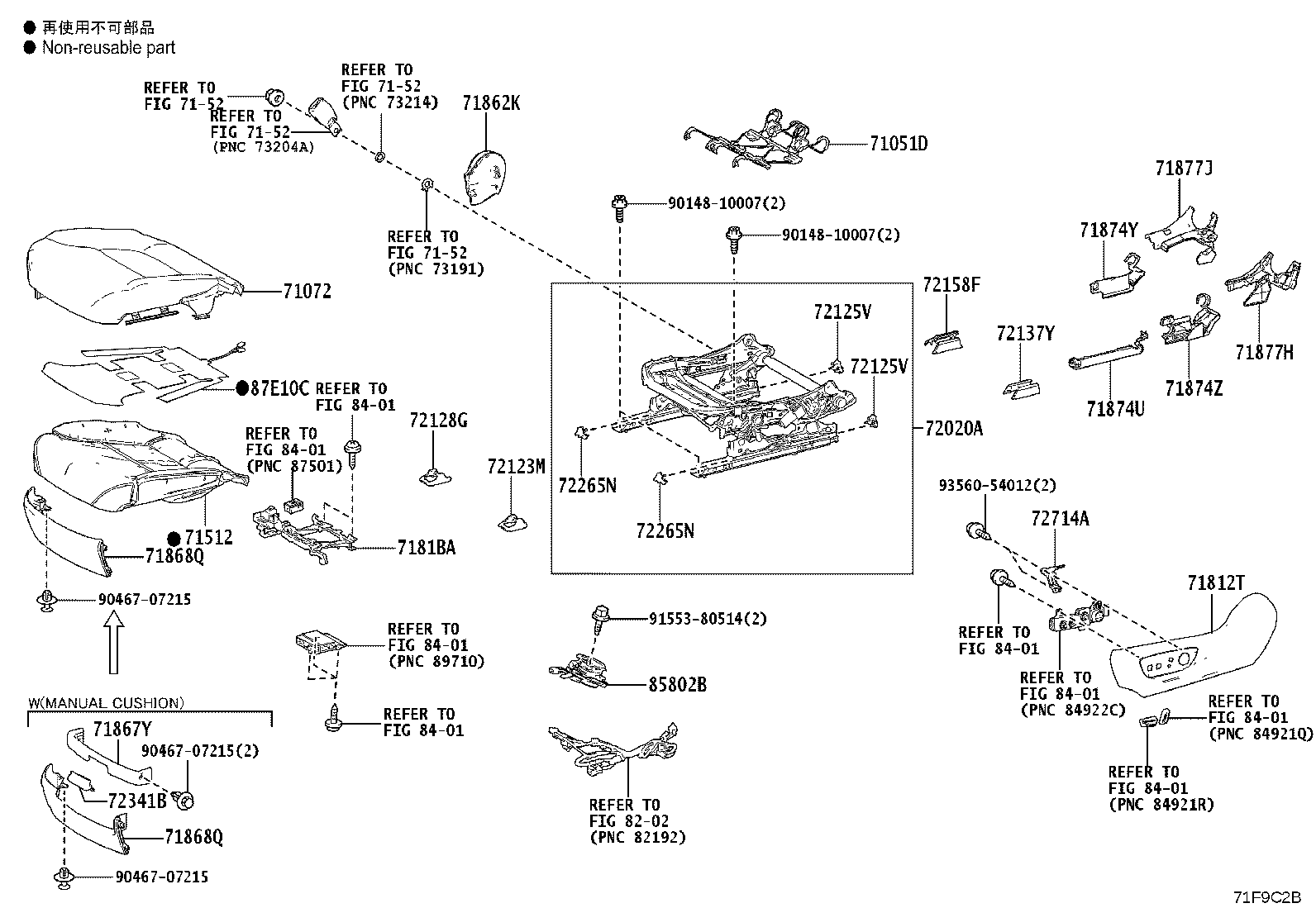

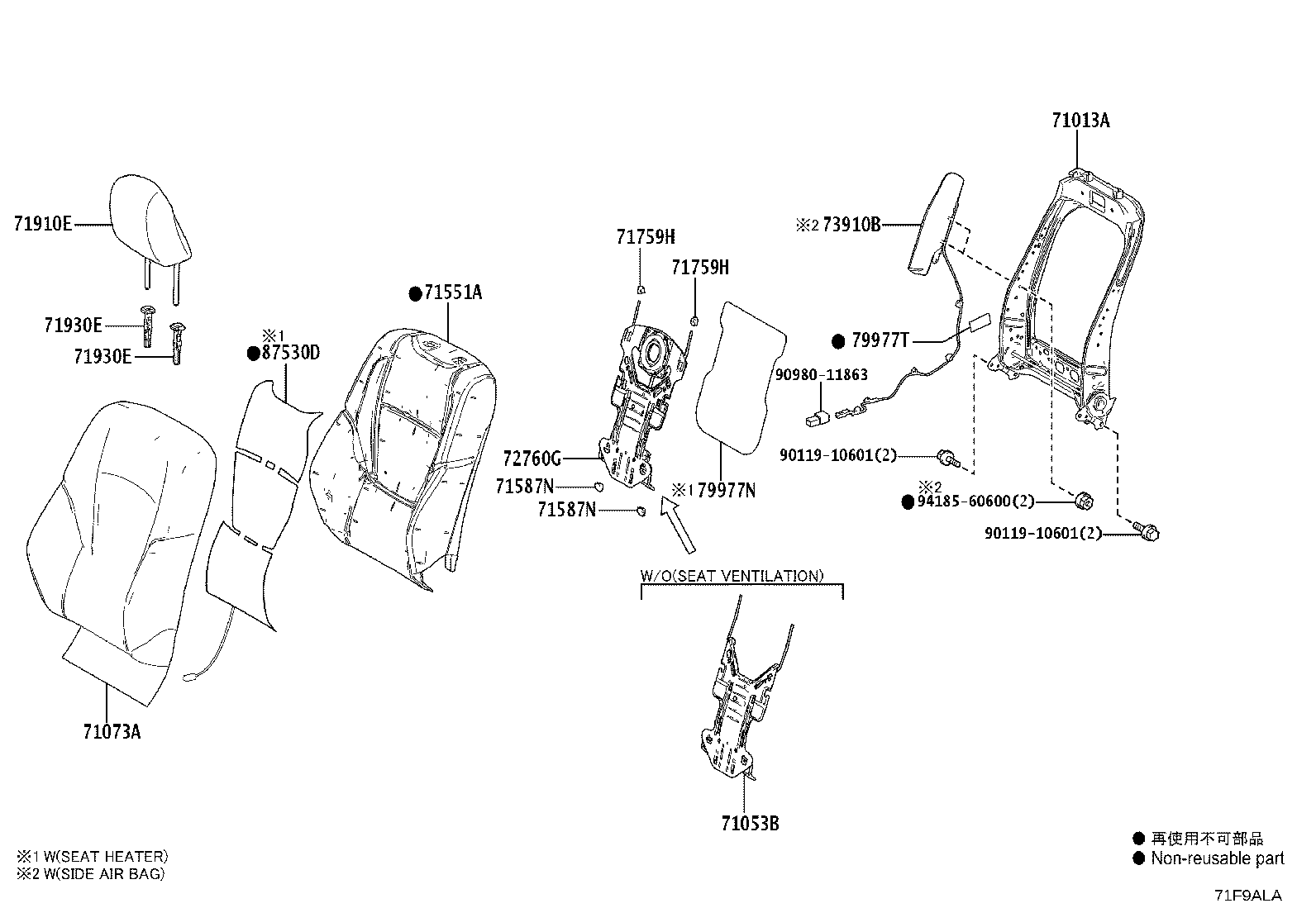

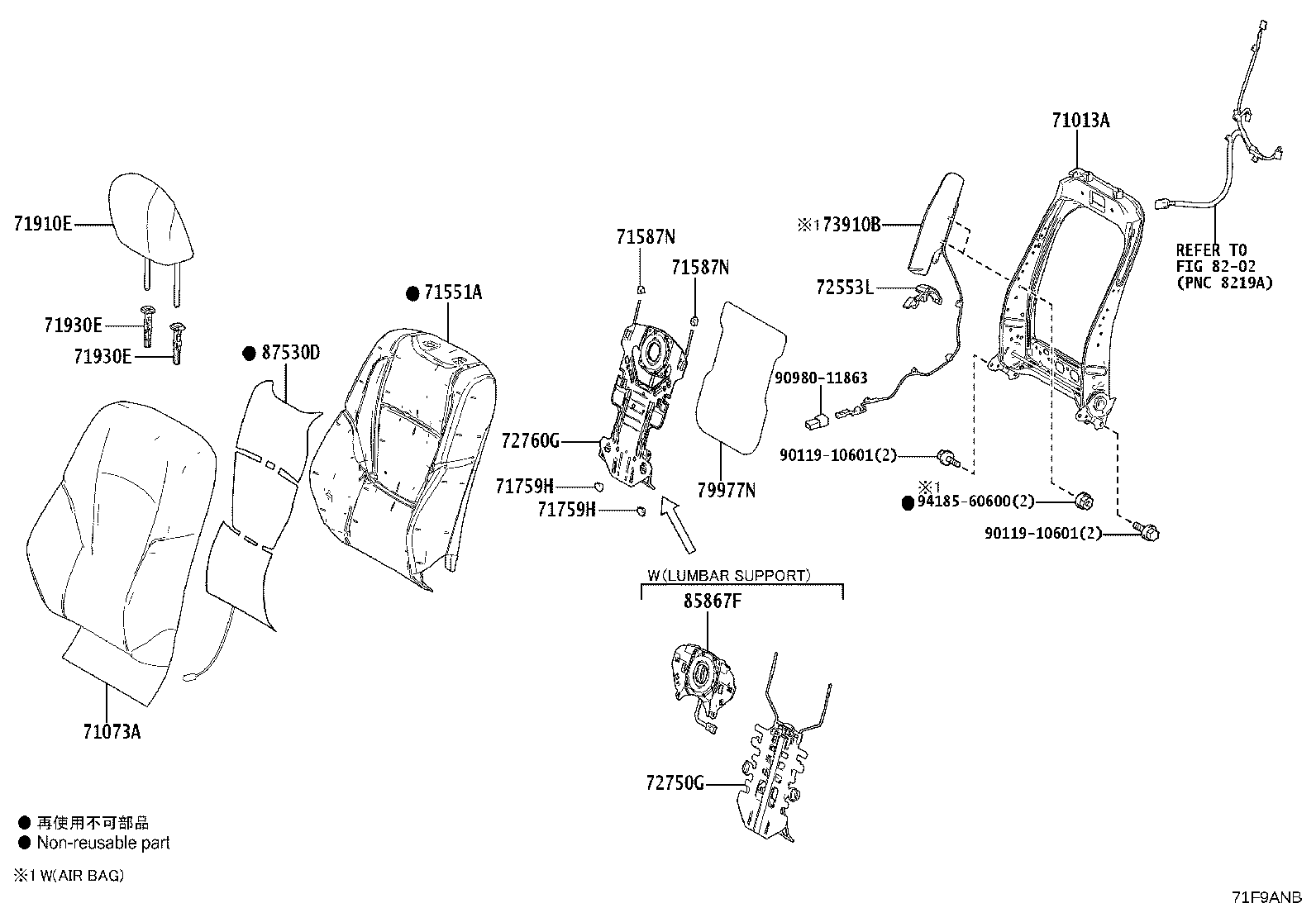

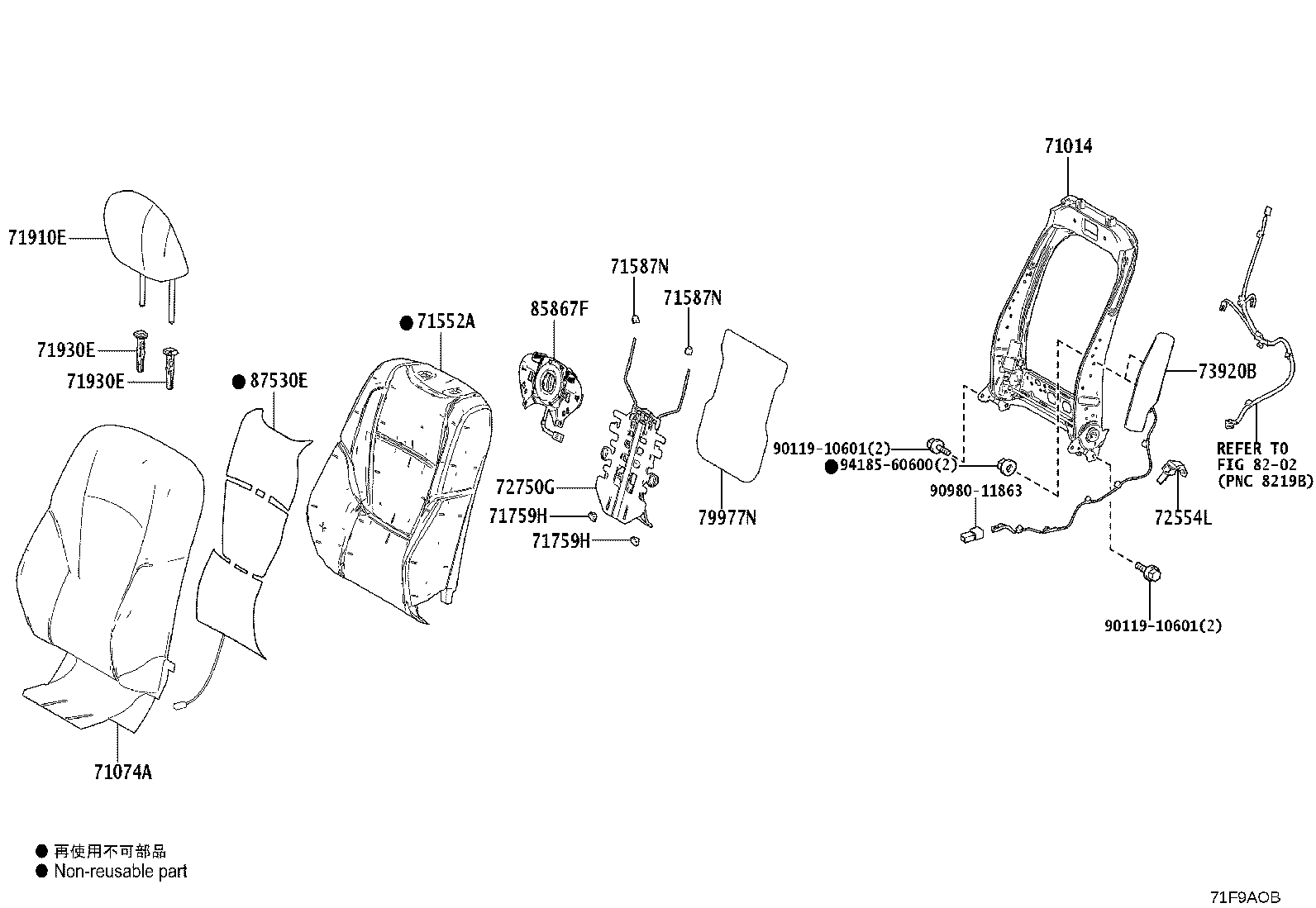

Figure 71F9BZB 71F9BZB 2024-02 → — Figure 71F9ALA 71F9ALA 2024-01 → — Figure 71F9C0D 71F9C0D 2024-02 → — Figure 71F9AMB 71F9AMB 2024-02 → — Figure 71F9C1B 71F9C1B 2024-02 → — Figure 71F9ANB 71F9ANB 2024-02 → — Figure 71F9C2B 71F9C2B 2024-02 → — Figure 71F9AOB 71F9AOB 2024-02 → —

Part groups

PNCDescription
71013A Frame Sub-assy, Front Seatback, RH
71014 Frame Sub-assy, Front Seatback, LH
71051D Spring Sub-assy, Front Seat Cushion
71053B Spring Sub-assy, Front Seatback
71071 Cover Sub-assy, Front Seat Cushion, RH
71072 Cover Sub-assy, Front Seat Cushion, LH
71073A Cover Sub-assy, Front Seatback, RH
71074A Cover Sub-assy, Front Seatback, LH
71511A Pad, Front Seat Cushion, RH
71512 Pad, Front Seat Cushion, LH
71551A Pad, Front Seatback, RH
71552A Pad, Front Seatback, LH
71587N Protector, Front Seatback Edge, NO.2
71759H Hook, Front Seatback
71811T Shield, Front Seat Cushion, RH
71812T Shield, Front Seat Cushion, LH
7181AA Holder, Front Seat Cushion Wire Harness, RH
7181BA Holder, Front Seat Cushion Wire Harness, LH
71848N Cap, Front Seat Adjuster Cover, RH NO.1
71848R Cap, Front Seat Adjuster Cover, LH NO.1
71861K Shield, Front Seat Cushion, Inner RH
71862K Shield, Front Seat Cushion, Inner LH
71867W Shield, Front Seat Cushion, Front RH
71867Y Shield, Front Seat Cushion, Inner NO.1 RH(FOR RH SEAT)
71868Q Shield, Front Seat Cushion, Inner NO.1 LH(FOR LH SEAT)
71873V Shield, Front Seat Cushion, Lower RH
71873W Shield, Front Seat Cushion, Lower RH, Outer
71873X Shield, Front Seat Cushion, Lower RH, Inner
71874U Shield, Front Seat Cushion, Lower LH
71874Y Shield, Front Seat Cushion, Lower LH NO.2
71874Z Shield, Front Seat Cushion, Lower LH NO.3
71877F Cover, Reclining Adjuster Inside, RH(FOR RH SEAT)
71877G Cover, Reclining Adjuster Inside, LH(FOR RH SEAT)
71877H Cover, Reclining Adjuster Inside, RH(FOR LH SEAT)
71877J Cover, Reclining Adjuster Inside, LH(FOR LH SEAT)
71910E Headrest Assy, Front Seat, RH
71930E Support Assy, Front Seat Headrest, RH
72010A Adjuster Assy, Front Seat, RH
72020A Adjuster Assy, Front Seat, LH
72123J Cover, Seat Track Bracket, Outer Front RH
72123M Cover, Seat Track Bracket, Outer Front LH
72125R Cover, Seat Track, Upper Rear NO.1
72125V Cover, Seat Track, Upper Rear LH
72127G Cover, Seat Track Bracket, Inner Front RH
72128G Cover, Seat Track Bracket, Inner Front LH
72137S Cover, Seat Track Bracket, Outer Rear RH
72137Y Cover, Seat Track Bracket, Outer Rear LH
72157G Cover, Seat Track Bracket, Inner Rear RH
72158F Cover, Seat Track Bracket, Inner Rear LH
72211K Handle, Seat Track Adjusting
72265N Cover, Seat Track Upper Rail, LH
72265T Cover, Seat Track Upper Rail
72341B Arm, Reclining Adjuster
72494A Handle, Front Seat Vertical Adjuster, RH
72495A Handle, Front Seat Vertical Adjuster, LH
72498E Cover, Vertical Adjuster Bracket
72498H Cover, Vertical Adjuster Bracket, LH
72525M Handle, Reclining Adjuster Release, RH
72526H Handle, Reclining Adjuster Release, LH
72551W Cover, Reclining Hinge
72553L Protector, Reclining Cover, RH
72554L Protector, Reclining Cover, LH
72713A Bracket, Seat Adjuster Shield Clamp, RH
72714A Bracket, Seat Adjuster Shield Clamp, LH
72750G Adjuster Assy, Lumbar Support, RH
72760G Adjuster Assy, Lumbar Support, LH
73910B Airbag Assy, Front Seat, RH
73920B Airbag Assy, Front Seat, LH
739F0A Airbag Assy, Front Seat Cushion, RH
79977N Felt, Seatback
79977T Felt, Seat Cushion Spring
85801H Blower Sub-assy, Seat Cushion Climate, RH
85802B Blower Sub-assy, Seat Cushion Climate, LH
85867F Blower, Seatback Climate Control, RH
87511C Heater Assy, Front Seat Cushion, RH
87530D Heater Assy, Front Seatback, RH
87530E Heater Assy, Front Seatback, LH
87E10C Heater Assy, Front Seat Cushion, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
