Toyota Land Cruiser

2024-02 → present · chassis TJH250 · catalogue 781490 · United States

Supported model Data version 2024-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

123 part groups · 7 illustrations

Illustrations

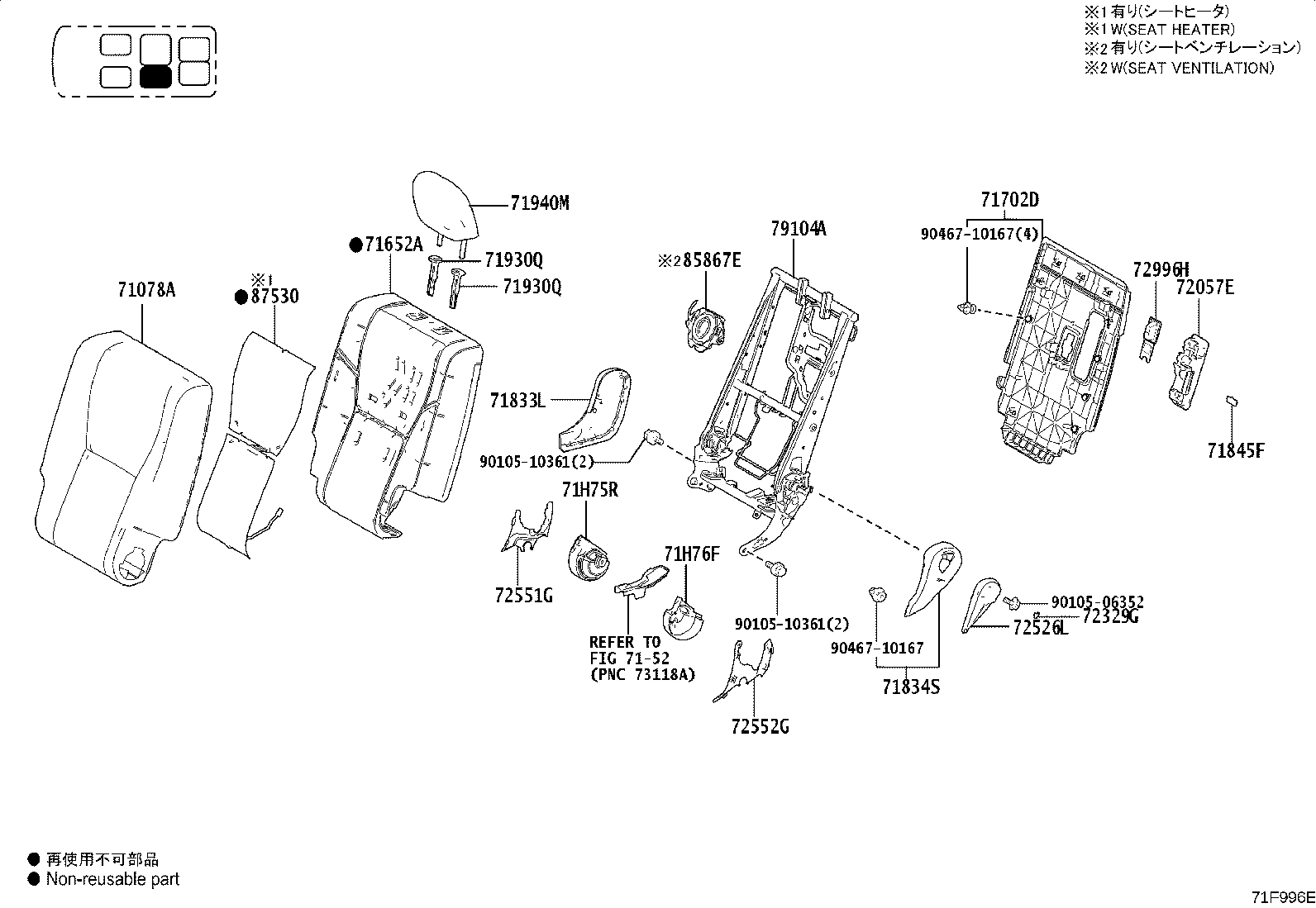

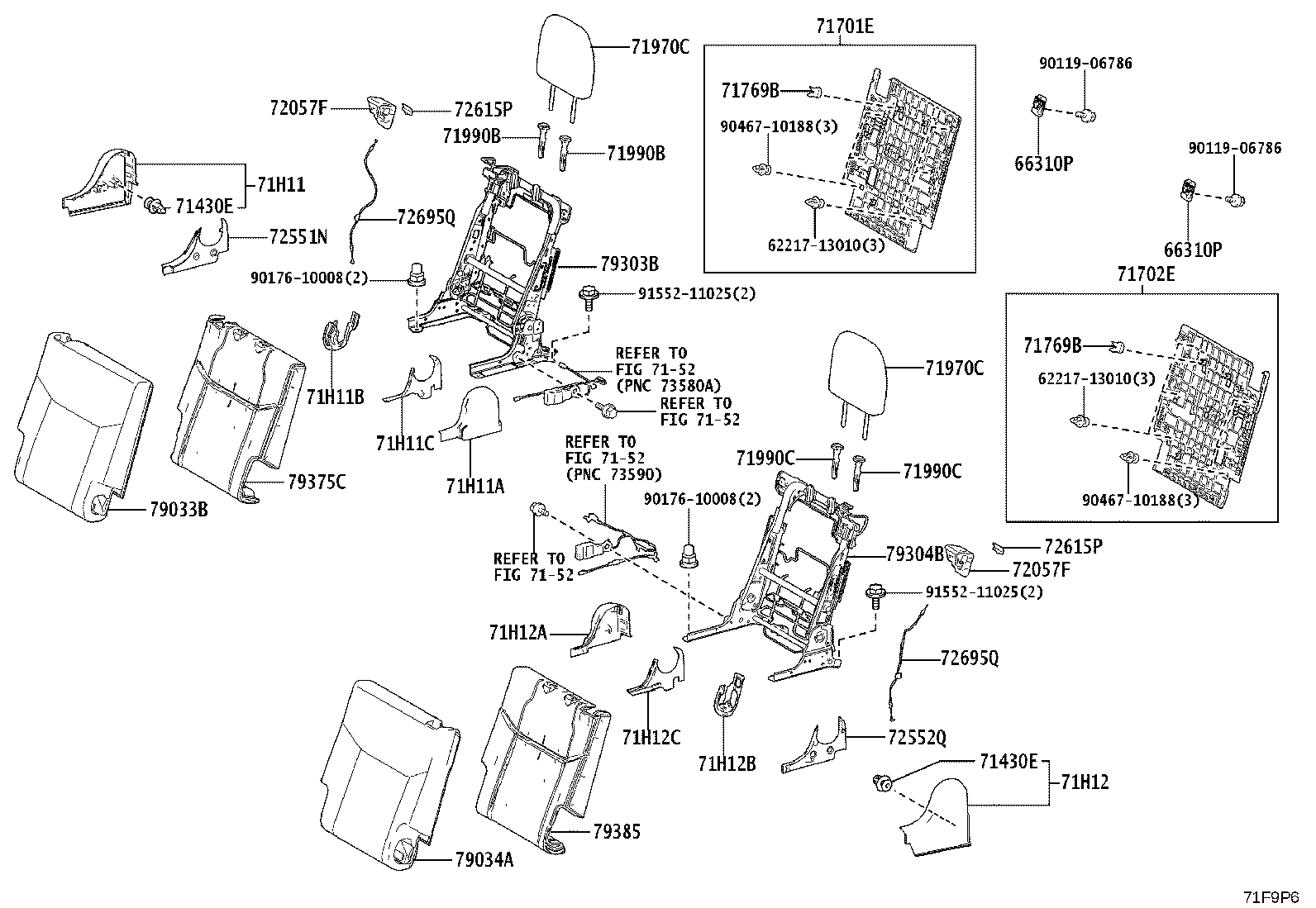

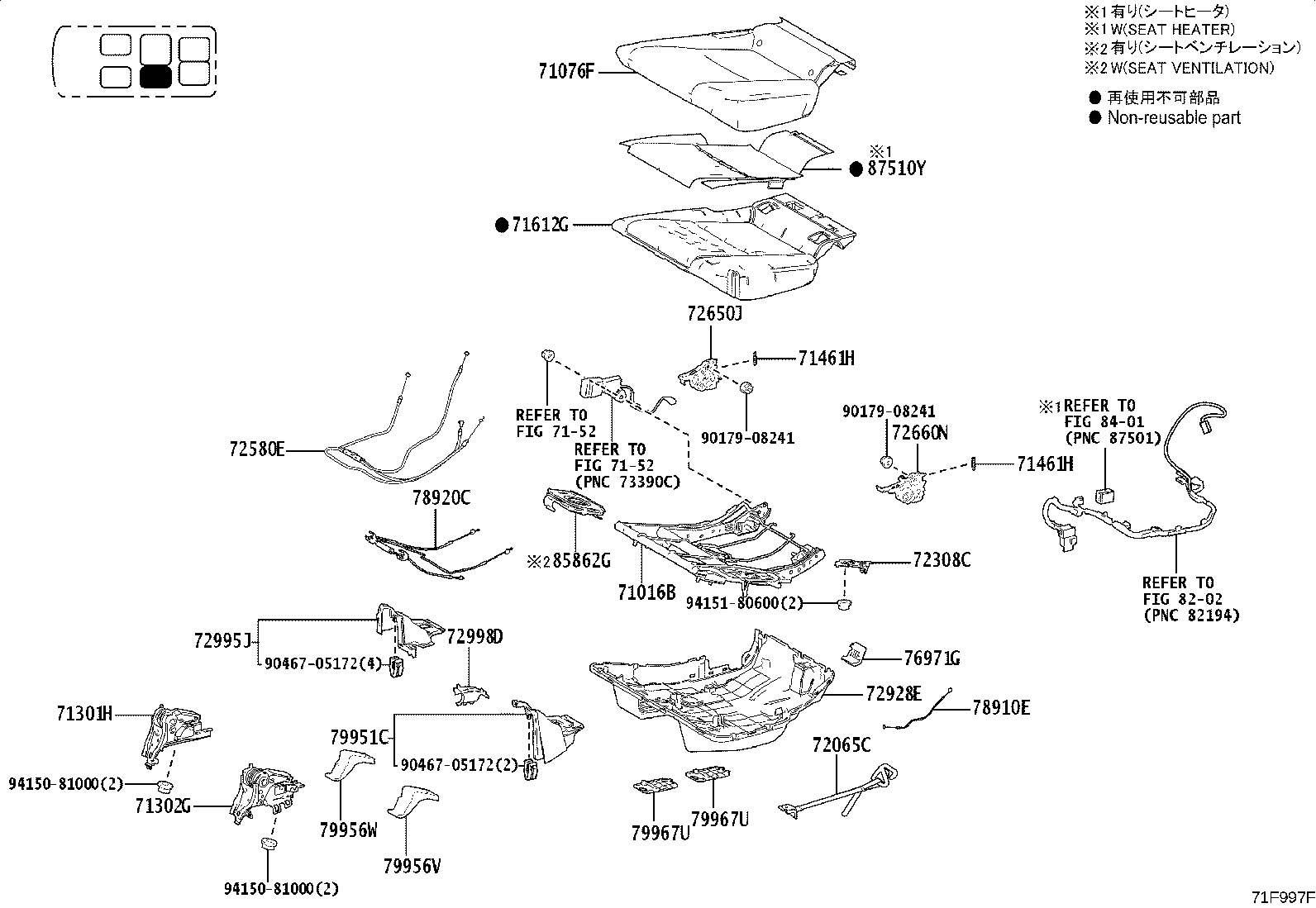

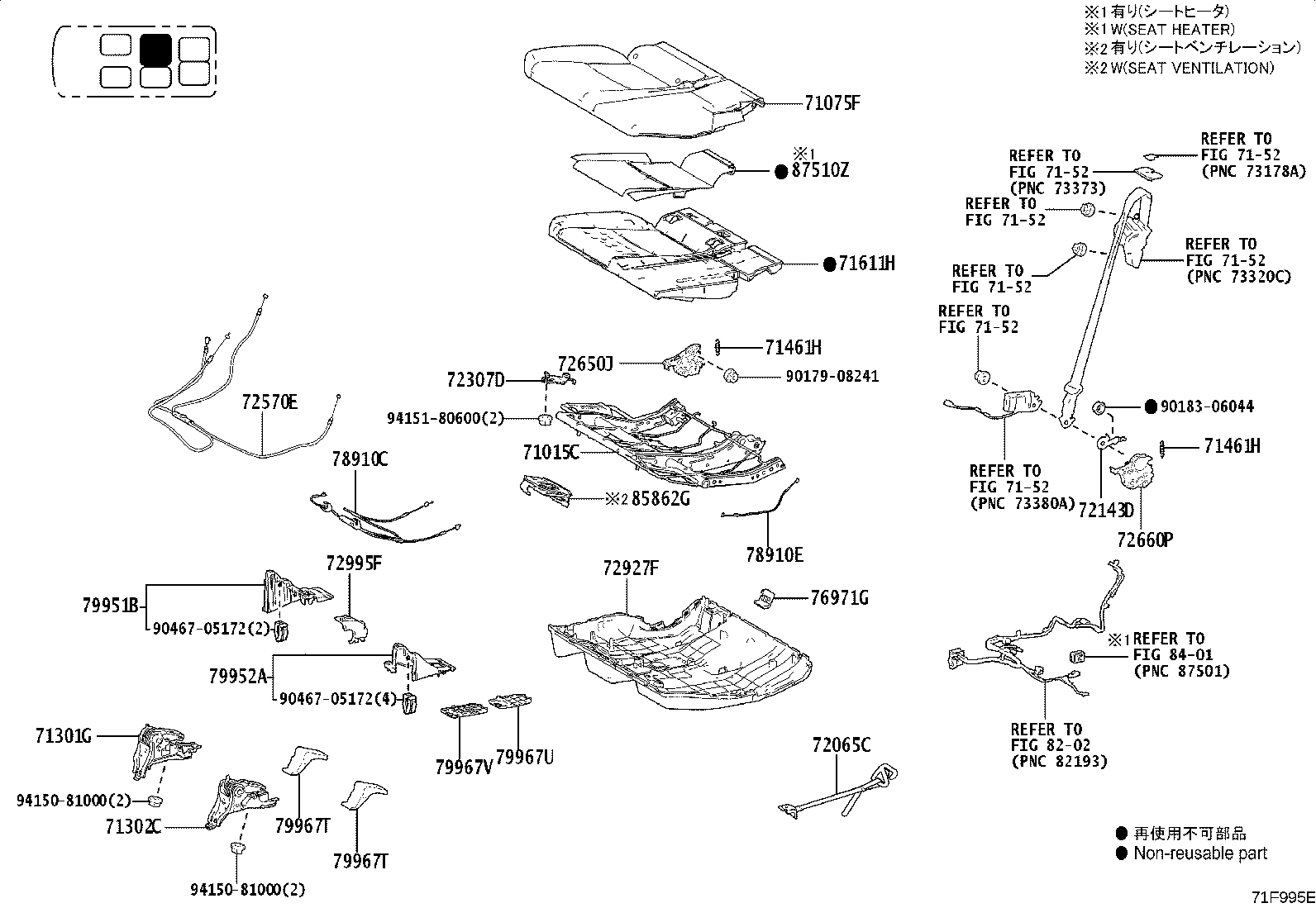

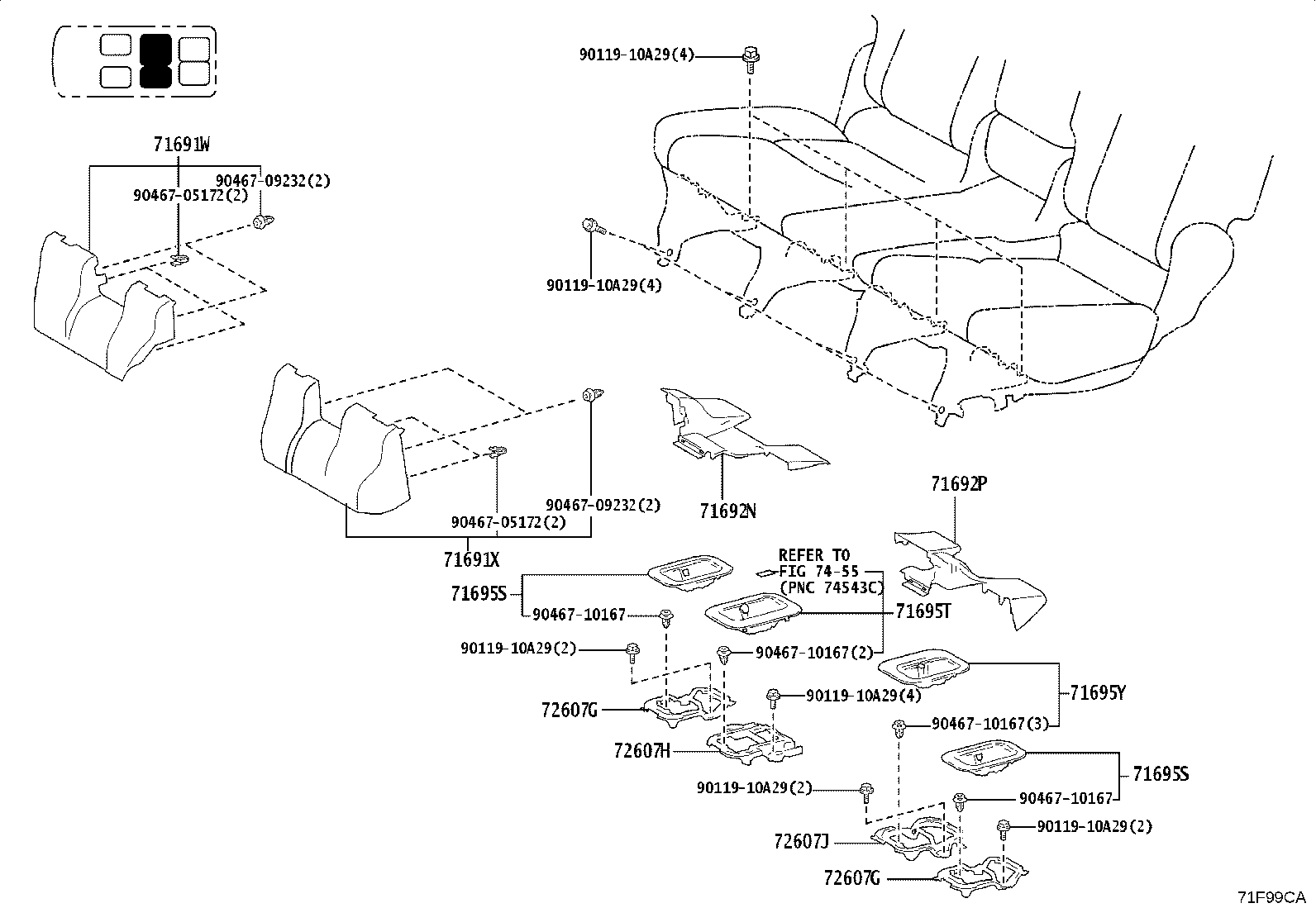

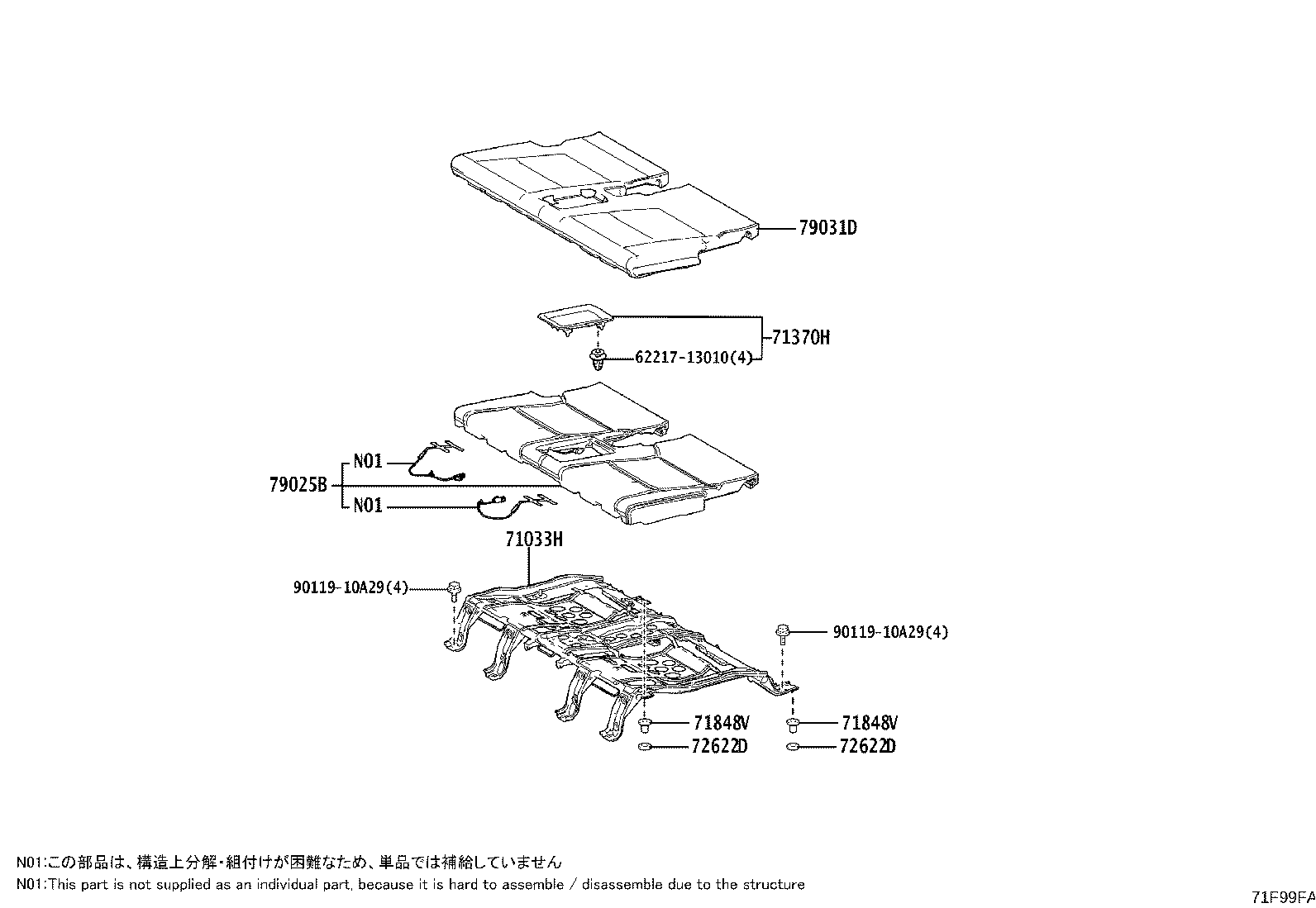

Figure 71F994E 71F994E 2024-02 → — Figure 71F995E 71F995E 2024-02 → — Figure 71F996E 71F996E 2024-02 → — Figure 71F997F 71F997F 2024-02 → — Figure 71F99CA 71F99CA 2024-02 → — Figure 71F9P6 71F9P6 2024-02 → — Figure 71F99FA 71F99FA 2024-02 → —

Part groups

PNCDescription
66310P Hook Assy, Rope
71015C Frame Sub-assy, NO.1 Seat Cushion, RH
71016B Frame Sub-assy, NO.1 Seat Cushion, LH
71033H Leg Sub-assy, Rear Seat Cushion
71075F Cover Sub-assy, NO.1 Seat Cushion, RH
71076F Cover Sub-assy, NO.1 Seat Cushion, LH
71077 Cover Sub-assy, Rear NO.1 Seatback, RH
71078A Cover Sub-assy, Rear NO.1 Seatback, LH
71301G Hinge Sub-assy, Rear NO.1 Seat, RH(FOR RH SEAT)
71301H Hinge Sub-assy, Rear NO.1 Seat, RH(FOR LH SEAT)
71302C Hinge Sub-assy, Rear NO.1 Seat, LH(FOR RH SEAT)
71302G Hinge Sub-assy, Rear NO.1 Seat, LH(FOR LH SEAT)
71370H Holder Assy, Rear Seat Cushion
71430E Clip
71461H Spring, Rear Seat Cushion
71485E Cover, Rear Seat Hinge
71486F Cover, Rear Seat Hinge, LH
71611H Pad, Rear NO.1 Seat Cushion, RH
71612G Pad, Rear NO.1 Seat Cushion, LH
71652A Pad, Rear NO.1 Seatback, LH
71691W Cover, Rear Seat Cushion Hinge, NO.1
71691X Cover, Rear Seat Cushion Hinge, NO.2
71692N Cover, Rear Seat Cushion Hinge, NO.3
71692P Cover, Rear Seat Cushion Hinge, NO.4
71695S Protector, Rear Seat, NO.1
71695T Protector, Rear Seat, NO.2
71695Y Protector, Rear Seat, NO.3
71701A Board Sub-assy, Rear Seatback, RH
71701E Board Sub-assy, NO.2 Rear Seatback, RH
71702D Board Sub-assy, Rear Seatback, LH
71702E Board Sub-assy, NO.2 Rear Seatback, LH
71769B Clip, Seatback Board
71833L Cover, Rear Seat Reclining, RH
71833S Cover, Rear Seat Reclining, NO.1 RH
71834S Cover, Rear Seat Reclining, NO.1 LH
71844M Cover, Rear Seat Reclining, NO.2 LH
71845F Cap, Rear Seat Cover
71848V Cap, NO.3 Seat Adjuster Cover, RH
71875X Cover, Reclining Adjuster Inside, RH
71930Q Support Assy, Rear Seat Headrest
71940M Headrest Assy, Rear Seat
71960G Headrest Assy, Rear NO.1 Seat, Center
71970C Headrest Assy, Rear Seat
71990B Support Assy, Rear NO.2 Seat Headrest, RH
71990C Support Assy, Rear NO.2 Seat Headrest, LH
71H11 Cover, Reclining Adjuster, RH
71H11A Cover, Reclining Adjuster, RH
71H11B Cover, Reclining Adjuster, RH
71H11C Cover, Reclining Adjuster, RH
71H12 Cover, Reclining Adjuster, LH
71H12A Cover, Reclining Adjuster, LH
71H12B Cover, Reclining Adjuster, LH
71H12C Cover, Reclining Adjuster, LH
71H75R Cover, Reclining Adjuster Inside, RH NO.1(FOR LH SEAT)
71H76F Cover, Reclining Adjuster Inside, LH(FOR REAR NO.1 LH SEAT)
71T76B Cover, Reclining Adjuster Inside, LH
72057E Lever Sub-assy, Rear Seat Lock Control, RH NO.1
72057F Lever Sub-assy, Rear Seat Lock Control, RH NO.2
72065C Belt Sub-assy, Rear Seat Hook
72143D Bracket, Rear Seat Track, Lower Rear RH
72307D Link Sub-assy, Reclining Control, RH NO.1
72308C Link Sub-assy, Reclining Control, LH NO.1
72329F Cover, Rear Seat Adjuster Bolt
72329G Cover, Rear Seat Adjuster Bolt, NO.2
72525R Handle, Reclining Adjuster Release, RH
72526L Handle, Reclining Adjuster Release, LH
72551F Cover, Reclining Link, RH NO.1
72551G Cover, Reclining Link, RH NO.2
72551N Cover, Reclining Hinge, RH NO.2(FOR RH SEAT)
72552F Cover, Reclining Link, LH NO.1
72552G Cover, Reclining Link, LH NO.2
72552Q Cover, Reclining Hinge, LH NO.2(FOR LH SEAT)
72570E Cable Assy, NO.1 Seat Reclining Adjusting, RH
72580E Cable Assy, Reclining Adjusting, LH
72607G Striker Sub-assy, Rear Seat Cushion Lock, NO.1
72607H Striker Sub-assy, Rear Seat Cushion Lock, NO.2
72607J Striker Sub-assy, Rear Seat Cushion Lock, NO.3
72615P Cover, Rear Seatback Lock Striker
72622D Bush(FOR REAR NO.2 SEAT LEG)
72650J Lock Assy, Rear Seat, RH
72660N Cable Assy, Rear NO.2 Seat Cushion Lock, LH
72660P Lock Assy, Rear Seat, LH
72695Q Cable, Rear Seat Lock Control
72806E Holder Sub-assy, Rear Seat Center Armrest Cup
72830X Armrest Assy, Rear Seat, Center
72868A Cover, Center Armrest Hinge
72927F Cover, Rear Seat Cushion Under, RH
72928E Cover, Rear Seat Cushion Under, LH
72995F Cover, Rear Seat Cushion, RH
72995J Cover, Rear NO.1 Seat Cushion
72996H Cover, Rear Seatback
72996J Cover, Rear Seatback, NO.2
72998D Cover, Rear Seat Cushion, LH
76971G Cover, Rear Under
78910C Cable Assy, Fold Seat Lock Control, NO.1(FOR RH SEAT)
78910E Cable Assy, Fold Seat Lock Control, NO.1
78920C Cable Assy, Fold Seat Lock Control, NO.2
79025B Pad Sub-assy, NO.2 Seat Cushion
79031D Cover, Sub-assy, NO.3 Seat Cushion
79033B Cover Sub-assy, NO.3 Seatback, RH
79034A Cover Sub-assy, NO.3 Seatback, LH
79103B Frame Sub-assy, NO.1 Seatback, RH
79104A Frame Sub-assy, NO.1 Seatback, LH
79175F Pad, NO.1 Seatback, RH
79303B Frame Sub-assy, NO.3 Seatback, RH
79304B Frame Sub-assy, NO.3 Seatback, LH
79375C Pad, NO.3 Seatback, RH
79385 Pad, NO.3 Seatback, LH
79951B Cover, NO.1 Seat Cushion, NO.1
79951C Cover, NO.1 Seat Cushion, NO.3
79952A Cover, NO.1 Seat Cushion, NO.2
79956V Cover, Rear Seat Leg Side, RH
79956W Cover, Rear Seat Leg Side, LH
79967T Cover, Rear NO.1 Seat Leg Side, NO.1
79967U Cover, Rear NO.1 Seat Leg Side, NO.2
79967V Cover, Rear NO.1 Seat Leg Side, NO.3
85862G Blower, Rear Seat Cushion Climate Control
85867D Blower, NO.1 Seatback Climate Control(FOR RH SEAT)
85867E Blower, NO.1 Seatback Climate Control(FOR LH SEAT)
87510Y Heater Assy, Rear NO.1 Seat Cushion, LH
87510Z Heater Assy, Rear NO.1 Seat Cushion, RH
87530 Heater Assy, Rear NO.1 Seatback, LH
87530A Heater Assy, Rear NO.1 Seatback, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
