Toyota Land Cruiser

2024-02 → present · chassis TJH250 · catalogue 781490 · United States

Supported model Data version 2024-02

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

107 part groups · 12 illustrations

Illustrations

Part groups

PNC	Description
82111	Wire, Engine Room Main
82114	Wire, Engine Room, NO.4
82119C	Wire, Engine Room, NO.5
8211A	Wire, Engine Room, NO.6

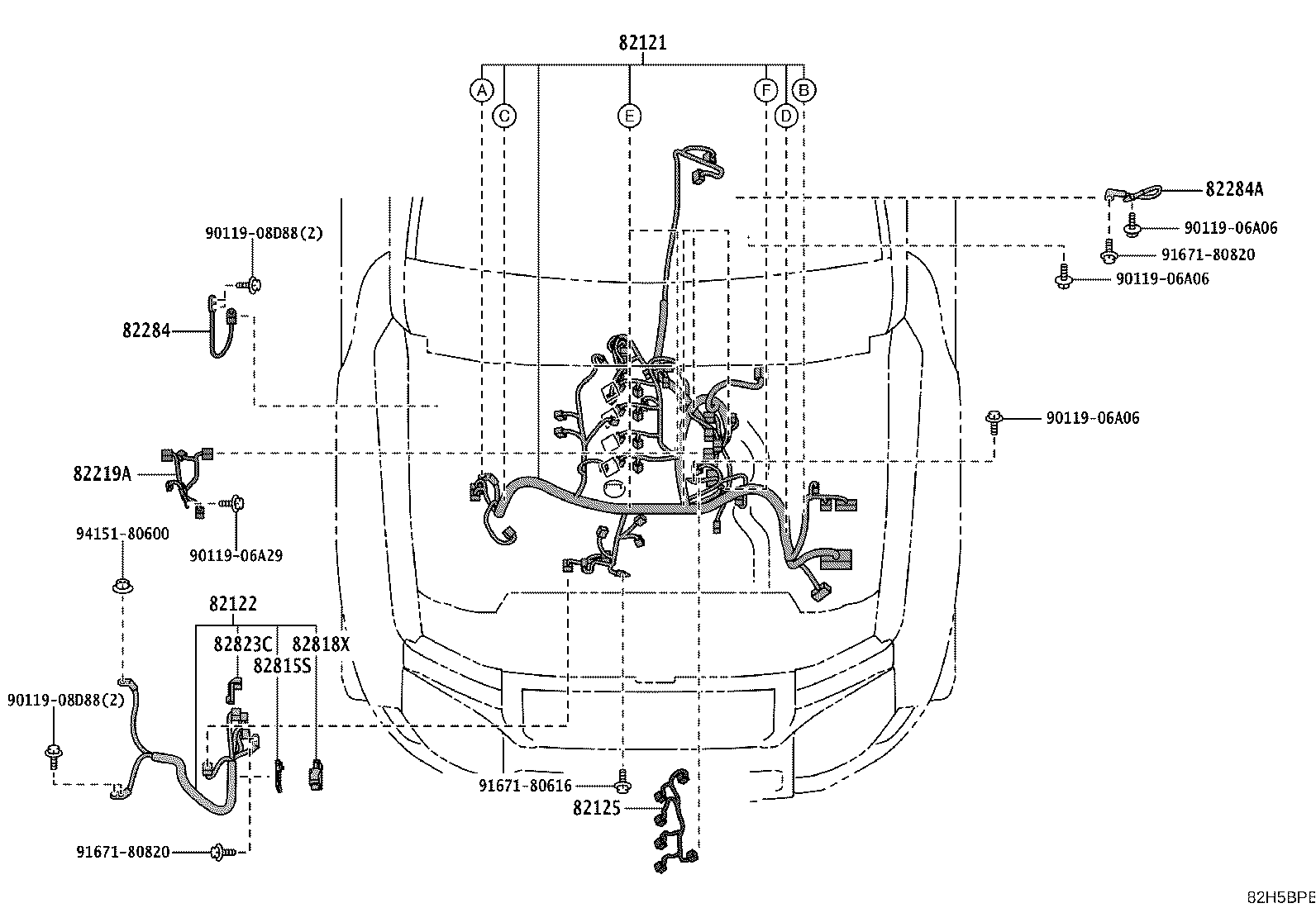

82121	Wire, Engine
82122	Wire, Engine, NO.2
82125	Wire, Transmission

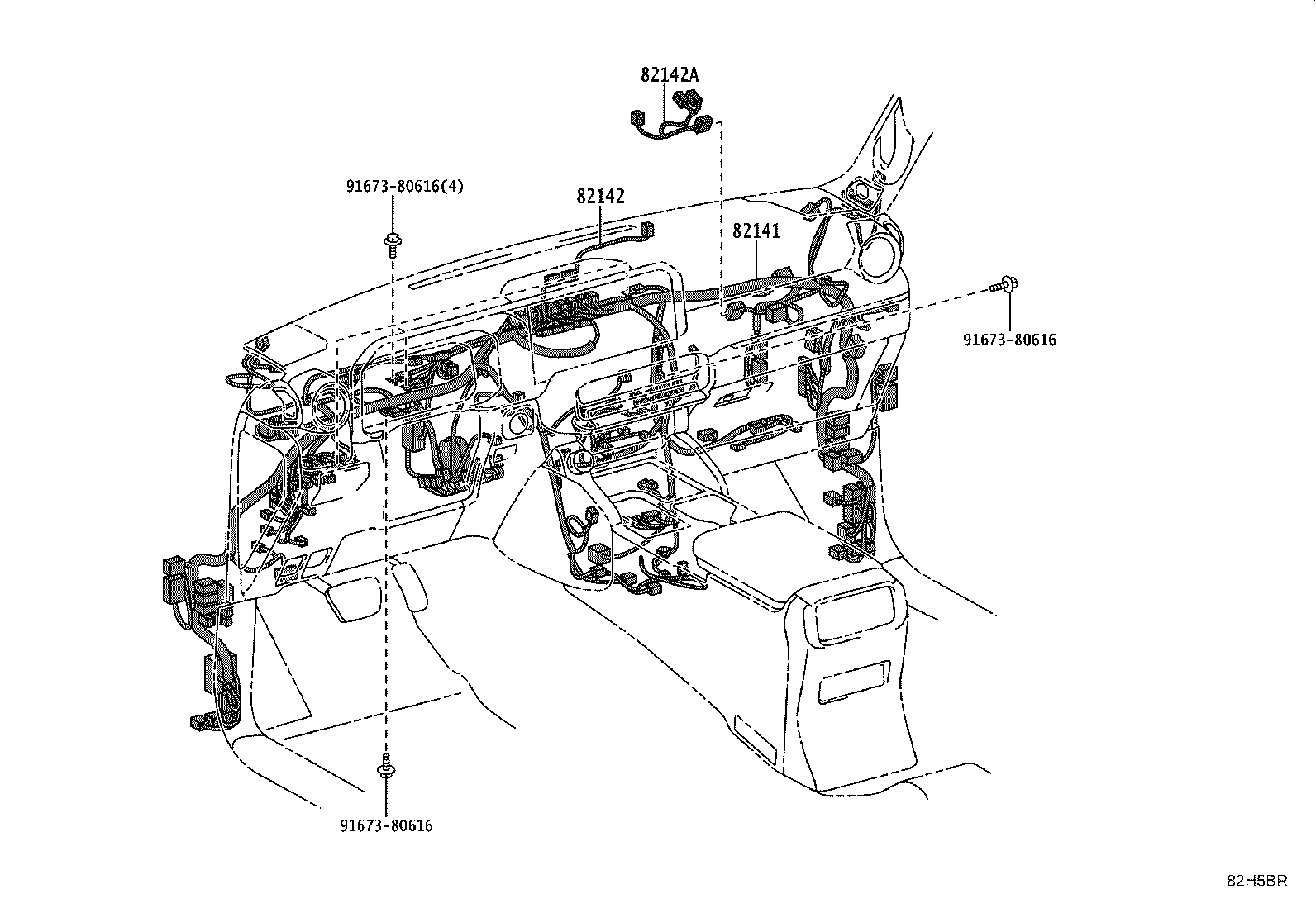

82141	Wire, Instrument Panel
82142	Wire, Instrument Panel, NO.2
82142A	Wire, Instrument Panel, NO.2

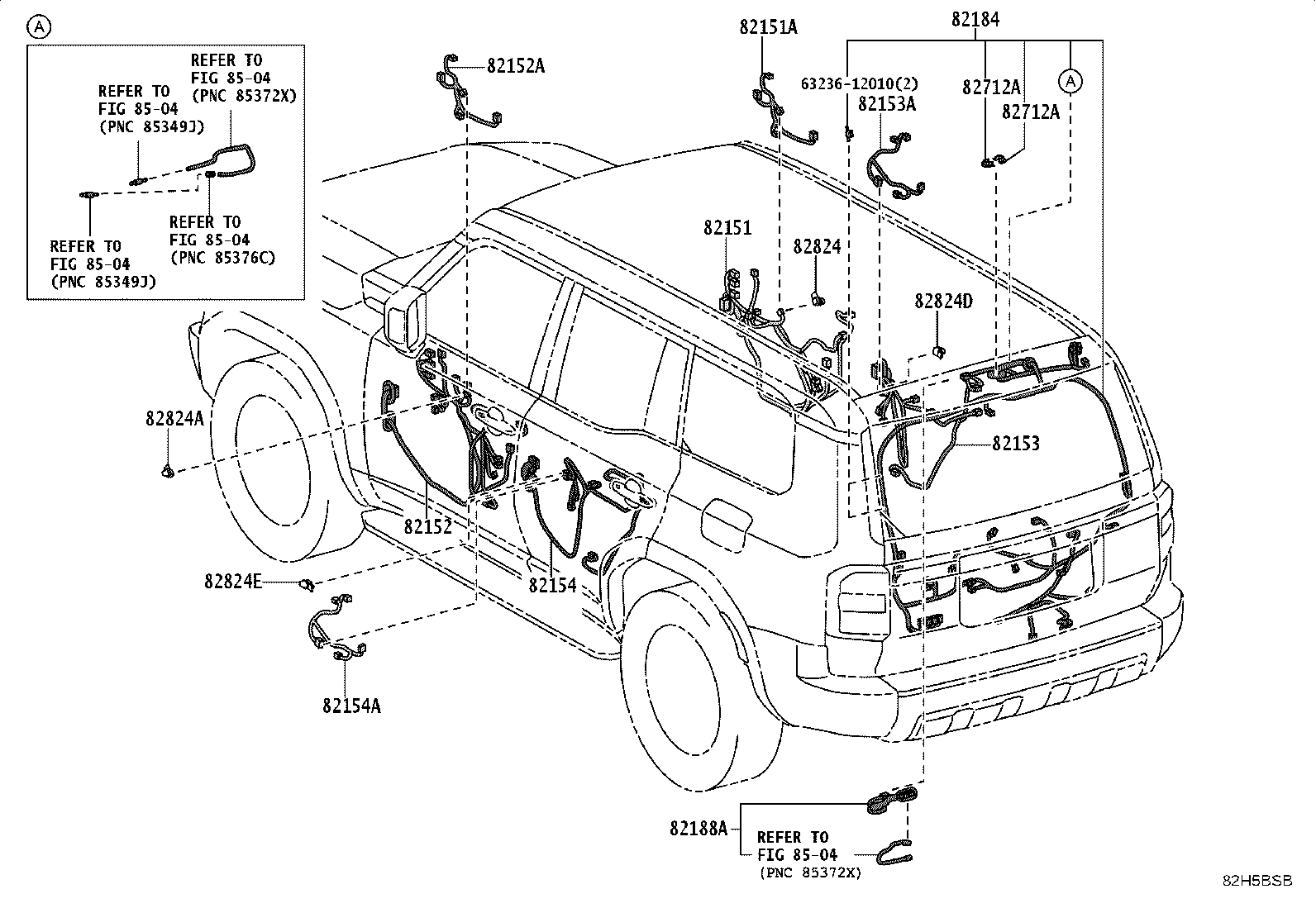

82151	Wire, Front Door, RH
82151A	Wire, Front Door, NO.2, RH
82152	Wire, Front Door, LH
82152A	Wire, Front Door, NO.2, LH
82153	Wire, Rear Door, NO.1
82153A	Wire, Rear Door, RH
82154	Wire, Rear Door, NO.2
82154A	Wire, Rear Door, LH
82157	Wire, Step Panel, RH
82158	Wire, Step Panel, LH

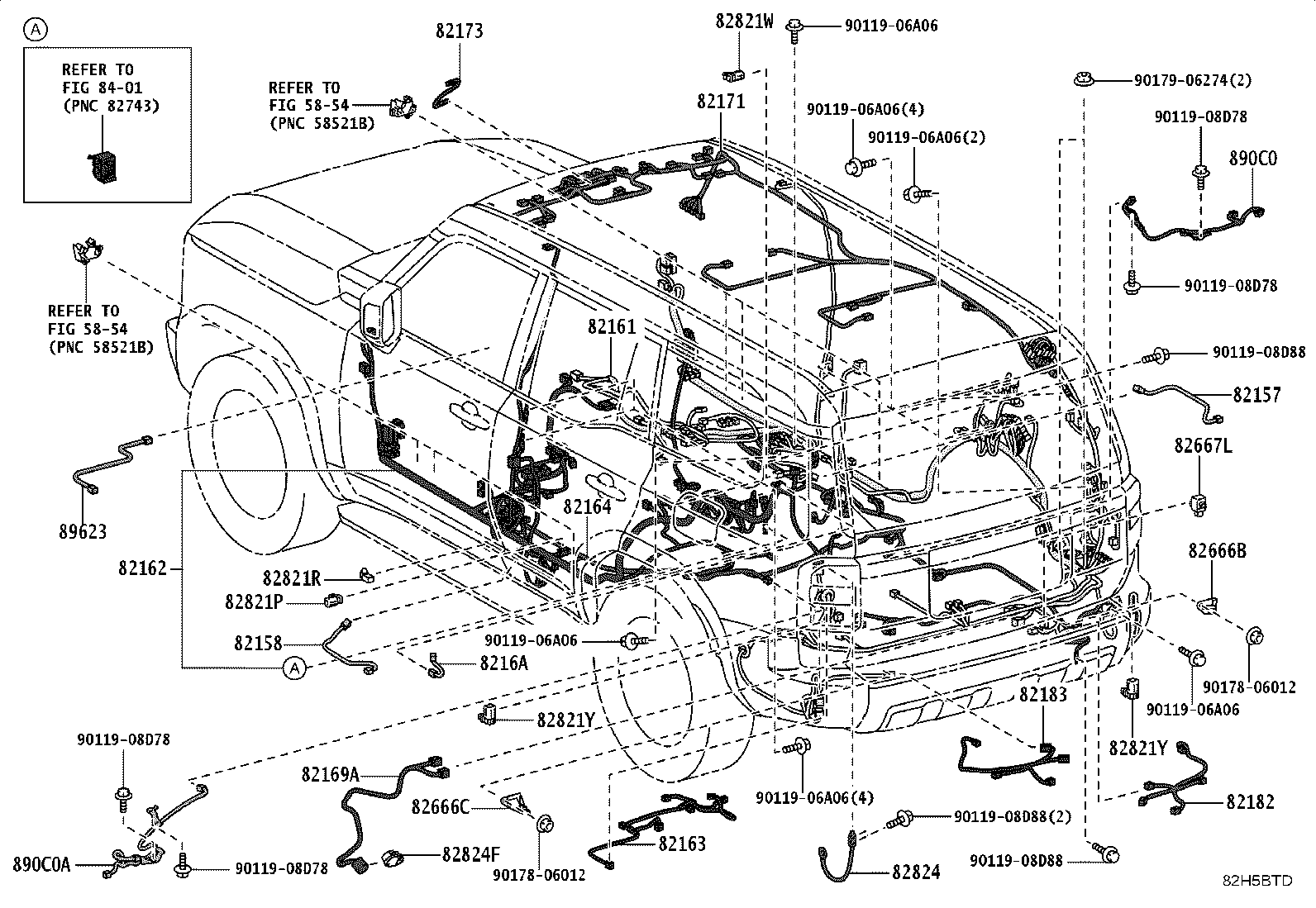

82161	Wire, Floor
82162	Wire, Floor, NO.2
82163	Wire, Floor, NO.3
82164	Wire, Frame
82169A	Wire, Floor, NO.6
8216A	Wire, Floor NO.7
82171	Wire, Roof, NO.1
82173	Wire, Roof, NO.3
82182	Wire, Luggage Room, NO.2
82183	Wire, Luggage Room, NO.3
82184	Wire, Back Door, NO.1
82188A	Wire, Back Door, NO.3

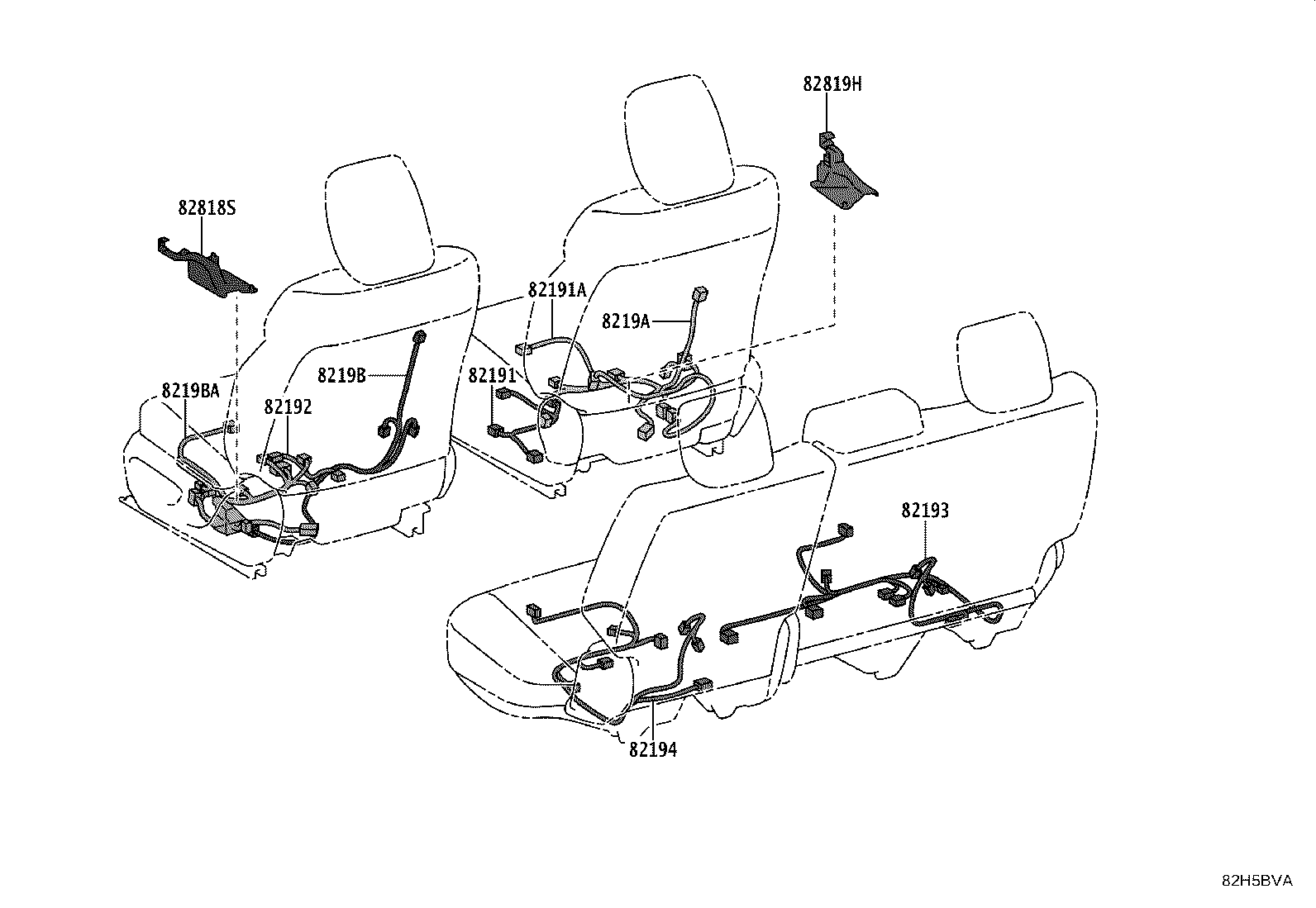

82191	Wire, Front Seat, RH
82191A	Wire, Front Seat, RH
82192	Wire, Front Seat, LH
82193	Wire, Rear Seat, RH
82194	Wire, Rear Seat, LH
8219A	Wire, Front Seat, RH NO.2
8219B	Wire, Front Seat, LH NO.2
8219BA	Wire, Front Seat, LH NO.3
821H1	Wire, Floor Under
82219A	Wire, Sensor
82284	Wire, Earth
82284A	Wire, Earth NO.2
82661H	Cover, Relay Block
82661L	Cover, Relay Block, NO.2
82661M	Cover, Relay Block, NO.3
82661N	Cover, Relay Block, NO.4
82666A	Holder, Connector NO.2
82666B	Holder, Connector NO.3
82666C	Holder, Connector NO.4
82666Y	Holder, Connector NO.18
82666Z	Holder, Connector NO.19
82667L	Holder, Connector, NO.26
82667Z	Holder, Connector, NO.37

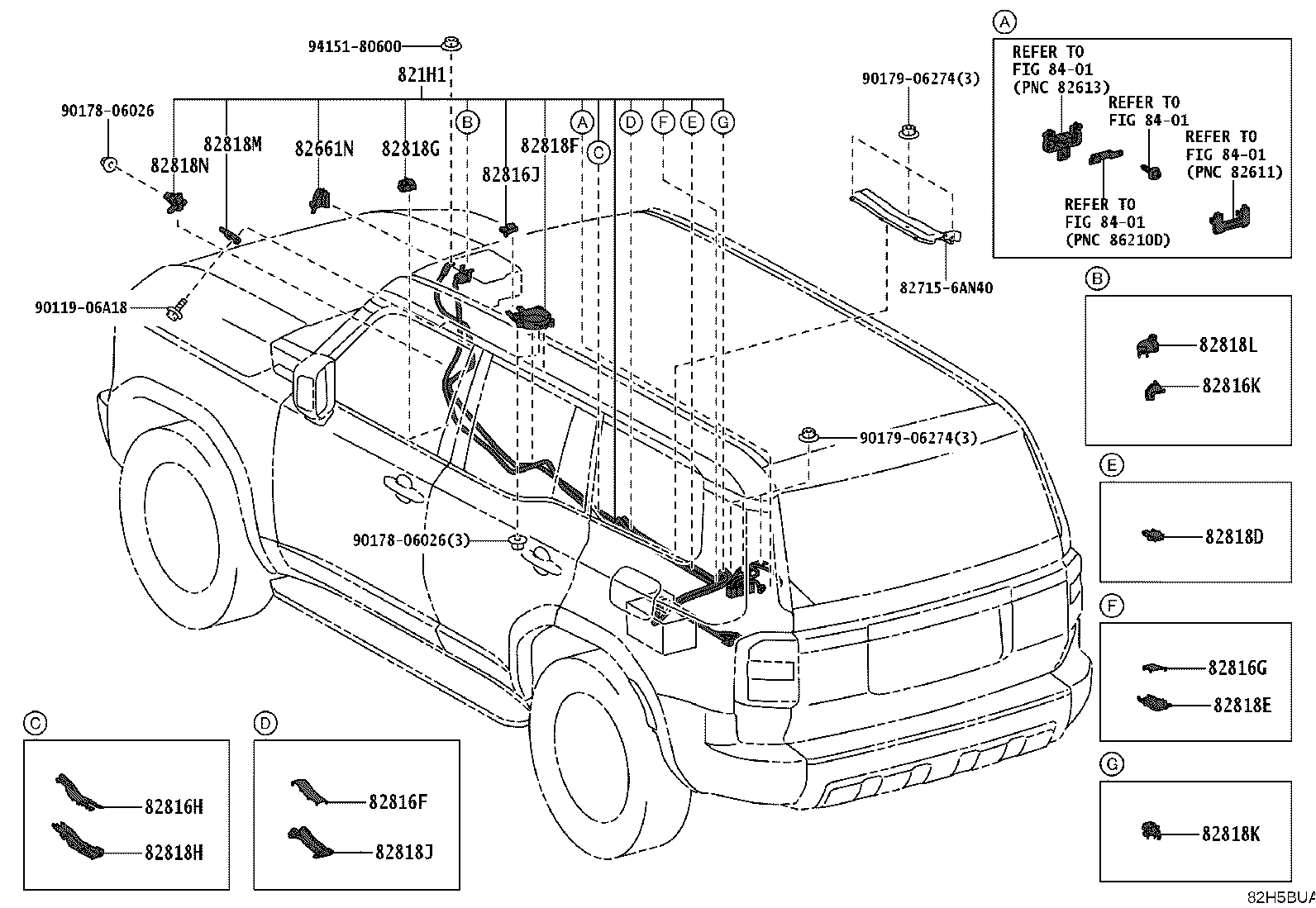

82712A	Support, Wiring Harness
82815Q	Cover, Wiring Harness Protector, NO.13
82815S	Cover, Wiring Harness Protector, NO.15
82815V	Cover, Wiring Harness Protector, NO.1
82815W	Cover, Wiring Harness Protector, NO.2
82815X	Cover, Wiring Harness Protector, NO.3
82816F	Cover, Wiring Harness Protector, NO.4
82816G	Cover, Wiring Harness Protector, NO.5
82816H	Cover, Wiring Harness Protector, NO.6
82816J	Cover, Wiring Harness Protector, NO.7
82816K	Cover, Wiring Harness Protector, NO.8
82817	Protector, Wiring Harness, NO.1
82817A	Protector, Wiring Harness, NO.2
82817F	Protector, Wiring Harness, NO.7
82817G	Protector, Wiring Harness, NO.8
82817L	Protector, Wiring Harness, NO.11
82817M	Protector, Wiring Harness, NO.12
82818D	Protector, Wiring Harness, NO.5
82818E	Protector, Wiring Harness, NO.6
82818F	Protector, Wiring Harness, NO.7
82818G	Protector, Wiring Harness, NO.8
82818H	Protector, Wiring Harness, NO.9
82818J	Protector, Wiring Harness, NO.10
82818K	Protector, Wiring Harness, NO.11
82818L	Protector, Wiring Harness, NO.12
82818M	Protector, Wiring Harness, NO.13
82818N	Protector, Wiring Harness, NO.14
82818S	Protector, Wiring Harness, NO.15
82818X	Protector, Wiring Harness, NO.20
82819H	Protector, Wiring Harness, NO.24

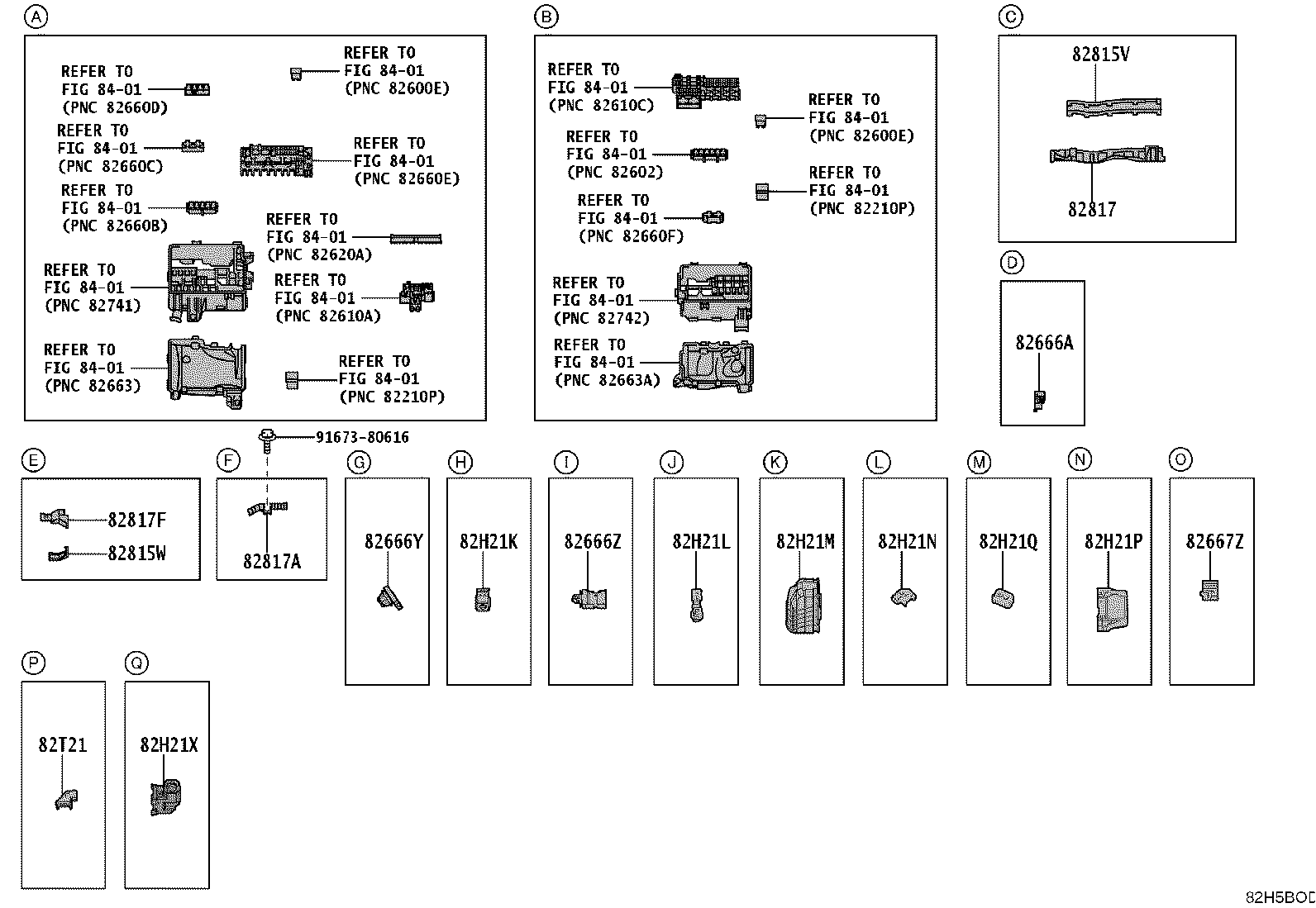

82821P	Cover, Connector
82821R	Cover, Connector
82821W	Cover, Connector
82823	Cap, Terminal, NO.1
82823C	Cap, Terminal, NO.4
82823T	Cap, Alternator Terminal
82824	Connector, Wiring Harness
82824A	Connector, Wiring Harness
82824D	Connector, Wiring Harness
82824E	Connector, Wiring Harness
82824F	Connector, Wiring Harness
82H21K	Cover, Connector
82H21L	Cover, Connector
82H21M	Cover, Connector
82H21N	Cover, Connector
82H21P	Cover, Connector
82H21Q	Cover, Connector
82H21X	Cover, Connector
82T21	Cover, Connector
890C0	Wire Assy, Parking Brake, NO.1
890C0A	Wire Assy, Parking Brake, NO.2
89623	Wire, Power Steering Sensor

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
