Toyota Land Cruiser
2024-02 → present · chassis TJH250 · catalogue 781490 · United States
Supported model
Data version 2024-02
Switch & Relay & Computer
130 part groups · 11 illustrations
Part groups
| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 28371 | Relay, Ignition, NO.1 |
| 28850C | Sensor Assy, Battery State |
| 28859A | Holder, Battery Current Sensor |
| 81985 | Relay, Towing Converter |
| 81985A | Relay, Towing Back-up |
| 82210N | Instrument Panel Fusible Link |
| 82210P | Engine Room Fusible Link |
| 82600D | Instrument Panel Fuse |
| 82600E | Engine Room Fuse |
| 82602 | Block Sub-assy, Relay |
| 82610A | Block Assy, Fuse |
| 82610C | Block Assy, Fuse |
| 82611 | Cover, Fuse Block |
| 82613 | Cover, Fuse Block |
| 82620A | Block Assy, Fusible Link |
| 82644 | Computer, Semiconductor Power Integration |
| 82660B | Block Assy, Relay |
| 82660C | Block Assy, Relay |
| 82660D | Block Assy, Relay |
| 82660E | Block Assy, Relay |
| 82660F | Block Assy, Relay |
| 82661 | Cover, Relay Block, NO.1 |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82662B | Cover, Relay Block, Upper, NO.2 |
| 82663 | Cover, Relay Block, Lower |
| 82663A | Cover, Relay Block, Lower, NO.2 |
| 82672K | Cover, Power Distribution Box |
| 82673A | Bracket, Junction Block, NO.1 |
| 82673B | Bracket, Junction Block, NO.2 |
| 82730G | Box Assy, Power Distribution |
| 82741 | Block, Engine Room Relay |
| 82742 | Block, Engine Room Relay, NO.2 |
| 82743 | Block, Engine Room Relay, NO.3 |
| 83320 | Gage Assy, Fuel Sender |
| 83461 | Relay, Battery Charge |
| 83520 | Gage Assy,Oil Pressure Sender |
| 84012 | Control & Panel Sub-assy, Integration |
| 84040 | Master Switch Assy,Multiplex Network |
| 84119 | Rheostat, Light Control |
| 84153 | Switch, Auto High Beam |
| 84223A | Switch, Transfer Position |
| 84250A | Switch Assy, Steering Pad |
| 84306 | Cable Sub-assy, Spiral |
| 84319 | Housing, Steering Wheel Switch |
| 84329 | Switch, Turn Signal |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84340 | Switch Assy, Stop Lamp |
| 84345 | Adjuster, Stop Lamp Switch Mounting |
| 84390B | Switch Assy, Electric Parking Brake |
| 84391 | Switch, Trailer Brake Control |
| 84485C | Switch, Power Outlet |
| 84491 | Switch, Parking Support Brake Cancel |
| 84523 | Wire, Switch NO.1 |
| 84540 | Switch Assy, Neutral Start |
| 84610G | Switch Assy, Transmission Shift, NO.1 |
| 84610H | Switch Assy, Transmission Shift, NO.2 |
| 84650 | Switch Assy, Windshield Wiper |
| 84720J | Switch Assy, Pattern Select |
| 84721B | Switch, Panoramic View Monitor |
| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |
| 84840K | Relay, Glass Hatch, NO.1 |
| 84840L | Relay, Glass Hatch, NO.2 |
| 84841A | Switch, Fuel Lid Opener |
| 84921N | Knob, Power Seat Switch, RH (FOR RECLINING) |
| 84921P | Knob, Power Seat Switch, RH (FOR SLIDE & VERTICAL) |
| 84921Q | Knob, Power Seat Switch, LH (FOR RECLINING) |
| 84921R | Knob, Power Seat Switch, LH (FOR SLIDE & VERTICAL) |
| 84922B | Switch, Front Power Seat, RH |
| 84922C | Switch, Front Power Seat, LH |
| 84927 | Switch, Seat Memory |
| 84930 | Switch Assy, Door Control |
| 84931B | Switch, Door Control |
| 84934B | Cover, Door Control Switch |
| 84966 | Switch, Power Back Door Control |
| 84966A | Switch, Power Back Door Control, NO.1 |
| 85530 | Socket Assy, Power Outlet, NO.1 |
| 85530B | Socket Assy, Power Outlet, Rear NO.1 |
| 85531 | Socket, Power Outlet |
| 85532 | Socket, Usb Charger |
| 85532C | Socket, Usb Charger, NO.2 |
| 85532D | Socket, Usb Charger, NO.3 |
| 85535B | Cover, Power Outlet Socket, NO.1 |
| 85535C | Cover, Power Outlet Socket, Rear |
| 85536 | Bezel, Power Outlet Socket |
| 85910E | Relay, Injector |
| 85916Y | Relay, Towing Tail |
| 85924C | Relay, Igct |
| 85940F | Relay Assy, Windshield Deicer |
| 86210D | Fuse, High Voltage |
| 8624A | Inverter, Voltage |
| 86530 | Relay Assy, Horn |
| 87130F | Relay, Battery Blower, NO.1 |
| 87211Y | Duct, Air |
| 87501 | Control Sub-assy, Seat Heater |
| 88161 | Bracket, Blind Spot Monitor, RH |
| 88162 | Sensor, Blind Spot Monitor, RH |
| 88171 | Bracket, Blind Spot Monitor, LH |
| 88172 | Sensor, Blind Spot Monitor, LH |
| 89111 | Computer, Network Gateway |
| 89120A | Sensor, Automatic Light Control |
| 89221 | Computer, Multiplex Network Body |
| 89222A | Computer, Multiplex Network Door |
| 89227 | Computer, Multiplex Tilt & Telescopic |
| 89235A | Switch, Tilt & Telescopic |
| 89245B | Sensor, Steering |
| 89271A | Computer, Stabilizer Control |
| 89422A | Sensor, Water Temperature |
| 89429F | Sensor, Temperature |
| 89430A | Computer Assy, Outer Mirror Control, LH |
| 89430B | Computer Assy, Outer Mirror Control, RH |
| 89461 | Sensor, Vapor Pressure |
| 89467B | Sensor, Air Fuel Ratio |
| 89467C | Sensor, Air Fuel Ratio, NO.2 |
| 8946A | Bracket, Exhaust Sensor Clamp |
| 89491 | Sensor, Engine Oil Level |

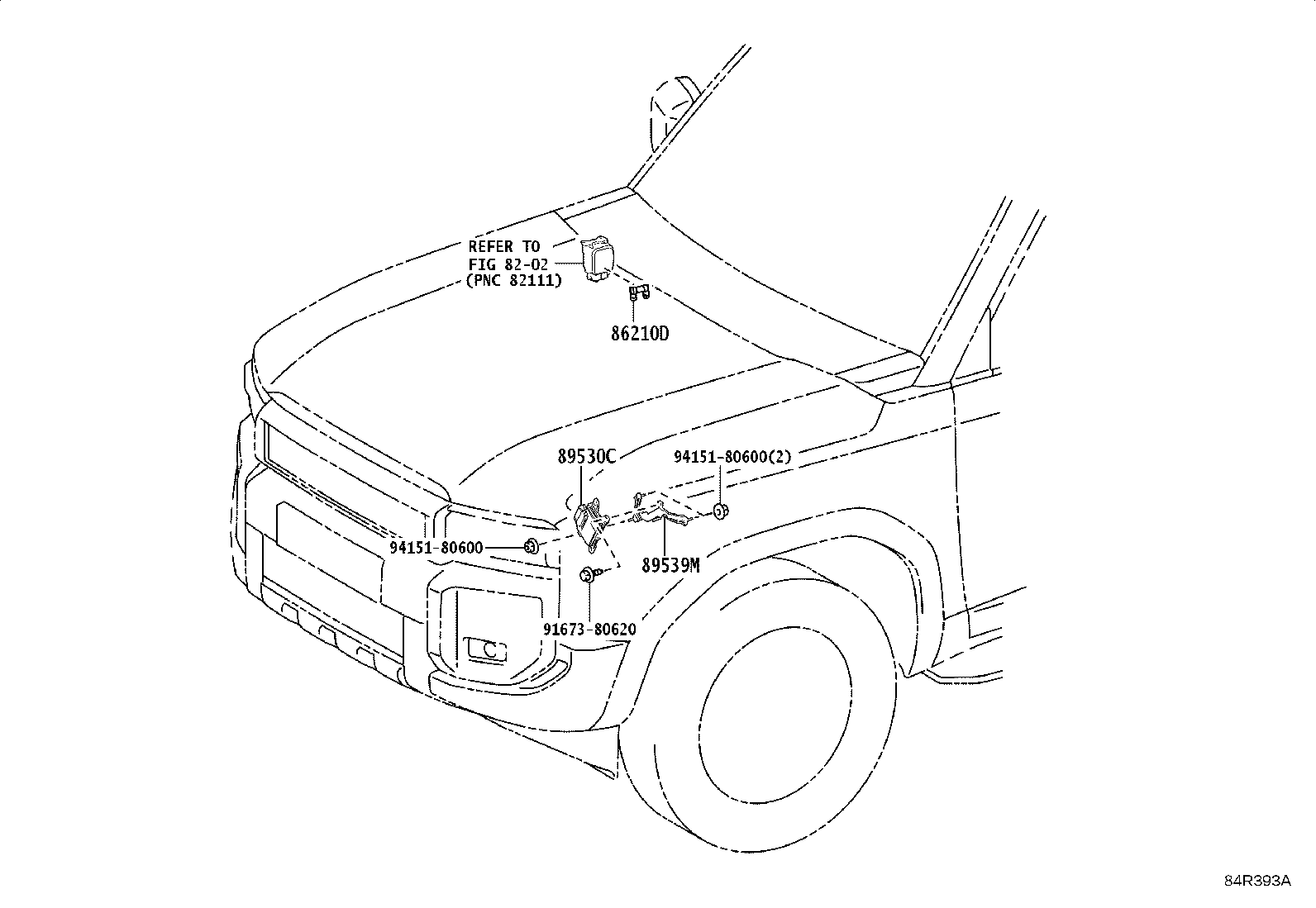

| 89530C | Computer Assy, Transmission Control |
| 89533 | Computer, 4 Wheel Drive Control |
| 89539M | Bracket, Transmission Control Computer, NO.1 |
| 89561F | Relay, Electronic Fuel Injection Main, NO.1 |
| 89561G | Relay, Electronic Fuel Injection Main, NO.2 |
| 89561H | Relay, Electronic Fuel Injection Main, NO.3 |
| 89611 | Switch, Push Start |
| 89615 | Sensor, Knock Control |
| 89710 | Computer Assy, Position Control |
| 89730A | Relay(FOR SECURITY WARNING) |
| 89747E | Buzzer, Power Back Door Warning |
| G9020E | Relay, Hybrid Water Pump |
| G9020J | Relay, Oil Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
