Toyota Land Cruiser
2024-02 → present · chassis TJH250 · catalogue 781490 · United States
Supported model
Data version 2024-02

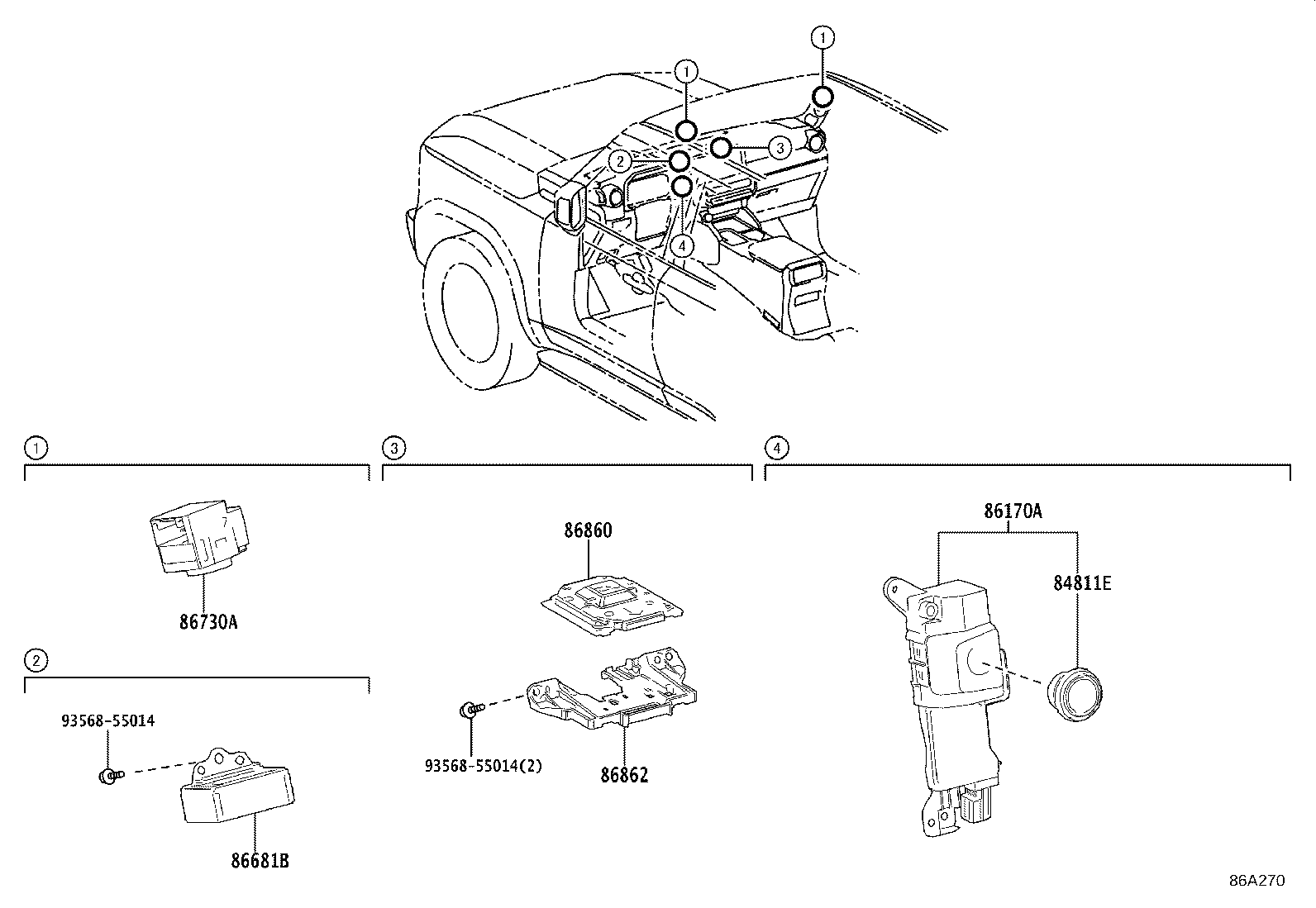

Navigation & Front Monitor Display
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 84811E | Knob, Switch |
| 86140A | Receiver Assy, Radio & Display |
| 86170A | Switch & Volume Assy |
| 86211J | Bracket, Radio Receiver, NO.1 |
| 86212C | Bracket, Radio Receiver, NO.2 |
| 86681B | Divider, Antenna |
| 86730A | Microphone Assy, Telephone |
| 86860 | Antenna Assy, Navigation |
| 86862 | Bracket, Navigation Antenna |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
