Toyota Lexus GX460

2009-11 → present · chassis URJ150 · catalogue 782410 · United States

Supported model Data version 2019-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

11 part groups · 2 illustrations

Illustrations

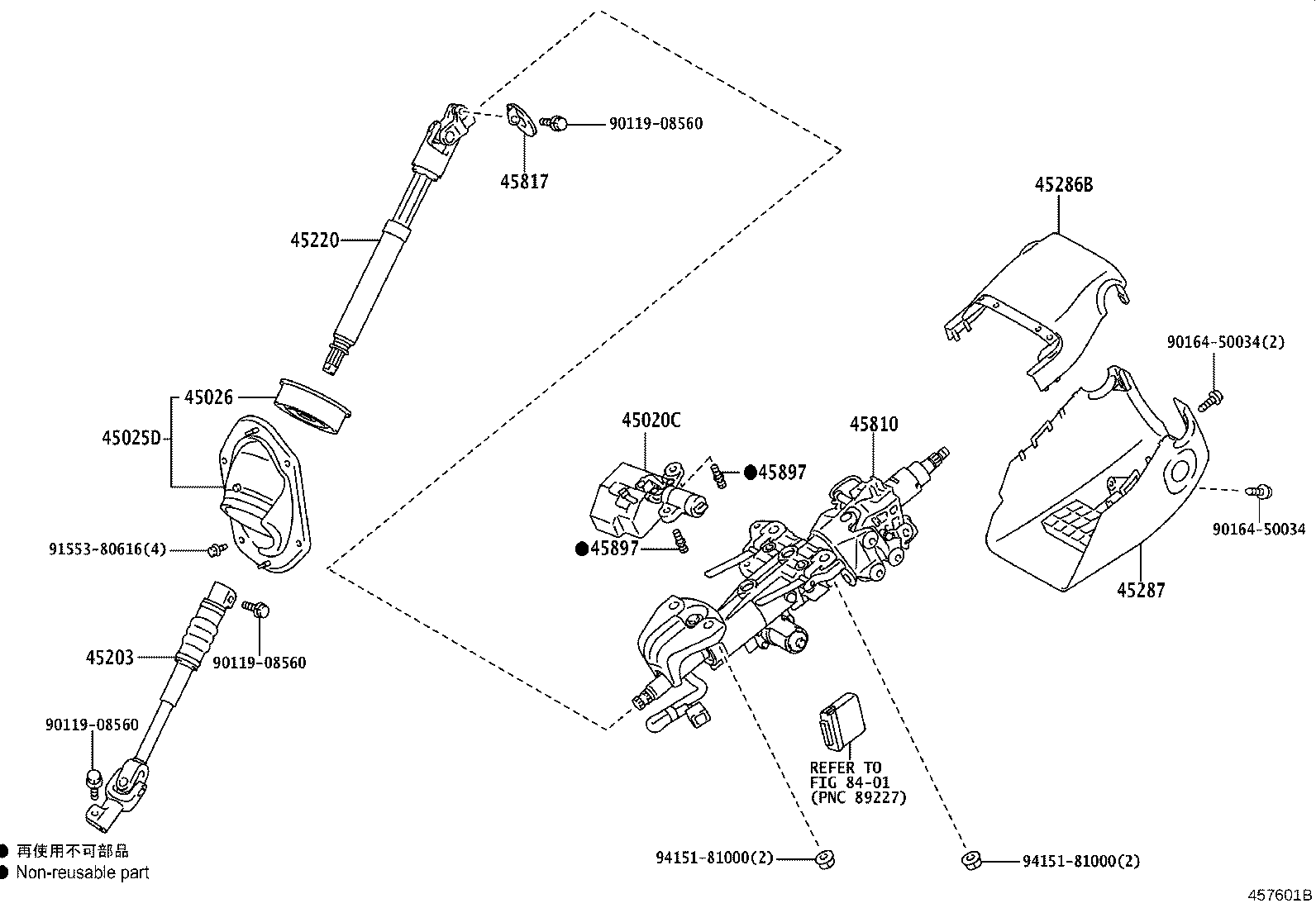

Figure 455498K 455498K 2009-11 → 2019-08 Figure 457601B 457601B 2019-08 → —

Part groups

PNCDescription
45020C Actuator Assy, Steering Lock(W/ECU)
45025D Cover Sub-assy, Steering Column Hole, NO.1
45026 Cover Sub-assy, Steering Column Hole, NO.2
45203 Shaft Sub-assy, Steering Intermediate, NO.2
45220 Shaft Assy, Steering Intermediate
45250 Column Assy, Steering
45286B Cover, Steering Column, Upr
45287 Cover, Steering Column, Lwr
45810 Gear Assy, Tilt Steering, W/Motor
45817 Stopper, Steering Shaft Thrust
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
