Toyota Lexus GX460
2009-11 → present · chassis URJ150 · catalogue 782410 · United States
Supported model
Data version 2019-08

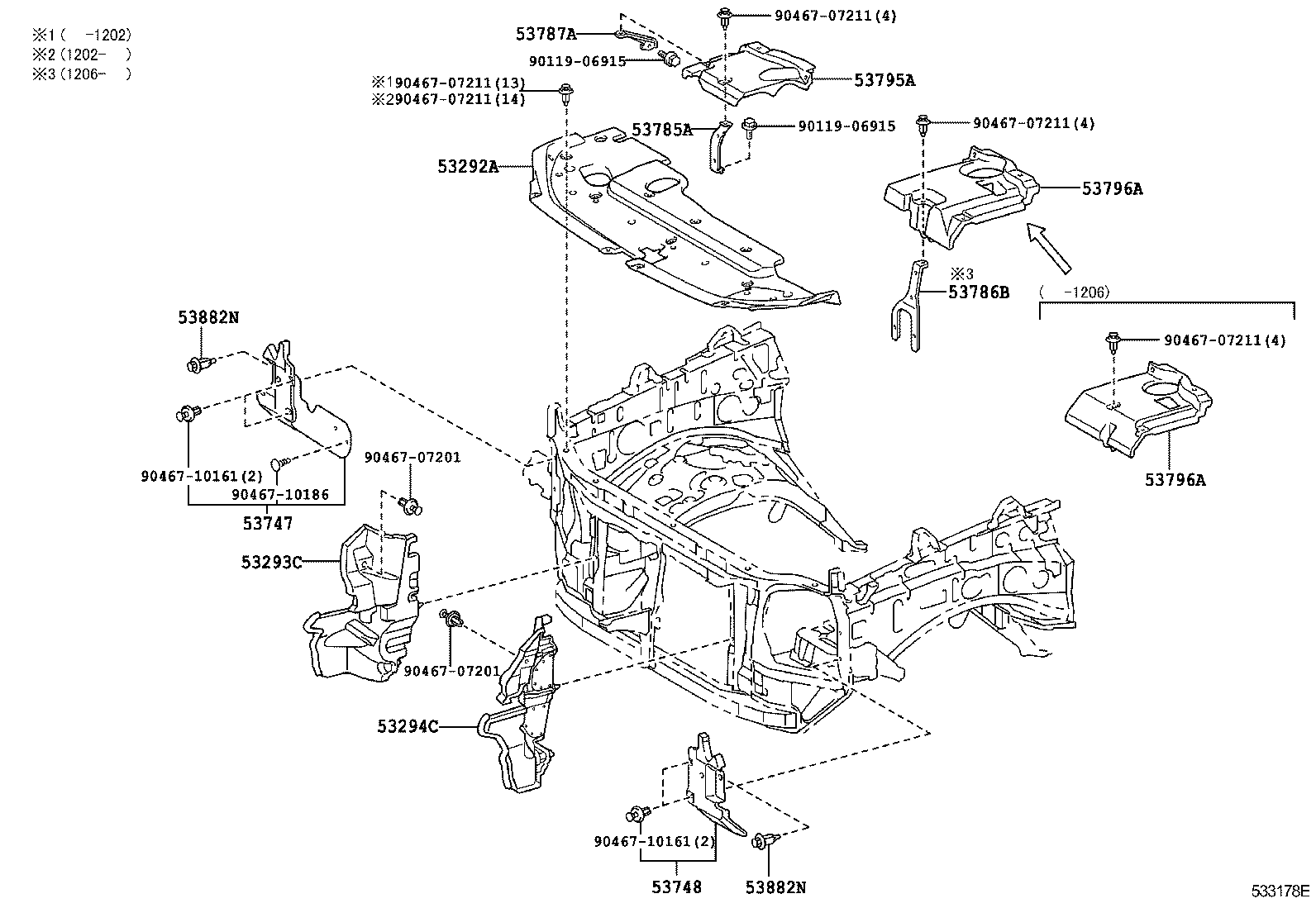

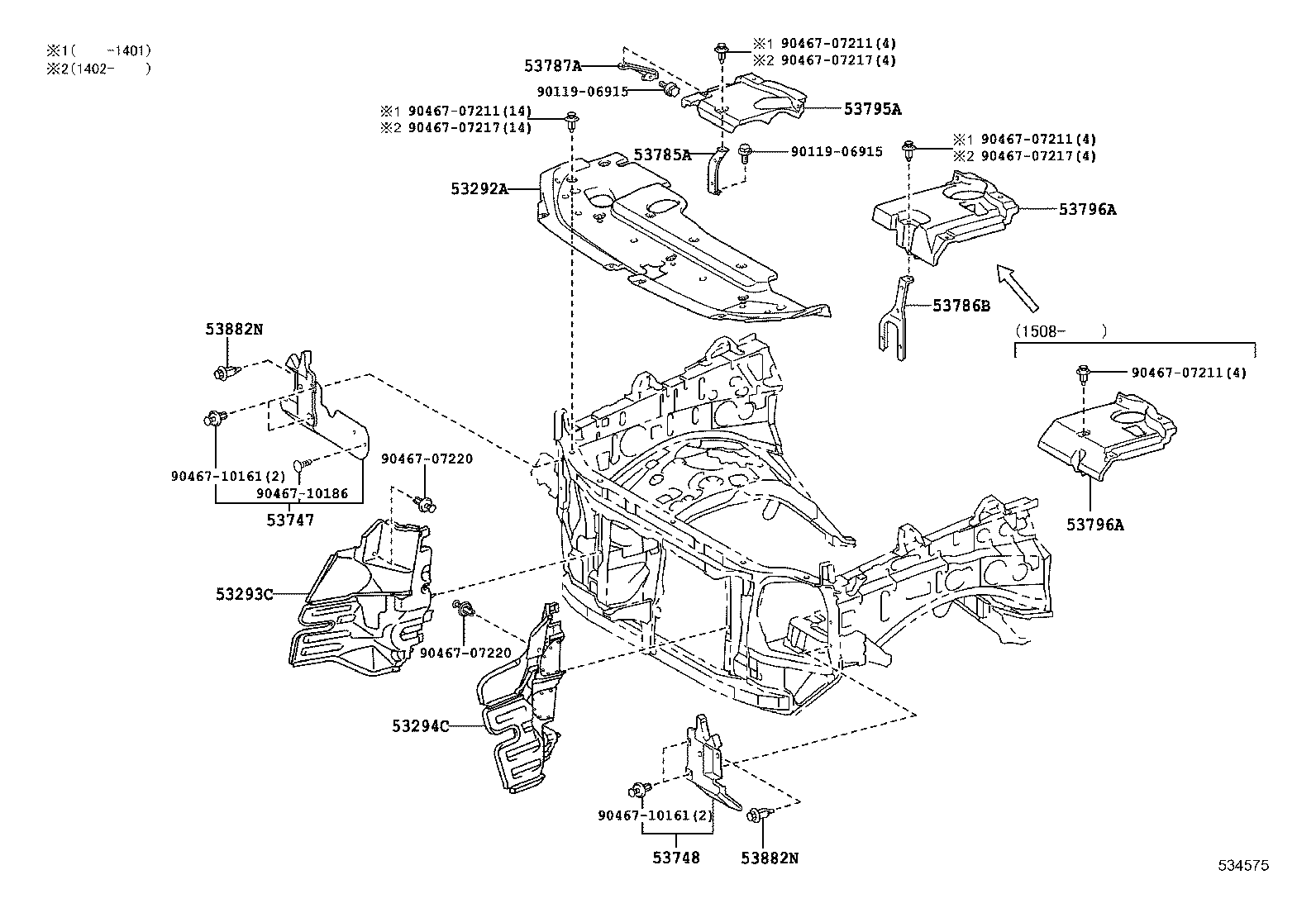

Front Fender Apron & Dash Panel
56 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 52145D | Bracket, Front Bumper Side Mounting, RH |
| 52146D | Bracket, Front Bumper Side Mounting, LH |
| 53201 | Support Sub-assy, Radiator |
| 53205 | Support Sub-assy, Radiator, Upper |
| 53209B | Brace Sub-assy, Hood Lock Support |
| 53211C | Support, Radiator, RH |
| 53212C | Support, Radiator, LH |
| 53238A | Bracket, Hood Bumper Mounting |
| 53239C | Bracket, Hood Bumper Mounting, LH |
| 53257B | Bracket, Radiator Support TO Front Fender |
| 53257C | Bracket, Radiator Support TO Front Fender, NO.2 |
| 53258B | Bracket, Radiator Support TO Front Fender, LH |
| 53268A | Reinforcement, Radiator Mounting, RH |
| 53269A | Reinforcement, Radiator Mounting, LH |
| 53283B | Reinforcement, Front Body Mounting, NO.2 RH |
| 53284B | Reinforcement, Front Body Mounting, NO.2 LH |
| 53292A | Seal, Radiator Support, Upper |
| 53293C | Deflector, Radiator Side, RH |
| 53294C | Deflector, Radiator Side, LH |
| 53381D | Bumper, Hood TO Front Shroud |
| 53701 | Apron Sub-assy, Front Fender, RH |
| 53702 | Apron Sub-assy, Front Fender, LH |
| 53704B | Support Sub-assy, Battery, LH |
| 53728D | Bracket, Fender Apron, RH |
| 53729G | Bracket, Fender Apron, LH |
| 53731G | Reinforcement, Front Fender Apron, RH |
| 53732E | Reinforcement, Front Fender Apron, LH |
| 53736 | Seal, Front Fender Apron, RH |
| 53736A | Clip(FOR FRONT FENDER APRON SEAL) |
| 53736B | Seal, Front Fender Apron TO Frame, NO.1 RH |
| 53737A | Seal, Front Fender Apron TO Frame, NO.1 LH |
| 53737B | Seal, Front Fender Apron, LH |
| 53745B | Reinforcement, Front Fender Apron, Rear RH |
| 53746 | Reinforcement, Front Fender Apron, Rear LH |
| 53747 | Plate, Air Sealed, RH |
| 53747A | Extension, Apron Fender Side, RH |
| 53748 | Plate, Air Sealed, LH |
| 53748A | Extension, Apron Fender Side, LH |
| 53771B | Support, Battery Carrier, RH |
| 53785A | Gusset, Front Fender Apron, Upper RH |
| 53786B | Gusset, Front Fender Apron, Upper LH |
| 53787A | Gusset, Front Fender Apron, Lower RH |
| 53795A | Cover, Engine Room, Side |
| 53796A | Cover, Engine Room Side, LH |
| 53882N | Clip(FOR FRONT FENDER SEAL) |
| 55101 | Panel Sub-assy, Dash |
| 55133 | Plate, Front Fender Apron Set, Lower RH |
| 55134 | Plate, Front Fender Apron Set, Lower LH |
| 55210 | Insulator Assy, Dash Panel |
| 55210A | Clip |
| 55210C | Clip |
| 55223A | Insulator, Dash Panel, Outer |
| 55223C | Clip |
| 57021A | Bracket Sub-assy, Body Mounting, NO.1 RH |
| 57022A | Bracket Sub-assy, Body Mounting, NO.1 LH |
| 57104D | Member Sub-assy, Front Cross |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
