Toyota Lexus GX460

2009-11 → present · chassis URJ150 · catalogue 782410 · United States

Supported model Data version 2019-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

26 part groups · 3 illustrations

Illustrations

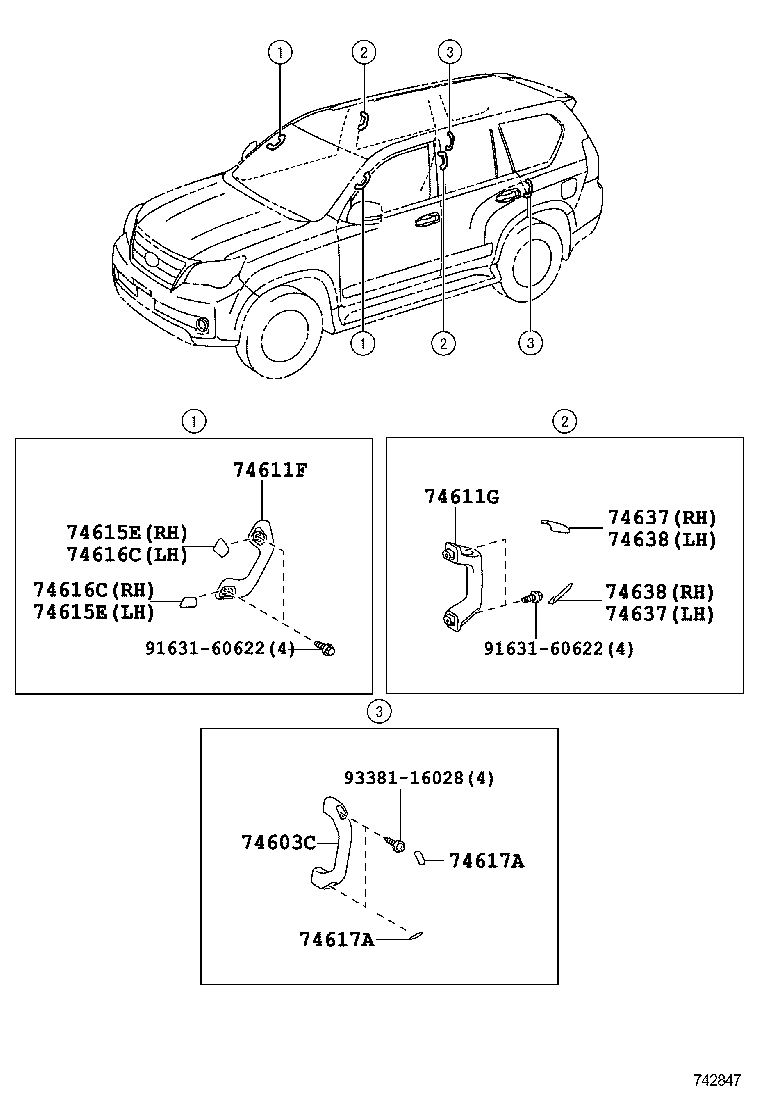

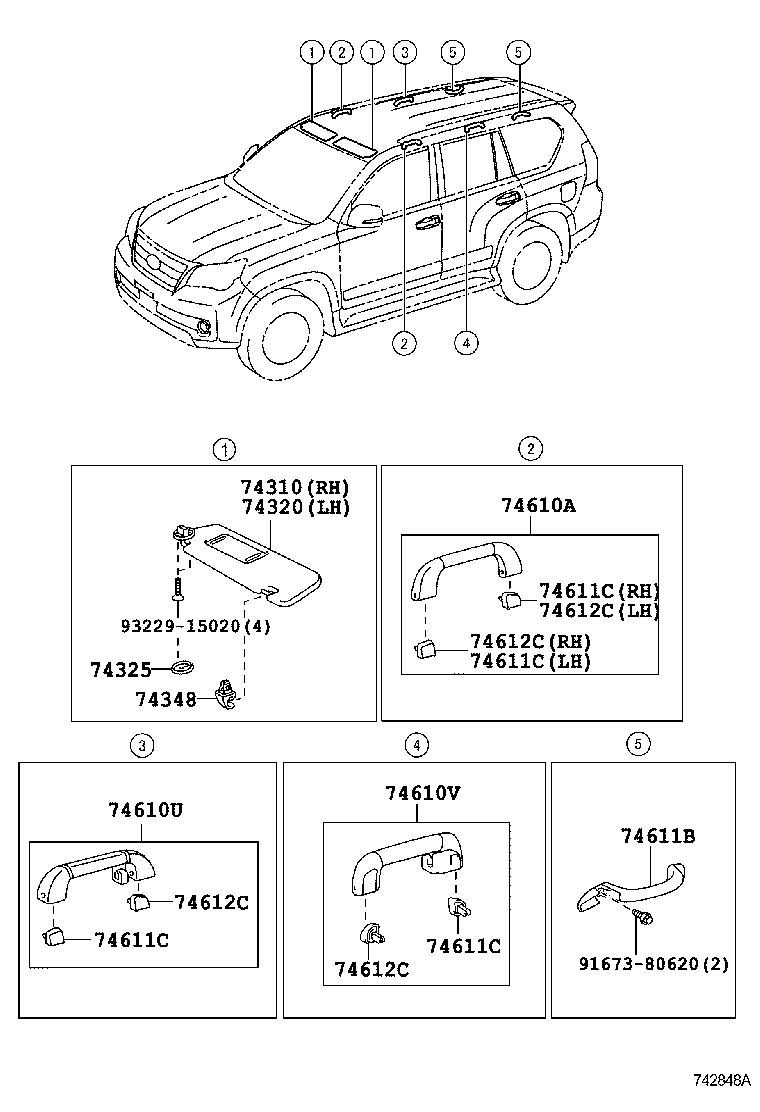

Figure 742850 742850 2009-11 → — Figure 742848A 742848A 2009-11 → — Figure 742847 742847 2009-11 → —

Part groups

PNCDescription
74210 Armrest Assy, Front, RH
74220 Armrest Assy, Front, LH
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74250 Armrest Assy, Rear RH
74260 Armrest Assy, Rear LH
74271A Panel, Rear Door Armrest Base, Upper RH
74272A Panel, Rear Door Armrest Base, Upper LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74325 Cover, Visor Bracket
74348 Holder, Visor
74603C Grip Sub-assy, Assist
74610A Grip Sub-assy, Assist
74610U Grip Assy, Assist
74610V Grip Assy, Assist
74611B Grip, Assist
74611C Cover, Assist Grip, LH
74611F Grip, Assist, NO.1
74611G Grip, Assist, NO.2
74612C Cover, Assist Grip, RH
74615E Plug, Front Assist Grip, NO.1 RH
74616C Plug, Front Assist Grip, NO.1 LH
74617A Plug, Assist Grip
74637 Plug, Assist Grip, NO.2 RH
74638 Plug, Assist Grip, NO.2 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
