Toyota Lexus GX460

2009-11 → present · chassis URJ150 · catalogue 782410 · United States

Supported model Data version 2019-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Telephone & Mayday

8 part groups · 4 illustrations

Illustrations

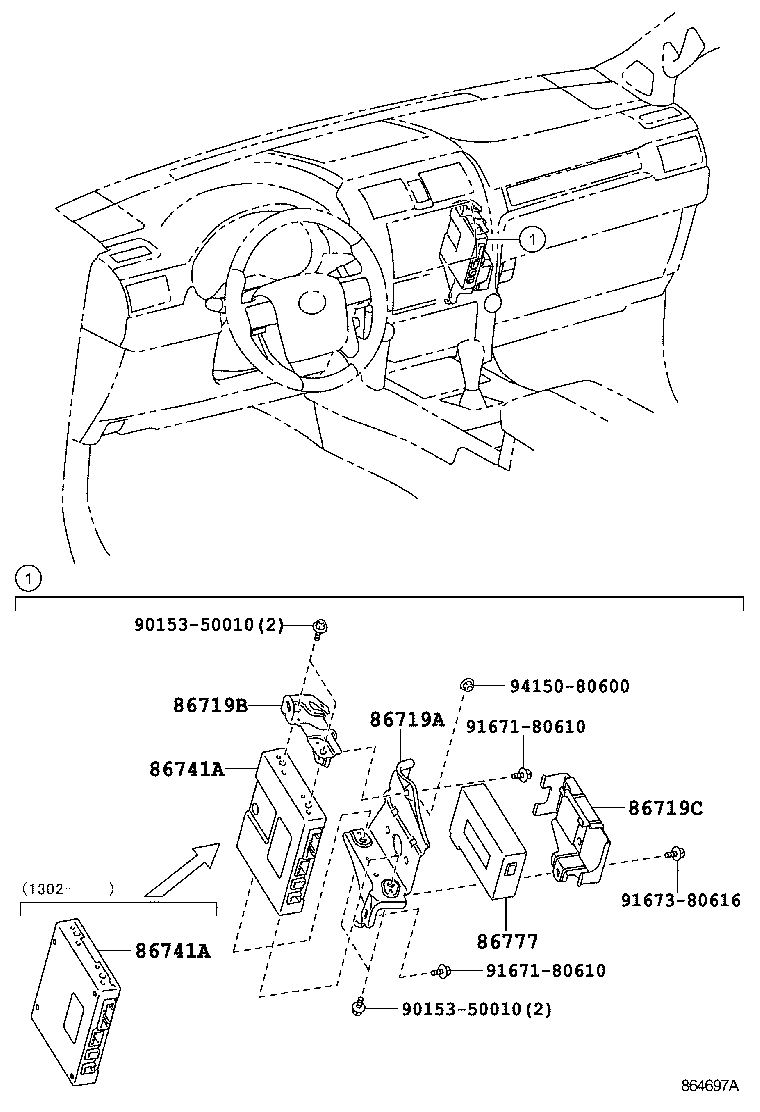

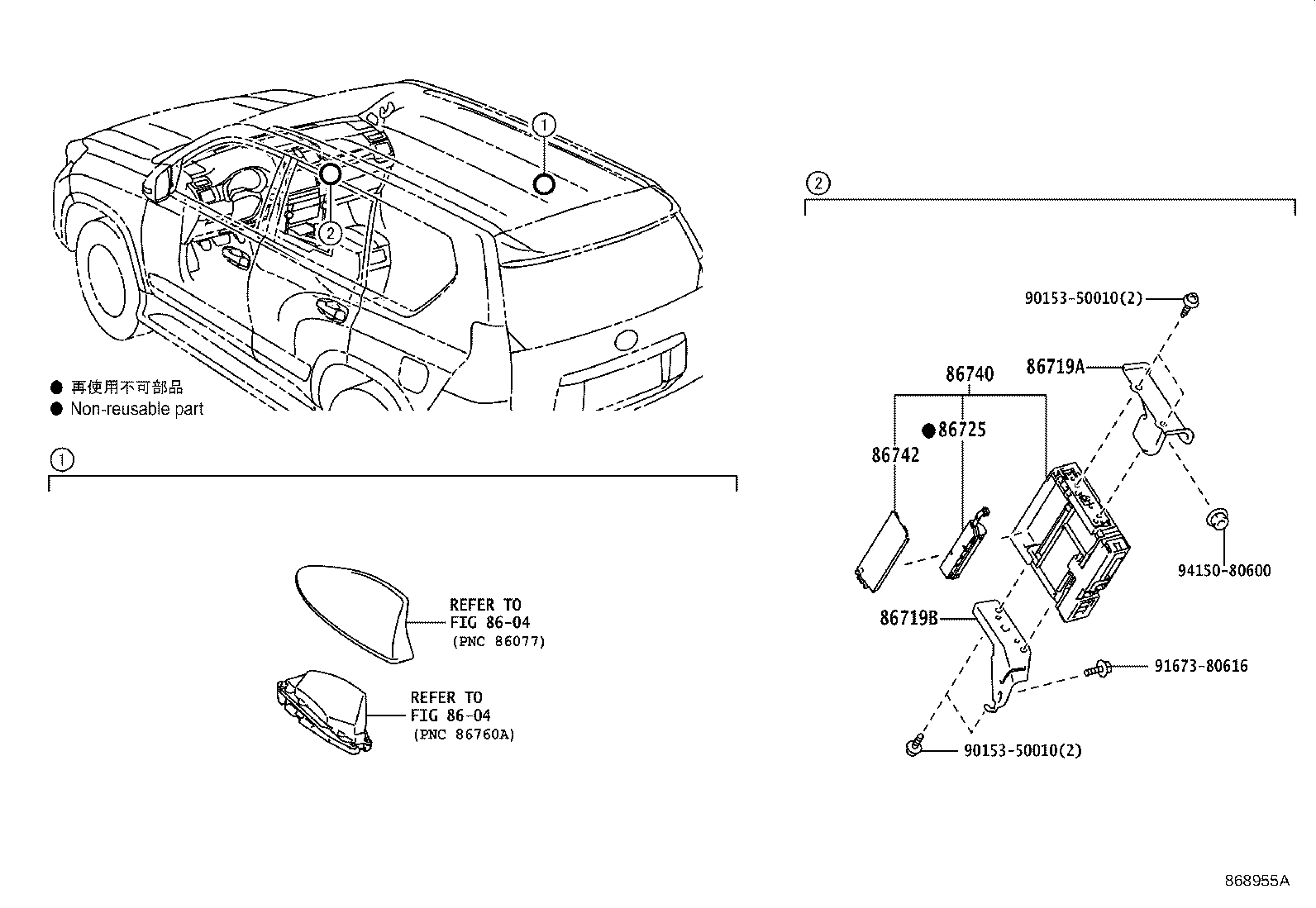

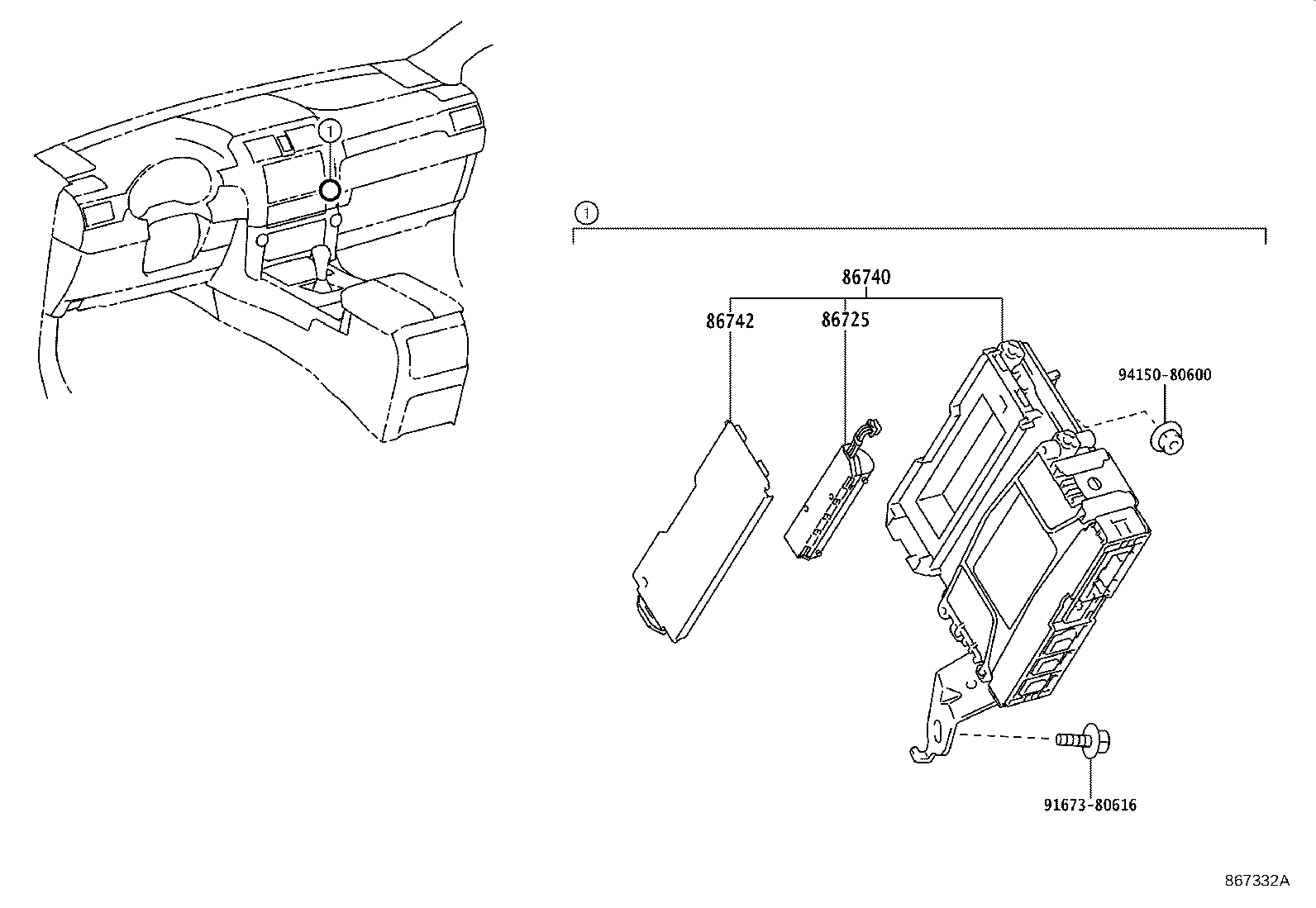

Figure 864145 864145 2009-11 → 2011-08 Figure 864697A 864697A 2011-08 → 2018-08 Figure 867332A 867332A 2018-08 → 2021-08 Figure 868955A 868955A 2021-08 → —

Part groups

PNCDescription
86719A Bracket, Telephone NO.1
86719B Bracket, Telephone NO.2
86719C Bracket, Telephone NO.3
86725 Battery, Mobilephone
86740 Transceiver Assy, Telephone
86741A Transceiver, Telematics
86742 Cover, Transceiver
86777 Battery, Mayday
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
