Toyota Lexus GX550
2023-12 → present · chassis VJA252 · catalogue 782420 · United States
Supported model
Data version 2023-12
Cylinder Head
49 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 11101A | Bolt(FOR CYLINDER HEAD SET) |
| 11101B | Washer, Plate(FOR CYLINDER HEAD SET) |
| 11101E | Sensor, Cam Position |
| 11101Z | O Ring, Cam Position Sensor |

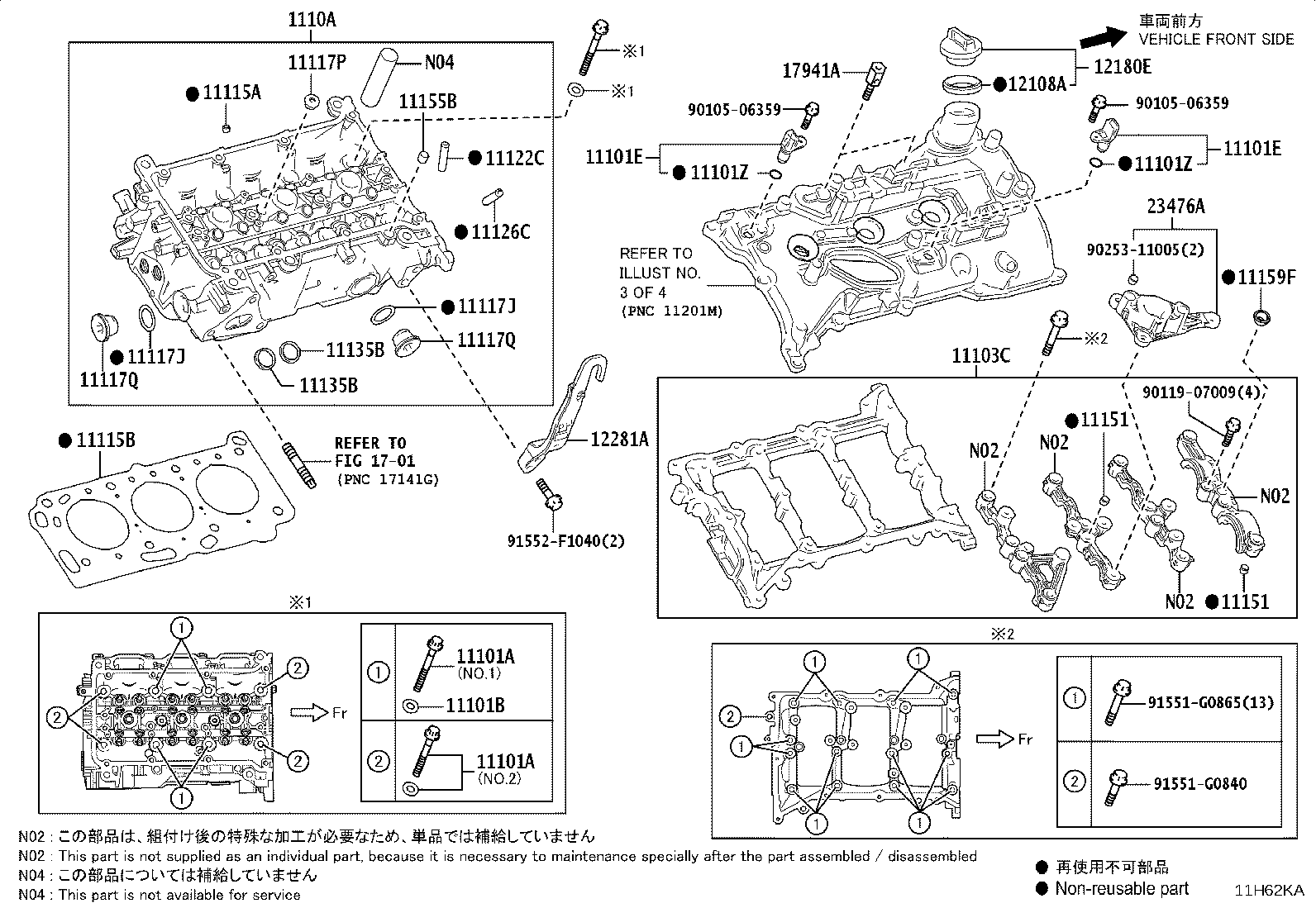

| 11102C | Head Sub-assy, Cylinder, LH |
| 11103C | Housing Sub-assy, Camshaft, RH |
| 11104A | Housing Sub-assy, Camshaft, LH |
| 1110A | Head Sub-assy, Cylinder, RH |
| 11115A | Pin, Ring |
| 11115B | Gasket, Cylinder Head, RH |
| 11116H | Gasket, Cylinder Head, LH |
| 11117E | Plug, W/Head Straight Screw, NO.1 |
| 11117J | Gasket(FOR CYLINDER HEAD SCREW PLUG) |
| 11117K | Plug, W/Head Straight Screw, LH NO.1 |
| 11117L | Plug, W/Head Straight Screw, LH NO.2 |
| 11117N | Gasket(FOR CYLINDER HEAD SCREW PLUG NO.2) |
| 11117P | Plug, W/Head Straight Screw, RH NO.1 |
| 11117Q | Plug, W/Head Straight Screw, RH NO.2 |
| 11122C | Bush, Intake Valve Guide, RH |
| 11122D | Bush, Intake Valve Guide, LH |
| 11126C | Bush, Exhaust Valve Guide, RH |
| 11126D | Bush, Exhaust Valve Guide, LH |
| 11135B | Seat, Exhaust Valve, RH |
| 11135C | Seat, Exhaust Valve, LH |
| 11151 | Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING RH) |
| 11153D | Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING LH) |
| 11155B | Pin, Ring |
| 11159F | Gasket, Camshaft Bearing Cap Oil Hole, RH |
| 11159G | Gasket, Camshaft Bearing Cap Oil Hole, LH |
| 11193A | Gasket, Spark Plug Tube, LH |
| 11193B | Gasket, Spark Plug Tube, RH |
| 11201L | Bolt(FOR CYLINDER HEAD COVER RH) |

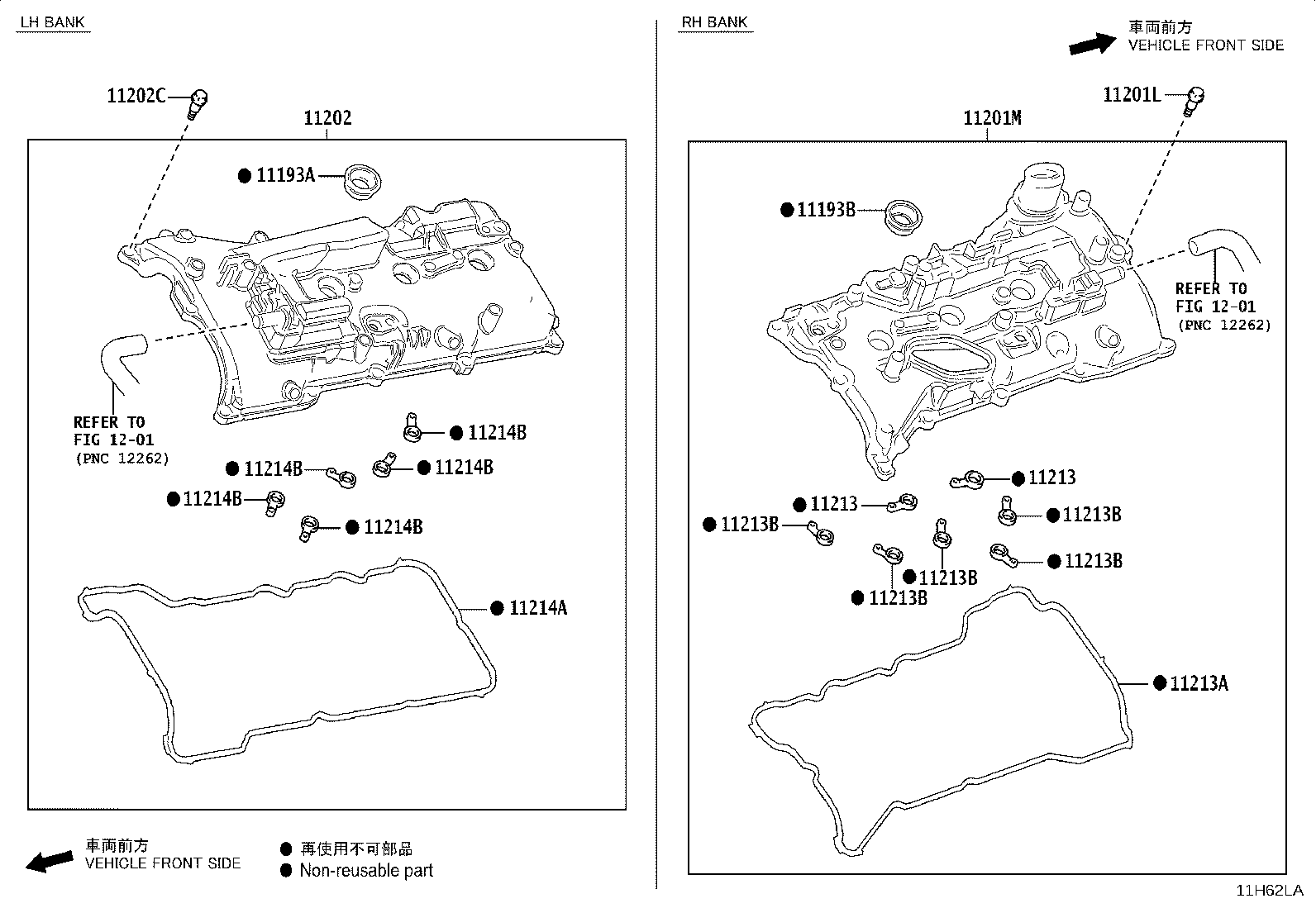

| 11201M | Cover Sub-assy, Cylinder Head, RH |
| 11202 | Cover Sub-assy, Cylinder Head, LH |
| 11202C | Bolt(FOR CYLINDER HEAD COVER LH) |

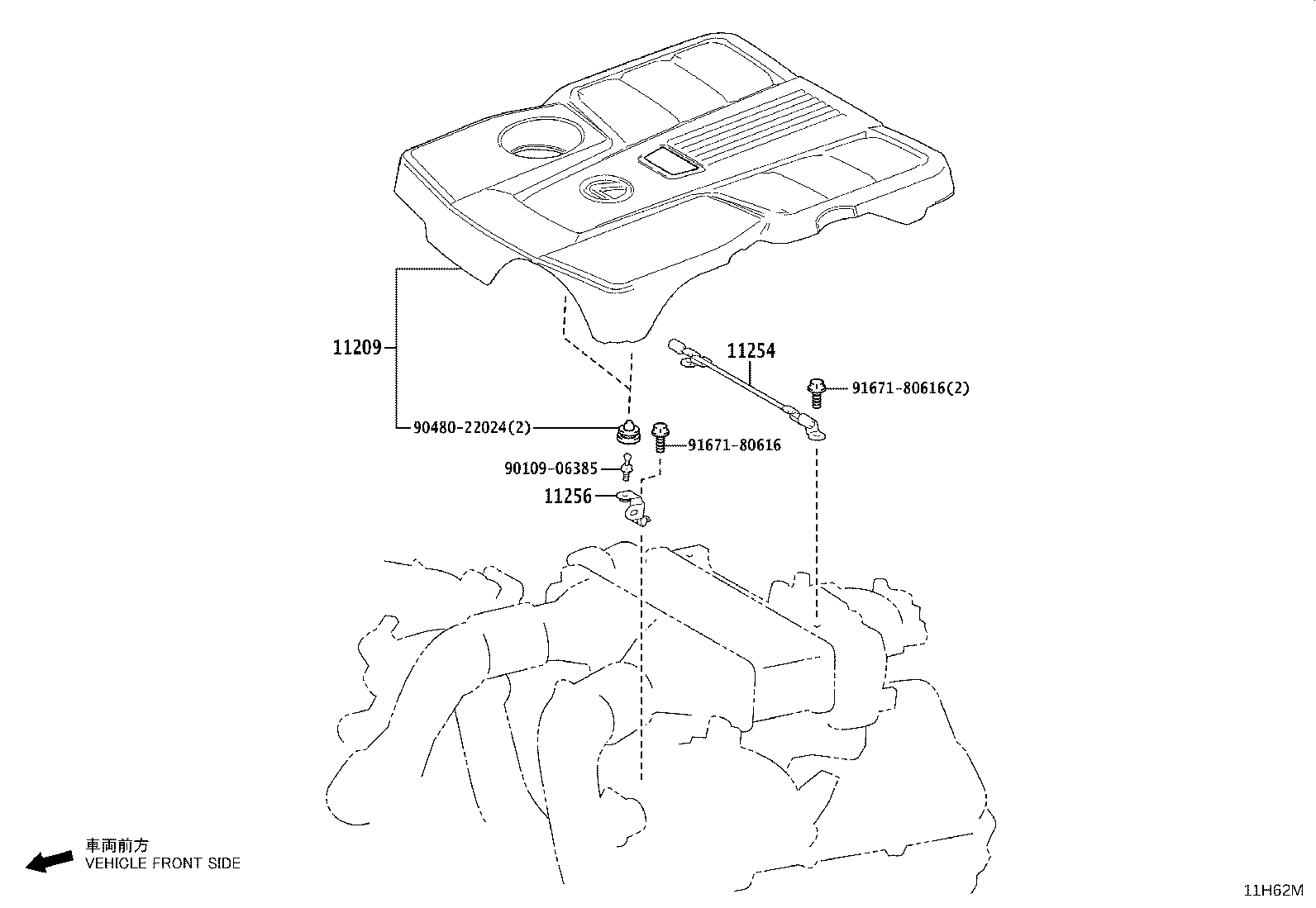

| 11209 | Cover Sub-assy, V-bank |
| 11213 | Gasket, Cylinder Head Cover |
| 11213A | Gasket, Cylinder Head Cover, RH NO.1 |
| 11213B | Gasket, Cylinder Head Cover, RH NO.2 |
| 11214A | Gasket, Cylinder Head Cover, LH NO.1 |
| 11214B | Gasket, Cylinder Head Cover, LH NO.2 |
| 11254 | Bracket, V-bank Cover, NO.1 |
| 11256 | Bracket, V-bank Cover, NO.2 |
| 12108A | Gasket(FOR OIL FILLER CAP) |
| 12180E | Cap Assy, Oil Filler |
| 12281A | Hanger, Engine, NO.1 |
| 12282D | Hanger, Engine, NO.2 |
| 17941A | Guide, Intercooler Air, NO.1 |
| 23476A | Housing, Fuel Pump Lifter, RH |
