Toyota Lexus GX550
2023-12 → present · chassis VJA252 · catalogue 782420 · United States
Supported model
Data version 2023-12

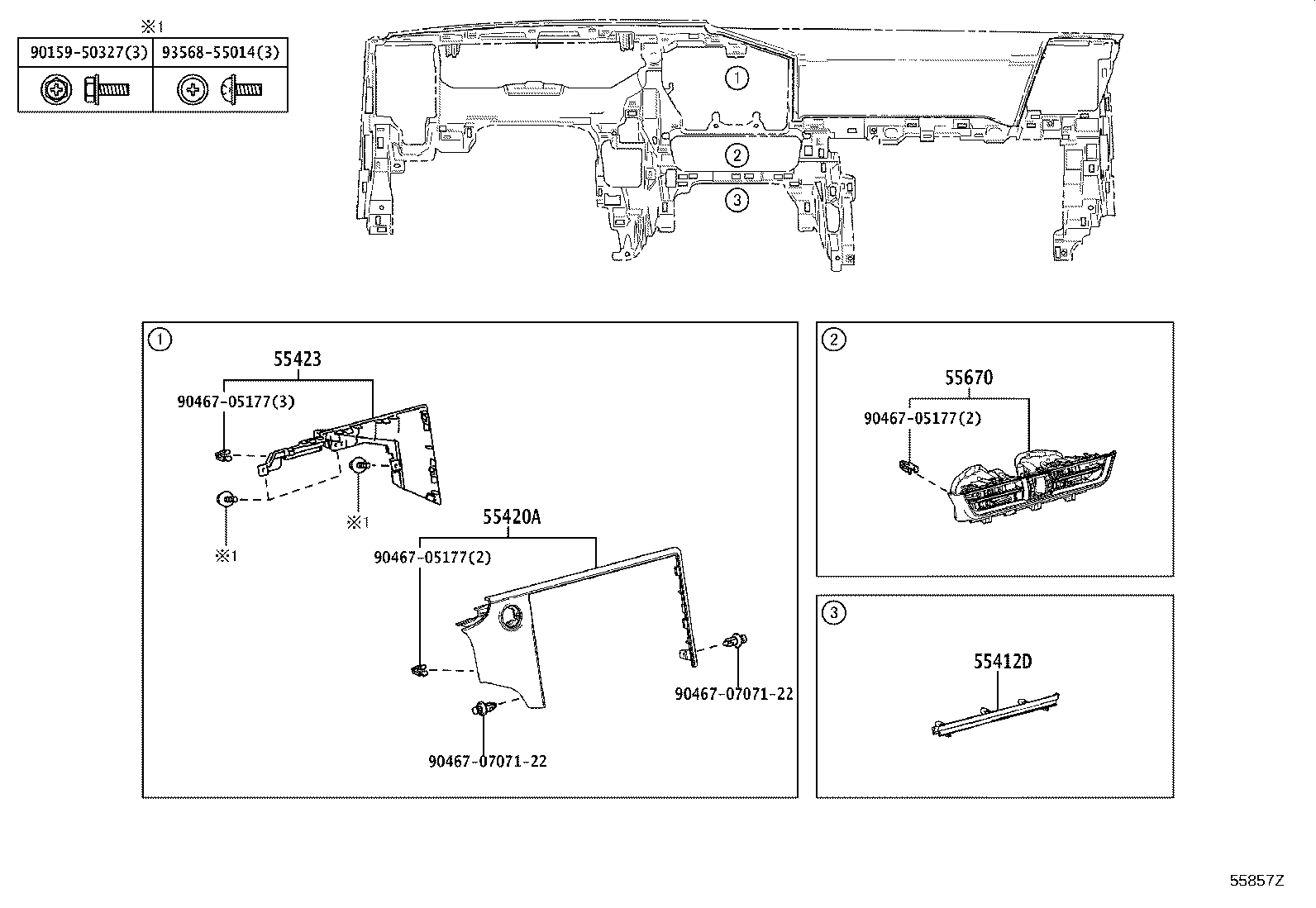

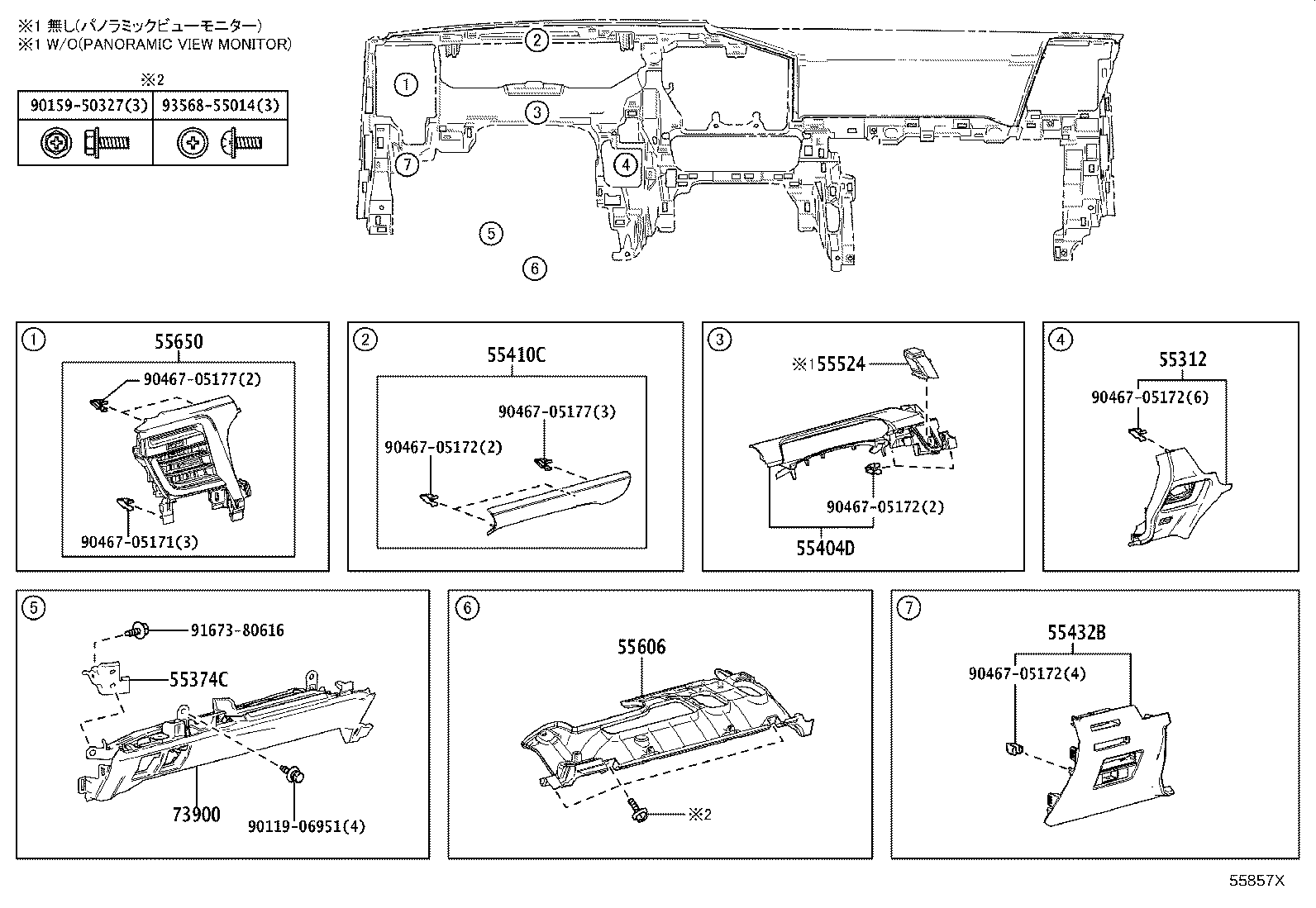

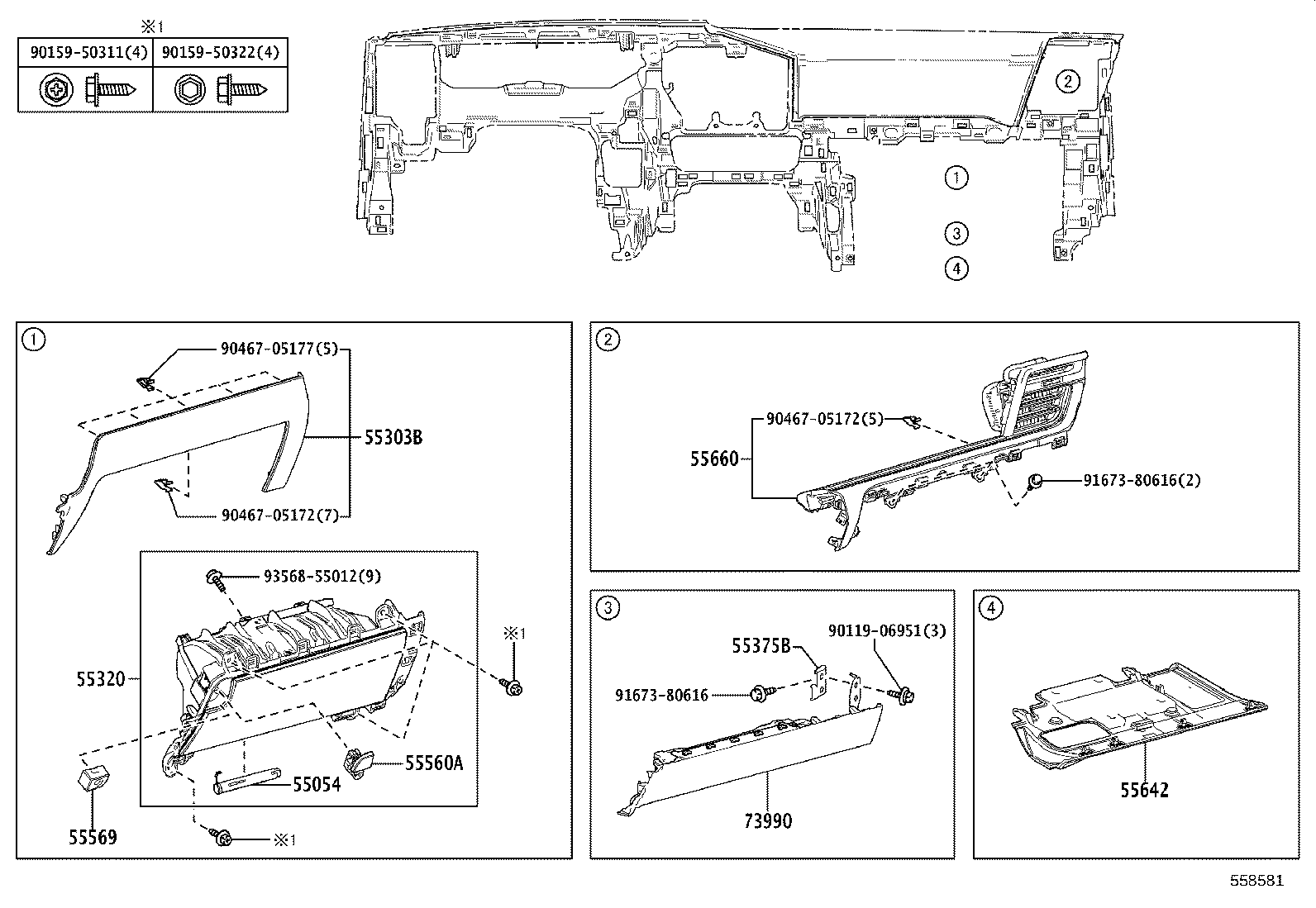

Instrument Panel & Glove Compartment
36 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 52161V | Piece, Instrument Panel |
| 55054 | Stopper Sub-assy, Glove Compartment Door |
| 55303B | Panel Sub-assy, Instrument, Lower |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55307C | Brace Sub-assy, Instrument Panel, NO.2 |
| 55308F | Brace Sub-assy, Instrument Panel, NO.3 |
| 55312 | Panel, Instrument, Lower |
| 55317A | Panel, Instrument Side, RH |
| 55318C | Panel, Instrument Side, LH |
| 55320 | Panel Assy, Instrument, Lower NO.2 |
| 55328 | Pin, Instrument Panel, NO.1 |
| 55330B | Reinforcement Assy, Instrument Panel |
| 55374C | Bracket, Instrument Panel Lower Mounting, NO.1 |
| 55375B | Bracket, Instrument Panel Lower Mounting, NO.2 |
| 55400 | Pad Assy, Instrument Panel Safety |
| 55404D | Panel Sub-assy, Instrument Cluster Finish |
| 55408F | Panel Sub-assy, Instrument Panel Speaker, NO.1 |
| 55409F | Panel Sub-assy, Instrument Panel Speaker, NO.2 |
| 55410C | Panel Assy, Instrument Cluster Finish |
| 55412D | Panel, Instrument Cluster Finish, Center |
| 55414A | Panel, Instrument Cluster Finish, End |
| 55420A | Panel Assy, Instrument Cluster Finish, Center |
| 55423 | Panel, Stereo Player Finish |
| 55432B | Panel, Instrument Panel Finish, Lower |
| 55510F | Cover Assy, Speaker Opening, NO.1 |
| 55524 | Cover, Switch Bace Hole |
| 55560A | Lock Assy, Glove Compartment Door |
| 55569 | Cover, Glove Compartment Door Lock |
| 55606 | Cover Sub-assy, Instrument Panel Under, NO.1 |
| 55642 | Cover, Instrument Panel Under, NO.2 |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 73900 | Airbag Assy, Instrument Panel, Lower NO.1 |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
| 73990 | Airbag Assy, Instrument Panel, Lower NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
