Toyota Lexus GX550
2023-12 → present · chassis VJA252 · catalogue 782420 · United States
Supported model
Data version 2023-12
Front Floor Panel & Front Floor Member
29 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

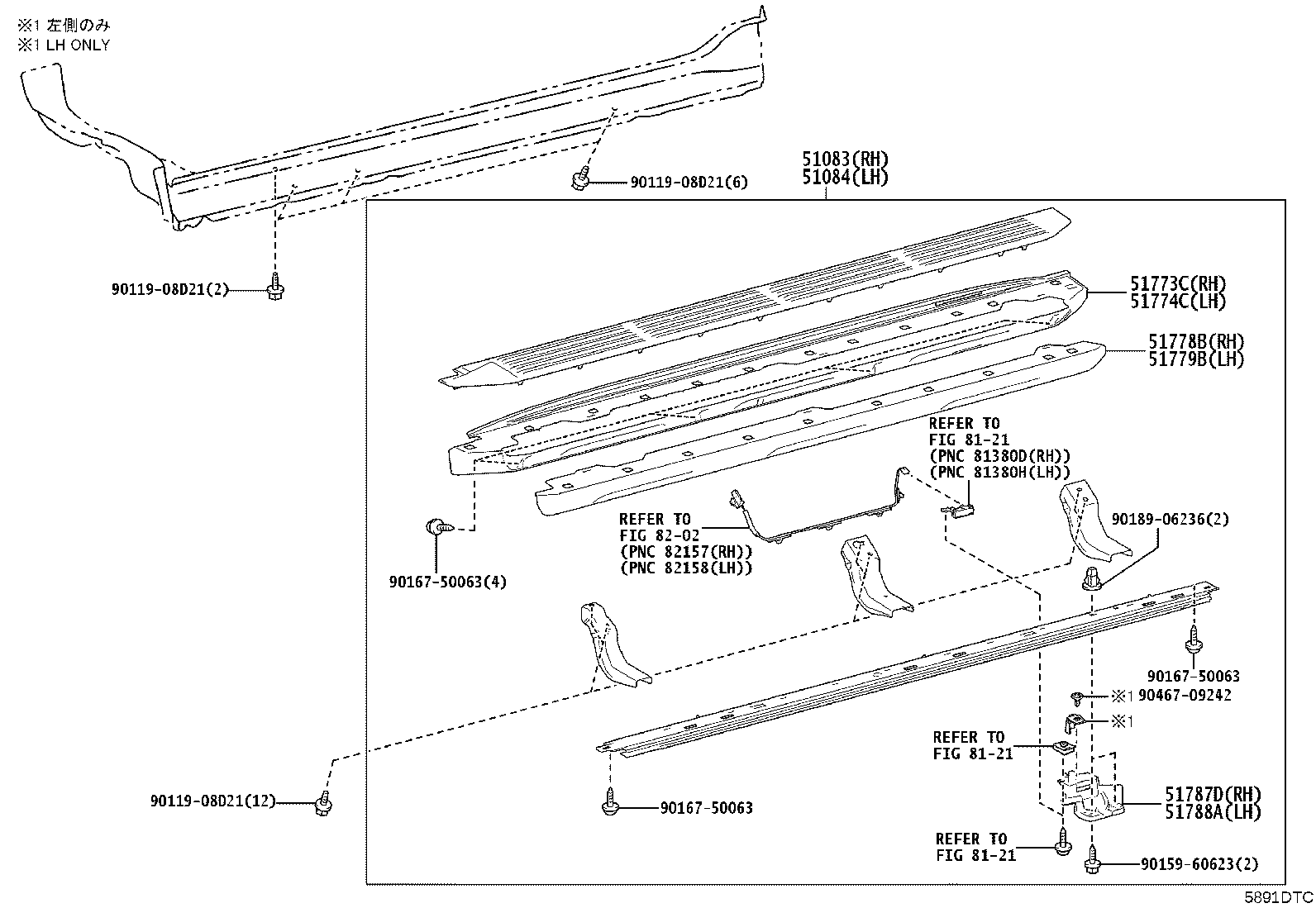

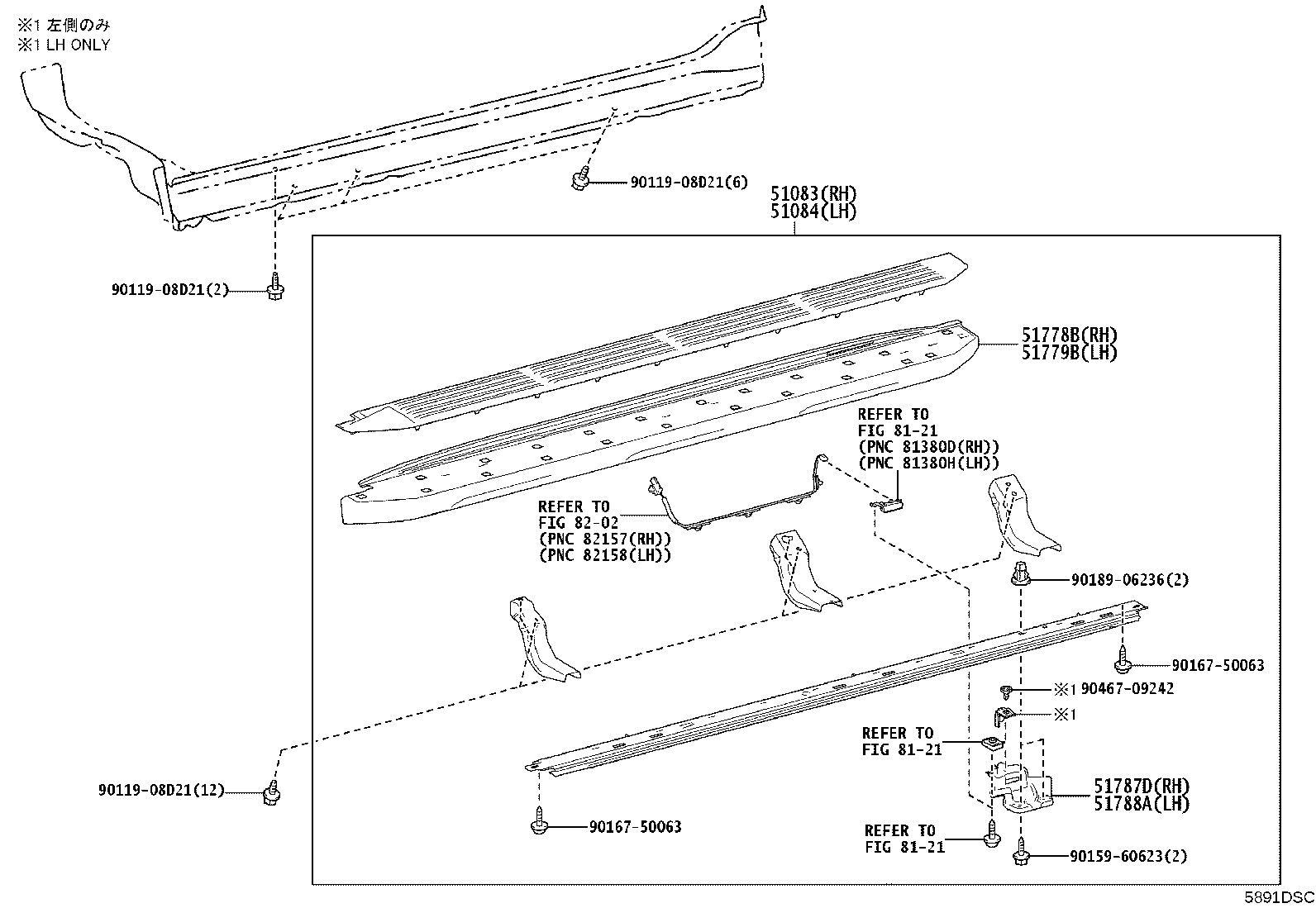

| 51083 | Step Sub-assy, RH |
| 51084 | Step Sub-assy, LH |

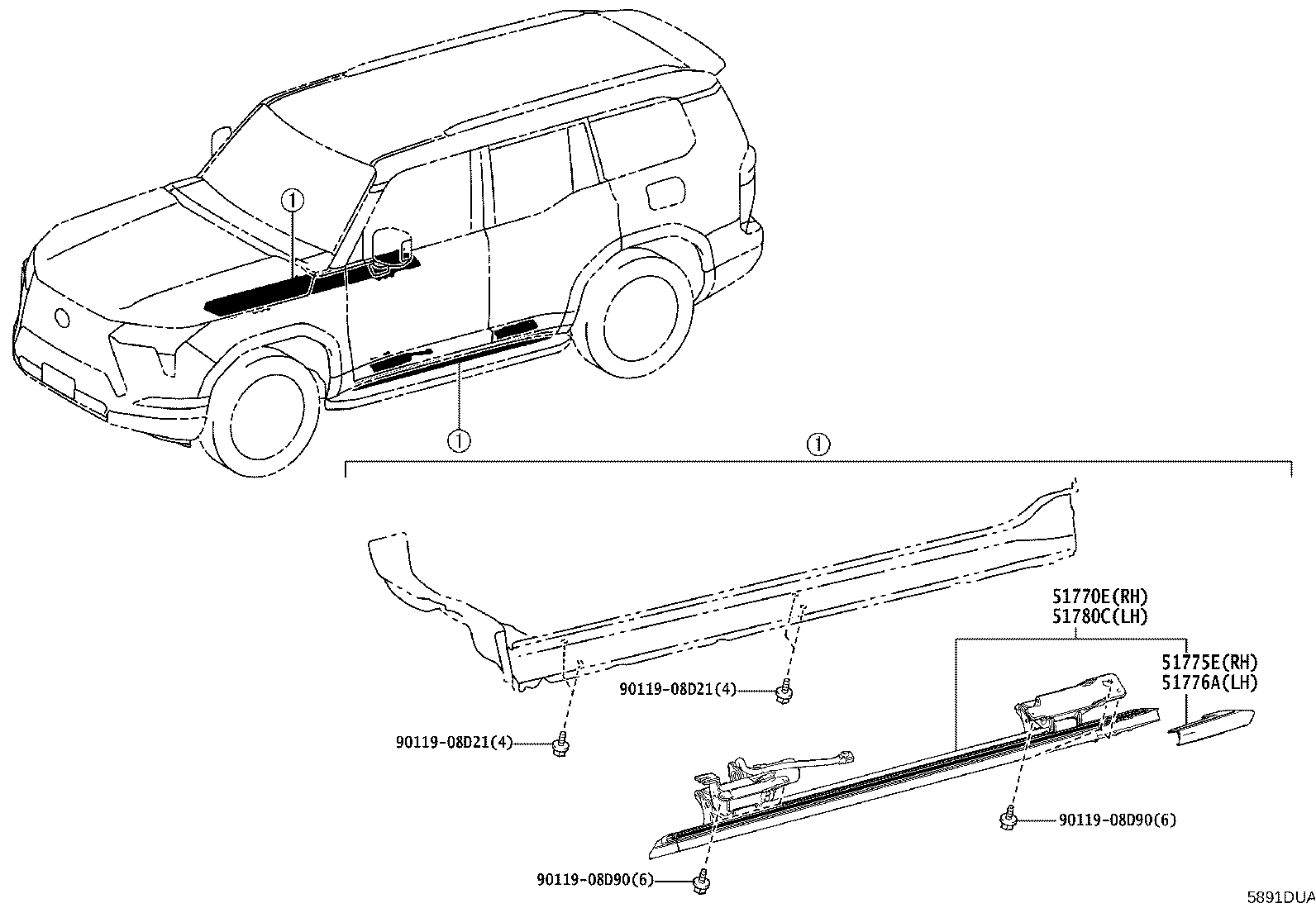

| 51770E | Step Assy, Power Lift, RH |
| 51773C | Cover, Step Plate, RH |
| 51774C | Cover, Step Plate, LH |
| 51775E | Plate, Side Step, RH |
| 51776A | Plate, Side Step, LH |
| 51778B | Cover, Side Door Step Plate, NO.1 |
| 51779B | Cover, Side Door Step Plate, NO.2 |
| 51780C | Step Assy, Power Lift, LH |
| 51787D | Reinforcement, Step Cover, RH |
| 51788A | Reinforcement, Step Cover, LH |
| 52025C | Extension Sub-assy, Front Bumper, NO.2 RH |
| 52026C | Extension Sub-assy, Front Bumper, NO.2 LH |
| 57013B | Member Sub-assy, Floor, Front RH |
| 57014 | Member Sub-assy, Floor, Front LH |
| 57047B | Bracket Sub-assy, Floor Housing Seat Anchor, RH |
| 57048A | Bracket Sub-assy, Floor Housing Seat Anchor, LH |
| 57051 | Member Sub-assy, Front Floor Cross, RH |
| 57052 | Member Sub-assy, Front Floor Cross, LH |
| 57501C | Brace Sub-assy, Front Floor, Center |
| 58102A | Reinforcement Sub-assy, Front Floor |
| 58111 | Pan, Front Floor |
| 58117A | Reinforcement, Front Floor Side, RH |
| 58118C | Reinforcement, Front Floor Side, LH |
| 58123A | Support, Shift & Select Lever |
| 58173D | Bracket, Computer Mounting, NO.4 |
| 58179C | Bracket, Clamp Floor |
| 58523N | Bracket, Floor Carpet Set |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
