Toyota Lexus GX550

2023-12 → present · chassis VJA252 · catalogue 782420 · United States

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

19 part groups · 4 illustrations

Illustrations

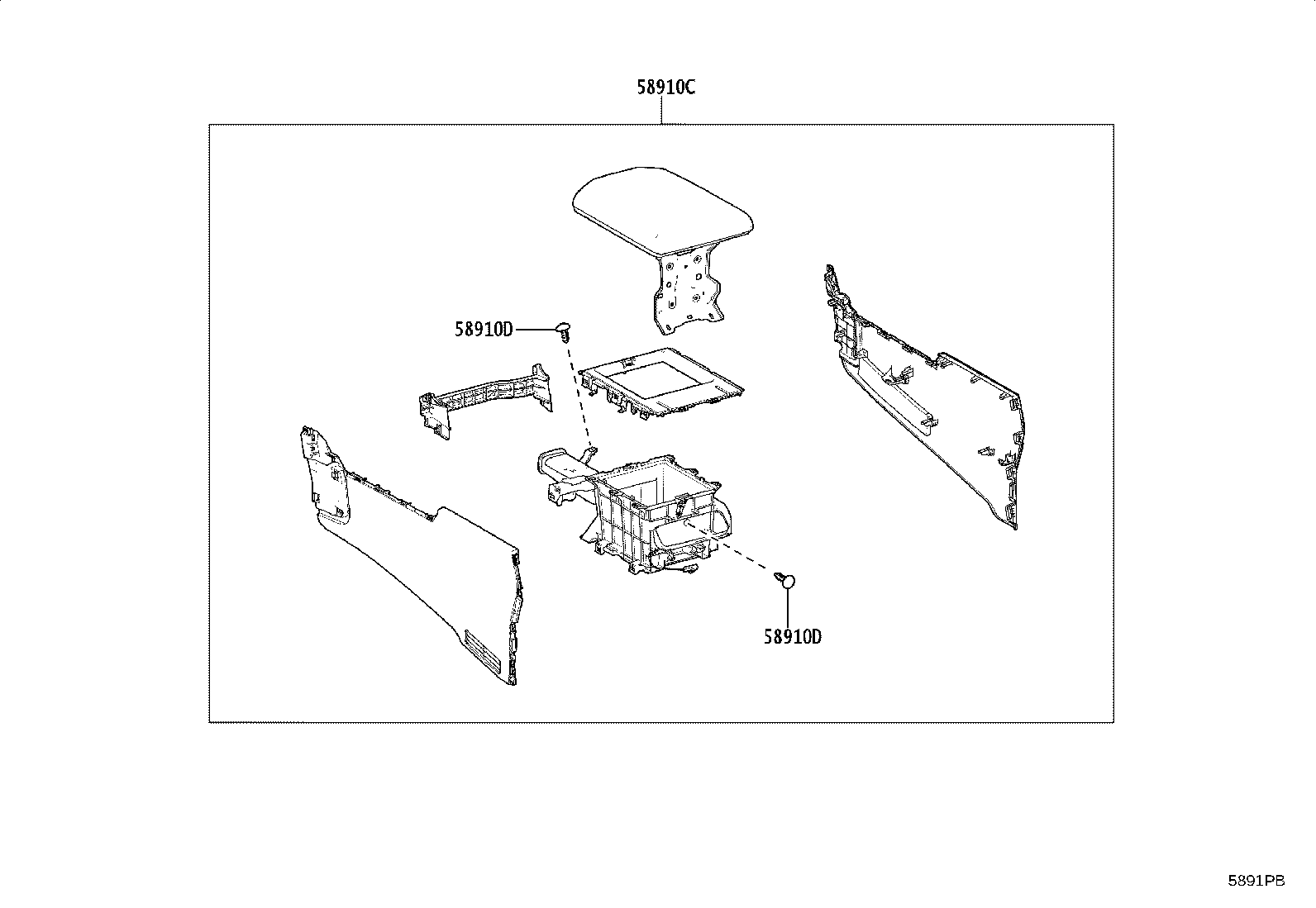

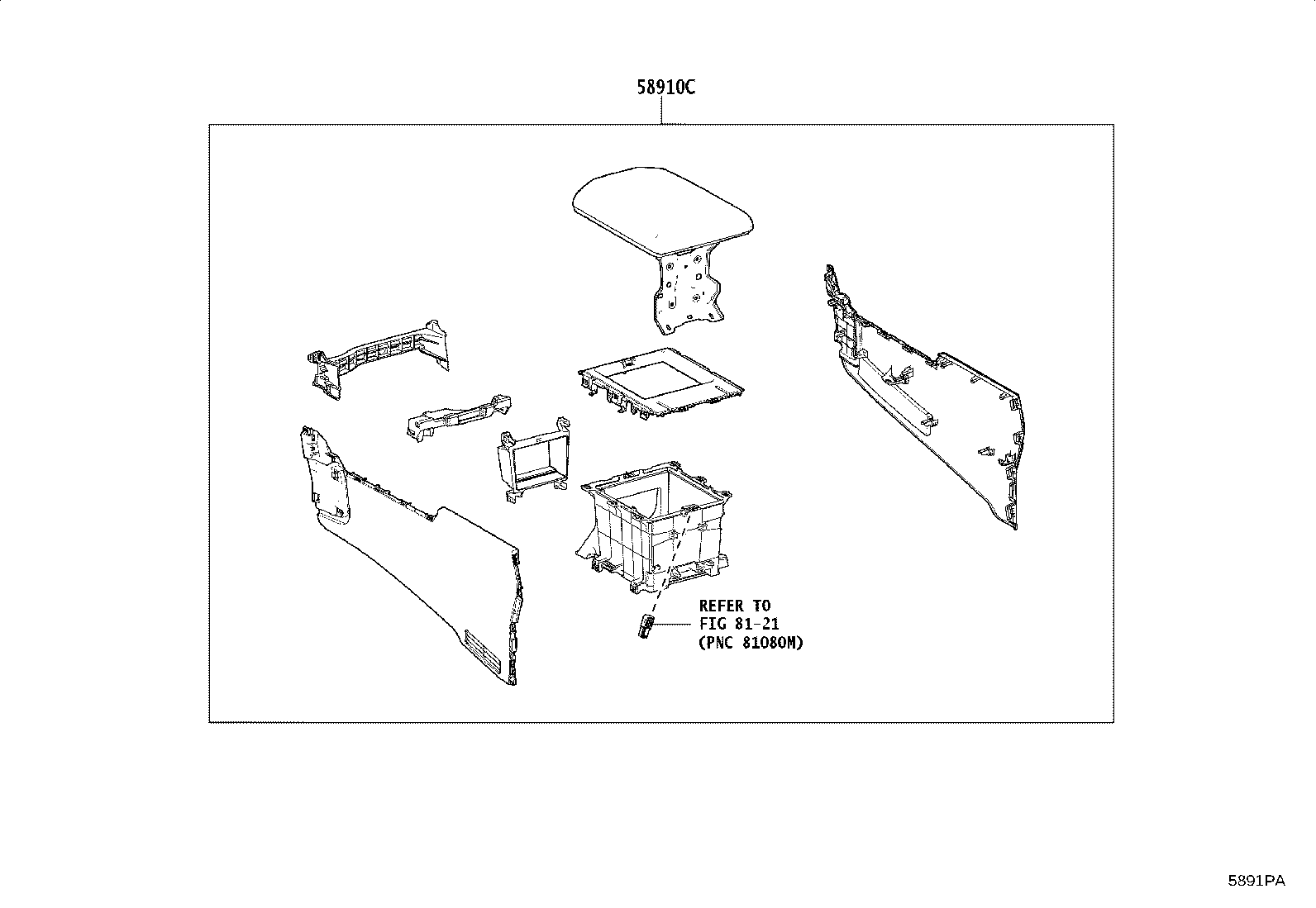

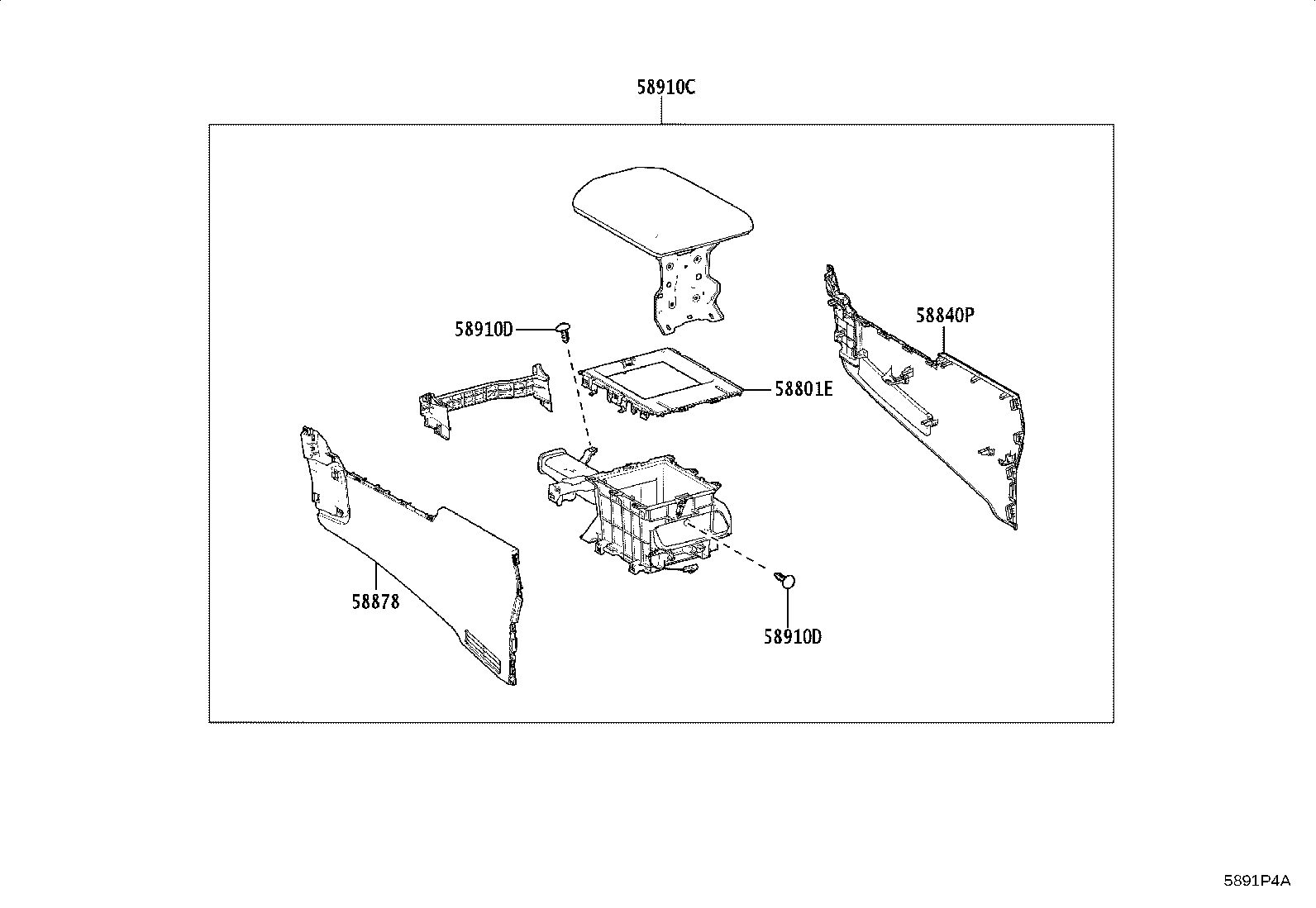

Figure 5891EID 5891EID 2024-02 → — Figure 5891PA 5891PA 2024-02 → — Figure 5891PB 5891PB 2024-02 → 2024-11 Figure 5891P4A 5891P4A 2024-11 → —

Part groups

PNCDescription
55448D Cushion, Instrument Panel Finish Panel, NO.1
55449F Cushion, Instrument Panel Finish Panel, NO.2
58801E Box Sub-assy, Console, Upper
58804A Panel Sub-assy, Console, Upper
58808 Cover Sub-assy, Shifting Hole
58815A Carpet, Console Box
58825A Pocket, Console Box
58840P Pad, Console Box Silencer, NO.3
58878 Pad, Console Box Silencer, NO.4
58903A Panel Sub-assy, Console Rear End
58904C Panel Sub-assy, Console Rear End, NO.2
58910C Box Assy, Console, Rear
58910D Clip(FOR CONSOLE BOX)
58916A Insert, Console Box, Rear
58993 Bracket, Console Box Mounting, Rear
58995A Bracket, Console Box Mounting, NO.1
58996A Bracket, Console Box Mounting, NO.2
58997 Bracket, Console Box Mounting, NO.3
66993K Tray, Cup Holder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
