Toyota Lexus GX550

2023-12 → present · chassis VJA252 · catalogue 782420 · United States

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Member

79 part groups · 3 illustrations

Illustrations

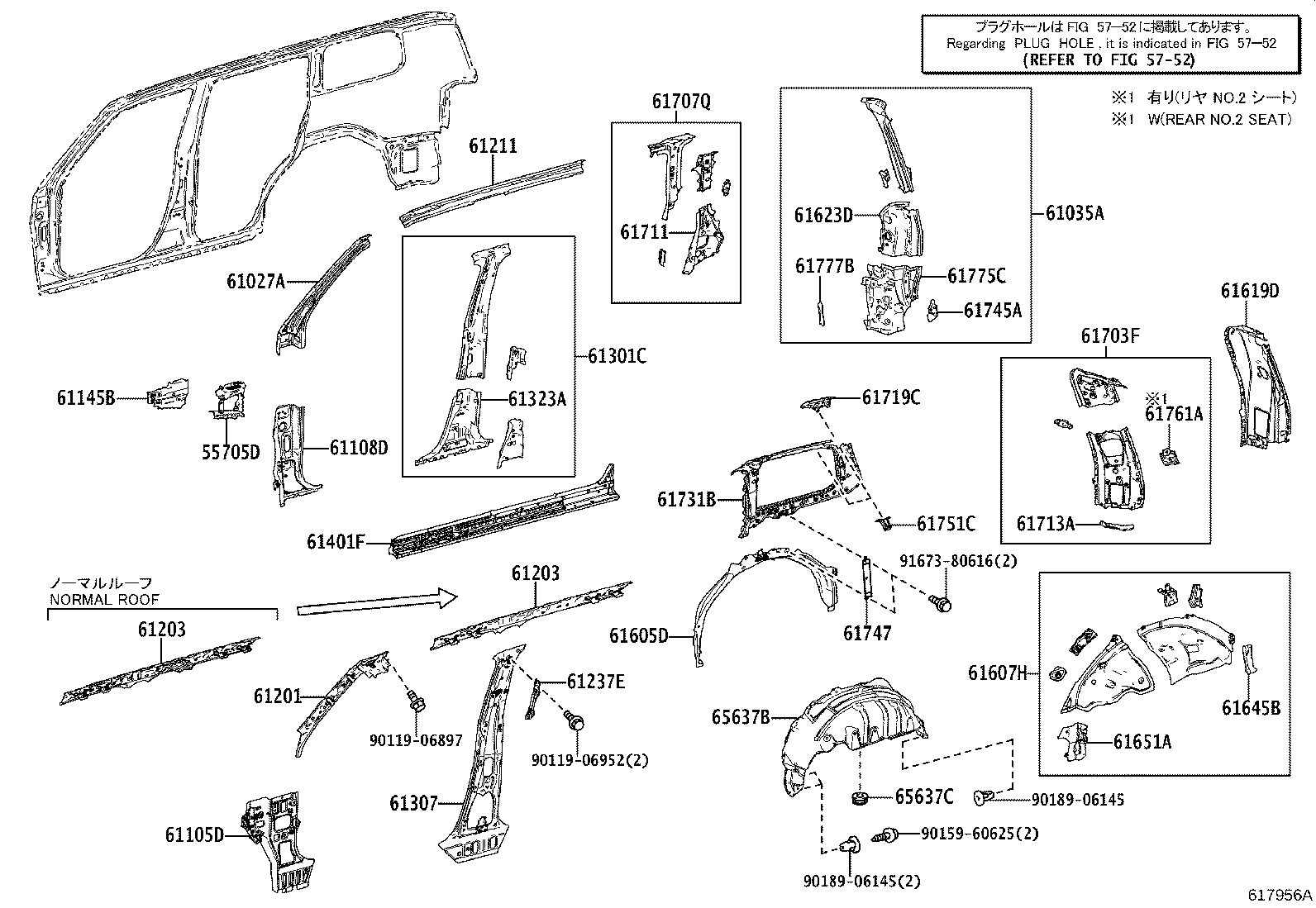

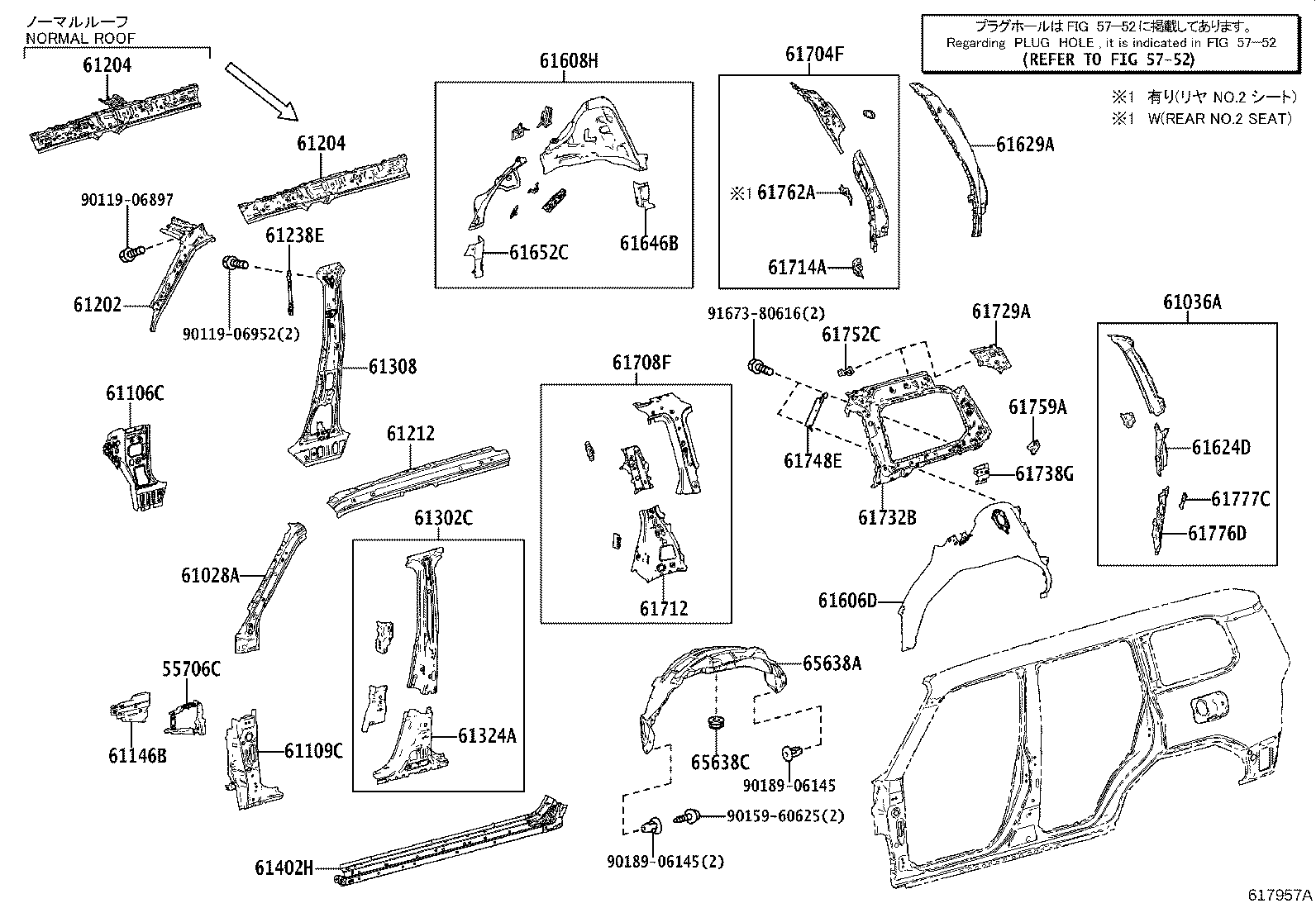

Figure 617951A 617951A 2024-02 → — Figure 617956A 617956A 2024-02 → — Figure 617957A 617957A 2024-02 → —

Part groups

PNCDescription
53821B Bracket, Front Fender, Rear RH
53822B Bracket, Front Fender, Rear LH
55705D Panel Sub-assy, Cowl Top Side, RH,
55706C Panel Sub-assy, Cowl Top Side, LH
61013C Panel Sub-assy, Side, Inner RH
61014C Panel Sub-assy, Side, Inner LH
61017A Member Sub-assy, Side, Rear RH
61018A Member Sub-assy, Side, Rear LH
61027A Pillar Sub-assy, Front Body, Outer RH
61028A Pillar Sub-assy, Front Body, Outer LH
61035A Reinforcement Sub-assy, Back Door Opening, RH
61036A Reinforcement Sub-assy, Back Door Opening, LH
61105D Panel Sub-assy, Side, NO.3 RH
61106C Panel Sub-assy, Side, NO.3 LH
61108D Reinforcement Sub-assy, Front Pillar, Lower RH
61109C Reinforcement Sub-assy, Front Pillar, Lower LH
61145B Gusset, Front Body Pillar, Lower RH
61146B Gusset, Front Body Pillar, Lower LH
61201 Rail Sub-assy, Roof Side, RH
61202 Rail Sub-assy, Roof Side, LH
61203 Rail Sub-assy, Roof Side, Inner RH
61204 Rail Sub-assy, Roof Side, Inner LH
61211 Rail, Roof Side, Outer RH
61212 Rail, Roof Side, Outer LH
61237E Bracket, Assist Grip, NO.1
61238E Bracket, Assist Grip, NO.2
61301C Pillar Sub-assy, Center Body, Outer RH
61302C Pillar Sub-assy, Center Body, Outer LH
61307 Pillar Sub-assy, Center Body, Inner RH
61308 Pillar Sub-assy, Center Body, Inner LH
61311B Pillar, Center Body, Outer RH
61312B Pillar, Center Body, Outer LH
61323A Reinforcement, Center Body Pillar, Lower RH
61324A Reinforcement, Center Body Pillar, Lower LH
61401F Reinforcement Sub-assy, Rocker Panel, RH
61402H Reinforcement Sub-assy, Rocker Panel, LH
61601B Panel Sub-assy, Quarter, RH
61602C Panel Sub-assy, Quarter, LH
61605D Panel Sub-assy, Quarter Wheel House, Outer RH
61606D Panel Sub-assy, Quarter Wheel House, Outer LH
61607H Panel Sub-assy, Quarter Wheel House, Inner RH
61608H Panel Sub-assy, Quarter Wheel House, Inner LH
61619D Reinforcement, Quarter Panel, RH
61623D Extension, Quarter Panel, Front RH
61624D Extension, Quarter Panel, Front LH
61629A Reinforcement, Quarter Panel, LH
61645B Gusset, Quarter Wheel House, Rear RH
61646B Gusset, Quarter Wheel House, Rear LH
61651A Gusset, Pillar Shear, NO.1 RH
61652C Gusset, Pillar Shear, NO.2 LH
61703F Panel Sub-assy, Quarter, Inner Front RH
61704F Panel Sub-assy, Quarter, Inner Front LH
61707Q Plate Sub-assy, Quarter Window Lock Gusset, RH
61708F Plate Sub-assy, Quarter Window Lock Gusset, LH
61711 Panel, Roof Side, Outer RH
61712 Panel, Roof Side, Outer LH
61713A Extension, Roof Side, Outer RH
61714A Extension, Roof Side, Outer LH
61719C Bracket, Roof Side Rail, RH
61729A Bracket, Roof Side Rail, LH
61731B Panel, Roof Side, Inner RH
61732B Panel, Roof Side, Inner LH
61738G Reinforcement, Roof Side, Inner LH
61745A Reinforcement, Back Door Opening, Lower RH
61747 Brace, Roof Side Inner TO Wheel House, RH
61748E Brace, Roof Side Inner TO Wheel House, LH
61751C Retainer, Quarter Trim, Upper RH
61752C Retainer, Quarter Trim, Upper LH
61759A Bracket, Roof Side Reinforcement
61761A Reinforce, Seat Belt Anchor, NO.1 Upper RH
61762A Reinforce, Seat Belt Anchor, NO.1 Upper LH
61775C Frame, Back Door Opening Side, RH
61776D Frame, Back Door Opening Side, LH
61777B Reinforce, Back Door Side Stopper Female, RH
61777C Reinforce, Back Door Side Stopper Female, LH
65637B Liner, Rear Wheel House, RH
65637C Clip, Rear Wheel House Liner
65638A Liner, Rear Wheel House, LH
65638C Clip, Rear Wheel House Liner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
