Toyota Lexus GX550
2023-12 → present · chassis VJA252 · catalogue 782420 · United States
Supported model
Data version 2023-12

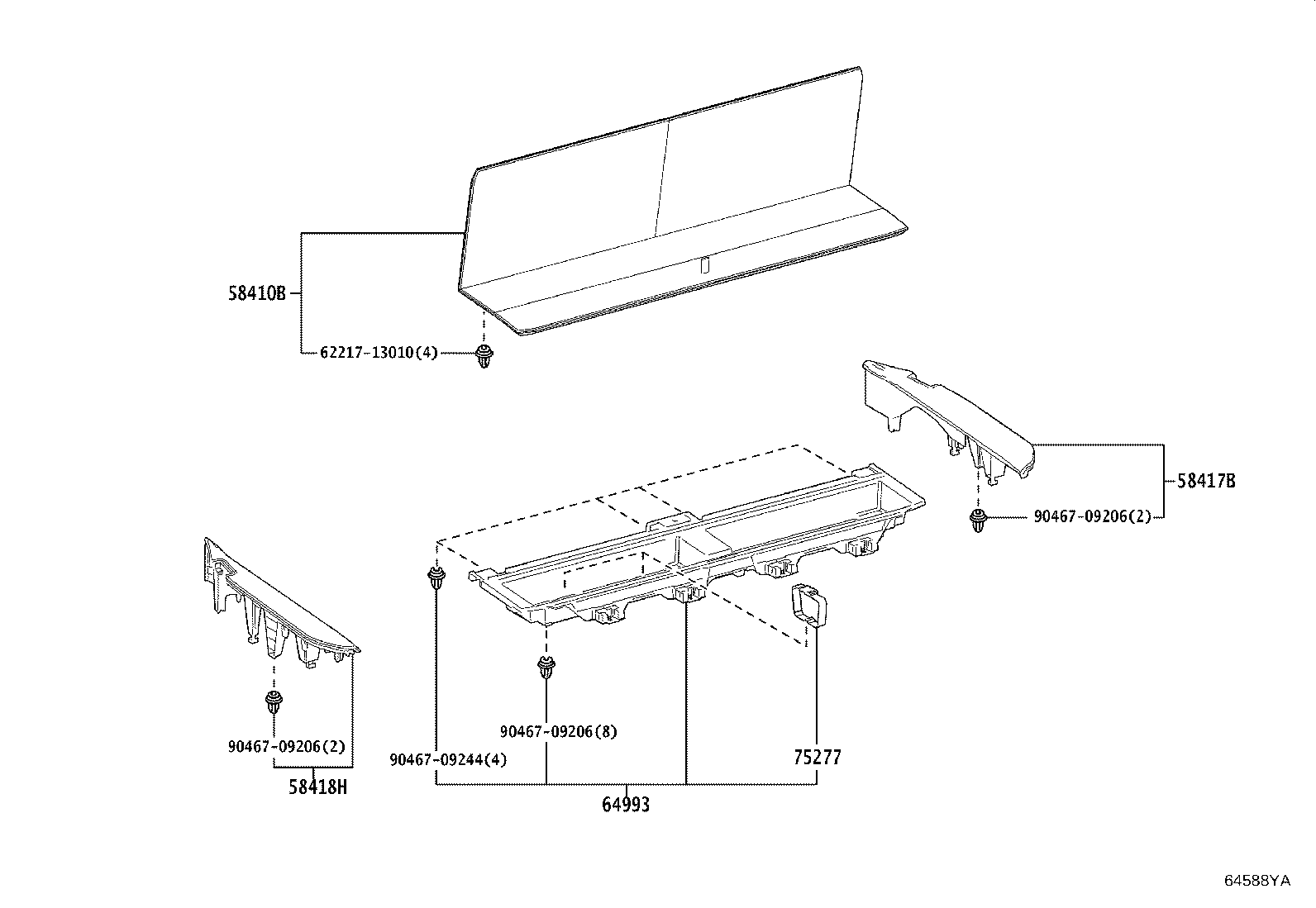

Deck Board & Deck Trim Cover
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58410B | Board Assy, Deck |
| 58417B | Board, Rear Floor, Rear RH |
| 58418H | Board, Rear Floor, Rear LH |
| 58439F | Reinforcement, Deck Board Bracket |
| 58456H | Bracket, Deck Floor NO.2 |
| 64716P | Cover, Deck Trim, Rear |
| 64910N | Cover Assy, Tonneau |
| 64991 | Box, Deck Floor, Front |
| 64993 | Box, Deck Floor, Rear |
| 66310N | Hook Assy, Rope |
| 75277 | Band, Tool, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
