Toyota Lexus GX550
2023-12 → present · chassis VJA252 · catalogue 782420 · United States
Supported model
Data version 2023-12

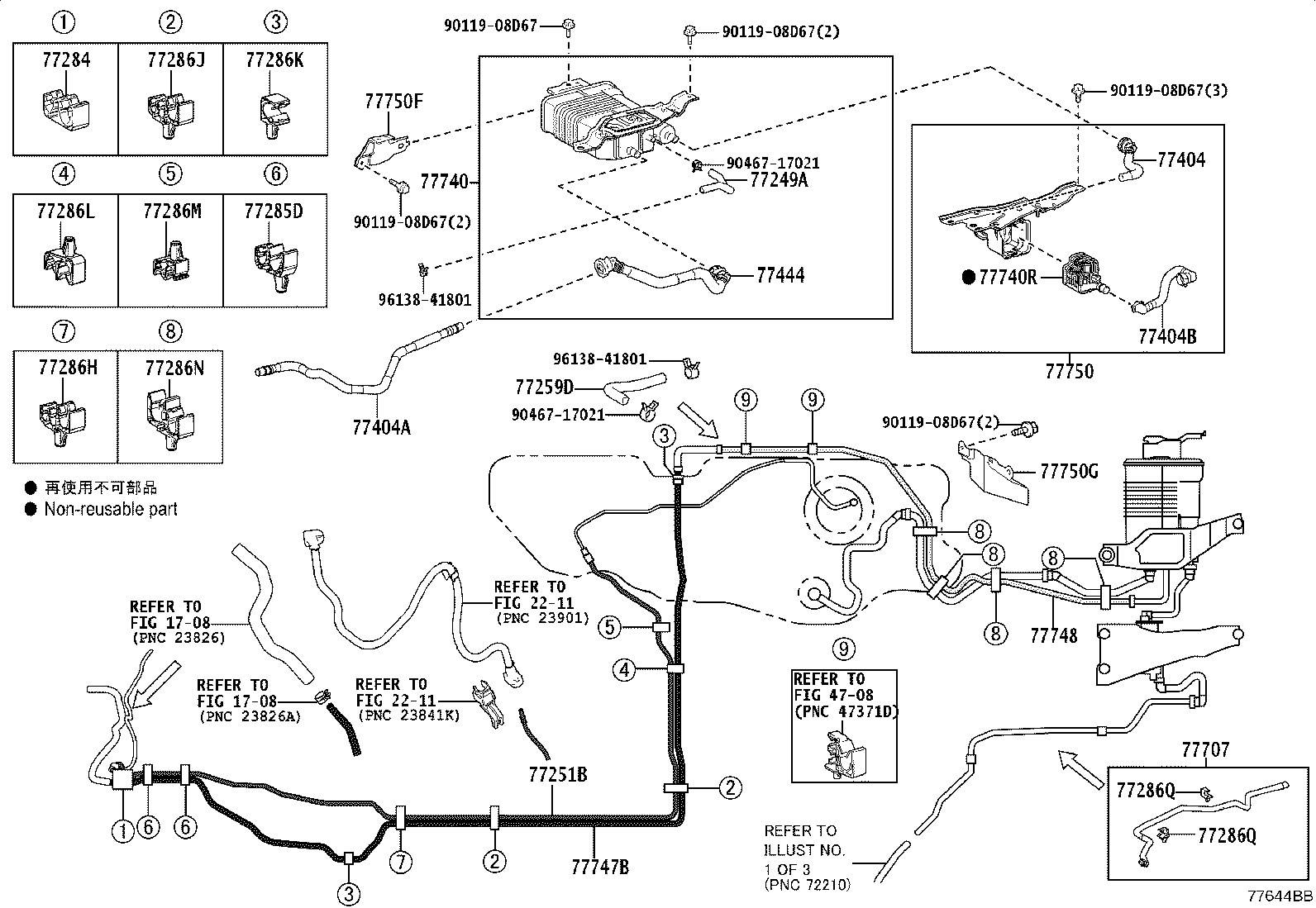

Fuel Tank & Tube
71 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 23070 | Valve Assy, Fuel Main |
| 23070A | Ring, O, NO.1(FOR FUEL MAIN VALVE) |
| 23070B | Ring, O, NO.2(FOR FUEL MAIN VALVE) |
| 23070C | Ring, O, NO.3(FOR FUEL MAIN VALVE) |
| 23070D | Valve Assy, Fuel Main, NO.2 |
| 23070E | Ring, O, NO.4(FOR FUEL MAIN VALVE) |
| 23217D | Filter, Fuel Pump |
| 23220A | Pump Assy, Fuel W/Filter |
| 23225A | Spacer, Fuel Pump |
| 23226 | Ring, O(FOR FUEL PUMP) |
| 23283B | Holder, Fuel Pressure Regulator |
| 77001A | Tank Sub-assy, Fuel |
| 77020A | Tube Assy, Fuel Suction W/Pump & Gage |
| 77024A | Plate Sub-assy, Fuel Suction |
| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77131C | Sub-tank, Fuel, NO.1 |
| 77144 | Retainer, Fuel Pump Gauge |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77174 | Support, Fuel Suction, NO.1 |
| 77209C | Tube Sub-assy, Fuel Tank Main |
| 77210 | Pipe Assy, Fuel Tank Filler |
| 77214 | Pipe, Fuel Tank Filler |
| 77241W | Clip, Tube Joint |
| 77249A | Hose, Fuel Emission |
| 77251B | Tube, Fuel Main |
| 77259D | Hose, Fuel, NO.1 |
| 77277R | Protector, Fuel Tank Filler Pipe |
| 77283C | Bracket, Fuel Tank Protector |
| 77284 | Clamp, Fuel Tube |
| 77285D | Clamp, Fuel Tube, NO.1 |
| 77286H | Clamp, Fuel Tube, NO.3 |
| 77286J | Clamp, Fuel Tube, NO.4 |
| 77286K | Clamp, Fuel Tube, NO.2 |
| 77286L | Clamp, Fuel Tube, NO.5 |
| 77286M | Clamp, Fuel Tube, NO.6 |
| 77286N | Clamp, Fuel Tube, NO.7 |
| 77286Q | Clamp, Fuel Tube, NO.9 |
| 77291A | Shield, Fuel Tank Filler Pipe |
| 77306 | Lever Sub-assy, Fuel Lid Lock Open |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77360A | Spring Assy, Fuel Filler Opening Lid |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77391 | Ring, Fuel Inlet Box |
| 77391A | Ring, Fuel Inlet Box |
| 77399A | Cover, Fuel Filler Opening Lid |
| 77404 | Hose Sub-assy, Fuel Tank Vent |
| 77404A | Hose Sub-assy, Fuel Tank Vent |
| 77404B | Hose Sub-assy, Fuel Tank Vent, NO.2 |
| 77444 | Hose, Fuel Tank Vent |
| 77601A | Band Sub-assy, Fuel Tank, NO.1 |
| 77603A | Band Sub-assy, Fuel Tank, NO.2 |
| 77607C | Protector Sub-assy, Fuel Tank, NO.2 |
| 77611E | Pin, Fuel Tank Band |
| 77631 | Bracket, Fuel Tank, NO.1 |
| 77632 | Bracket, Fuel Tank, NO.2 |
| 77641C | Protector Assy, Fuel Tank |
| 77642A | Protector, Fuel Tank, NO.2 |
| 77644 | Bolt, Fuel Tank |
| 77697A | Insulator, Fuel Tank Heat, NO.2 |
| 77697B | Insulator, Fuel Tank Heat, NO.3 |
| 77707 | Tube Sub-assy, Charcoal Canister Outlet |
| 77740 | Canister Assy, Charcoal |
| 77740R | Pump Sub-assy, Leak Detection |
| 77747B | Tube, Charcoal Canister, NO.1 |
| 77748 | Pipe, Charcoal Canister, NO.2 |
| 77750 | Canister Assy, Charcoal |
| 77750F | Bracket Assy, Charcoal Canister, NO.1 |
| 77750G | Bracket Assy, Charcoal Canister, NO.2 |
| 77785 | Harness, Fuel Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
