Toyota Lexus GX550

2023-12 → present · chassis VJA252 · catalogue 782420 · United States

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

146 part groups · 11 illustrations

Illustrations

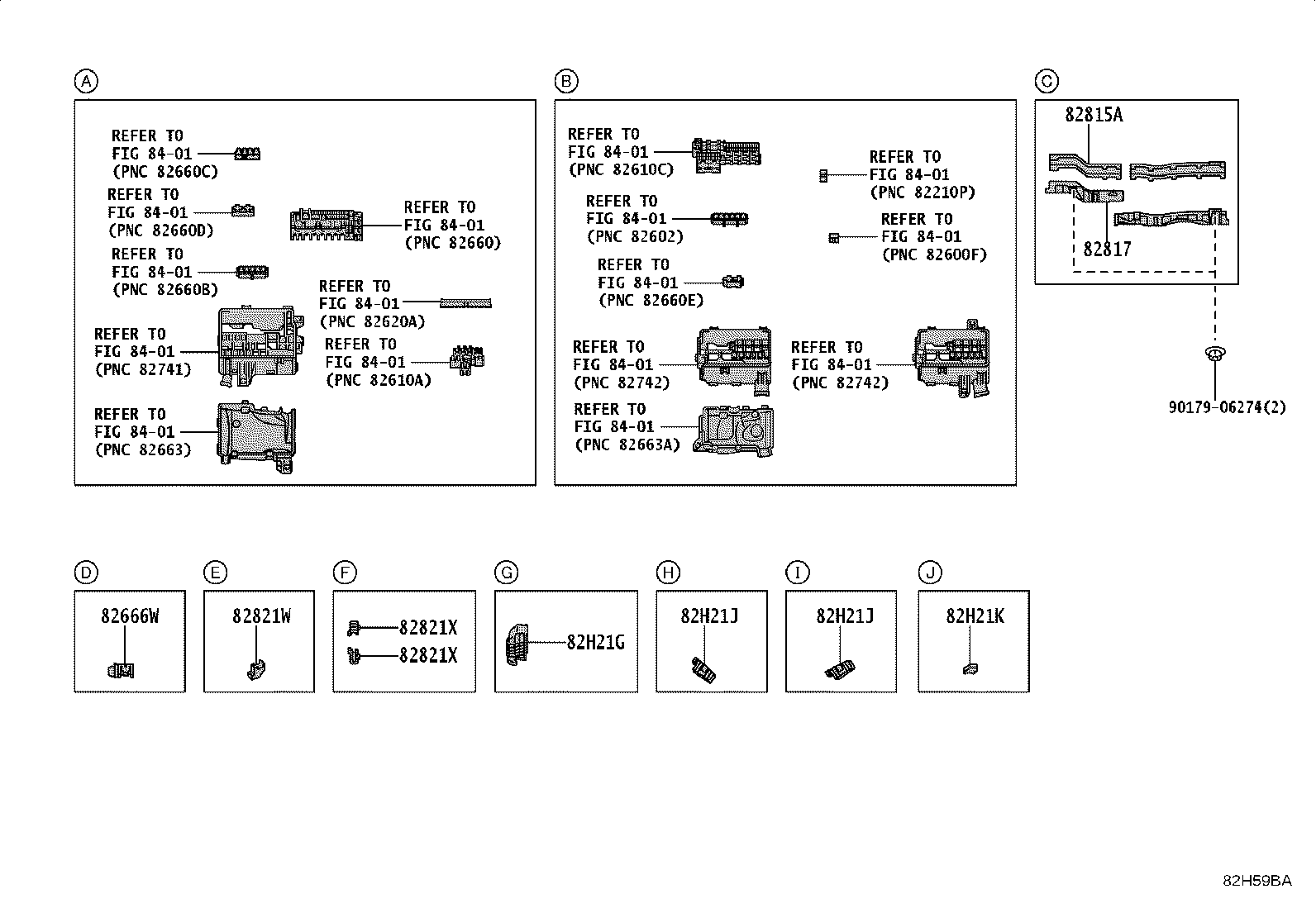

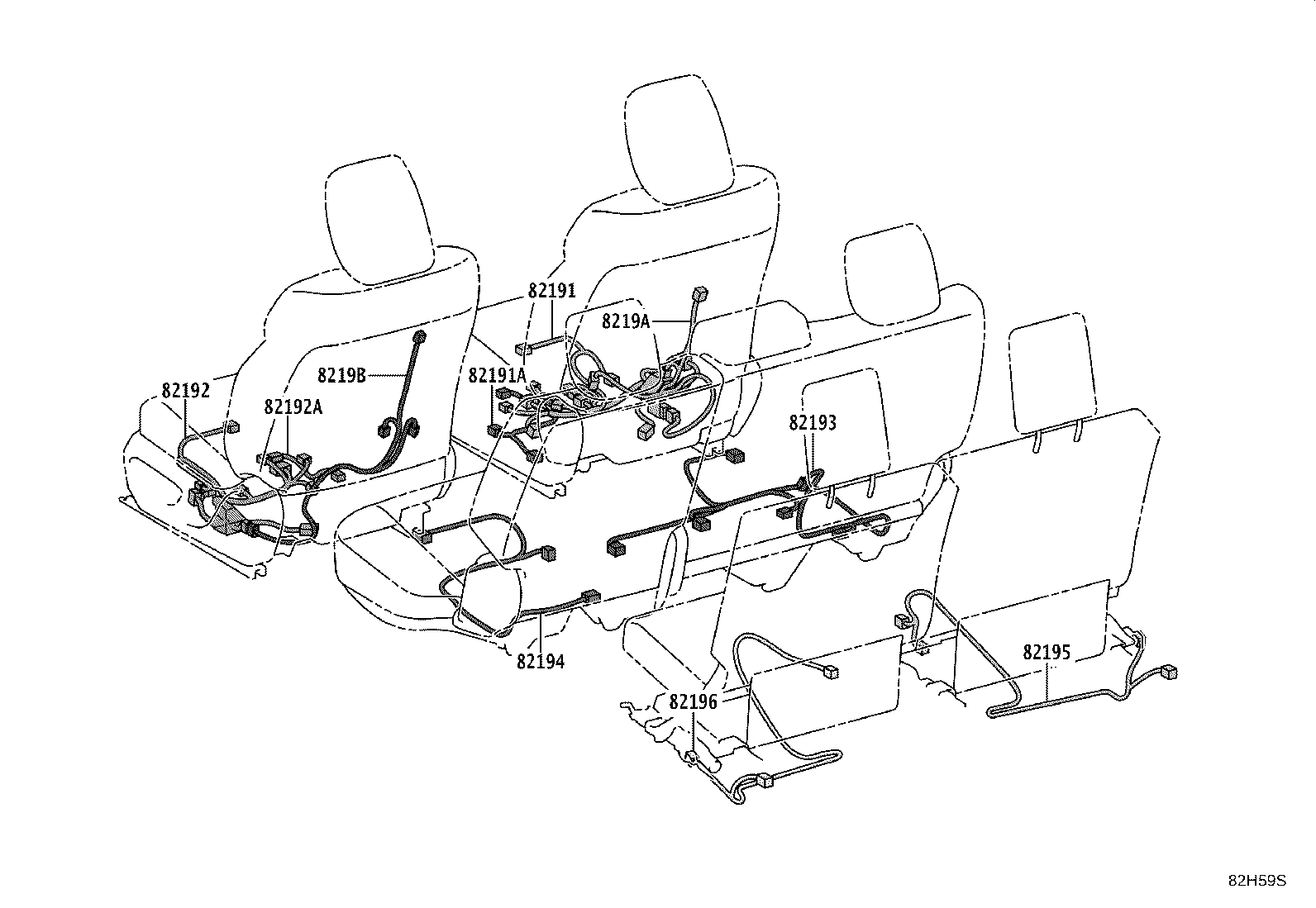

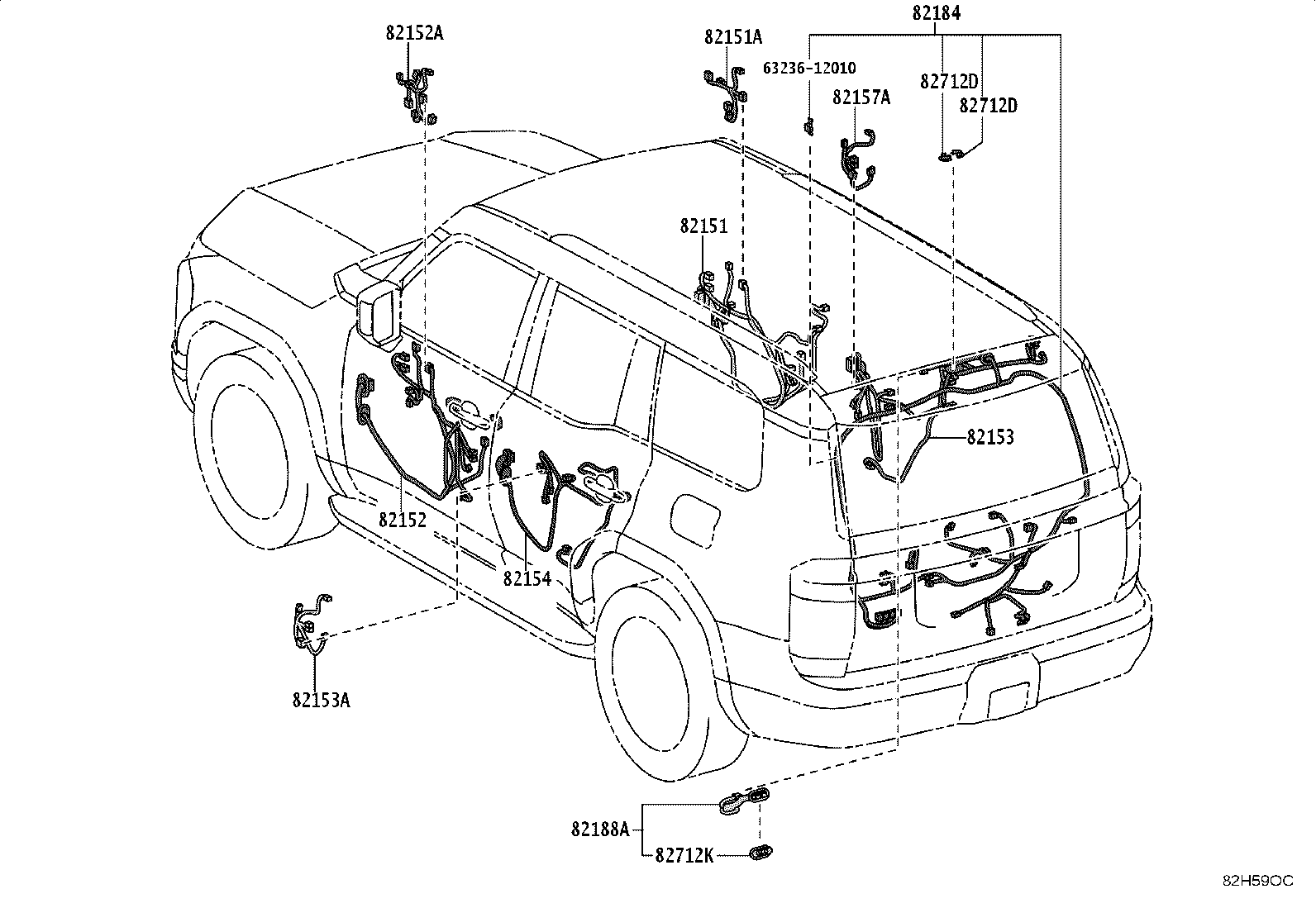

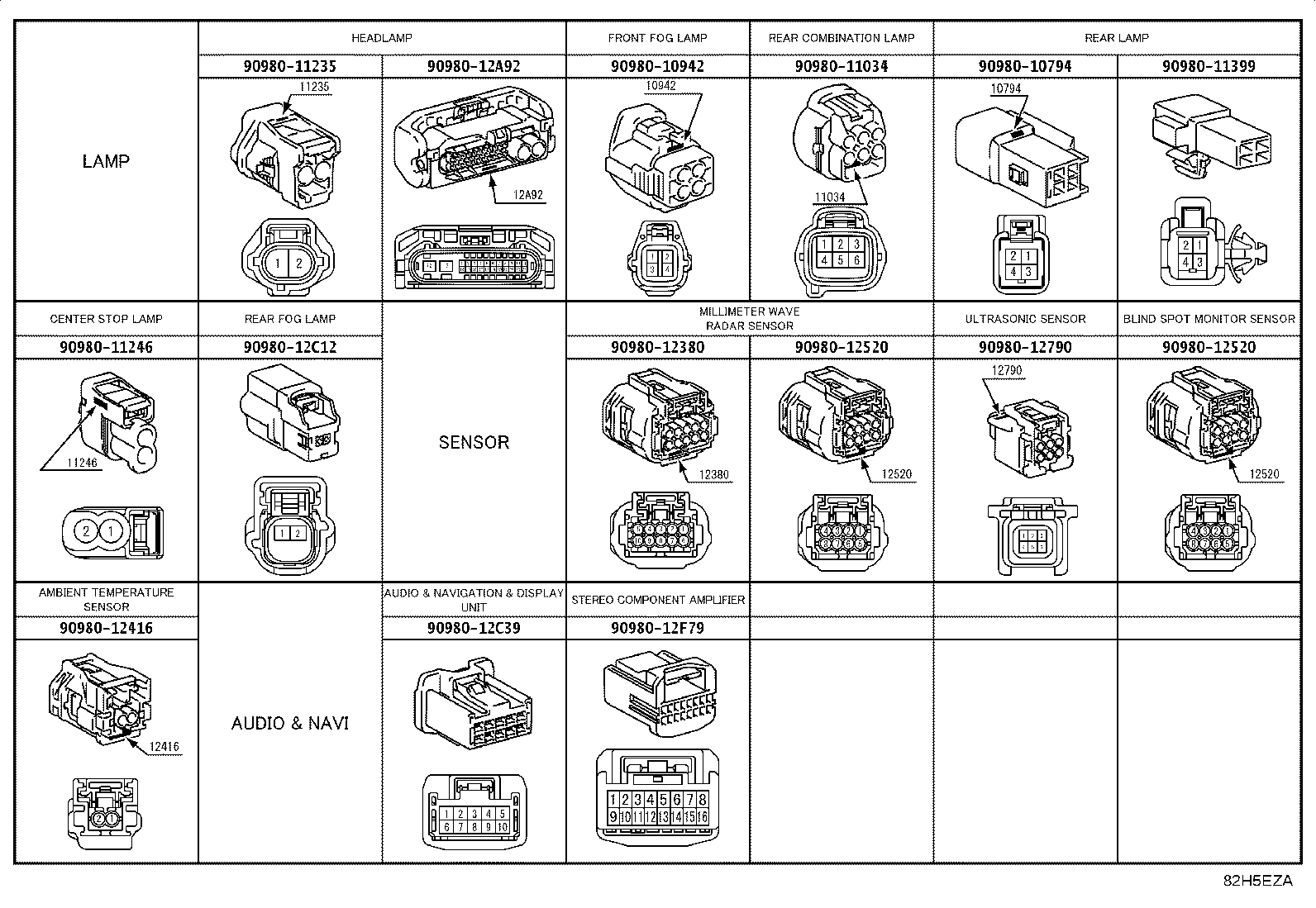

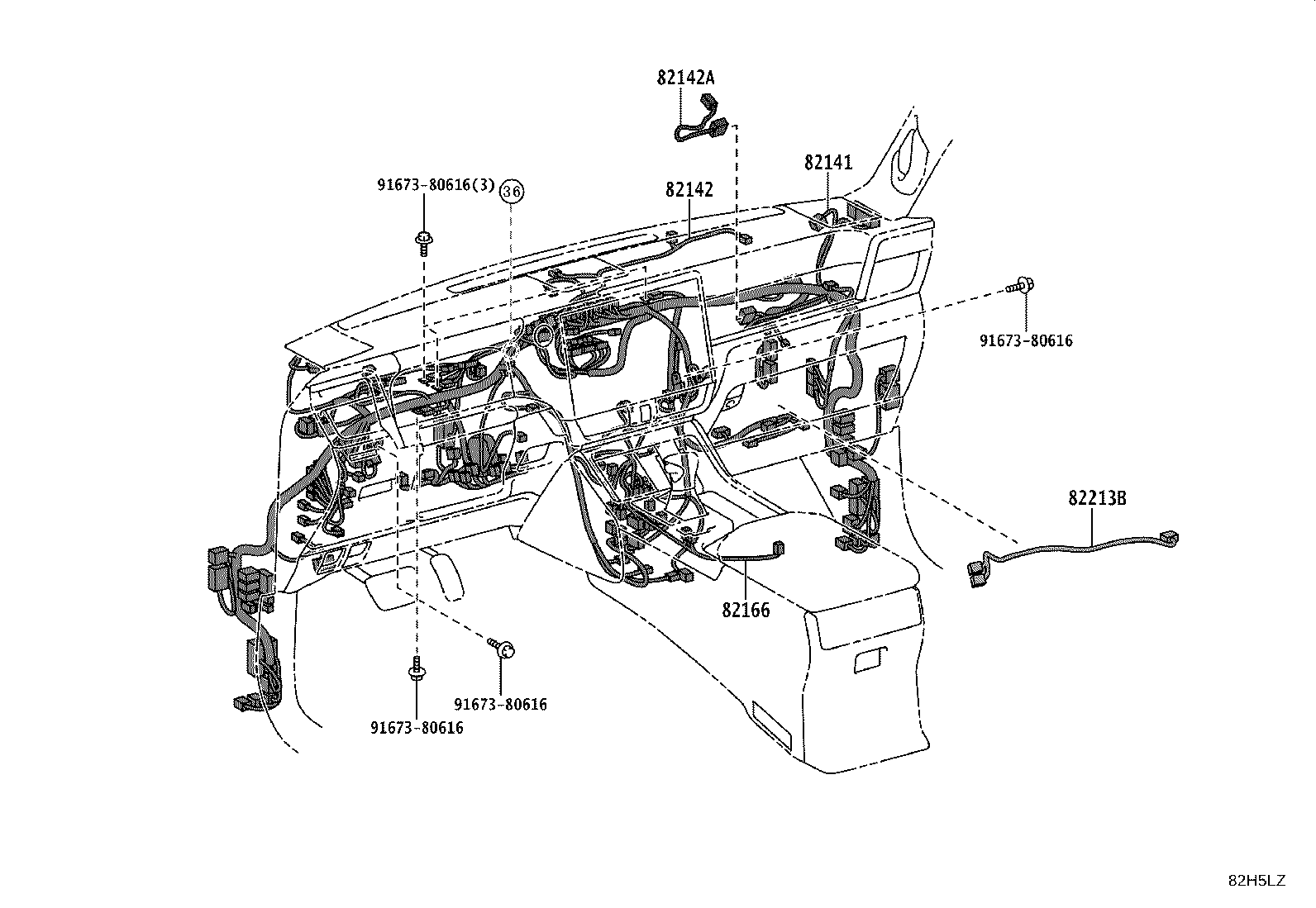

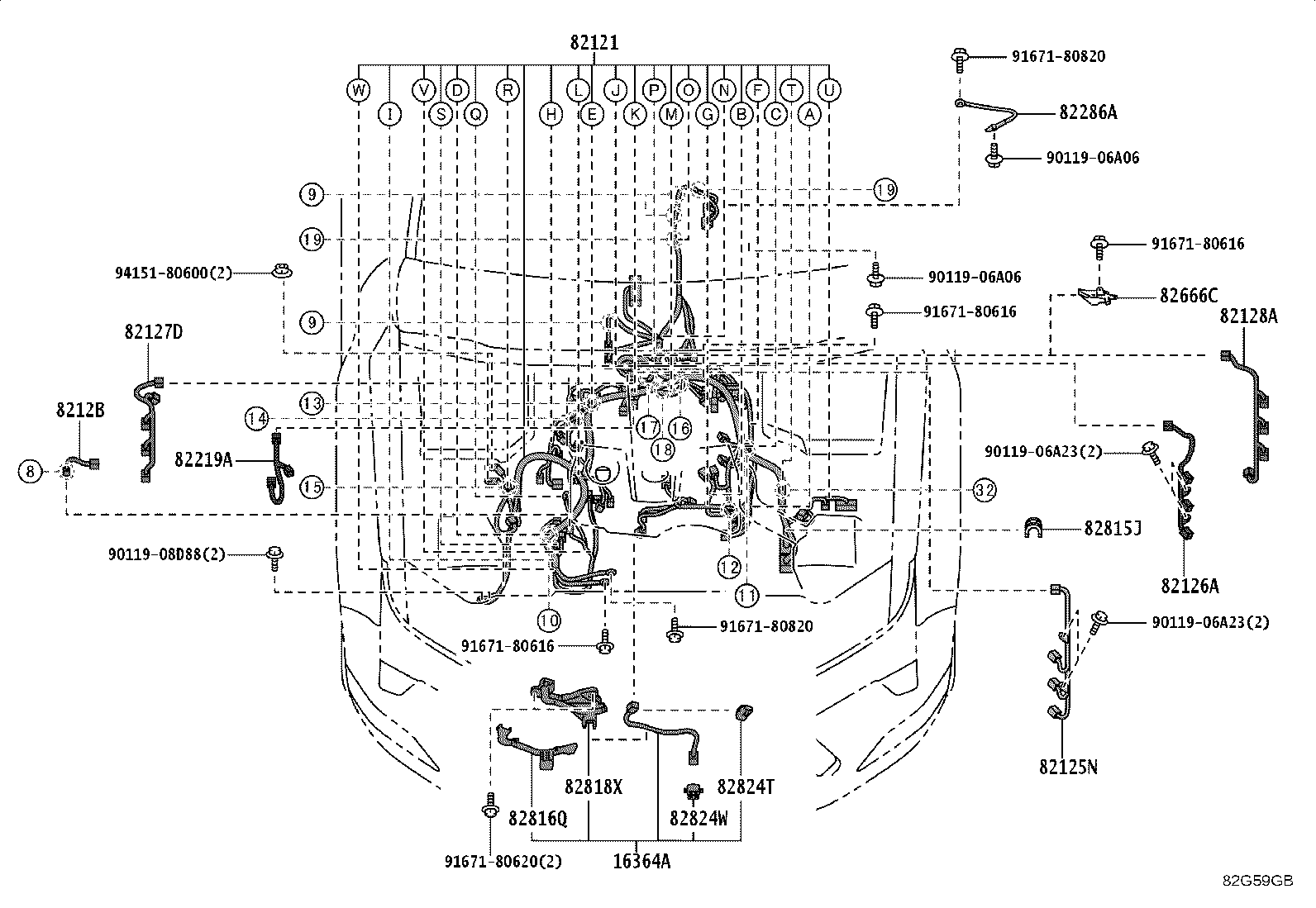

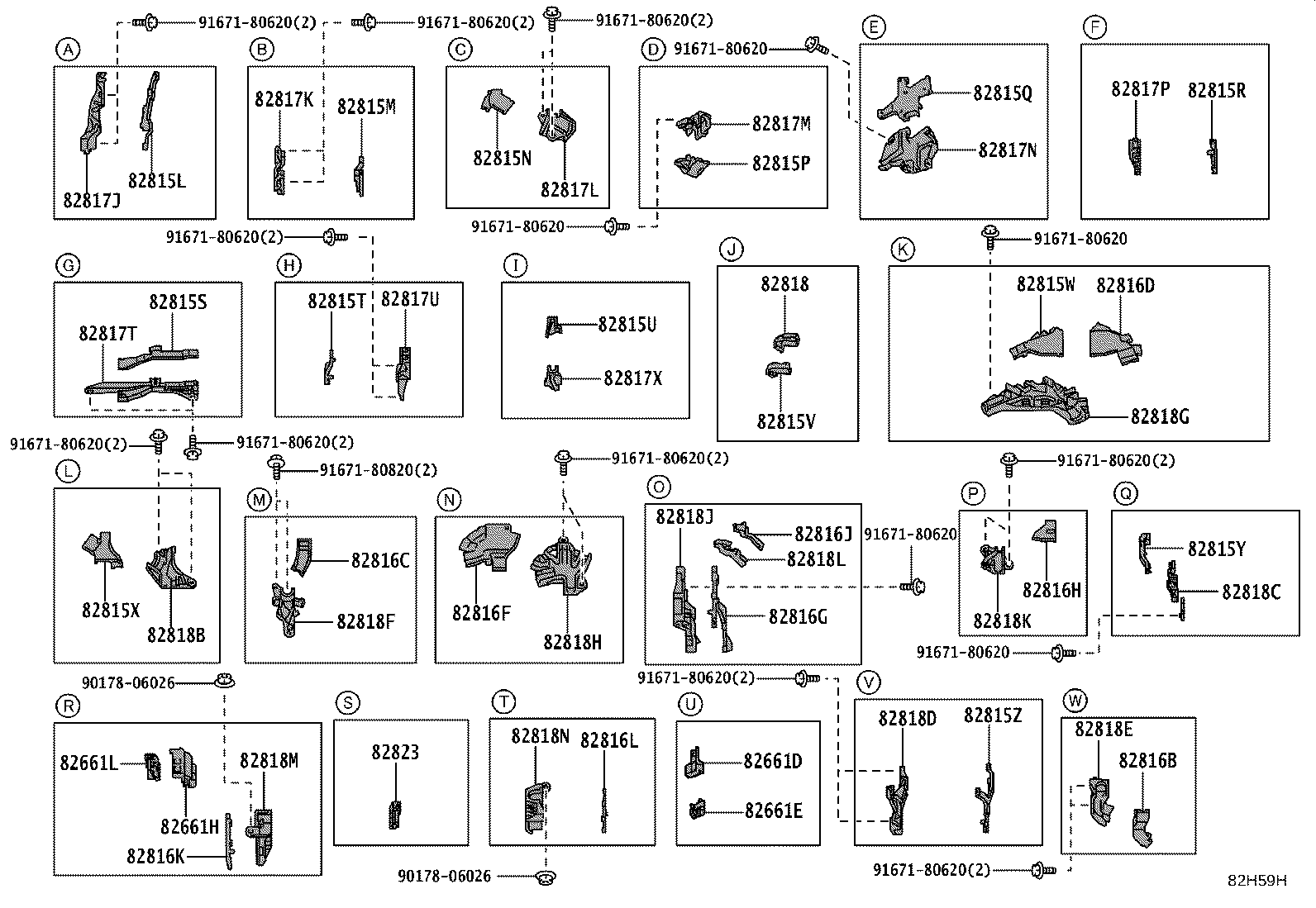

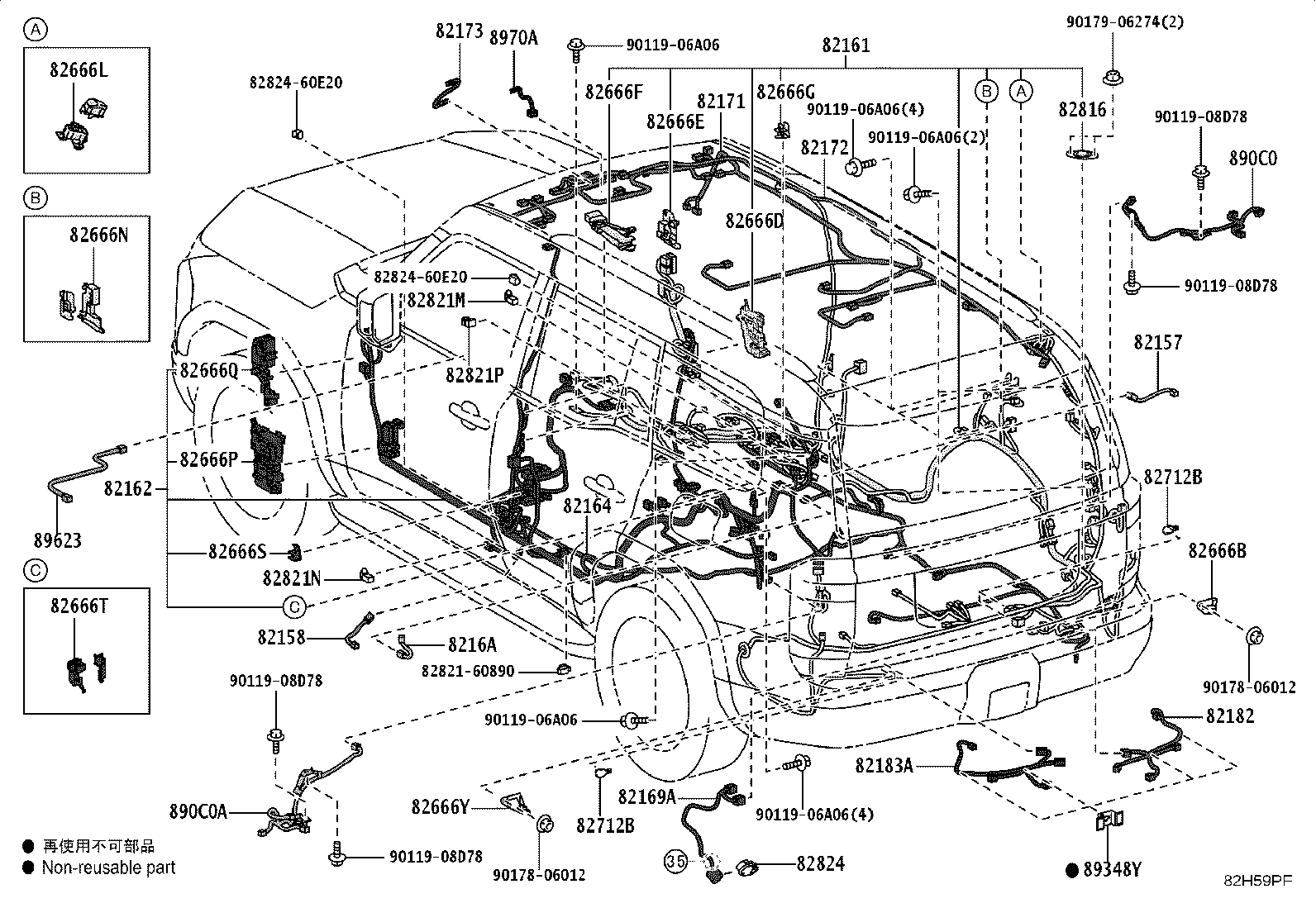

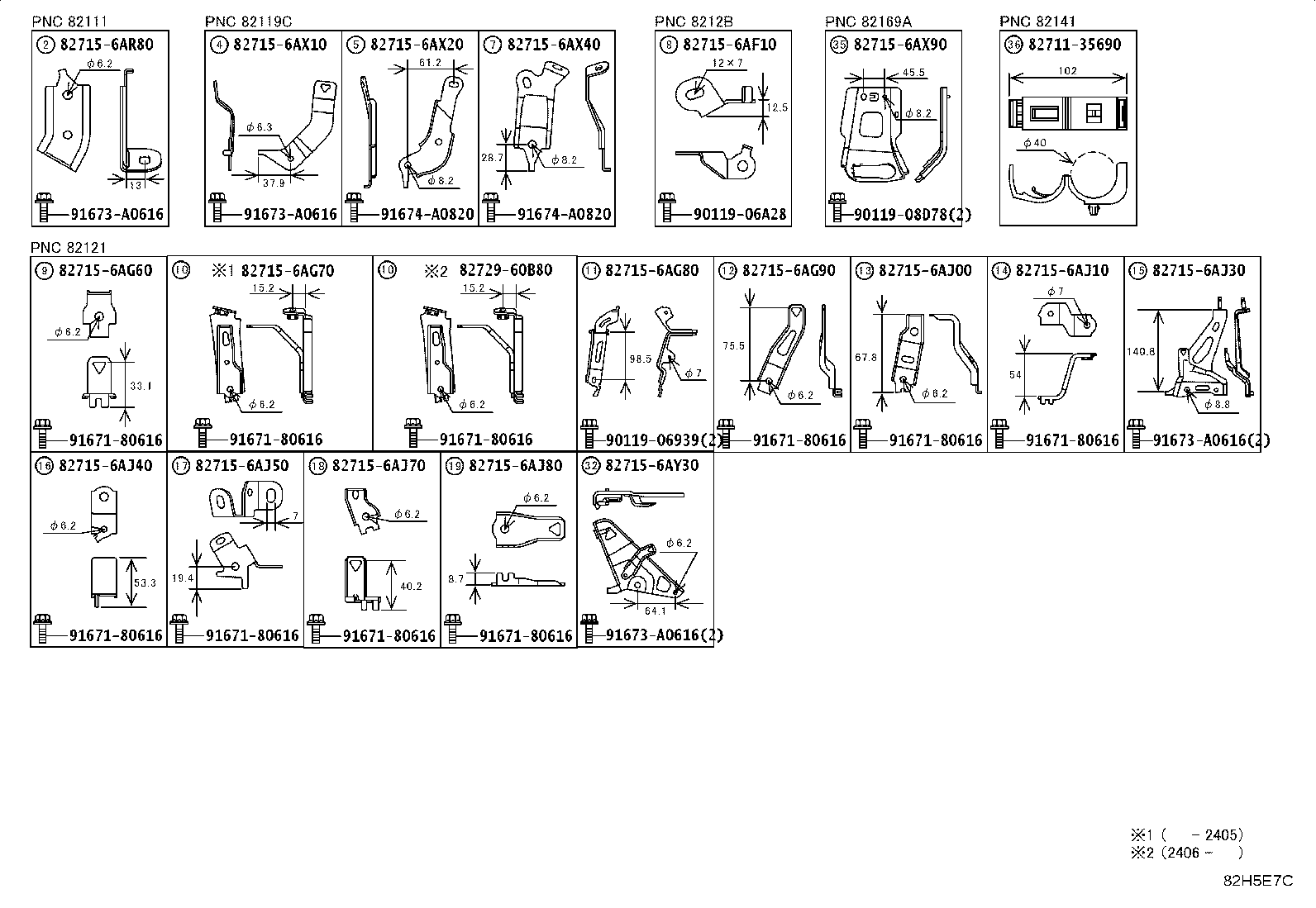

Figure 82H59AB 82H59AB 2023-11 → — Figure 82H59BA 82H59BA 2023-11 → — Figure 82H59GB 82H59GB 2023-11 → — Figure 82H59H 82H59H 2023-11 → — Figure 82H5LZ 82H5LZ 2023-11 → — Figure 82H59OC 82H59OC 2023-11 → — Figure 82H59PF 82H59PF 2023-11 → — Figure 82H59S 82H59S 2023-11 → — Figure 82H5E7C 82H5E7C 2023-11 → — Figure 82H5EZA 82H5EZA 2023-11 → — Figure 82H5XX 82H5XX 2023-11 → —

Part groups

PNCDescription
16364A Wire, Cooling Fan
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82114 Wire, Engine Room, NO.4
82119C Wire, Engine Room, NO.5
82121 Wire, Engine
82125N Wire, Engine, NO.5
82126A Wire, Engine, NO.6
82127D Wire, Engine, NO.7
82128A Wire, Engine, NO.8
8212B Wire, Engine, NO.10
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82142A Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82151A Wire, Front Door, NO.2, RH
82152 Wire, Front Door, LH
82152A Wire, Front Door, NO.2, LH
82153 Wire, Rear Door, NO.1
82153A Wire, Rear Door, RH
82154 Wire, Rear Door, NO.2
82157 Wire, Step Panel, RH
82157A Wire, Step Panel, RH
82158 Wire, Step Panel, LH
82161 Wire, Floor
82162 Wire, Floor, NO.2
82164 Wire, Frame
82166 Wire, Console Box
82169A Wire, Floor, NO.6
8216A Wire, Floor NO.7
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82173 Wire, Roof, NO.3
82182 Wire, Luggage Room, NO.2
82183A Wire, Rear Bumper
82184 Wire, Back Door, NO.1
82188A Wire, Back Door, NO.3
82191 Wire, Front Seat, RH
82191A Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82192A Wire, Rear Seat, LH
82193 Wire, Rear Seat, RH
82194 Wire, Rear Seat, LH
82195 Wire, Rear Seat, RH NO.2
82196 Wire, Rear Seat, LH NO.2
8219A Wire, Front Seat, RH NO.2
8219B Wire, Front Seat, LH NO.2
82213B Wire, Heater
82219A Wire, Sensor
82223 Wire, Switch
82286A Wire, Earth, NO.2
82661D Cover, Relay Block, Side NO.1
82661E Cover, Relay Block, Side NO.2
82661H Cover, Relay Block
82661L Cover, Relay Block, NO.2
82661M Cover, Relay Block, NO.3
82661N Cover, Relay Block, NO.4
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82666N Holder, Connector NO.10
82666P Holder, Connector NO.11
82666Q Holder, Connector NO.12
82666S Holder, Connector NO.13
82666T Holder, Connector NO.14
82666W Holder, Connector NO.16
82666Y Holder, Connector NO.18
82712A Support, Wiring Harness
82712B Support, Wiring Harness
82712D Support, Wiring Harness
82712K Support, Wiring Harness
82815A Cover, Wiring Harness Protector
82815J Cover, Wiring Harness Protector, NO.7
82815L Cover, Wiring Harness Protector, NO.9
82815M Cover, Wiring Harness Protector, NO.10
82815N Cover, Wiring Harness Protector, NO.11
82815P Cover, Wiring Harness Protector, NO.12
82815Q Cover, Wiring Harness Protector, NO.13
82815R Cover, Wiring Harness Protector, NO.14
82815S Cover, Wiring Harness Protector, NO.15
82815T Cover, Wiring Harness Protector, NO.16
82815U Cover, Wiring Harness Protector, NO.17
82815V Cover, Wiring Harness Protector, NO.1
82815W Cover, Wiring Harness Protector, NO.2
82815X Cover, Wiring Harness Protector, NO.3
82815Y Cover, Wiring Harness Protector, NO.4
82815Z Cover, Wiring Harness Protector, NO.18
82816 Bracket, Wiring Harness Grommet
82816B Cover, Wiring Harness Protector, NO.1
82816C Cover, Wiring Harness Protector, NO.2
82816D Cover, Wiring Harness Protector, NO.3
82816F Cover, Wiring Harness Protector, NO.4
82816G Cover, Wiring Harness Protector, NO.5
82816H Cover, Wiring Harness Protector, NO.6
82816J Cover, Wiring Harness Protector, NO.7
82816K Cover, Wiring Harness Protector, NO.8
82816L Cover, Wiring Harness Protector, NO.9
82816Q Cover, Wiring Harness Protector, NO.13
82817 Protector, Wiring Harness, NO.1
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82817U Protector, Wiring Harness, NO.16
82817X Protector, Wiring Harness, NO.17
82818 Protector, Wiring Harness, NO.2
82818B Protector, Wiring Harness, NO.3
82818C Protector, Wiring Harness, NO.4
82818D Protector, Wiring Harness, NO.5
82818E Protector, Wiring Harness, NO.6
82818F Protector, Wiring Harness, NO.7
82818G Protector, Wiring Harness, NO.8
82818H Protector, Wiring Harness, NO.9
82818J Protector, Wiring Harness, NO.10
82818K Protector, Wiring Harness, NO.11
82818L Protector, Wiring Harness, NO.12
82818M Protector, Wiring Harness, NO.13
82818N Protector, Wiring Harness, NO.14
82818X Protector, Wiring Harness, NO.20
82821A Cover, Connector
82821M Cover, Connector
82821N Cover, Connector
82821P Cover, Connector
82821R Cover, Connector
82821V Cover, Connector
82821W Cover, Connector
82821X Cover, Connector
82823 Cap, Terminal, NO.1
82824 Connector, Wiring Harness
82824A Connector, Wiring Harness
82824T Connector, Wiring Harness
82824W Connector, Wiring Harness
82H21G Cover, Connector
82H21J Cover, Connector
82H21K Cover, Connector
890C0 Wire Assy, Parking Brake, NO.1
890C0A Wire Assy, Parking Brake, NO.2
89348Y Clip, Ultrasonic Sensor, Rear
89623 Wire, Power Steering Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
