Toyota Lexus GX550

2023-12 → present · chassis VJA252 · catalogue 782420 · United States

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

12 part groups · 3 illustrations

Illustrations

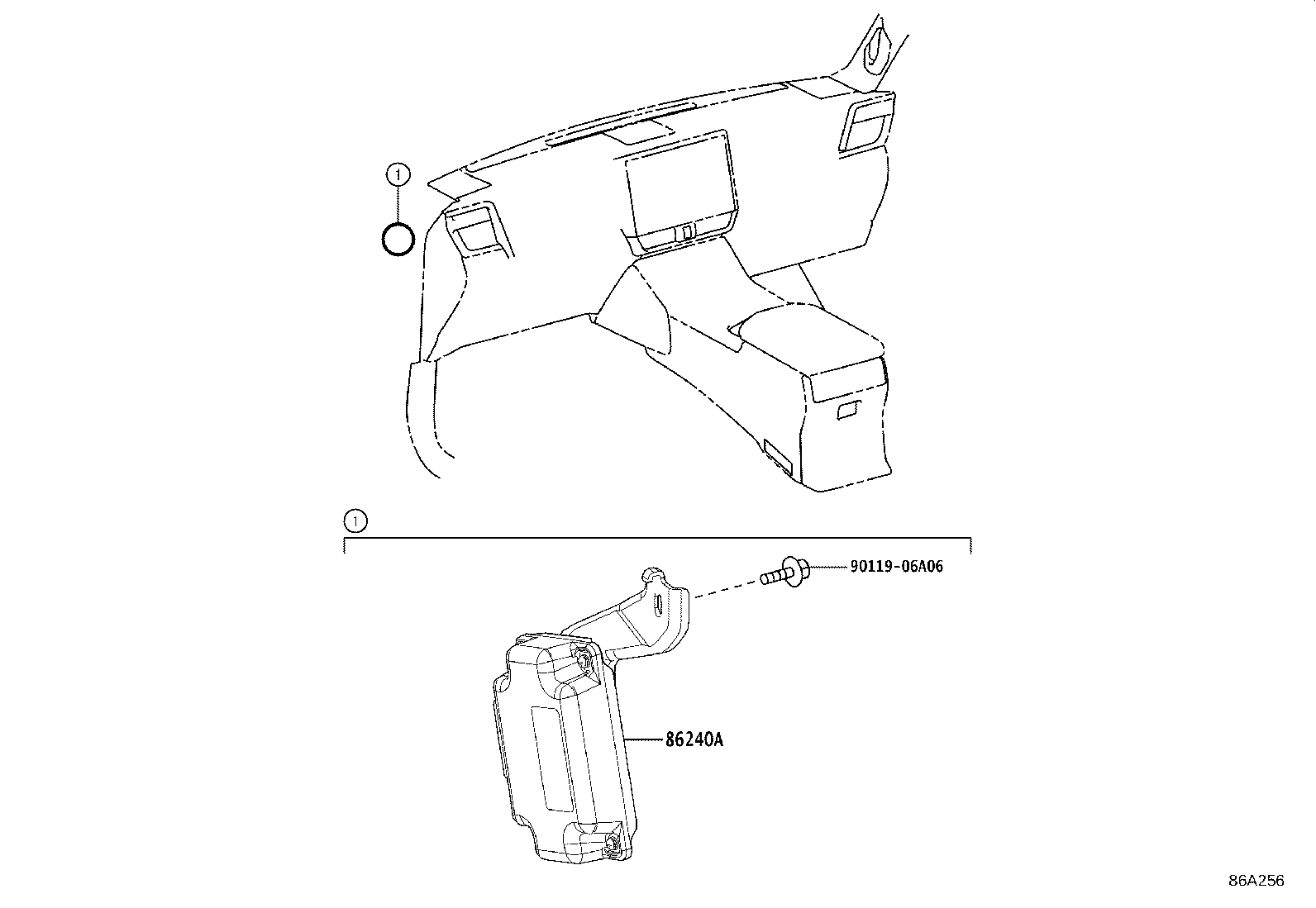

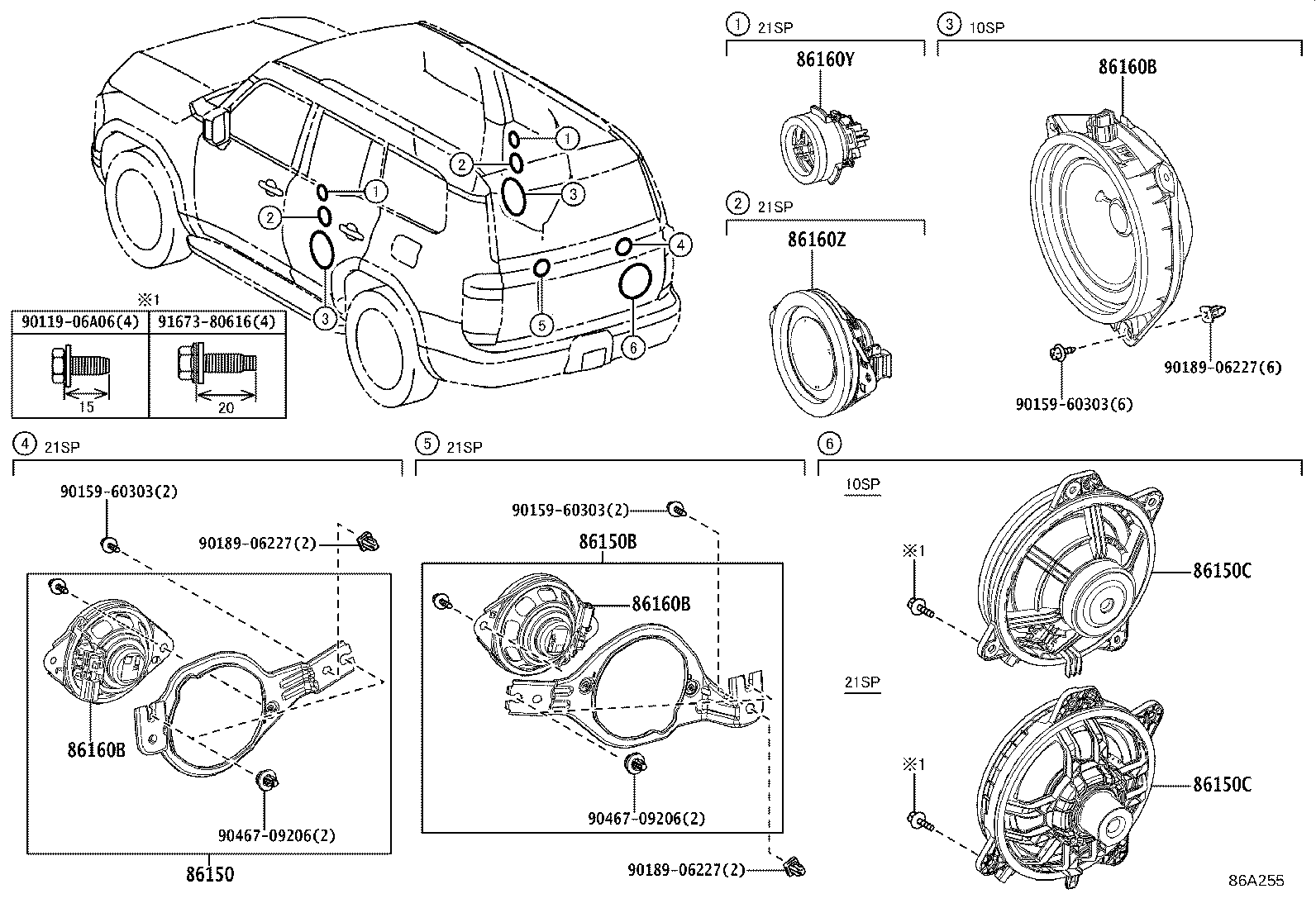

Figure 86A254 86A254 2023-12 → — Figure 86A255 86A255 2023-12 → — Figure 86A256 86A256 2023-12 → —

Part groups

PNCDescription
86150 Speaker Assy, W/Box, NO.1
86150B Speaker Assy, W/Box, NO.2
86150C Speaker Assy, W/Box, NO.3
86160 Speaker Assy, Front NO.1
86160B Speaker Assy, Rear
86160J Speaker Assy, Front NO.3
86160L Speaker Assy, Front NO.4
86160P Speaker Assy, Front NO.2
86160Y Speaker Assy, Rear NO.2
86160Z Speaker Assy, Rear NO.3
86161G Speaker Assy, Front NO.5
86240A Equalizer Assy,Stereo Component
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
