Toyota Lexus GX550
2023-12 → present · chassis VJA252 · catalogue 782420 · United States
Supported model
Data version 2023-12

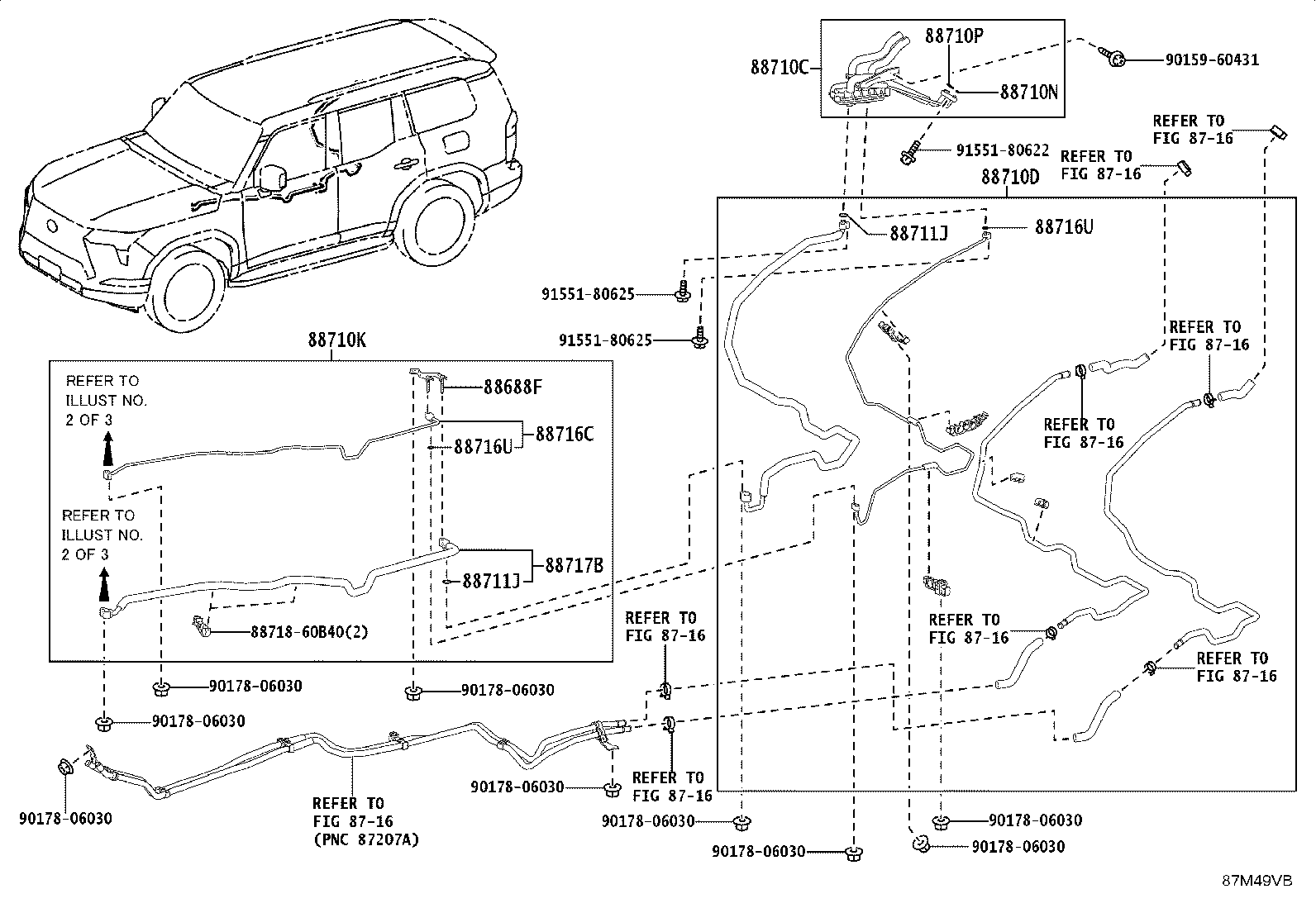

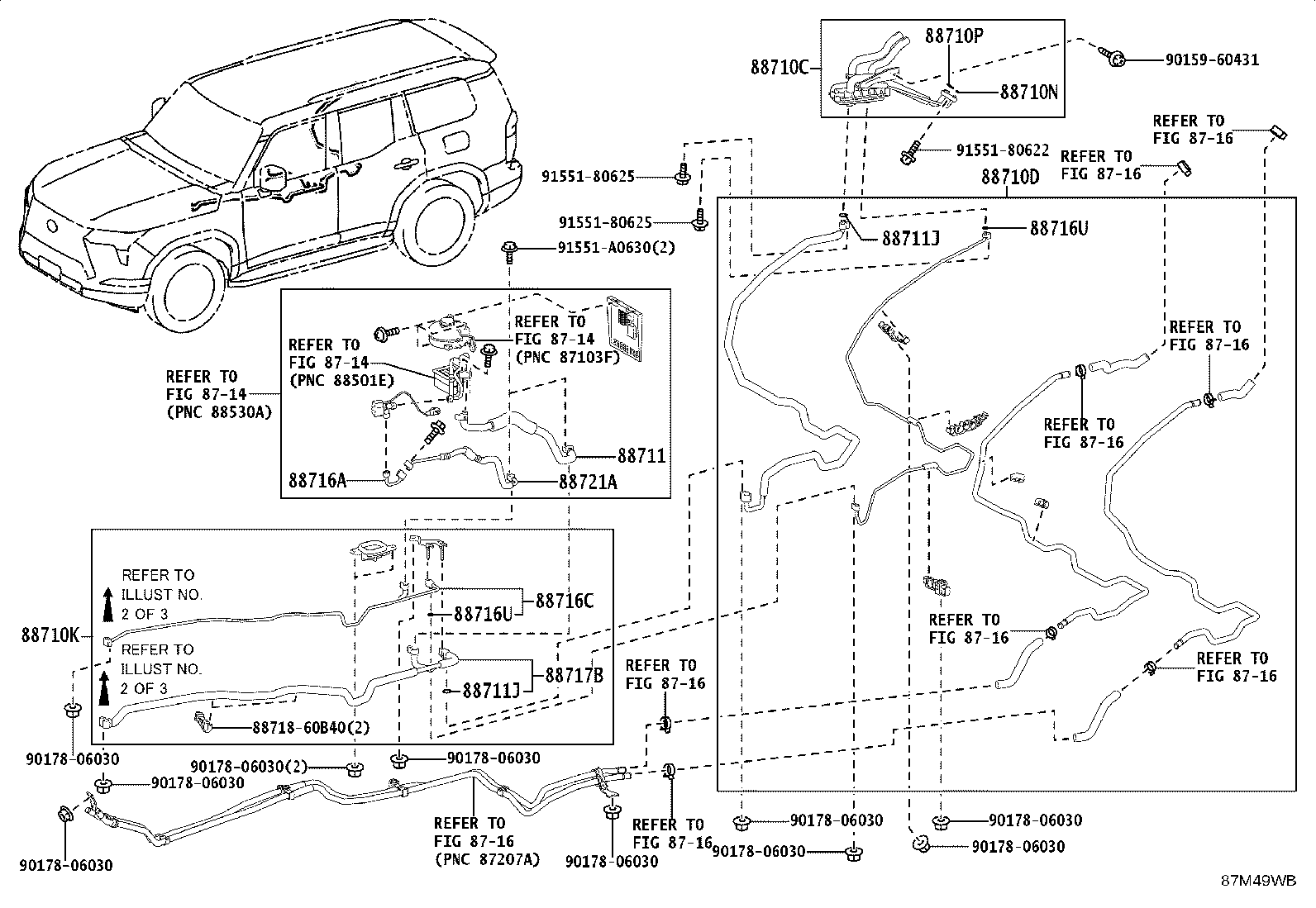

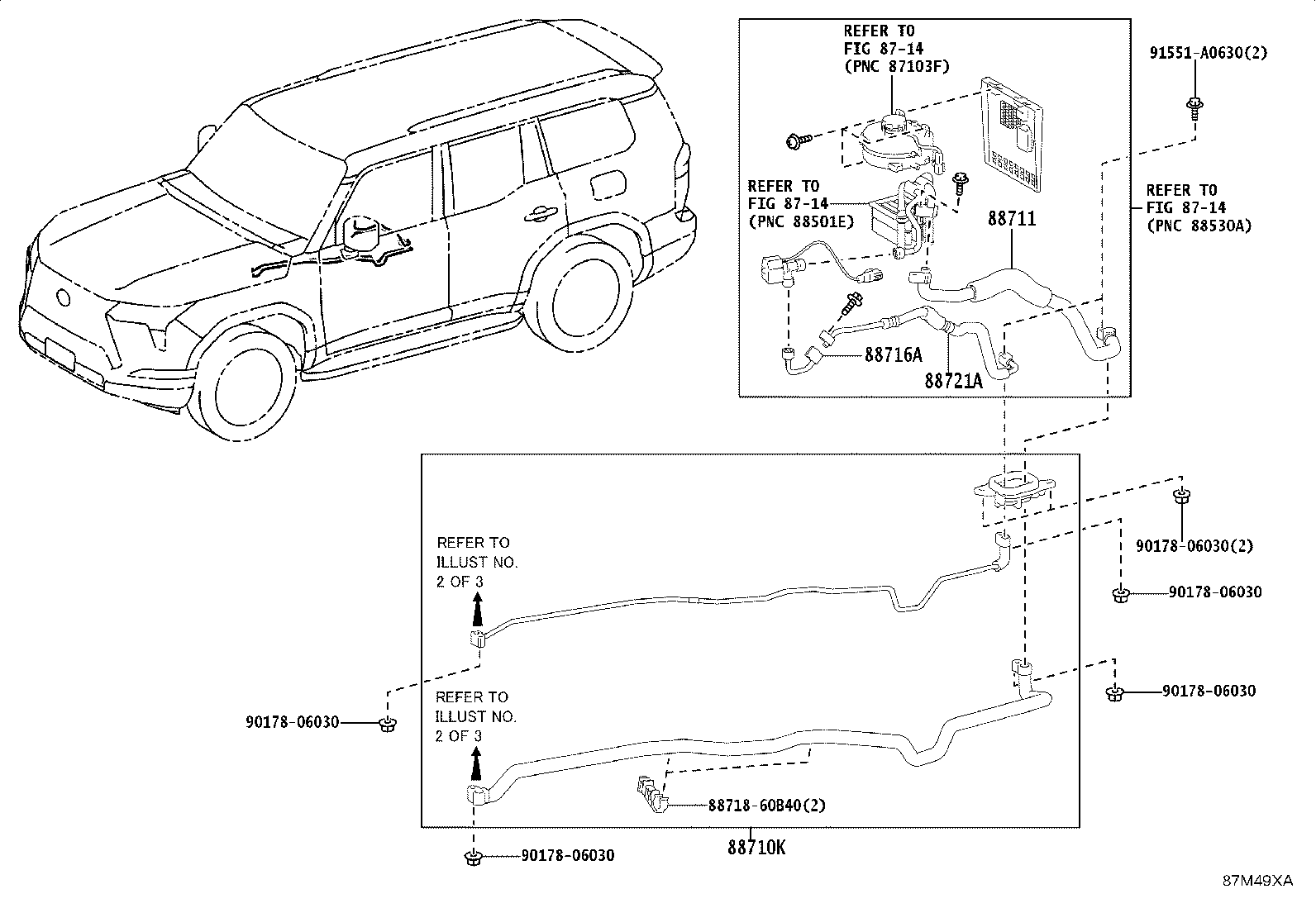

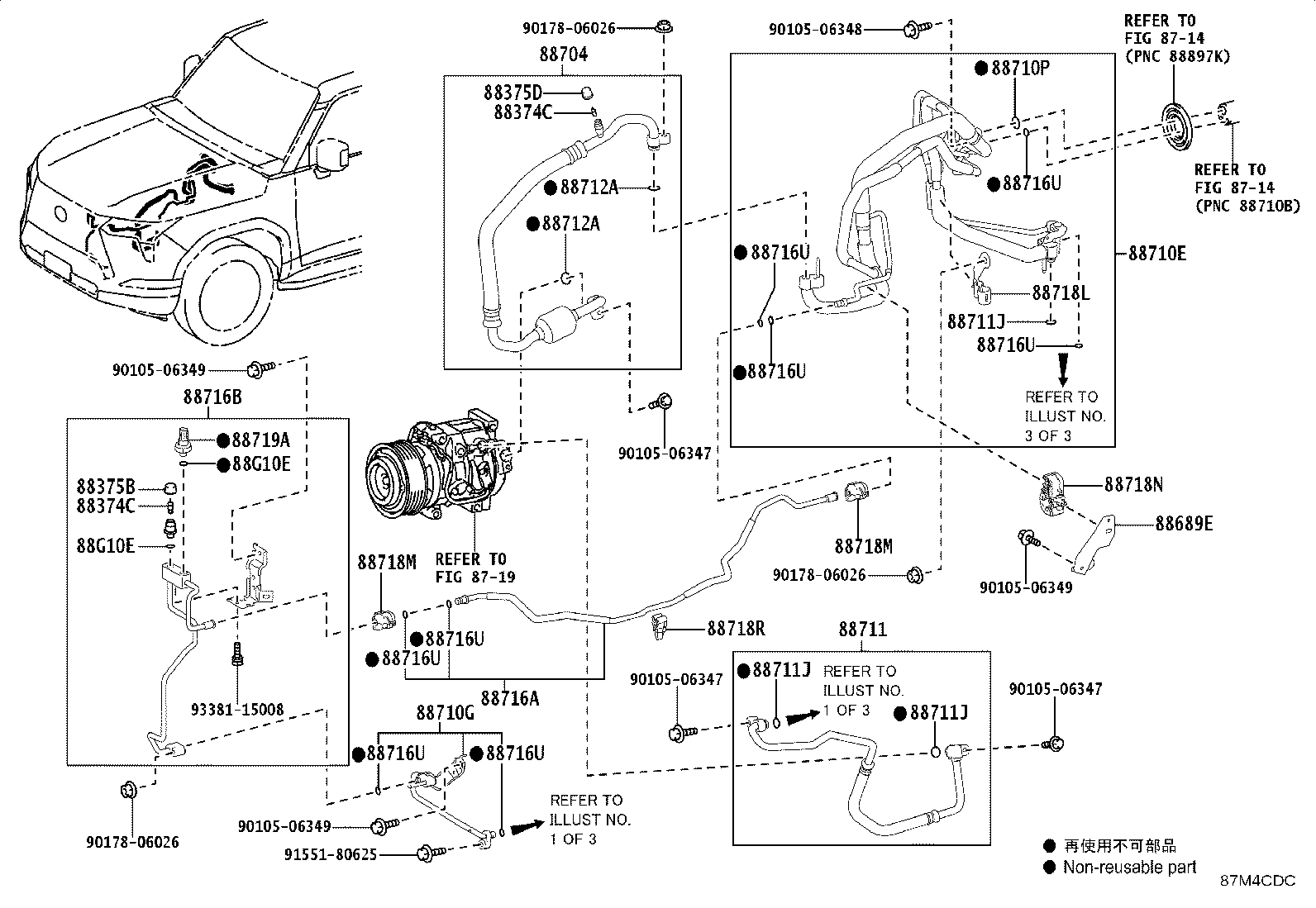

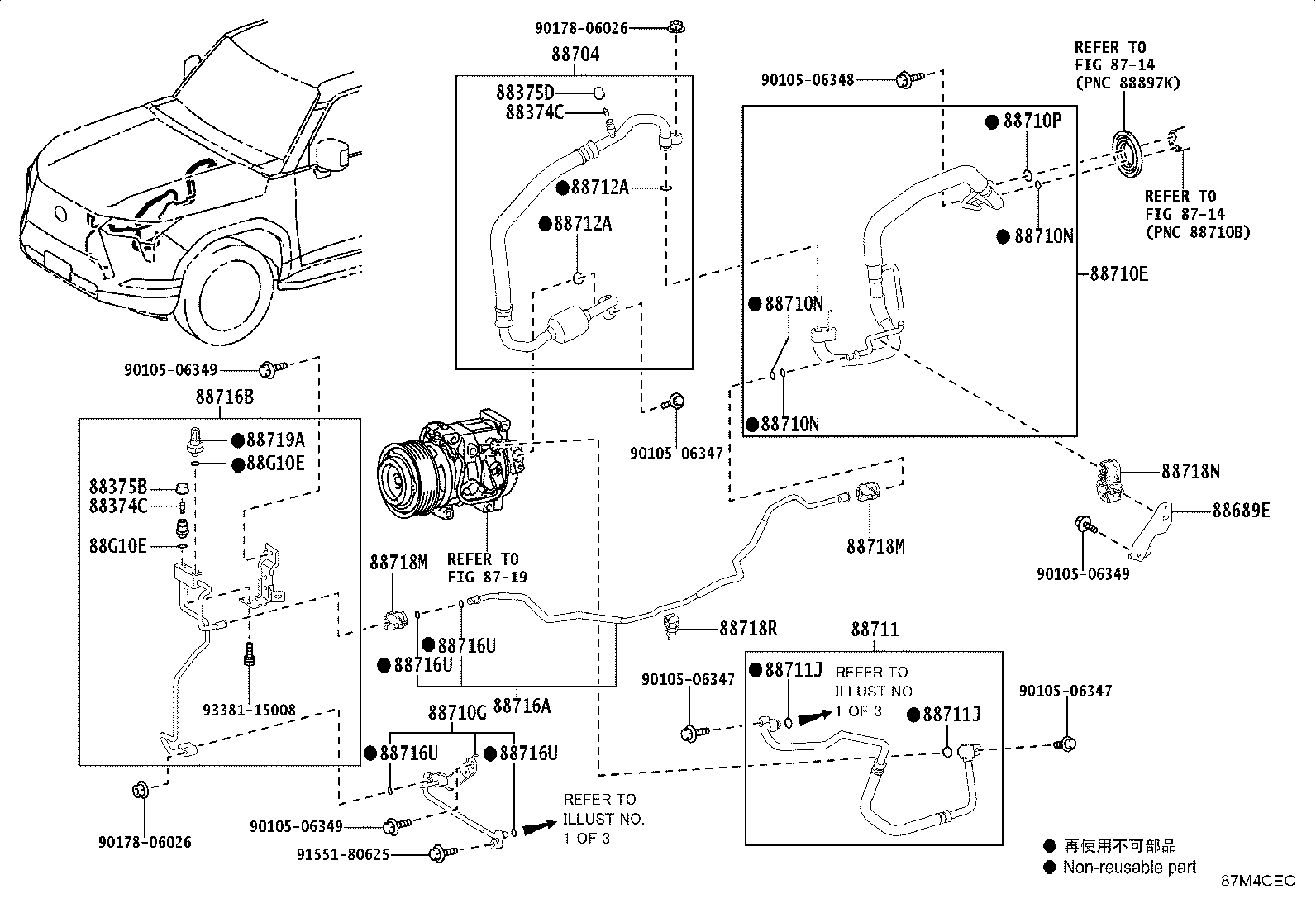

Heating & Air Conditioning - Cooler Piping
45 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 16793C | Label, Cooling Fan Caution |
| 88374C | Valve, Service, NO.2 |
| 88375B | Cap, Service Valve, NO.1 |
| 88375D | Cap, Service Valve, NO.2 |
| 88453 | Fan, Cooling (FOR CONDENSER) |
| 88454A | Shroud, Fan |
| 88463 | Bracket, Cooler Condenser, NO.1 |
| 88467L | Cushion, Cooler, NO.1 |
| 88474 | Dryer, Cooler |
| 884A0 | Condenser Assy, Cooler |
| 88550 | Motor Assy, Blower (FOR CONDENSER) |
| 88590 | Blower Assy, W/Shroud |
| 88688F | Bracket, Cooler Refrigerant Hose, NO.2 |
| 88688L | Bracket, Condenser Packing |
| 88689E | Bracket, Cooler, NO.1 |
| 88704 | Hose Sub-assy, Suction |
| 88710C | Tube Assy, Air Conditioner |
| 88710D | Tube Assy, Air Conditioner |
| 88710E | Tube & Accessory Assy, Air Conditioner |
| 88710G | Tube & Accessory Assy, Air Conditioner, NO.2 |
| 88710K | Tube & Accessory Assy, Air Conditioner, NO.3 |
| 88710N | Ring, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER) |
| 88710P | Ring, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER) |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88711J | Ring, O, NO.1(FOR DISCHARGE HOSE) |
| 88712A | Ring, O(FOR COOLER REFRIGERANT SUCTION HOSE) |
| 88716A | Pipe, Cooler Refrigerant Liquid, A |
| 88716B | Pipe, Cooler Refrigerant Liquid, B |
| 88716C | Pipe, Cooler Refrigerant Liquid, C |
| 88716U | Ring, O(FOR COOLER REFRIGERANT LIQUID PIPE) |
| 88717B | Pipe, Cooler Refrigerant Suction, B |
| 88718L | Clamp, Piping |
| 88718M | Clamp, Piping |
| 88718N | Clamp, Piping |
| 88718R | Clamp, Piping |
| 88719A | Sensor, Air Conditioner Pressure |
| 88721A | Hose, Liquid, A |
| 88897T | Grommet, Cooler |
| 88F88 | Bracket, Condenser, NO.1 |
| 88F88A | Bracket, Condenser, NO.2 |
| 88F88B | Bracket, Condenser, NO.3 |
| 88F88C | Bracket, Condenser, NO.4 |
| 88F88D | Bracket, Condenser, NO.5 |
| 88F88E | Bracket, Condenser, NO.6 |
| 88G10E | Ring, O, NO.1 (FOR TUBE & ACCESSORY ASSY, A/C, NO.3) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
