Toyota Land Cruiser

1969-03 → 1980-07 · chassis BJ40,FJ4#,55 · catalogue 791410 · United States

Discontinued model Data version 1985-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

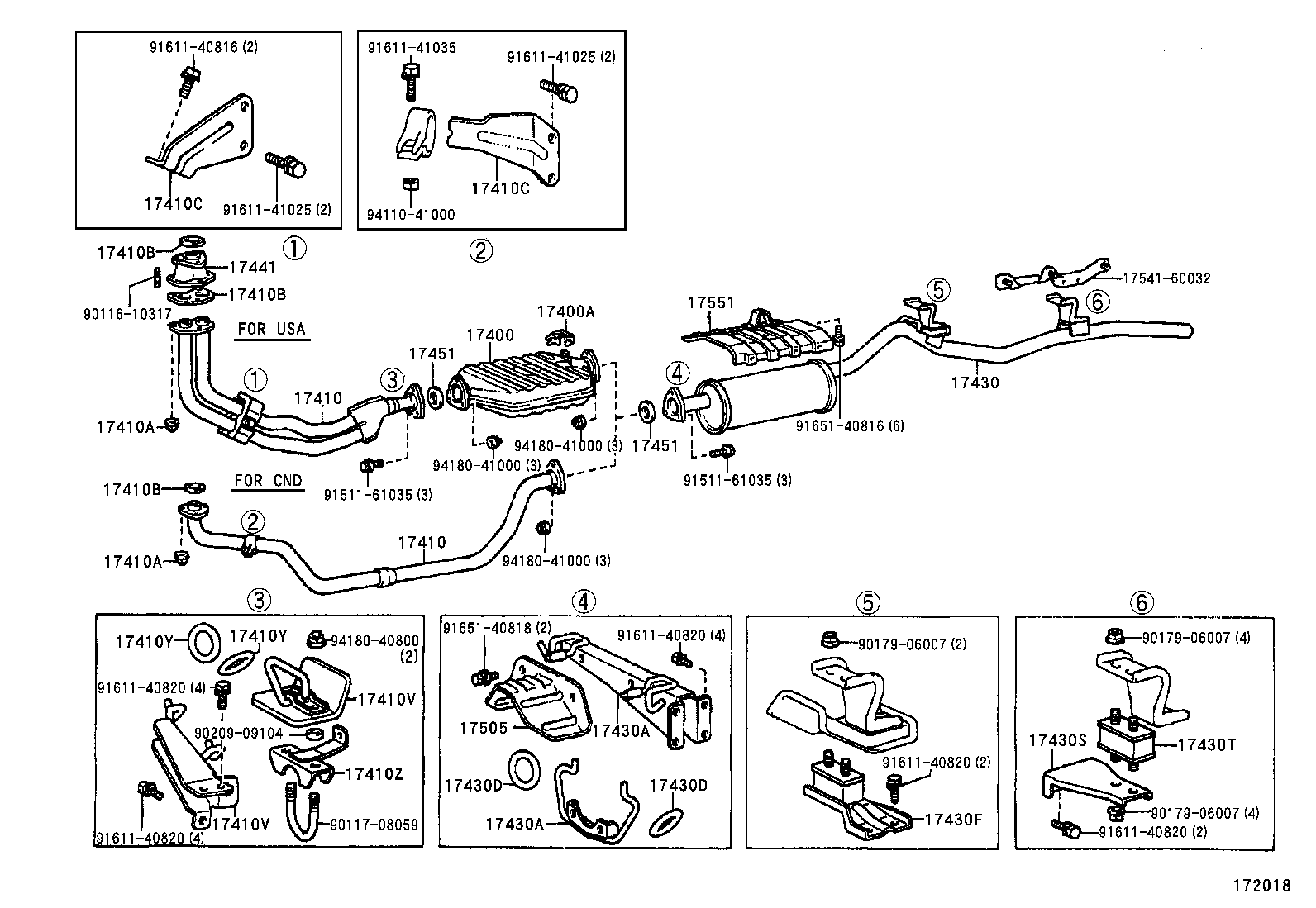

Exploded illustration 172018 9161140816 — not listed in this catalogue 9161141035 — not listed in this catalogue 9161141025 — not listed in this catalogue 17410C — BRACKET, EXHAUST PIPE FRONT (FOR FRONT) (10 parts) 17410C — BRACKET, EXHAUST PIPE FRONT (FOR FRONT) (10 parts) 9161141025 — not listed in this catalogue 9411041000 — not listed in this catalogue 17410B — GASKET, EXHAUST PIPE (6 parts) 17441 — FLANGE, EXHAUST PIPE (2 parts) 1754160032 — not listed in this catalogue 17410B — GASKET, EXHAUST PIPE (6 parts) 17551 — INSULATOR, EXHAUST PIPE HEAT, NO.1 (3 parts) 17400A — FLANGE, THERMOSENSER INLET (1 parts) 9011610317 — not listed in this catalogue 17400 — CONVERTER ASSY, W/CATALYST (2 parts) 17451 — GASKET, EXHAUST PIPE (4 parts) 17430 — PIPE ASSY, EXHAUST, TAIL (21 parts) 17410 — PIPE ASSY, EXHAUST, FRONT (17 parts) 9165140816 — not listed in this catalogue 17410A — NUT, EXHAUST PIPE SET STUD BOLT (5 parts) 17451 — GASKET, EXHAUST PIPE (4 parts) 9418041000 — not listed in this catalogue 9418041000 — not listed in this catalogue 9151161035 — not listed in this catalogue 17410B — GASKET, EXHAUST PIPE (6 parts) 9151161035 — not listed in this catalogue 17410 — PIPE ASSY, EXHAUST, FRONT (17 parts) 17410A — NUT, EXHAUST PIPE SET STUD BOLT (5 parts) 9418041000 — not listed in this catalogue 9165140818 — not listed in this catalogue 17410Y — BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR) (1 parts) 9161140820 — not listed in this catalogue 9017906007 — not listed in this catalogue 17410Y — BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR) (1 parts) 9418040800 — not listed in this catalogue 9017906007 — not listed in this catalogue 9161140820 — not listed in this catalogue 17410V — BRACKET, EXHAUST PIPE FRONT (FOR REAR) (7 parts) 17505 — INSULATOR SUB-ASSY, EXHAUST PIPE HEAT NO.1 (2 parts) 17430A — BRACKET, EXHAUST TAILPIPE(FOR FRONT) (9 parts) 9020909104 — not listed in this catalogue 17430S — BRACKET, EXHAUST TAILPIPE (FOR REAR) (5 parts) 17430T — CUSHION, EXHAUST TAILPIPE (FOR REAR) (4 parts) 9161140820 — not listed in this catalogue 17410Z — CLAMP NO.2, EXHAUST PIPE FRONT (FOR REAR) (3 parts) 17430D — BOLT OR RING, EXHAUST TAILPIPE (FOR FRONT) (3 parts) 17430D — BOLT OR RING, EXHAUST TAILPIPE (FOR FRONT) (3 parts) 9017906007 — not listed in this catalogue 17430F — BRACKET, EXHAUST TAILPIPE(FOR CENTER) (2 parts) 17410V — BRACKET, EXHAUST PIPE FRONT (FOR REAR) (7 parts) 17430A — BRACKET, EXHAUST TAILPIPE(FOR FRONT) (9 parts) 9011708059 — not listed in this catalogue 9161140820 — not listed in this catalogue 9161140820 — not listed in this catalogue
172018 · 29 callouts, 25 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
107 parts on this figure
Part number Description Fitment Price
17400 — Converter Assy, W/Catalyst
17400-61010 Converter Assy, W/Catalyst
1979-01 → 1980-07 ended
2F FJ40,55 USA —
17400-61020 note Converter Assy, W/Catalyst
1979-01 → 1980-07 ended
2F FJ40,55 USA —
17400A — Flange, Thermosenser Inlet
18491-61010 Flange, Thermosenser Inlet
1979-01 → 1980-07 ended
2F FJ40,55 USA —
17410 — Pipe Assy, Exhaust, Front
17401-60041 Pipe Assy, Exhaust, Front
1969-03 → 1975-01 ended
F FJ40 —
17401-60200 Pipe Assy, Exhaust, Front
1969-03 → 1975-01 ended
F FJ55 —
17401-61010 Pipe Assy, Exhaust, Front
1975-01 → 1975-12 ended
2F FJ40 —
17401-61070 Pipe Assy, Exhaust, Front
1979-01 → 1980-07 ended
2F FJ55 CND —
17401-61090 Pipe Assy, Exhaust, Front
1979-01 → 1980-07 ended
2F FJ4# CND —
17410-56070 Pipe Assy, Exhaust, Front
1978-03 → 1979-01 ended
B BJ40 —
17410-56071 Pipe Assy, Exhaust, Front
1979-01 → 1980-07 ended
B BJ40 —
17410-61011 Pipe Assy, Exhaust, Front
1976-06 → 1979-01 ended
2F FJ45 —
17410-61020 Pipe Assy, Exhaust, Front
1975-01 → 1975-12 ended
2F FJ55 —
17410-61021 Pipe Assy, Exhaust, Front
1975-12 → 1979-01 ended
2F FJ55 —
17410-61022 Pipe Assy, Exhaust, Front
1979-01 → 1980-07 ended
2F FJ55 USA —
17410-61050 Pipe Assy, Exhaust, Front
1975-12 → 1979-01 ended
2F FJ40 —
17410-61051 Pipe Assy, Exhaust, Front
1979-01 → 1980-07 ended
2F FJ40 USA —
17410-61060 note Pipe Assy, Exhaust, Front
1976-02 → 1979-01 ended
2F FJ40 USA —
17410-61060 note Pipe Assy, Exhaust, Front
1976-01 → 1976-02 ended
2F FJ40 —
17410-61070 note Pipe Assy, Exhaust, Front
1976-02 → 1979-01 ended
2F FJ55 USA —
17410-61070 note Pipe Assy, Exhaust, Front
1976-01 → 1976-02 ended
2F FJ55 —
17410A — Nut, Exhaust Pipe Set Stud Bolt
90170-10049 Nut, Exhaust Pipe Set Stud Bolt
1969-03 → 1972-12 ended
F FJ40,55 —
90170-10199 Nut, Exhaust Pipe Set Stud Bolt
1972-12 → 1975-01 ended
F FJ40,55 —
90170-10199 Nut, Exhaust Pipe Set Stud Bolt
1978-03 → 1980-07 ended
B BJ40 —
90179-10010 Nut, Exhaust Pipe Set Stud Bolt
1979-01 → 1980-07 ended
2F FJ4#,55 —
90179-10118 Nut, Exhaust Pipe Set Stud Bolt
1975-01 → 1979-01 ended
2F FJ4#,55 —
17410B — Gasket, Exhaust Pipe
17451-41010 note Gasket, Exhaust Pipe
1979-01 → 1980-07 ended
2F FJ40,55 USA —
90917-06003 Gasket, Exhaust Pipe
1975-01 → 1979-01 ended
2F FJ4#,55 —
90917-06003 Gasket, Exhaust Pipe
1979-01 → 1980-07 ended
2F FJ4#,55 CND —
90917-06003 note Gasket, Exhaust Pipe
1979-01 → 1980-07 ended
2F FJ40,55 USA —
90917-06005 Gasket, Exhaust Pipe
1969-03 → 1975-01 ended
F FJ40,55 —
90917-06008 Gasket, Exhaust Pipe
1978-03 → 1980-07 ended
B BJ40 —
17410C — Bracket, Exhaust Pipe Front (FOR FRONT)
17571-61030 Bracket, Exhaust Pipe Front (FOR FRONT)
1975-01 → 1979-01 ended
2F FJ4# —
17571-61031 Bracket, Exhaust Pipe Front (FOR FRONT)
1979-01 → 1980-07 ended
2F FJ4# CND —
17571-61040 Bracket, Exhaust Pipe Front (FOR FRONT)
1975-01 → 1979-01 ended
2F FJ55 —
17571-61040 Bracket, Exhaust Pipe Front (FOR FRONT)
1979-01 → 1980-07 ended
2F FJ55 CND —
17571-61060 Bracket, Exhaust Pipe Front (FOR FRONT)
1979-01 → 1980-07 ended
2F FJ40 USA —
17571-61070 Bracket, Exhaust Pipe Front (FOR FRONT)
1979-01 → 1980-07 ended
2F FJ55 USA —
17574-61010 note Bracket, Exhaust Pipe Front (FOR FRONT)
1976-01 → 1976-02 ended
2F FJ40 —
17574-61010 note Bracket, Exhaust Pipe Front (FOR FRONT)
1976-02 → 1979-01 ended
2F FJ40 USA —
17574-61020 note Bracket, Exhaust Pipe Front (FOR FRONT)
1976-02 → 1979-01 ended
2F FJ55 USA —
17574-61020 note Bracket, Exhaust Pipe Front (FOR FRONT)
1976-01 → 1976-02 ended
2F FJ55 —
17410V — Bracket, Exhaust Pipe Front (FOR REAR)
17502-61010 note Bracket, Exhaust Pipe Front (FOR REAR)
1979-01 → 1980-07 ended
2F FJ55 USA —
17506-61011 note Bracket, Exhaust Pipe Front (FOR REAR)
1979-01 → 1980-07 ended
2F FJ40 USA —
17506-61021 note Bracket, Exhaust Pipe Front (FOR REAR)
1979-01 → 1980-07 ended
2F FJ55 USA —
17507-61010 note Bracket, Exhaust Pipe Front (FOR REAR)
1979-01 → 1980-07 ended
2F FJ40 USA —
17571-56020 Bracket, Exhaust Pipe Front (FOR REAR)
1978-03 → 1979-01 ended
B BJ40 —
17571-56021 Bracket, Exhaust Pipe Front (FOR REAR)
1979-01 → 1980-07 ended
B BJ40 —
17580-61010 note Bracket, Exhaust Pipe Front (FOR REAR)
1979-01 → 1980-07 ended
2F FJ40 USA —
17410Y — Bolt OR Ring, Exhaust Pipe Front (FOR REAR)
90301-33001 Bolt OR Ring, Exhaust Pipe Front (FOR REAR)
1979-01 → 1980-07 ended
2F FJ40,55 USA —
17410Z — Clamp NO.2, Exhaust Pipe Front (FOR REAR)
17504-61010 Clamp NO.2, Exhaust Pipe Front (FOR REAR)
1979-01 → 1980-07 ended
2F FJ55 USA —
90461-23469 Clamp NO.2, Exhaust Pipe Front (FOR REAR)
1969-03 → 1975-01 ended
F FJ40,55 —
90917-04026 Clamp NO.2, Exhaust Pipe Front (FOR REAR)
1975-01 → 1975-12 ended
2F FJ40 —
17430 — Pipe Assy, Exhaust, Tail
17405-56110 Pipe Assy, Exhaust, Tail
1979-01 → 1980-07 ended
B BJ40 —
17405-61020 Pipe Assy, Exhaust, Tail
1975-01 → 1975-12 ended
2F FJ40 —
17405-61021 Pipe Assy, Exhaust, Tail
1975-12 → 1977-07 ended
2F FJ40 —
17405-61022 Pipe Assy, Exhaust, Tail
1977-07 → 1979-01 ended
2F FJ40 —
17405-61040 Pipe Assy, Exhaust, Tail
1976-06 → 1979-01 ended
2F FJ45 —
17430-56190 Pipe Assy, Exhaust, Tail
1978-03 → 1979-01 ended
B BJ40 —
17430-61020 Pipe Assy, Exhaust, Tail
1975-01 → 1975-12 ended
2F FJ55 —
17430-61021 Pipe Assy, Exhaust, Tail
1975-12 → 1979-01 ended
2F FJ55 —
17430-61040 Pipe Assy, Exhaust, Tail
1979-01 → 1980-07 ended
2F FJ40 CND —
17430-61050 Pipe Assy, Exhaust, Tail
1979-01 → 1980-07 ended
2F FJ45 —
17430-61080 Pipe Assy, Exhaust, Tail
1979-01 → 1980-07 ended
2F FJ55 USA —
17430-61090 Pipe Assy, Exhaust, Tail
1979-01 → 1980-07 ended
2F FJ55 CND —
17430-61120 Pipe Assy, Exhaust, Tail
1979-01 → 1980-07 ended
2F FJ40 USA —
17431-60120 Pipe Assy, Exhaust, Tail
1969-03 → 1969-09 ended
F FJ40 —
17431-60121 Pipe Assy, Exhaust, Tail
1969-09 → 1975-01 ended
F FJ40 —
17431-60160 Pipe Assy, Exhaust, Tail
1969-03 → 1969-09 ended
F FJ55 —
17431-60161 Pipe Assy, Exhaust, Tail
1969-09 → 1970-07 ended
F FJ55 —
17431-60210 Pipe Assy, Exhaust, Tail
1970-07 → 1975-01 ended
F FJ55 —
17431-60220 note Pipe Assy, Exhaust, Tail
1973-09 → 1975-01 ended
F FJ40 —
17431-60250 note Pipe Assy, Exhaust, Tail
1973-09 → 1975-01 ended
F FJ55 —
17431-60260 note Pipe Assy, Exhaust, Tail
1973-09 → 1975-01 ended
F FJ55 —
17430A — Bracket, Exhaust Tailpipe(FOR FRONT)
17503-61020 note Bracket, Exhaust Tailpipe(FOR FRONT)
1979-01 → 1980-07 ended
2F FJ55 —
17506-60050 Bracket, Exhaust Tailpipe(FOR FRONT)
1969-03 → 1969-09 ended
F FJ55 —
17508-61020 Bracket, Exhaust Tailpipe(FOR FRONT)
1979-01 → 1980-07 ended
2F FJ45 —
17562-60080 Bracket, Exhaust Tailpipe(FOR FRONT)
1969-09 → 1975-01 ended
F FJ55 —
17563-60040 Bracket, Exhaust Tailpipe(FOR FRONT)
1969-03 → 1969-09 ended
F FJ40 —
17563-60041 Bracket, Exhaust Tailpipe(FOR FRONT)
1969-09 → 1975-01 ended
F FJ40 —
17572-56030 Bracket, Exhaust Tailpipe(FOR FRONT)
1978-03 → 1980-07 ended
B BJ40 —
17572-61010 Bracket, Exhaust Tailpipe(FOR FRONT)
1975-01 → 1979-01 ended
2F FJ55 —
17590-61020 note Bracket, Exhaust Tailpipe(FOR FRONT)
1979-01 → 1980-07 ended
2F FJ55 —
17430D — Bolt OR Ring, Exhaust Tailpipe (FOR FRONT)
90118-08045 Bolt OR Ring, Exhaust Tailpipe (FOR FRONT)
1969-03 → 1969-09 ended
F FJ40 —
90118-08045 Bolt OR Ring, Exhaust Tailpipe (FOR FRONT)
1969-09 → 1975-01 ended
F FJ40,55 —
90301-33001 Bolt OR Ring, Exhaust Tailpipe (FOR FRONT)
1979-01 → 1980-07 ended
2F FJ55 —
17430F — Bracket, Exhaust Tailpipe(FOR CENTER)
17509-61010 Bracket, Exhaust Tailpipe(FOR CENTER)
1979-01 → 1980-07 ended
2F FJ55 —
17573-61010 Bracket, Exhaust Tailpipe(FOR CENTER)
1975-01 → 1979-01 ended
2F FJ40 —
17430S — Bracket, Exhaust Tailpipe (FOR REAR)
17562-60080 Bracket, Exhaust Tailpipe (FOR REAR)
1975-01 → 1979-01 ended
2F FJ55 —
17566-61010 Bracket, Exhaust Tailpipe (FOR REAR)
1979-01 → 1980-07 ended
2F FJ55 —
17573-56080 Bracket, Exhaust Tailpipe (FOR REAR)
1978-03 → 1980-07 ended
B BJ40 —
17573-60030 Bracket, Exhaust Tailpipe (FOR REAR)
1976-06 → 1979-01 ended
2F FJ45 —
17574-61040 Bracket, Exhaust Tailpipe (FOR REAR)
1979-01 → 1980-07 ended
2F FJ45 —
17430T — Cushion, Exhaust Tailpipe (FOR REAR)
17509-61020 Cushion, Exhaust Tailpipe (FOR REAR)
1979-01 → 1980-07 ended
2F FJ40 —
17567-61010 Cushion, Exhaust Tailpipe (FOR REAR)
1979-01 → 1980-07 ended
2F FJ45,55 —
90917-08004 Cushion, Exhaust Tailpipe (FOR REAR)
1978-03 → 1980-07 ended
B BJ40 —
90917-08009 Cushion, Exhaust Tailpipe (FOR REAR)
1975-01 → 1979-01 ended
2F FJ45,55 —
17441 — Flange, Exhaust Pipe
17441-60010 Flange, Exhaust Pipe
1969-03 → 1975-01 ended
F FJ40,55 —
17441-61030 Flange, Exhaust Pipe
1979-01 → 1980-07 ended
2F FJ40,55 USA —
17451 — Gasket, Exhaust Pipe
17451-45010 Gasket, Exhaust Pipe
1975-12 → 1979-01 ended
2F FJ4#,55 —
90917-06008 Gasket, Exhaust Pipe
1978-03 → 1980-07 ended
B BJ40 —
90917-06015 Gasket, Exhaust Pipe
1975-01 → 1975-12 ended
2F FJ40,55 —
90917-06024 Gasket, Exhaust Pipe
1979-01 → 1980-07 ended
2F FJ4#,55 —
17505 — Insulator Sub-assy, Exhaust Pipe Heat NO.1
17552-61030 Insulator Sub-assy, Exhaust Pipe Heat NO.1
1979-01 → 1980-07 ended
2F FJ40 USA —
17553-61010 Insulator Sub-assy, Exhaust Pipe Heat NO.1
1979-01 → 1980-07 ended
2F FJ55 USA —
17551 — Insulator, Exhaust Pipe Heat, NO.1
17551-60020 Insulator, Exhaust Pipe Heat, NO.1
1971-12 → 1975-01 ended
F FJ40 —
17551-61020 Insulator, Exhaust Pipe Heat, NO.1
1975-01 → 1979-01 ended
2F FJ55 —
17551-61021 Insulator, Exhaust Pipe Heat, NO.1
1979-01 → 1980-07 ended
2F FJ55 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
