Toyota Land Cruiser

1969-03 → 1980-07 · chassis BJ40,FJ4#,55 · catalogue 791410 · United States

Discontinued model Data version 1985-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

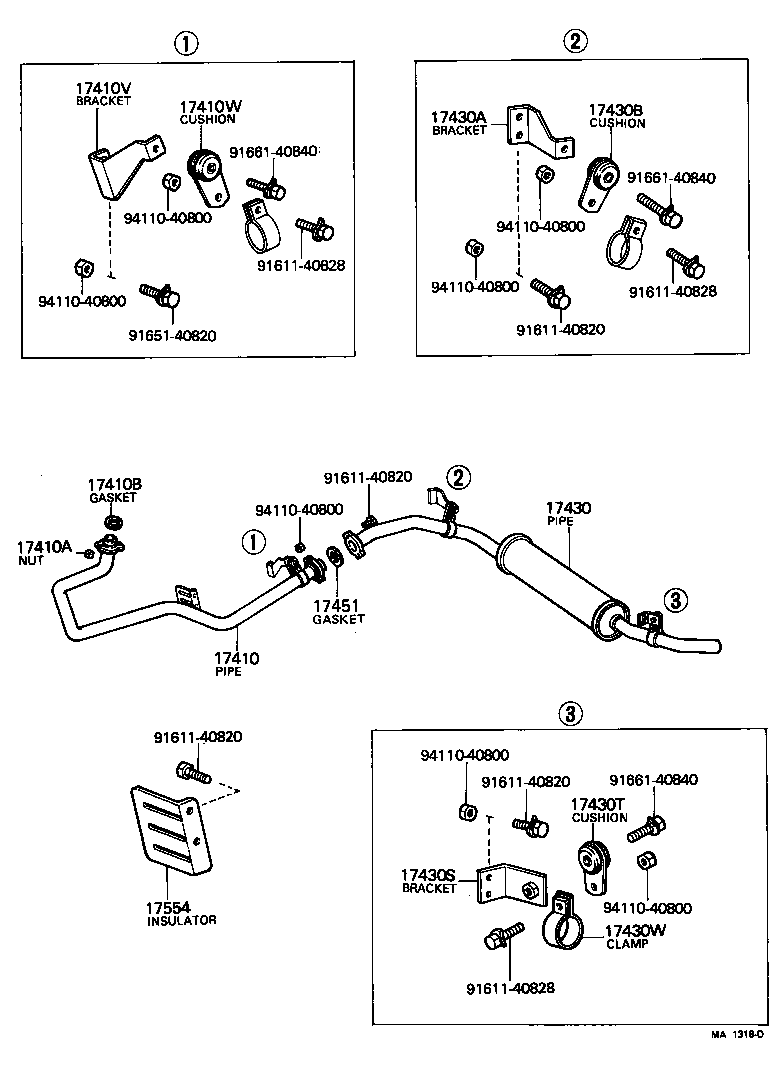

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

85 parts on this figure

Part number	Description	Fitment	Price
17410 — Pipe Assy, Exhaust, Front
17401-60041	Pipe Assy, Exhaust, Front 1969-03 → 1975-01 ended	F FJ40	—
17401-60200	Pipe Assy, Exhaust, Front 1969-03 → 1975-01 ended	F FJ55	—
17401-61010	Pipe Assy, Exhaust, Front 1975-01 → 1975-12 ended	2F FJ40	—
17401-61070	Pipe Assy, Exhaust, Front 1979-01 → 1980-07 ended	2F FJ55 CND	—
17401-61090	Pipe Assy, Exhaust, Front 1979-01 → 1980-07 ended	2F FJ4# CND	—
17410-56070	Pipe Assy, Exhaust, Front 1978-03 → 1979-01 ended	B BJ40	—
17410-56071	Pipe Assy, Exhaust, Front 1979-01 → 1980-07 ended	B BJ40	—
17410-61011	Pipe Assy, Exhaust, Front 1976-06 → 1979-01 ended	2F FJ45	—
17410-61020	Pipe Assy, Exhaust, Front 1975-01 → 1975-12 ended	2F FJ55	—
17410-61021	Pipe Assy, Exhaust, Front 1975-12 → 1979-01 ended	2F FJ55	—
17410-61022	Pipe Assy, Exhaust, Front 1979-01 → 1980-07 ended	2F FJ55 USA	—
17410-61050	Pipe Assy, Exhaust, Front 1975-12 → 1979-01 ended	2F FJ40	—
17410-61051	Pipe Assy, Exhaust, Front 1979-01 → 1980-07 ended	2F FJ40 USA	—
17410-61060 note	Pipe Assy, Exhaust, Front 1976-02 → 1979-01 ended	2F FJ40 USA	—
17410-61060 note	Pipe Assy, Exhaust, Front 1976-01 → 1976-02 ended	2F FJ40	—
17410-61070 note	Pipe Assy, Exhaust, Front 1976-01 → 1976-02 ended	2F FJ55	—
17410-61070 note	Pipe Assy, Exhaust, Front 1976-02 → 1979-01 ended	2F FJ55 USA	—
17410A — Nut, Exhaust Pipe Set Stud Bolt
90170-10049	Nut, Exhaust Pipe Set Stud Bolt 1969-03 → 1972-12 ended	F FJ40,55	—
90170-10199	Nut, Exhaust Pipe Set Stud Bolt 1972-12 → 1975-01 ended	F FJ40,55	—
90170-10199	Nut, Exhaust Pipe Set Stud Bolt 1978-03 → 1980-07 ended	B BJ40	—
90179-10010	Nut, Exhaust Pipe Set Stud Bolt 1979-01 → 1980-07 ended	2F FJ4#,55	—
90179-10118	Nut, Exhaust Pipe Set Stud Bolt 1975-01 → 1979-01 ended	2F FJ4#,55	—
17410B — Gasket, Exhaust Pipe
17451-41010 note	Gasket, Exhaust Pipe 1979-01 → 1980-07 ended	2F FJ40,55 USA	—
90917-06003	Gasket, Exhaust Pipe 1975-01 → 1979-01 ended	2F FJ4#,55	—
90917-06003 note	Gasket, Exhaust Pipe 1979-01 → 1980-07 ended	2F FJ40,55 USA	—
90917-06003	Gasket, Exhaust Pipe 1979-01 → 1980-07 ended	2F FJ4#,55 CND	—
90917-06005	Gasket, Exhaust Pipe 1969-03 → 1975-01 ended	F FJ40,55	—
90917-06008	Gasket, Exhaust Pipe 1978-03 → 1980-07 ended	B BJ40	—
17410V — Bracket, Exhaust Pipe Front (FOR REAR)
17502-61010 note	Bracket, Exhaust Pipe Front (FOR REAR) 1979-01 → 1980-07 ended	2F FJ55 USA	—
17506-61011 note	Bracket, Exhaust Pipe Front (FOR REAR) 1979-01 → 1980-07 ended	2F FJ40 USA	—
17506-61021 note	Bracket, Exhaust Pipe Front (FOR REAR) 1979-01 → 1980-07 ended	2F FJ55 USA	—
17507-61010 note	Bracket, Exhaust Pipe Front (FOR REAR) 1979-01 → 1980-07 ended	2F FJ40 USA	—
17571-56020	Bracket, Exhaust Pipe Front (FOR REAR) 1978-03 → 1979-01 ended	B BJ40	—
17571-56021	Bracket, Exhaust Pipe Front (FOR REAR) 1979-01 → 1980-07 ended	B BJ40	—
17580-61010 note	Bracket, Exhaust Pipe Front (FOR REAR) 1979-01 → 1980-07 ended	2F FJ40 USA	—
17410W — Cushion, Exhaust Pipe Front (FOR REAR)
90917-08004	Cushion, Exhaust Pipe Front (FOR REAR) 1978-03 → 1980-07 ended	B BJ40	—
90917-08010	Cushion, Exhaust Pipe Front (FOR REAR) 1976-06 → 1979-01 ended	2F FJ45	—
17430 — Pipe Assy, Exhaust, Tail
17405-56110	Pipe Assy, Exhaust, Tail 1979-01 → 1980-07 ended	B BJ40	—
17405-61020	Pipe Assy, Exhaust, Tail 1975-01 → 1975-12 ended	2F FJ40	—
17405-61021	Pipe Assy, Exhaust, Tail 1975-12 → 1977-07 ended	2F FJ40	—
17405-61022	Pipe Assy, Exhaust, Tail 1977-07 → 1979-01 ended	2F FJ40	—
17405-61040	Pipe Assy, Exhaust, Tail 1976-06 → 1979-01 ended	2F FJ45	—
17430-56190	Pipe Assy, Exhaust, Tail 1978-03 → 1979-01 ended	B BJ40	—
17430-61020	Pipe Assy, Exhaust, Tail 1975-01 → 1975-12 ended	2F FJ55	—
17430-61021	Pipe Assy, Exhaust, Tail 1975-12 → 1979-01 ended	2F FJ55	—
17430-61040	Pipe Assy, Exhaust, Tail 1979-01 → 1980-07 ended	2F FJ40 CND	—
17430-61050	Pipe Assy, Exhaust, Tail 1979-01 → 1980-07 ended	2F FJ45	—
17430-61080	Pipe Assy, Exhaust, Tail 1979-01 → 1980-07 ended	2F FJ55 USA	—
17430-61090	Pipe Assy, Exhaust, Tail 1979-01 → 1980-07 ended	2F FJ55 CND	—
17430-61120	Pipe Assy, Exhaust, Tail 1979-01 → 1980-07 ended	2F FJ40 USA	—
17431-60120	Pipe Assy, Exhaust, Tail 1969-03 → 1969-09 ended	F FJ40	—
17431-60121	Pipe Assy, Exhaust, Tail 1969-09 → 1975-01 ended	F FJ40	—
17431-60160	Pipe Assy, Exhaust, Tail 1969-03 → 1969-09 ended	F FJ55	—
17431-60161	Pipe Assy, Exhaust, Tail 1969-09 → 1970-07 ended	F FJ55	—
17431-60210	Pipe Assy, Exhaust, Tail 1970-07 → 1975-01 ended	F FJ55	—
17431-60220 note	Pipe Assy, Exhaust, Tail 1973-09 → 1975-01 ended	F FJ40	—
17431-60250 note	Pipe Assy, Exhaust, Tail 1973-09 → 1975-01 ended	F FJ55	—
17431-60260 note	Pipe Assy, Exhaust, Tail 1973-09 → 1975-01 ended	F FJ55	—
17430A — Bracket, Exhaust Tailpipe(FOR FRONT)
17503-61020 note	Bracket, Exhaust Tailpipe(FOR FRONT) 1979-01 → 1980-07 ended	2F FJ55	—
17506-60050	Bracket, Exhaust Tailpipe(FOR FRONT) 1969-03 → 1969-09 ended	F FJ55	—
17508-61020	Bracket, Exhaust Tailpipe(FOR FRONT) 1979-01 → 1980-07 ended	2F FJ45	—
17562-60080	Bracket, Exhaust Tailpipe(FOR FRONT) 1969-09 → 1975-01 ended	F FJ55	—
17563-60040	Bracket, Exhaust Tailpipe(FOR FRONT) 1969-03 → 1969-09 ended	F FJ40	—
17563-60041	Bracket, Exhaust Tailpipe(FOR FRONT) 1969-09 → 1975-01 ended	F FJ40	—
17572-56030	Bracket, Exhaust Tailpipe(FOR FRONT) 1978-03 → 1980-07 ended	B BJ40	—
17572-61010	Bracket, Exhaust Tailpipe(FOR FRONT) 1975-01 → 1979-01 ended	2F FJ55	—
17590-61020 note	Bracket, Exhaust Tailpipe(FOR FRONT) 1979-01 → 1980-07 ended	2F FJ55	—
17430B — Cushion, Exhaust Tailpipe(FOR FRONT)
90917-08004	Cushion, Exhaust Tailpipe(FOR FRONT) 1969-09 → 1975-01 ended	F FJ55	—
90917-08004	Cushion, Exhaust Tailpipe(FOR FRONT) 1978-03 → 1980-07 ended	B BJ40	—
90917-08010	Cushion, Exhaust Tailpipe(FOR FRONT) 1975-01 → 1979-01 ended	2F FJ45,55	—
17430S — Bracket, Exhaust Tailpipe (FOR REAR)
17562-60080	Bracket, Exhaust Tailpipe (FOR REAR) 1975-01 → 1979-01 ended	2F FJ55	—
17566-61010	Bracket, Exhaust Tailpipe (FOR REAR) 1979-01 → 1980-07 ended	2F FJ55	—
17573-56080	Bracket, Exhaust Tailpipe (FOR REAR) 1978-03 → 1980-07 ended	B BJ40	—
17573-60030	Bracket, Exhaust Tailpipe (FOR REAR) 1976-06 → 1979-01 ended	2F FJ45	—
17574-61040	Bracket, Exhaust Tailpipe (FOR REAR) 1979-01 → 1980-07 ended	2F FJ45	—
17430T — Cushion, Exhaust Tailpipe (FOR REAR)
17509-61020	Cushion, Exhaust Tailpipe (FOR REAR) 1979-01 → 1980-07 ended	2F FJ40	—
17567-61010	Cushion, Exhaust Tailpipe (FOR REAR) 1979-01 → 1980-07 ended	2F FJ45,55	—
90917-08004	Cushion, Exhaust Tailpipe (FOR REAR) 1978-03 → 1980-07 ended	B BJ40	—
90917-08009	Cushion, Exhaust Tailpipe (FOR REAR) 1975-01 → 1979-01 ended	2F FJ45,55	—
17430W — Clamp NO.2, Exhaust Tailpipe (FOR REAR)
90461-23387	Clamp NO.2, Exhaust Tailpipe (FOR REAR) 1978-03 → 1980-07 ended	B BJ40	—
17451 — Gasket, Exhaust Pipe
17451-45010	Gasket, Exhaust Pipe 1975-12 → 1979-01 ended	2F FJ4#,55	—
90917-06008	Gasket, Exhaust Pipe 1978-03 → 1980-07 ended	B BJ40	—
90917-06015	Gasket, Exhaust Pipe 1975-01 → 1975-12 ended	2F FJ40,55	—
90917-06024	Gasket, Exhaust Pipe 1979-01 → 1980-07 ended	2F FJ4#,55	—
17554 — Insulator, Exhaust Pipe Heat, Front
17554-56010	Insulator, Exhaust Pipe Heat, Front 1978-03 → 1980-07 ended	B BJ40	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
