Toyota Land Cruiser

1969-03 → 1980-07 · chassis BJ40,FJ4#,55 · catalogue 791410 · United States

Discontinued model Data version 1985-05

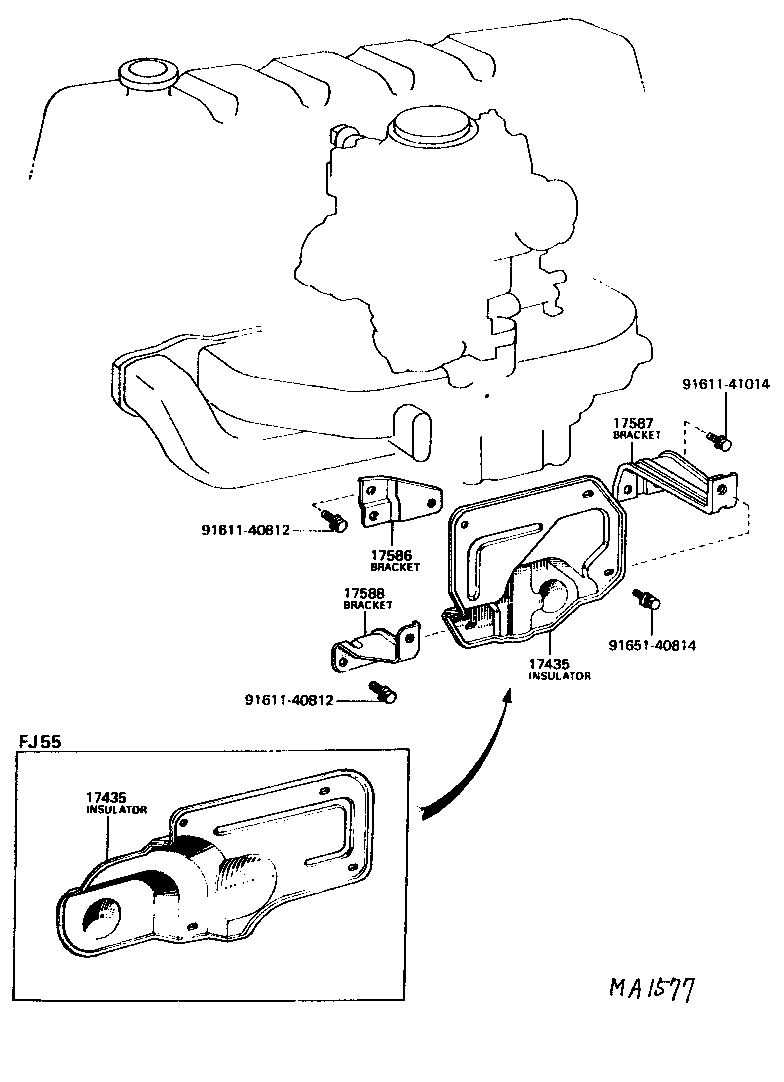

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

15 parts on this figure

Part number	Description	Fitment	Price
17435 — Insulator, Exhaust Pipe Heat
17435-61010	Insulator, Exhaust Pipe Heat 1975-01 → 1975-09 ended	2F FJ40	—
17435-61011	Insulator, Exhaust Pipe Heat 1975-09 → 1980-07 ended	2F FJ4#	—
17435-61020	Insulator, Exhaust Pipe Heat 1975-01 → 1975-09 ended	2F FJ55	—
17435-61021	Insulator, Exhaust Pipe Heat 1975-09 → 1980-07 ended	2F FJ55	—
17435-61030 note	Insulator, Exhaust Pipe Heat 1979-01 → 1980-07 ended	2F FJ4#	—
17435-61040 note	Insulator, Exhaust Pipe Heat 1979-01 → 1980-07 ended	2F FJ55 USA	—
17586 — Bracket, Heat Insulator, NO.1
17586-61010	Bracket, Heat Insulator, NO.1 1975-01 → 1975-09 ended	2F FJ40,55	—
17586-61011	Bracket, Heat Insulator, NO.1 1975-09 → 1980-07 ended	2F FJ4#,55	—
17586-61030 note	Bracket, Heat Insulator, NO.1 1979-01 → 1980-07 ended	2F FJ40,55 USA	—
17587 — Bracket, Heat Insulator, NO.2
17587-61010	Bracket, Heat Insulator, NO.2 1975-01 → 1975-09 ended	2F FJ40,55	—
17587-61011	Bracket, Heat Insulator, NO.2 1975-09 → 1980-07 ended	2F FJ4#	—
17587-61020 note	Bracket, Heat Insulator, NO.2 1979-01 → 1980-07 ended	2F FJ40 USA	—
17587-61030 note	Bracket, Heat Insulator, NO.2 1979-01 → 1980-07 ended	2F FJ55 USA	—
17588 — Bracket, Heat Insulator, NO.3
17588-61010	Bracket, Heat Insulator, NO.3 1975-01 → 1975-09 ended	2F FJ40,55	—
17588-61011	Bracket, Heat Insulator, NO.3 1975-09 → 1979-01 ended	2F FJ55	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
