Toyota Land Cruiser

1969-03 → 1980-07 · chassis BJ40,FJ4#,55 · catalogue 791410 · United States

Discontinued model Data version 1985-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

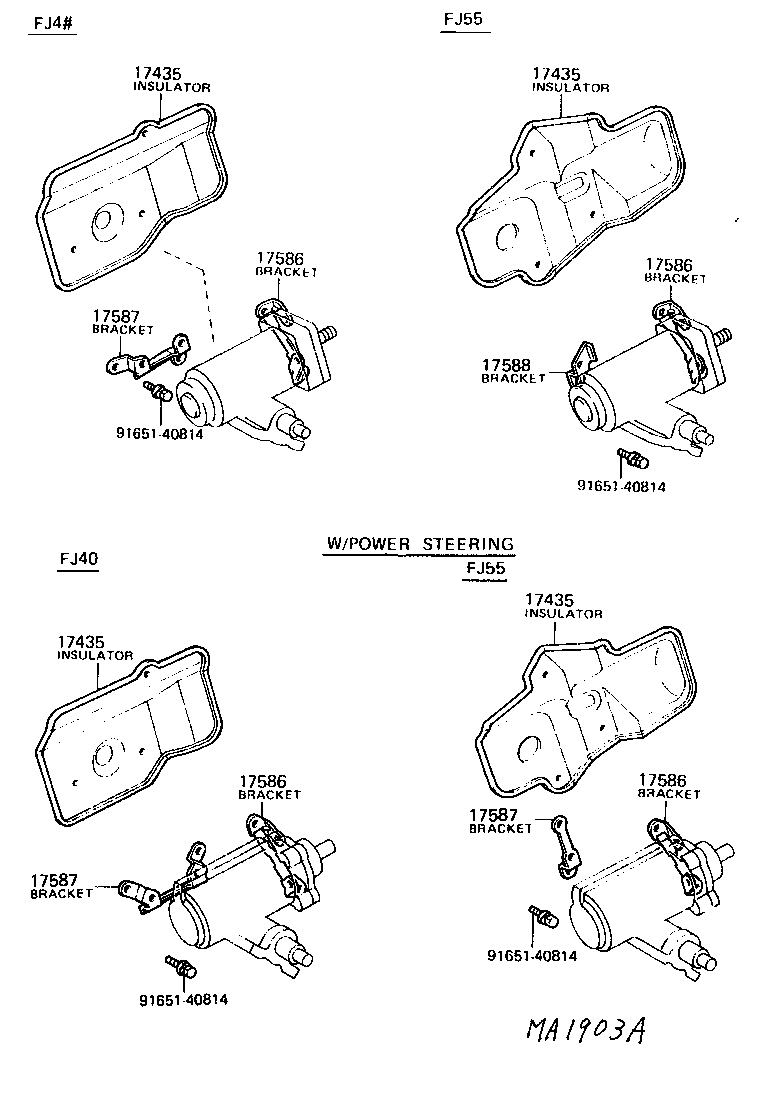

Exploded illustration MA1903A 17435 — INSULATOR, EXHAUST PIPE HEAT (6 parts) 17435 — INSULATOR, EXHAUST PIPE HEAT (6 parts) 17586 — BRACKET, HEAT INSULATOR, NO.1 (3 parts) 17586 — BRACKET, HEAT INSULATOR, NO.1 (3 parts) 17587 — BRACKET, HEAT INSULATOR, NO.2 (4 parts) 17588 — BRACKET, HEAT INSULATOR, NO.3 (2 parts) 9165140814 — not listed in this catalogue 9165140814 — not listed in this catalogue 17435 — INSULATOR, EXHAUST PIPE HEAT (6 parts) 17435 — INSULATOR, EXHAUST PIPE HEAT (6 parts) 17586 — BRACKET, HEAT INSULATOR, NO.1 (3 parts) 17586 — BRACKET, HEAT INSULATOR, NO.1 (3 parts) 17587 — BRACKET, HEAT INSULATOR, NO.2 (4 parts) 17587 — BRACKET, HEAT INSULATOR, NO.2 (4 parts) 9165140814 — not listed in this catalogue 9165140814 — not listed in this catalogue
MA1903A · 12 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
15 parts on this figure
Part number Description Fitment Price
17435 — Insulator, Exhaust Pipe Heat
17435-61010 Insulator, Exhaust Pipe Heat
1975-01 → 1975-09 ended
2F FJ40 —
17435-61011 Insulator, Exhaust Pipe Heat
1975-09 → 1980-07 ended
2F FJ4# —
17435-61020 Insulator, Exhaust Pipe Heat
1975-01 → 1975-09 ended
2F FJ55 —
17435-61021 Insulator, Exhaust Pipe Heat
1975-09 → 1980-07 ended
2F FJ55 —
17435-61030 note Insulator, Exhaust Pipe Heat
1979-01 → 1980-07 ended
2F FJ4# —
17435-61040 note Insulator, Exhaust Pipe Heat
1979-01 → 1980-07 ended
2F FJ55 USA —
17586 — Bracket, Heat Insulator, NO.1
17586-61010 Bracket, Heat Insulator, NO.1
1975-01 → 1975-09 ended
2F FJ40,55 —
17586-61011 Bracket, Heat Insulator, NO.1
1975-09 → 1980-07 ended
2F FJ4#,55 —
17586-61030 note Bracket, Heat Insulator, NO.1
1979-01 → 1980-07 ended
2F FJ40,55 USA —
17587 — Bracket, Heat Insulator, NO.2
17587-61010 Bracket, Heat Insulator, NO.2
1975-01 → 1975-09 ended
2F FJ40,55 —
17587-61011 Bracket, Heat Insulator, NO.2
1975-09 → 1980-07 ended
2F FJ4# —
17587-61020 note Bracket, Heat Insulator, NO.2
1979-01 → 1980-07 ended
2F FJ40 USA —
17587-61030 note Bracket, Heat Insulator, NO.2
1979-01 → 1980-07 ended
2F FJ55 USA —
17588 — Bracket, Heat Insulator, NO.3
17588-61010 Bracket, Heat Insulator, NO.3
1975-01 → 1975-09 ended
2F FJ40,55 —
17588-61011 Bracket, Heat Insulator, NO.3
1975-09 → 1979-01 ended
2F FJ55 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
