Toyota Land Cruiser

1969-03 → 1980-07 · chassis BJ40,FJ4#,55 · catalogue 791410 · United States

Discontinued model Data version 1985-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

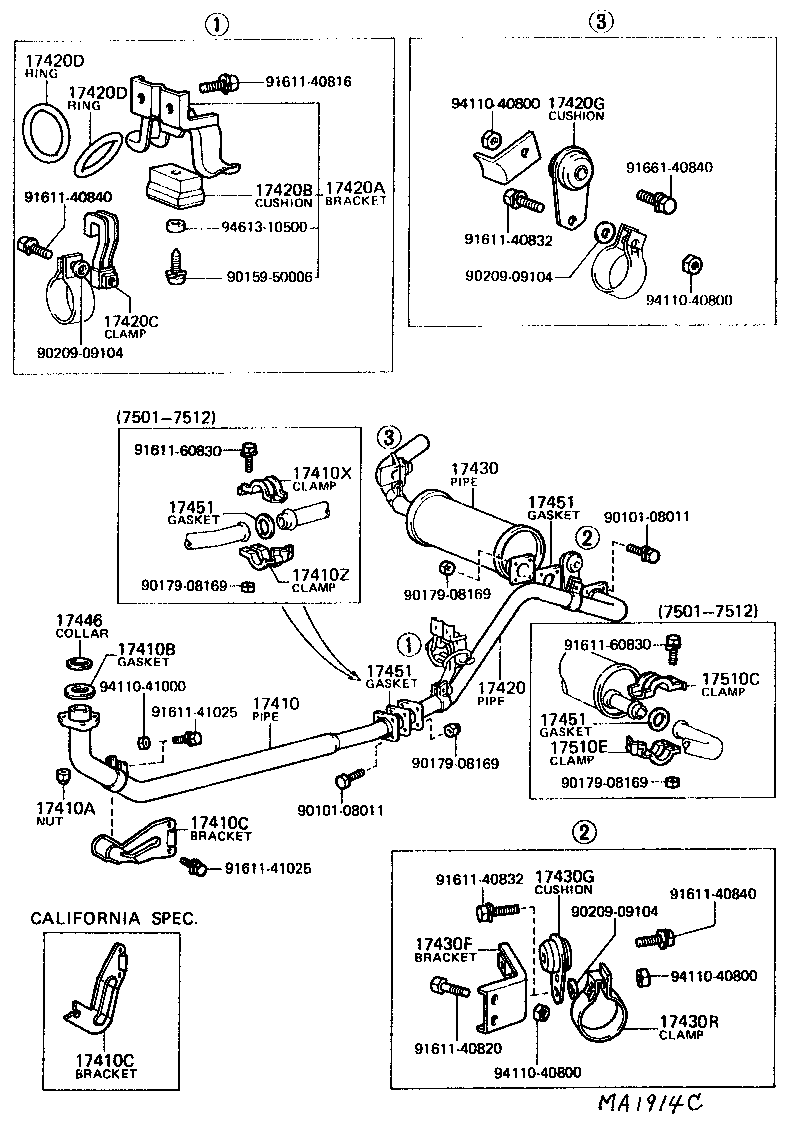

100 parts on this figure

Part number	Description	Fitment	Price
17410 — Pipe Assy, Exhaust, Front
17401-60041	Pipe Assy, Exhaust, Front 1969-03 → 1975-01 ended	F FJ40	—
17401-60200	Pipe Assy, Exhaust, Front 1969-03 → 1975-01 ended	F FJ55	—
17401-61010	Pipe Assy, Exhaust, Front 1975-01 → 1975-12 ended	2F FJ40	—
17401-61070	Pipe Assy, Exhaust, Front 1979-01 → 1980-07 ended	2F FJ55 CND	—
17401-61090	Pipe Assy, Exhaust, Front 1979-01 → 1980-07 ended	2F FJ4# CND	—
17410-56070	Pipe Assy, Exhaust, Front 1978-03 → 1979-01 ended	B BJ40	—
17410-56071	Pipe Assy, Exhaust, Front 1979-01 → 1980-07 ended	B BJ40	—
17410-61011	Pipe Assy, Exhaust, Front 1976-06 → 1979-01 ended	2F FJ45	—
17410-61020	Pipe Assy, Exhaust, Front 1975-01 → 1975-12 ended	2F FJ55	—
17410-61021	Pipe Assy, Exhaust, Front 1975-12 → 1979-01 ended	2F FJ55	—
17410-61022	Pipe Assy, Exhaust, Front 1979-01 → 1980-07 ended	2F FJ55 USA	—
17410-61050	Pipe Assy, Exhaust, Front 1975-12 → 1979-01 ended	2F FJ40	—
17410-61051	Pipe Assy, Exhaust, Front 1979-01 → 1980-07 ended	2F FJ40 USA	—
17410-61060 note	Pipe Assy, Exhaust, Front 1976-01 → 1976-02 ended	2F FJ40	—
17410-61060 note	Pipe Assy, Exhaust, Front 1976-02 → 1979-01 ended	2F FJ40 USA	—
17410-61070 note	Pipe Assy, Exhaust, Front 1976-01 → 1976-02 ended	2F FJ55	—
17410-61070 note	Pipe Assy, Exhaust, Front 1976-02 → 1979-01 ended	2F FJ55 USA	—
17410A — Nut, Exhaust Pipe Set Stud Bolt
90170-10049	Nut, Exhaust Pipe Set Stud Bolt 1969-03 → 1972-12 ended	F FJ40,55	—
90170-10199	Nut, Exhaust Pipe Set Stud Bolt 1972-12 → 1975-01 ended	F FJ40,55	—
90170-10199	Nut, Exhaust Pipe Set Stud Bolt 1978-03 → 1980-07 ended	B BJ40	—
90179-10010	Nut, Exhaust Pipe Set Stud Bolt 1979-01 → 1980-07 ended	2F FJ4#,55	—
90179-10118	Nut, Exhaust Pipe Set Stud Bolt 1975-01 → 1979-01 ended	2F FJ4#,55	—
17410B — Gasket, Exhaust Pipe
17451-41010 note	Gasket, Exhaust Pipe 1979-01 → 1980-07 ended	2F FJ40,55 USA	—
90917-06003 note	Gasket, Exhaust Pipe 1979-01 → 1980-07 ended	2F FJ40,55 USA	—
90917-06003	Gasket, Exhaust Pipe 1979-01 → 1980-07 ended	2F FJ4#,55 CND	—
90917-06003	Gasket, Exhaust Pipe 1975-01 → 1979-01 ended	2F FJ4#,55	—
90917-06005	Gasket, Exhaust Pipe 1969-03 → 1975-01 ended	F FJ40,55	—
90917-06008	Gasket, Exhaust Pipe 1978-03 → 1980-07 ended	B BJ40	—
17410C — Bracket, Exhaust Pipe Front (FOR FRONT)
17571-61030	Bracket, Exhaust Pipe Front (FOR FRONT) 1975-01 → 1979-01 ended	2F FJ4#	—
17571-61031	Bracket, Exhaust Pipe Front (FOR FRONT) 1979-01 → 1980-07 ended	2F FJ4# CND	—
17571-61040	Bracket, Exhaust Pipe Front (FOR FRONT) 1975-01 → 1979-01 ended	2F FJ55	—
17571-61040	Bracket, Exhaust Pipe Front (FOR FRONT) 1979-01 → 1980-07 ended	2F FJ55 CND	—
17571-61060	Bracket, Exhaust Pipe Front (FOR FRONT) 1979-01 → 1980-07 ended	2F FJ40 USA	—
17571-61070	Bracket, Exhaust Pipe Front (FOR FRONT) 1979-01 → 1980-07 ended	2F FJ55 USA	—
17574-61010 note	Bracket, Exhaust Pipe Front (FOR FRONT) 1976-01 → 1976-02 ended	2F FJ40	—
17574-61010 note	Bracket, Exhaust Pipe Front (FOR FRONT) 1976-02 → 1979-01 ended	2F FJ40 USA	—
17574-61020 note	Bracket, Exhaust Pipe Front (FOR FRONT) 1976-01 → 1976-02 ended	2F FJ55	—
17574-61020 note	Bracket, Exhaust Pipe Front (FOR FRONT) 1976-02 → 1979-01 ended	2F FJ55 USA	—
17410X — Clamp NO.1, Exhaust Pipe Front (FOR REAR)
90917-04025	Clamp NO.1, Exhaust Pipe Front (FOR REAR) 1975-01 → 1975-12 ended	2F FJ40	—
17410Z — Clamp NO.2, Exhaust Pipe Front (FOR REAR)
17504-61010	Clamp NO.2, Exhaust Pipe Front (FOR REAR) 1979-01 → 1980-07 ended	2F FJ55 USA	—
90461-23469	Clamp NO.2, Exhaust Pipe Front (FOR REAR) 1969-03 → 1975-01 ended	F FJ40,55	—
90917-04026	Clamp NO.2, Exhaust Pipe Front (FOR REAR) 1975-01 → 1975-12 ended	2F FJ40	—
17420 — Pipe Assy, Exhaust, Center
17420-61030	Pipe Assy, Exhaust, Center 1975-01 → 1975-12 ended	2F FJ40	—
17420-61031	Pipe Assy, Exhaust, Center 1975-12 → 1979-01 ended	2F FJ40	—
17420-61032	Pipe Assy, Exhaust, Center 1979-01 → 1980-07 ended	2F FJ40 USA	—
17420-61050	Pipe Assy, Exhaust, Center 1979-01 → 1980-07 ended	2F FJ45	—
17420-61070	Pipe Assy, Exhaust, Center 1979-01 → 1980-07 ended	2F FJ40 CND	—
17421-60051	Pipe Assy, Exhaust, Center 1969-03 → 1969-09 ended	F FJ55	—
17421-60052	Pipe Assy, Exhaust, Center 1969-09 → 1975-01 ended	F FJ55	—
17421-60080 note	Pipe Assy, Exhaust, Center 1973-09 → 1975-01 ended	F FJ55	—
17420A — Bracket, Exhaust Pipe Center, Front
17503-61010 note	Bracket, Exhaust Pipe Center, Front 1979-01 → 1980-07 ended	2F FJ40 USA	—
17506-61010	Bracket, Exhaust Pipe Center, Front 1975-01 → 1979-01 ended	2F FJ40	—
17506-61020	Bracket, Exhaust Pipe Center, Front 1975-01 → 1979-01 ended	2F FJ55	—
17561-60041	Bracket, Exhaust Pipe Center, Front 1969-03 → 1969-09 ended	F FJ55	—
17561-60060	Bracket, Exhaust Pipe Center, Front 1969-09 → 1975-01 ended	F FJ55	—
17590-61010 note	Bracket, Exhaust Pipe Center, Front 1979-01 → 1980-07 ended	2F FJ40 USA	—
17420B — Cushion, Exhaust Pipe Center, Front
17591-36010	Cushion, Exhaust Pipe Center, Front 1975-01 → 1975-09 ended	2F FJ40,55	—
17591-45020	Cushion, Exhaust Pipe Center, Front 1975-09 → 1979-01 ended	2F FJ40,55	—
90917-08004	Cushion, Exhaust Pipe Center, Front 1969-09 → 1975-01 ended	F FJ55	—
17420C — Clamp NO.1, Exhaust Pipe Center, Front
17561-61010	Clamp NO.1, Exhaust Pipe Center, Front 1975-01 → 1976-01 ended	2F FJ40,55	—
17561-61010	Clamp NO.1, Exhaust Pipe Center, Front 1976-01 → 1979-01 ended	2F FJ40	—
17561-61020	Clamp NO.1, Exhaust Pipe Center, Front 1976-01 → 1979-01 ended	2F FJ55	—
90917-04007	Clamp NO.1, Exhaust Pipe Center, Front 1969-03 → 1969-09 ended	F FJ55	—
17420D — Bolt OR Ring, Exhaust Pipe Center, Front
90118-10081	Bolt OR Ring, Exhaust Pipe Center, Front 1969-03 → 1969-09 ended	F FJ55	—
90301-33001	Bolt OR Ring, Exhaust Pipe Center, Front 1979-01 → 1980-07 ended	2F FJ40	—
90301-34207	Bolt OR Ring, Exhaust Pipe Center, Front 1975-01 → 1979-01 ended	2F FJ40,55	—
17420G — Cushion, Exhaust Pipe Center, Center
90917-08010	Cushion, Exhaust Pipe Center, Center 1975-01 → 1979-01 ended	2F FJ40	—
17430 — Pipe Assy, Exhaust, Tail
17405-56110	Pipe Assy, Exhaust, Tail 1979-01 → 1980-07 ended	B BJ40	—
17405-61020	Pipe Assy, Exhaust, Tail 1975-01 → 1975-12 ended	2F FJ40	—
17405-61021	Pipe Assy, Exhaust, Tail 1975-12 → 1977-07 ended	2F FJ40	—
17405-61022	Pipe Assy, Exhaust, Tail 1977-07 → 1979-01 ended	2F FJ40	—
17405-61040	Pipe Assy, Exhaust, Tail 1976-06 → 1979-01 ended	2F FJ45	—
17430-56190	Pipe Assy, Exhaust, Tail 1978-03 → 1979-01 ended	B BJ40	—
17430-61020	Pipe Assy, Exhaust, Tail 1975-01 → 1975-12 ended	2F FJ55	—
17430-61021	Pipe Assy, Exhaust, Tail 1975-12 → 1979-01 ended	2F FJ55	—
17430-61040	Pipe Assy, Exhaust, Tail 1979-01 → 1980-07 ended	2F FJ40 CND	—
17430-61050	Pipe Assy, Exhaust, Tail 1979-01 → 1980-07 ended	2F FJ45	—
17430-61080	Pipe Assy, Exhaust, Tail 1979-01 → 1980-07 ended	2F FJ55 USA	—
17430-61090	Pipe Assy, Exhaust, Tail 1979-01 → 1980-07 ended	2F FJ55 CND	—
17430-61120	Pipe Assy, Exhaust, Tail 1979-01 → 1980-07 ended	2F FJ40 USA	—
17431-60120	Pipe Assy, Exhaust, Tail 1969-03 → 1969-09 ended	F FJ40	—
17431-60121	Pipe Assy, Exhaust, Tail 1969-09 → 1975-01 ended	F FJ40	—
17431-60160	Pipe Assy, Exhaust, Tail 1969-03 → 1969-09 ended	F FJ55	—
17431-60161	Pipe Assy, Exhaust, Tail 1969-09 → 1970-07 ended	F FJ55	—
17431-60210	Pipe Assy, Exhaust, Tail 1970-07 → 1975-01 ended	F FJ55	—
17431-60220 note	Pipe Assy, Exhaust, Tail 1973-09 → 1975-01 ended	F FJ40	—
17431-60250 note	Pipe Assy, Exhaust, Tail 1973-09 → 1975-01 ended	F FJ55	—
17431-60260 note	Pipe Assy, Exhaust, Tail 1973-09 → 1975-01 ended	F FJ55	—
17430F — Bracket, Exhaust Tailpipe(FOR CENTER)
17509-61010	Bracket, Exhaust Tailpipe(FOR CENTER) 1979-01 → 1980-07 ended	2F FJ55	—
17573-61010	Bracket, Exhaust Tailpipe(FOR CENTER) 1975-01 → 1979-01 ended	2F FJ40	—
17430G — Cushion, Exhaust Tailpipe(FOR CENTER)
90917-08010	Cushion, Exhaust Tailpipe(FOR CENTER) 1975-01 → 1979-01 ended	2F FJ40	—
17430R — Clamp NO.2, Exhaust Tailpipe (FOR CENTER)
90461-23616	Clamp NO.2, Exhaust Tailpipe (FOR CENTER) 1975-01 → 1979-01 ended	2F FJ40	—
17446 — Collar, Exhaust Pipe, NO.2
17446-61010	Collar, Exhaust Pipe, NO.2 1975-12 → 1979-01 ended	2F FJ40,55	—
17451 — Gasket, Exhaust Pipe
17451-45010	Gasket, Exhaust Pipe 1975-12 → 1979-01 ended	2F FJ4#,55	—
90917-06008	Gasket, Exhaust Pipe 1978-03 → 1980-07 ended	B BJ40	—
90917-06015	Gasket, Exhaust Pipe 1975-01 → 1975-12 ended	2F FJ40,55	—
90917-06024	Gasket, Exhaust Pipe 1979-01 → 1980-07 ended	2F FJ4#,55	—
17510C — Clamp NO.1, Muffler, Front
90917-04025	Clamp NO.1, Muffler, Front 1975-01 → 1975-12 ended	2F FJ40,55	—
17510E — Clamp NO.2, Muffler, Front
17578-60020	Clamp NO.2, Muffler, Front 1969-03 → 1975-01 ended	F FJ40,55	—
90917-04026	Clamp NO.2, Muffler, Front 1975-01 → 1975-12 ended	2F FJ40,55	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
