Toyota Land Cruiser

1969-03 → 1980-07 · chassis BJ40,FJ4#,55 · catalogue 791410 · United States

Discontinued model Data version 1985-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

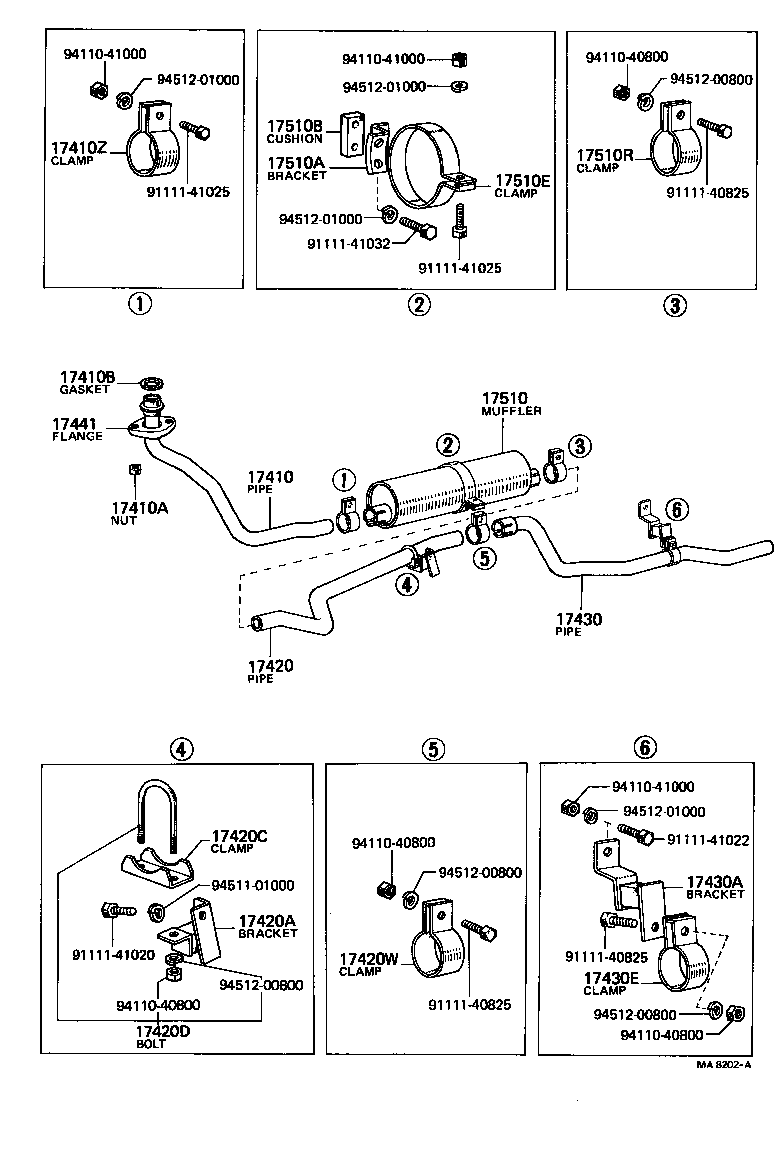

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

103 parts on this figure

Part number	Description	Fitment	Price
17410 — Pipe Assy, Exhaust, Front
17401-60041	Pipe Assy, Exhaust, Front 1969-03 → 1975-01 ended	F FJ40	—
17401-60200	Pipe Assy, Exhaust, Front 1969-03 → 1975-01 ended	F FJ55	—
17401-61010	Pipe Assy, Exhaust, Front 1975-01 → 1975-12 ended	2F FJ40	—
17401-61070	Pipe Assy, Exhaust, Front 1979-01 → 1980-07 ended	2F FJ55 CND	—
17401-61090	Pipe Assy, Exhaust, Front 1979-01 → 1980-07 ended	2F FJ4# CND	—
17410-56070	Pipe Assy, Exhaust, Front 1978-03 → 1979-01 ended	B BJ40	—
17410-56071	Pipe Assy, Exhaust, Front 1979-01 → 1980-07 ended	B BJ40	—
17410-61011	Pipe Assy, Exhaust, Front 1976-06 → 1979-01 ended	2F FJ45	—
17410-61020	Pipe Assy, Exhaust, Front 1975-01 → 1975-12 ended	2F FJ55	—
17410-61021	Pipe Assy, Exhaust, Front 1975-12 → 1979-01 ended	2F FJ55	—
17410-61022	Pipe Assy, Exhaust, Front 1979-01 → 1980-07 ended	2F FJ55 USA	—
17410-61050	Pipe Assy, Exhaust, Front 1975-12 → 1979-01 ended	2F FJ40	—
17410-61051	Pipe Assy, Exhaust, Front 1979-01 → 1980-07 ended	2F FJ40 USA	—
17410-61060 note	Pipe Assy, Exhaust, Front 1976-02 → 1979-01 ended	2F FJ40 USA	—
17410-61060 note	Pipe Assy, Exhaust, Front 1976-01 → 1976-02 ended	2F FJ40	—
17410-61070 note	Pipe Assy, Exhaust, Front 1976-02 → 1979-01 ended	2F FJ55 USA	—
17410-61070 note	Pipe Assy, Exhaust, Front 1976-01 → 1976-02 ended	2F FJ55	—
17410A — Nut, Exhaust Pipe Set Stud Bolt
90170-10049	Nut, Exhaust Pipe Set Stud Bolt 1969-03 → 1972-12 ended	F FJ40,55	—
90170-10199	Nut, Exhaust Pipe Set Stud Bolt 1972-12 → 1975-01 ended	F FJ40,55	—
90170-10199	Nut, Exhaust Pipe Set Stud Bolt 1978-03 → 1980-07 ended	B BJ40	—
90179-10010	Nut, Exhaust Pipe Set Stud Bolt 1979-01 → 1980-07 ended	2F FJ4#,55	—
90179-10118	Nut, Exhaust Pipe Set Stud Bolt 1975-01 → 1979-01 ended	2F FJ4#,55	—
17410B — Gasket, Exhaust Pipe
17451-41010 note	Gasket, Exhaust Pipe 1979-01 → 1980-07 ended	2F FJ40,55 USA	—
90917-06003 note	Gasket, Exhaust Pipe 1979-01 → 1980-07 ended	2F FJ40,55 USA	—
90917-06003	Gasket, Exhaust Pipe 1979-01 → 1980-07 ended	2F FJ4#,55 CND	—
90917-06003	Gasket, Exhaust Pipe 1975-01 → 1979-01 ended	2F FJ4#,55	—
90917-06005	Gasket, Exhaust Pipe 1969-03 → 1975-01 ended	F FJ40,55	—
90917-06008	Gasket, Exhaust Pipe 1978-03 → 1980-07 ended	B BJ40	—
17410Z — Clamp NO.2, Exhaust Pipe Front (FOR REAR)
17504-61010	Clamp NO.2, Exhaust Pipe Front (FOR REAR) 1979-01 → 1980-07 ended	2F FJ55 USA	—
90461-23469	Clamp NO.2, Exhaust Pipe Front (FOR REAR) 1969-03 → 1975-01 ended	F FJ40,55	—
90917-04026	Clamp NO.2, Exhaust Pipe Front (FOR REAR) 1975-01 → 1975-12 ended	2F FJ40	—
17420 — Pipe Assy, Exhaust, Center
17420-61030	Pipe Assy, Exhaust, Center 1975-01 → 1975-12 ended	2F FJ40	—
17420-61031	Pipe Assy, Exhaust, Center 1975-12 → 1979-01 ended	2F FJ40	—
17420-61032	Pipe Assy, Exhaust, Center 1979-01 → 1980-07 ended	2F FJ40 USA	—
17420-61050	Pipe Assy, Exhaust, Center 1979-01 → 1980-07 ended	2F FJ45	—
17420-61070	Pipe Assy, Exhaust, Center 1979-01 → 1980-07 ended	2F FJ40 CND	—
17421-60051	Pipe Assy, Exhaust, Center 1969-03 → 1969-09 ended	F FJ55	—
17421-60052	Pipe Assy, Exhaust, Center 1969-09 → 1975-01 ended	F FJ55	—
17421-60080 note	Pipe Assy, Exhaust, Center 1973-09 → 1975-01 ended	F FJ55	—
17420A — Bracket, Exhaust Pipe Center, Front
17503-61010 note	Bracket, Exhaust Pipe Center, Front 1979-01 → 1980-07 ended	2F FJ40 USA	—
17506-61010	Bracket, Exhaust Pipe Center, Front 1975-01 → 1979-01 ended	2F FJ40	—
17506-61020	Bracket, Exhaust Pipe Center, Front 1975-01 → 1979-01 ended	2F FJ55	—
17561-60041	Bracket, Exhaust Pipe Center, Front 1969-03 → 1969-09 ended	F FJ55	—
17561-60060	Bracket, Exhaust Pipe Center, Front 1969-09 → 1975-01 ended	F FJ55	—
17590-61010 note	Bracket, Exhaust Pipe Center, Front 1979-01 → 1980-07 ended	2F FJ40 USA	—
17420C — Clamp NO.1, Exhaust Pipe Center, Front
17561-61010	Clamp NO.1, Exhaust Pipe Center, Front 1975-01 → 1976-01 ended	2F FJ40,55	—
17561-61010	Clamp NO.1, Exhaust Pipe Center, Front 1976-01 → 1979-01 ended	2F FJ40	—
17561-61020	Clamp NO.1, Exhaust Pipe Center, Front 1976-01 → 1979-01 ended	2F FJ55	—
90917-04007	Clamp NO.1, Exhaust Pipe Center, Front 1969-03 → 1969-09 ended	F FJ55	—
17420D — Bolt OR Ring, Exhaust Pipe Center, Front
90118-10081	Bolt OR Ring, Exhaust Pipe Center, Front 1969-03 → 1969-09 ended	F FJ55	—
90301-33001	Bolt OR Ring, Exhaust Pipe Center, Front 1979-01 → 1980-07 ended	2F FJ40	—
90301-34207	Bolt OR Ring, Exhaust Pipe Center, Front 1975-01 → 1979-01 ended	2F FJ40,55	—
17420W — Clamp NO.2, Exhaust Pipe Center, Rear
90461-23071	Clamp NO.2, Exhaust Pipe Center, Rear 1969-03 → 1969-09 ended	F FJ55	—
90461-23387	Clamp NO.2, Exhaust Pipe Center, Rear 1969-09 → 1975-01 ended	F FJ55	—
17430 — Pipe Assy, Exhaust, Tail
17405-56110	Pipe Assy, Exhaust, Tail 1979-01 → 1980-07 ended	B BJ40	—
17405-61020	Pipe Assy, Exhaust, Tail 1975-01 → 1975-12 ended	2F FJ40	—
17405-61021	Pipe Assy, Exhaust, Tail 1975-12 → 1977-07 ended	2F FJ40	—
17405-61022	Pipe Assy, Exhaust, Tail 1977-07 → 1979-01 ended	2F FJ40	—
17405-61040	Pipe Assy, Exhaust, Tail 1976-06 → 1979-01 ended	2F FJ45	—
17430-56190	Pipe Assy, Exhaust, Tail 1978-03 → 1979-01 ended	B BJ40	—
17430-61020	Pipe Assy, Exhaust, Tail 1975-01 → 1975-12 ended	2F FJ55	—
17430-61021	Pipe Assy, Exhaust, Tail 1975-12 → 1979-01 ended	2F FJ55	—
17430-61040	Pipe Assy, Exhaust, Tail 1979-01 → 1980-07 ended	2F FJ40 CND	—
17430-61050	Pipe Assy, Exhaust, Tail 1979-01 → 1980-07 ended	2F FJ45	—
17430-61080	Pipe Assy, Exhaust, Tail 1979-01 → 1980-07 ended	2F FJ55 USA	—
17430-61090	Pipe Assy, Exhaust, Tail 1979-01 → 1980-07 ended	2F FJ55 CND	—
17430-61120	Pipe Assy, Exhaust, Tail 1979-01 → 1980-07 ended	2F FJ40 USA	—
17431-60120	Pipe Assy, Exhaust, Tail 1969-03 → 1969-09 ended	F FJ40	—
17431-60121	Pipe Assy, Exhaust, Tail 1969-09 → 1975-01 ended	F FJ40	—
17431-60160	Pipe Assy, Exhaust, Tail 1969-03 → 1969-09 ended	F FJ55	—
17431-60161	Pipe Assy, Exhaust, Tail 1969-09 → 1970-07 ended	F FJ55	—
17431-60210	Pipe Assy, Exhaust, Tail 1970-07 → 1975-01 ended	F FJ55	—
17431-60220 note	Pipe Assy, Exhaust, Tail 1973-09 → 1975-01 ended	F FJ40	—
17431-60250 note	Pipe Assy, Exhaust, Tail 1973-09 → 1975-01 ended	F FJ55	—
17431-60260 note	Pipe Assy, Exhaust, Tail 1973-09 → 1975-01 ended	F FJ55	—
17430A — Bracket, Exhaust Tailpipe(FOR FRONT)
17503-61020 note	Bracket, Exhaust Tailpipe(FOR FRONT) 1979-01 → 1980-07 ended	2F FJ55	—
17506-60050	Bracket, Exhaust Tailpipe(FOR FRONT) 1969-03 → 1969-09 ended	F FJ55	—
17508-61020	Bracket, Exhaust Tailpipe(FOR FRONT) 1979-01 → 1980-07 ended	2F FJ45	—
17562-60080	Bracket, Exhaust Tailpipe(FOR FRONT) 1969-09 → 1975-01 ended	F FJ55	—
17563-60040	Bracket, Exhaust Tailpipe(FOR FRONT) 1969-03 → 1969-09 ended	F FJ40	—
17563-60041	Bracket, Exhaust Tailpipe(FOR FRONT) 1969-09 → 1975-01 ended	F FJ40	—
17572-56030	Bracket, Exhaust Tailpipe(FOR FRONT) 1978-03 → 1980-07 ended	B BJ40	—
17572-61010	Bracket, Exhaust Tailpipe(FOR FRONT) 1975-01 → 1979-01 ended	2F FJ55	—
17590-61020 note	Bracket, Exhaust Tailpipe(FOR FRONT) 1979-01 → 1980-07 ended	2F FJ55	—
17430E — Clamp NO.2, Exhaust Tailpipe(FOR FRONT)
90461-23387	Clamp NO.2, Exhaust Tailpipe(FOR FRONT) 1969-03 → 1969-09 ended	F FJ55	—
17441 — Flange, Exhaust Pipe
17441-60010	Flange, Exhaust Pipe 1969-03 → 1975-01 ended	F FJ40,55	—
17441-61030	Flange, Exhaust Pipe 1979-01 → 1980-07 ended	2F FJ40,55 USA	—
17510 — Muffler Assy
17501-61020	Muffler Assy 1975-01 → 1975-12 ended	2F FJ55	—
17501-61021	Muffler Assy 1975-12 → 1979-01 ended	2F FJ45,55	—
17510-60021	Muffler Assy 1969-03 → 1969-09 ended	F FJ40,55	—
17510-60070	Muffler Assy 1969-09 → 1975-01 ended	F FJ40,55	—
17510-60110 note	Muffler Assy 1973-09 → 1975-01 ended	F FJ40,55	—
17510A — Bracket, Muffler, Front
17566-60020	Bracket, Muffler, Front 1969-03 → 1975-01 ended	F FJ55	—
17576-60020	Bracket, Muffler, Front 1969-03 → 1969-08 ended	F FJ40	—
17576-60080	Bracket, Muffler, Front 1969-08 → 1975-01 ended	F FJ40	—
17510B — Cushion, Muffler, Front
90917-09002	Cushion, Muffler, Front 1969-03 → 1975-01 ended	F FJ40	—
90917-09007	Cushion, Muffler, Front 1969-03 → 1975-01 ended	F FJ55	—
17510E — Clamp NO.2, Muffler, Front
17578-60020	Clamp NO.2, Muffler, Front 1969-03 → 1975-01 ended	F FJ40,55	—
90917-04026	Clamp NO.2, Muffler, Front 1975-01 → 1975-12 ended	2F FJ40,55	—
17510R — Clamp NO.2, Muffler, Rear
90461-23071	Clamp NO.2, Muffler, Rear 1969-03 → 1969-09 ended	F FJ40,55	—
90461-23223	Clamp NO.2, Muffler, Rear 1969-09 → 1970-01 ended	F FJ40,55	—
90461-23387	Clamp NO.2, Muffler, Rear 1970-01 → 1975-01 ended	F FJ40,55	—
90917-04026	Clamp NO.2, Muffler, Rear 1975-01 → 1975-12 ended	2F FJ55	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
