Toyota Land Cruiser

1969-03 → 1980-07 · chassis BJ40,FJ4#,55 · catalogue 791410 · United States

Discontinued model Data version 1985-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

27 part groups · 3 illustrations

Illustrations

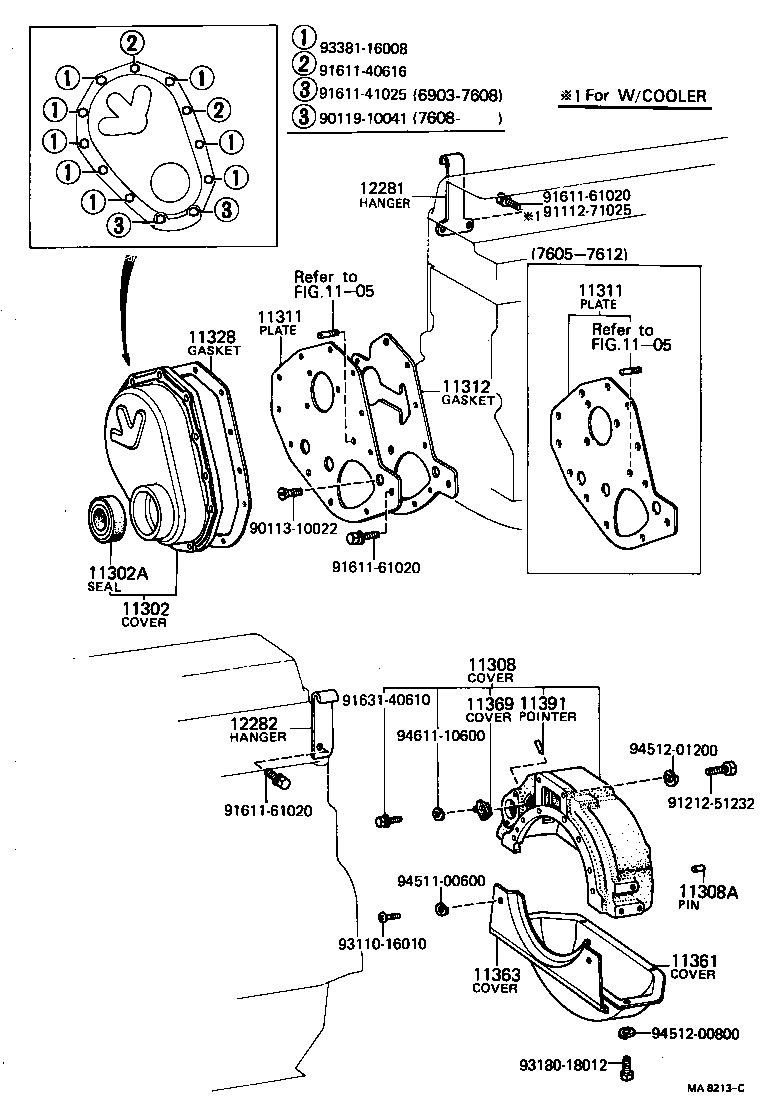

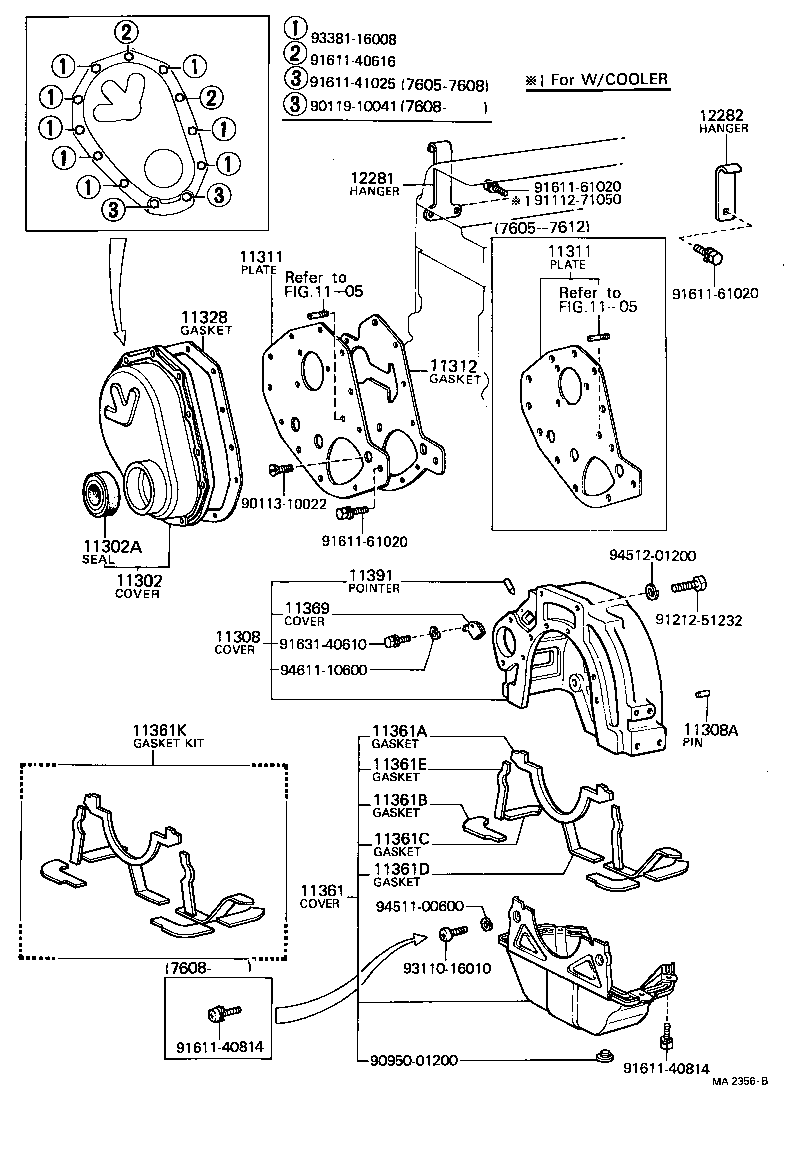

Figure MA2993C MA2993C 1978-03 → 1980-07 Figure MA8213C MA8213C 1969-03 → 1976-05 Figure MA2356B MA2356B 1976-05 → 1980-07

Part groups

PNCDescription
11301 Case Sub-assy, Timing Gear
11301A Pin, Straight(FOR TIMING GEAR CASE)
11301B Bolt,Stud(FOR TIMING GEAR CASE)
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11308 Cover Sub-assy, Flywheel Housing
11308A Pin, Straight(FOR FLYWHEEL HOUSING)
11311 Plate, Front End
11312 Gasket, Front End Plate
11328 Gasket, Timing Gear OR Chain Cover
11345 Bearing, Injection Pump Gear Thrust
11355 Plate, Rear End
11361 Cover, Flywheel Housing Under
11361A Gasket, Clutch Under Cover, NO.1
11361B Gasket, Clutch Under Cover, NO.2
11361C Gasket, Clutch Under Cover, NO.3
11361D Gasket, Clutch Under Cover, NO.4
11361E Gasket, Clutch Under Cover, NO.5
11361K Gasket Kit, Clutch Under Cover
11363 Cover, Flywheel Side
11369 Cover, Flywheel Housing Front
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
11383 Gasket, Engine Rear Oil Seal Retainer
11391 Pointer, Timing
12281 Hanger, Engine, NO.1
12282 Hanger, Engine, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
