Toyota Land Cruiser

1969-03 → 1980-07 · chassis BJ40,FJ4#,55 · catalogue 791410 · United States

Discontinued model Data version 1985-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

16 part groups · 6 illustrations

Illustrations

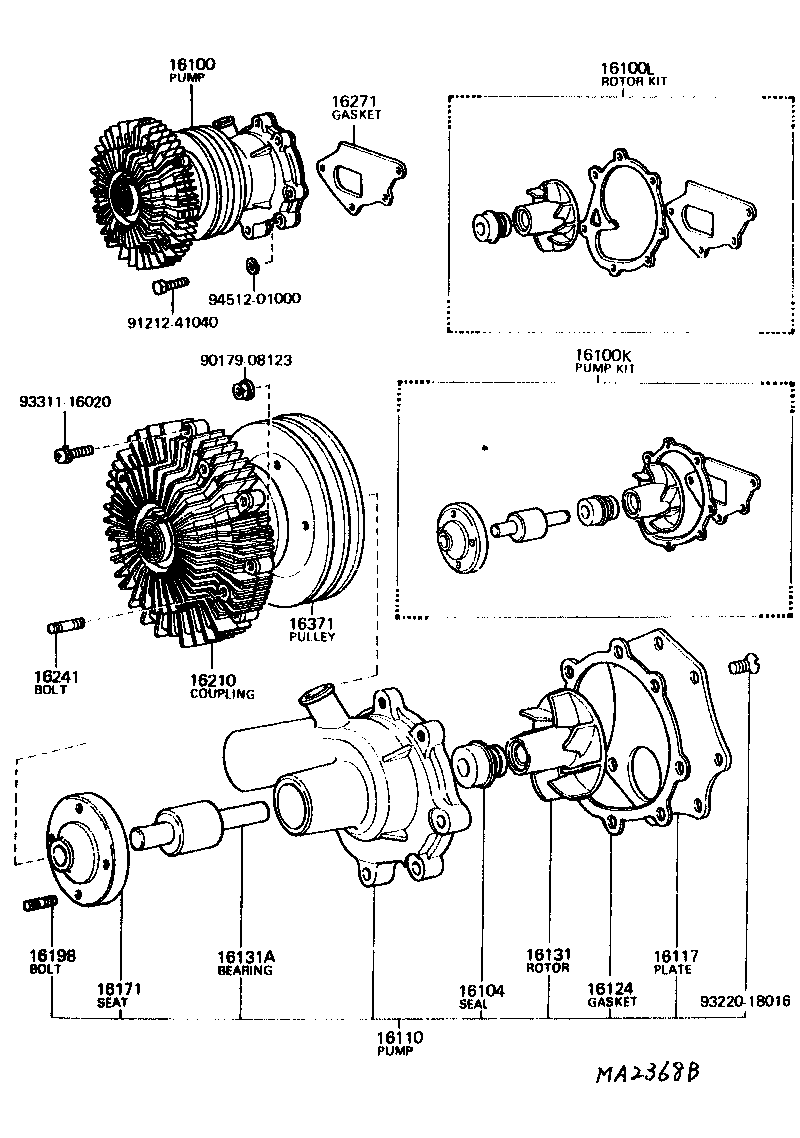

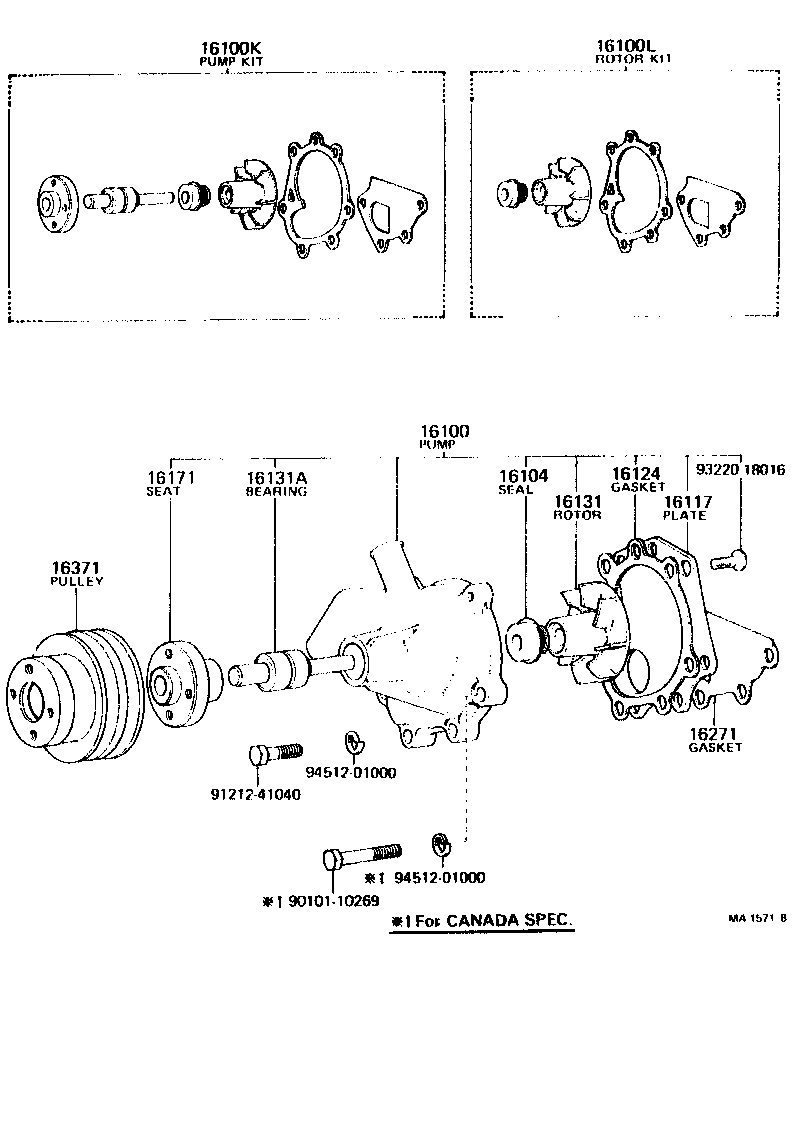

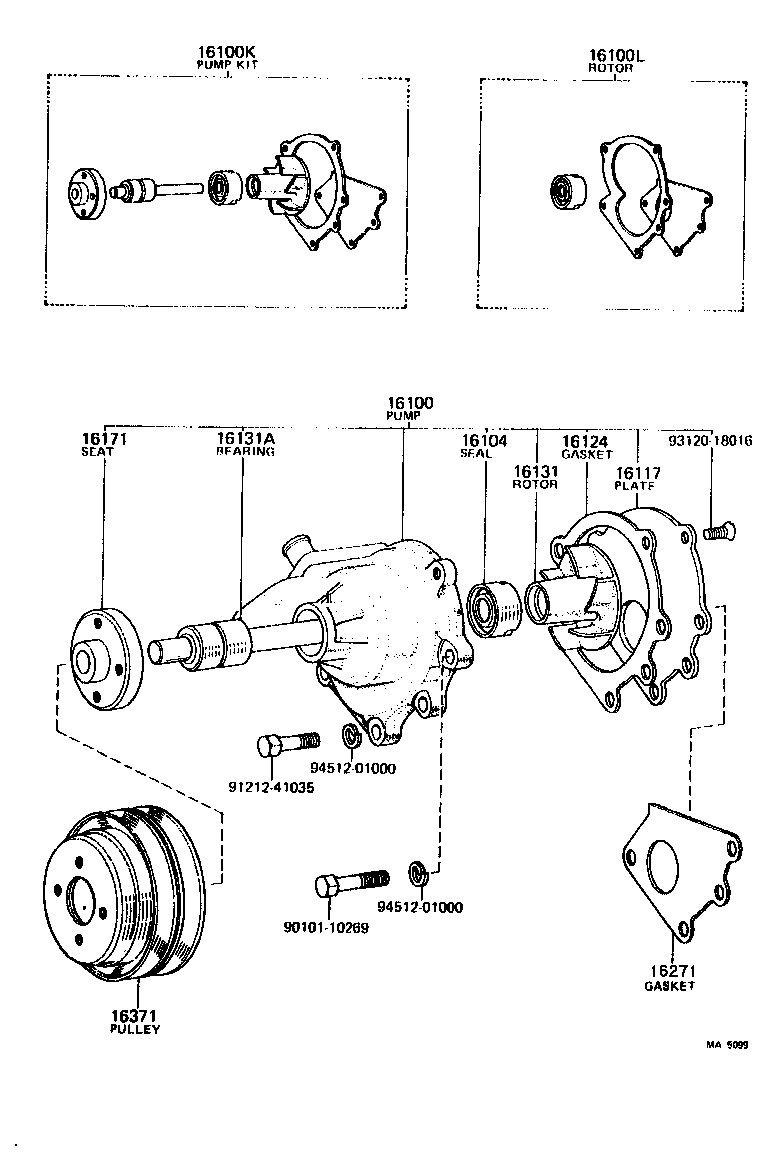

Figure MA3054C MA3054C 1978-03 → 1980-07 Figure MA5099 MA5099 1969-03 → 1975-01 Figure MA1571B MA1571B 1975-01 → 1976-08 Figure MA1571B MA1571B 1976-08 → 1979-01 Figure MA2368B MA2368B 1976-08 → 1979-01 Figure MA2368B MA2368B 1979-01 → 1980-07

Part groups

PNCDescription
16100 Pump Assy, Engine Water
16100K Pump Kit, Water
16100L Rotor Kit, Water Pump
16104 Seal Set, Water Pump
16110 Pump Assy, Water, W/O Coupling
16117 Plate, Water Pump
16119 Gasket, Water Pump Body
16124 Gasket, Water Pump Cover
16131 Rotor, Water Pump
16131A Bearing, Water Pump
16171 Seat, Water Pump Pulley
16198 Bolt, Stud(FOR WATER PUMP PULLEY SEAT)
16210 Coupling Assy, Fluid
16241 Bolt, Stud(FOR WATER PUMP COUPLING)
16271 Gasket, Water Pump
16371 Pulley, Fan
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
