Toyota Land Cruiser

1969-03 → 1980-07 · chassis BJ40,FJ4#,55 · catalogue 791410 · United States

Discontinued model Data version 1985-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

34 part groups · 8 illustrations

Illustrations

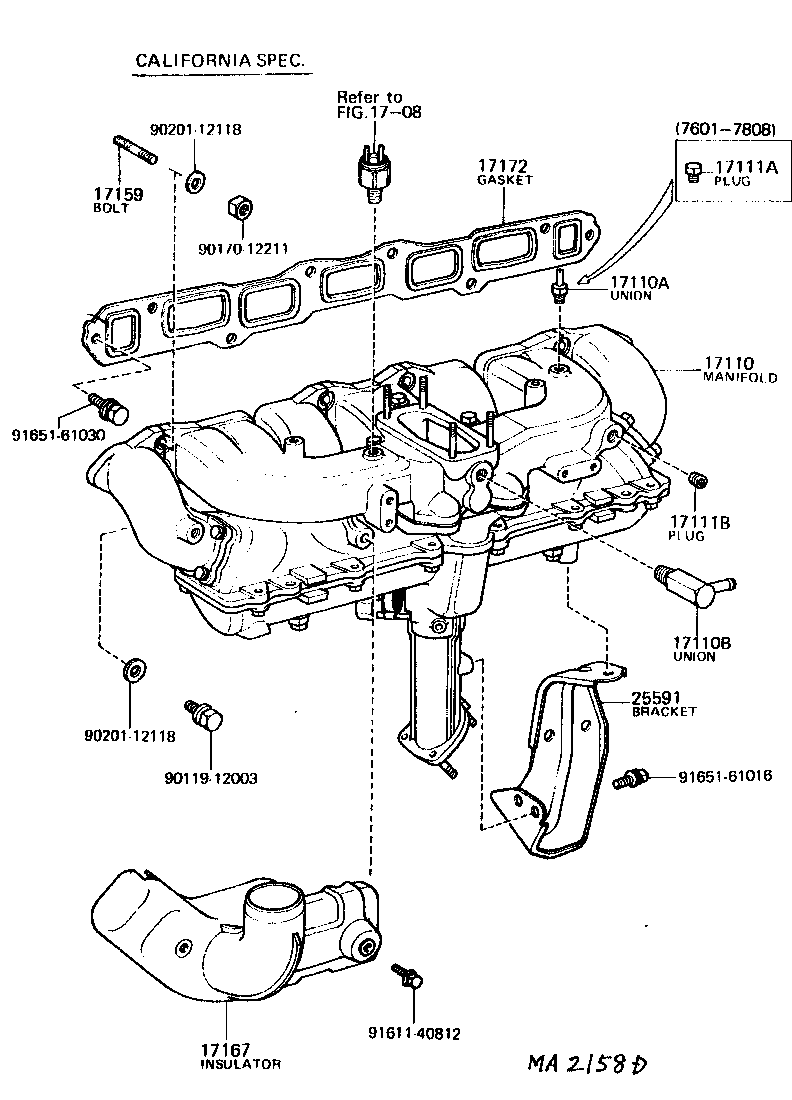

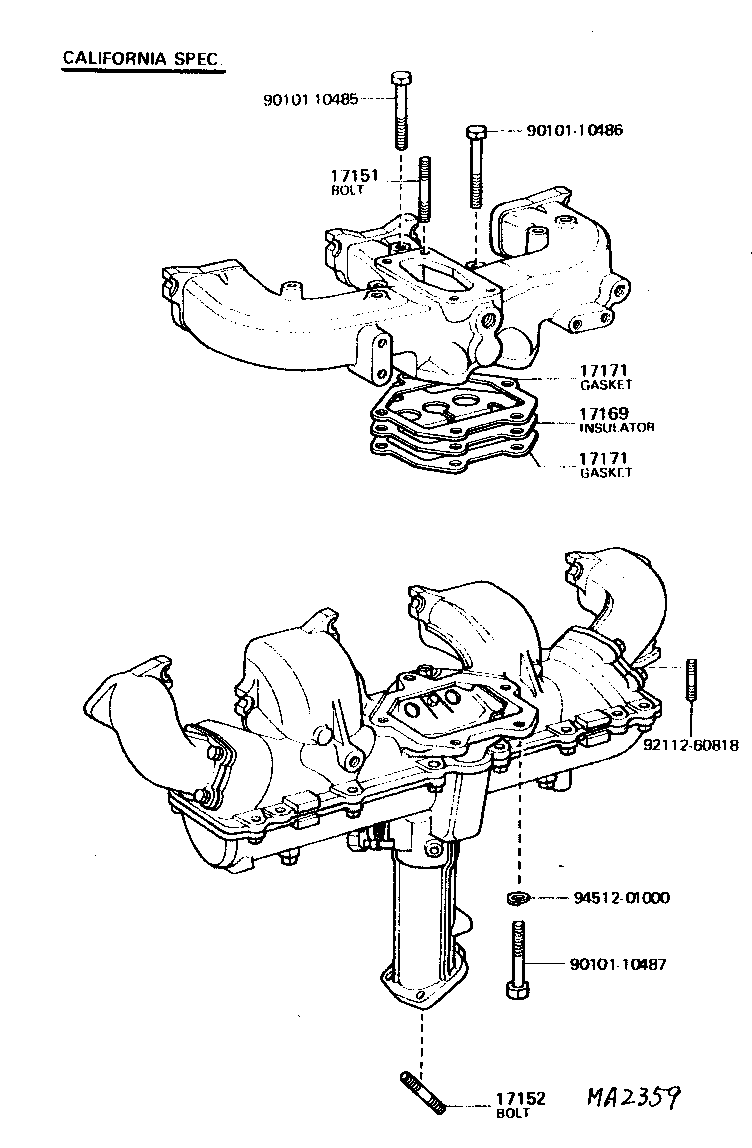

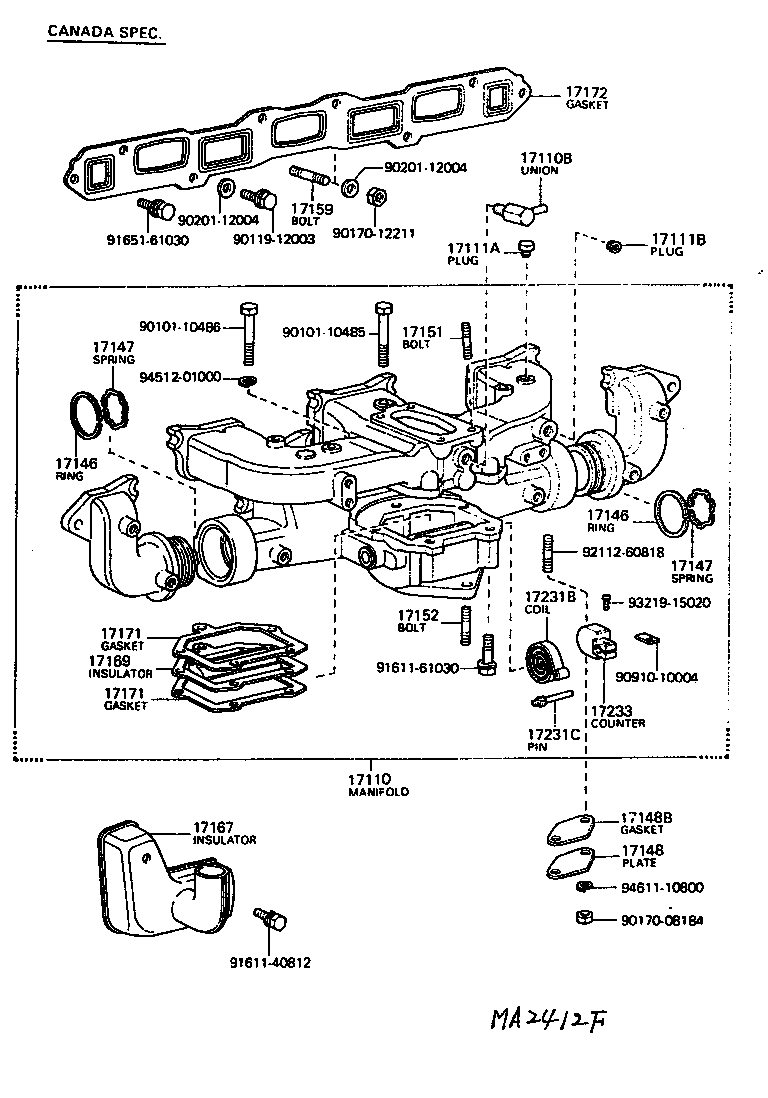

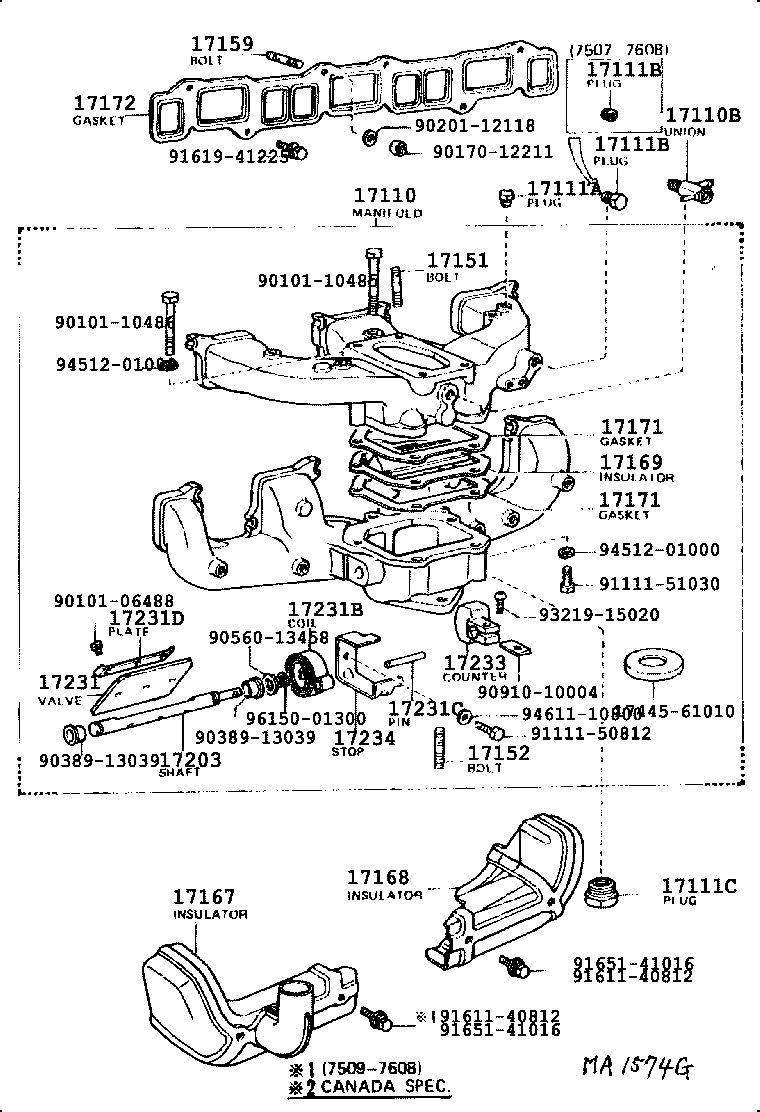

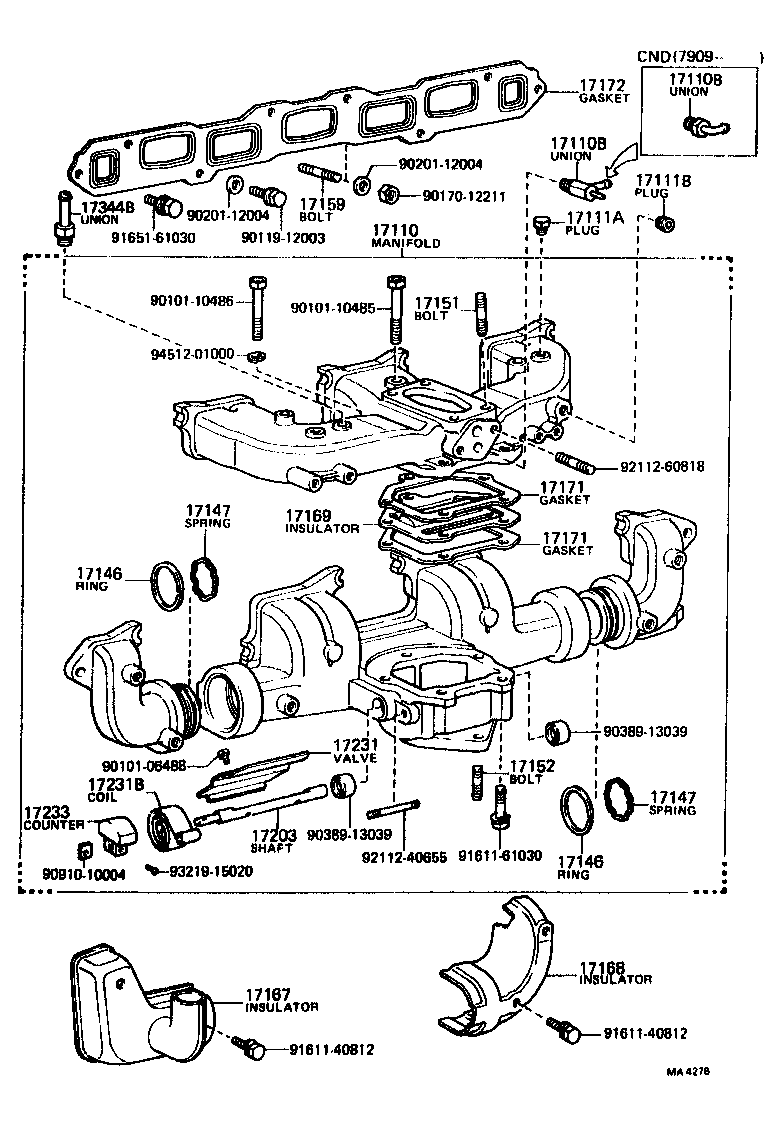

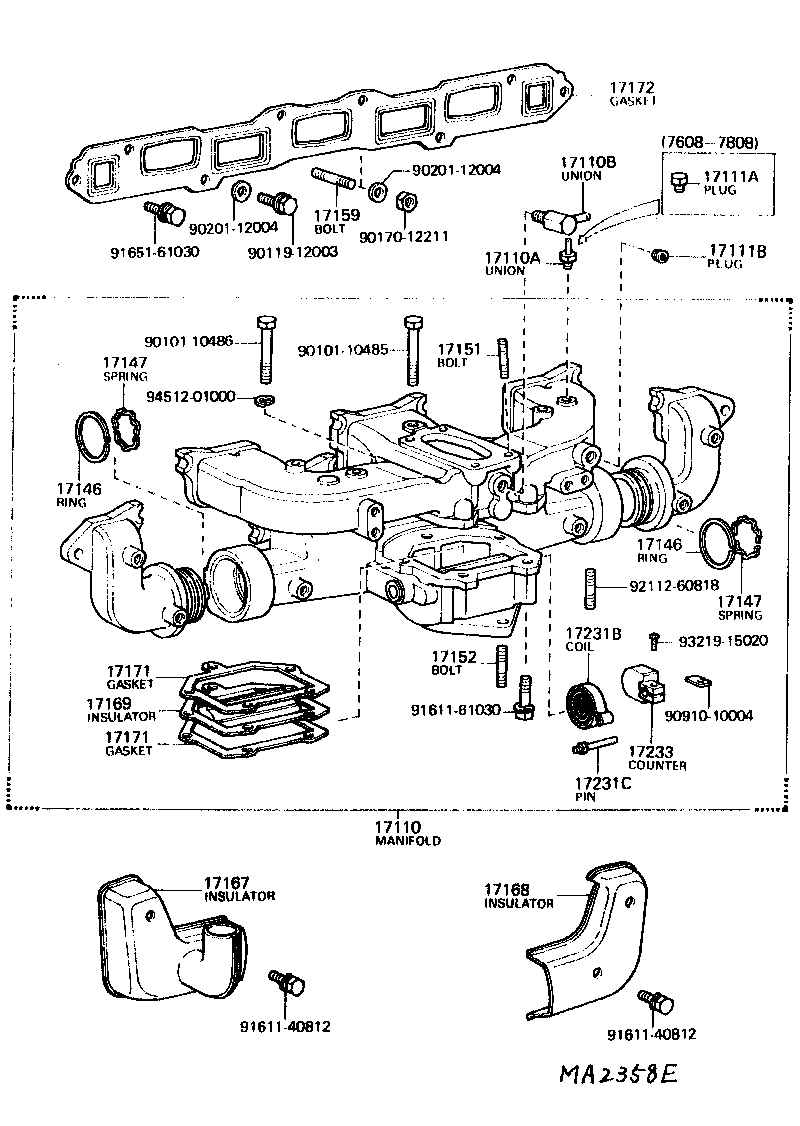

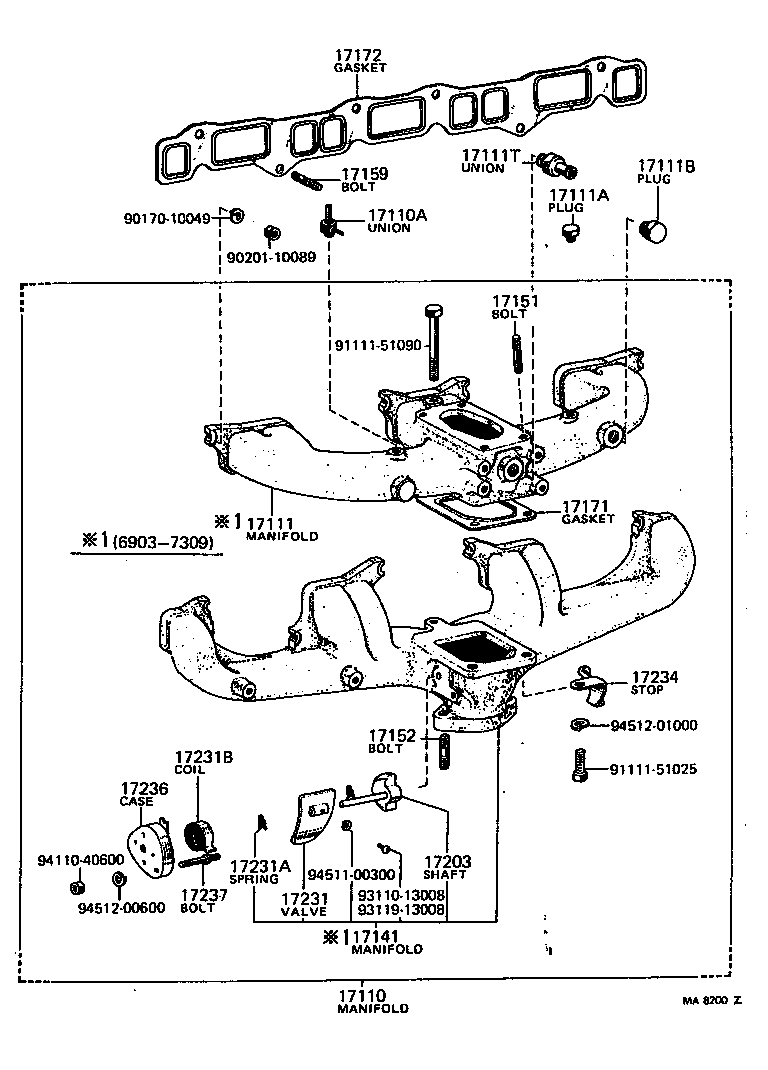

Figure MA1317C MA1317C 1978-03 → 1980-07 Figure MA8200Z MA8200Z 1969-03 → 1975-01 Figure 177096 177096 1975-01 → 1976-08 Figure MA2358E MA2358E 1976-08 → 1979-01 Figure MA2412F MA2412F 1976-08 → 1979-01 Figure MA2158D MA2158D 1976-01 → 1979-01 Figure MA2359 MA2359 1976-01 → 1979-01 Figure MA4276 MA4276 1979-01 → 1980-07

Part groups

PNCDescription
17110 Manifold Assy
17110A Union, Vacuum Hose
17110B Union(FOR VENTILATION HOSE TO MANIFOLD)
17111 Manifold, Intake
17111A Plug, NO.1
17111B Plug, NO.2
17111C Plug, NO.3
17111T Union(FOR EGR INLET)
17141 Manifold, Exhaust
17146 Ring, Exhaust Manifold
17147 Spring, Exhaust Manifold
17148 Plate, Exhaust Manifold(FOR EGR INLET)
17148B Gasket, Egr Inlet
17151 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17169 Insulator, Exhaust Manifold Heat, NO.3
17171 Gasket, Intake TO Exhaust Manifold
17172 Gasket, Manifold TO Cylinder Head
17173 Gasket, Exhaust Manifold TO Head
17203 Shaft Sub-assy, Manifold Heat Control
17231 Valve, Manifold Heat Control
17231A Spring, Retainer(FOR MANIFOLD HEAT CONTROL VALVE)
17231B Coil, Heat Control Valve
17231C Pin(FOR MANIFOLD HEAT CONTROL VALVE)
17231D Plate, Lock(FOR MANIFOLD HEAT VALVE)
17233 Counter Weight
17234 Stop, Counter Weight
17236 Case, Heat Control Bimetal Set
17237 Bolt, Heat Control Case
17344B Union(FOR AIR HOSE)
25591 Bracket, Manifold Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
