Toyota Land Cruiser
1969-03 → 1980-07 · chassis BJ40,FJ4#,55 · catalogue 791410 · United States
Discontinued model
Data version 1985-05

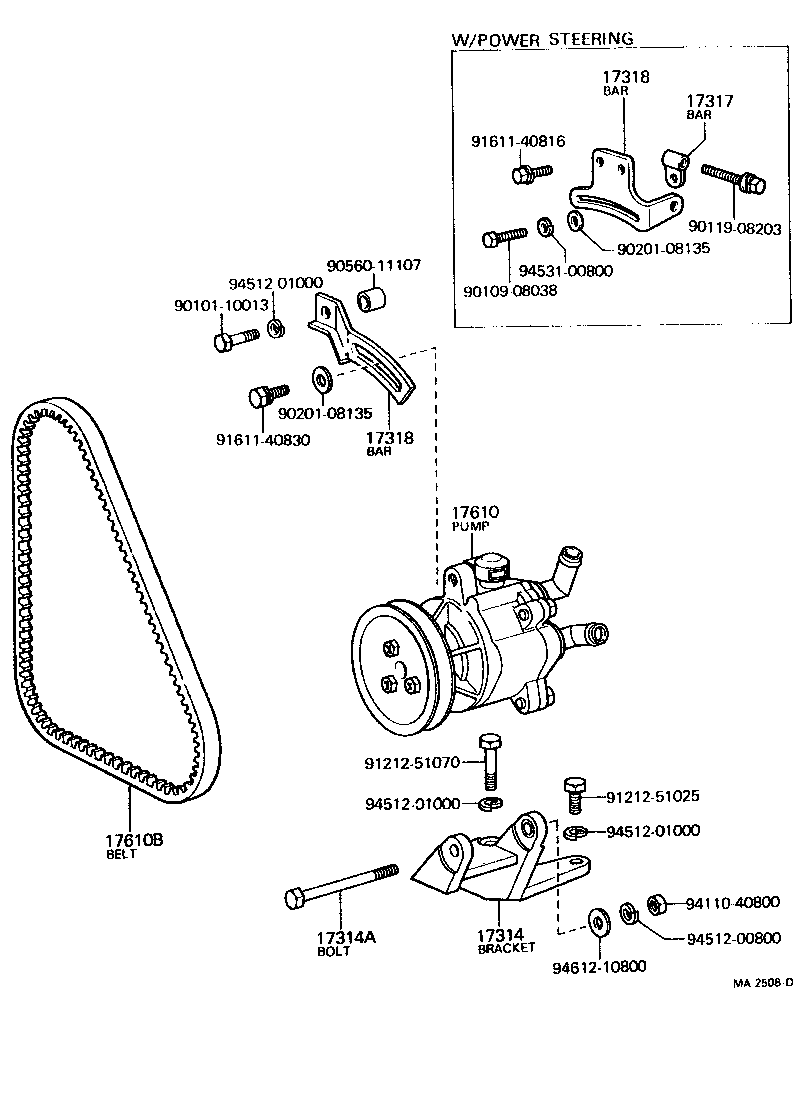

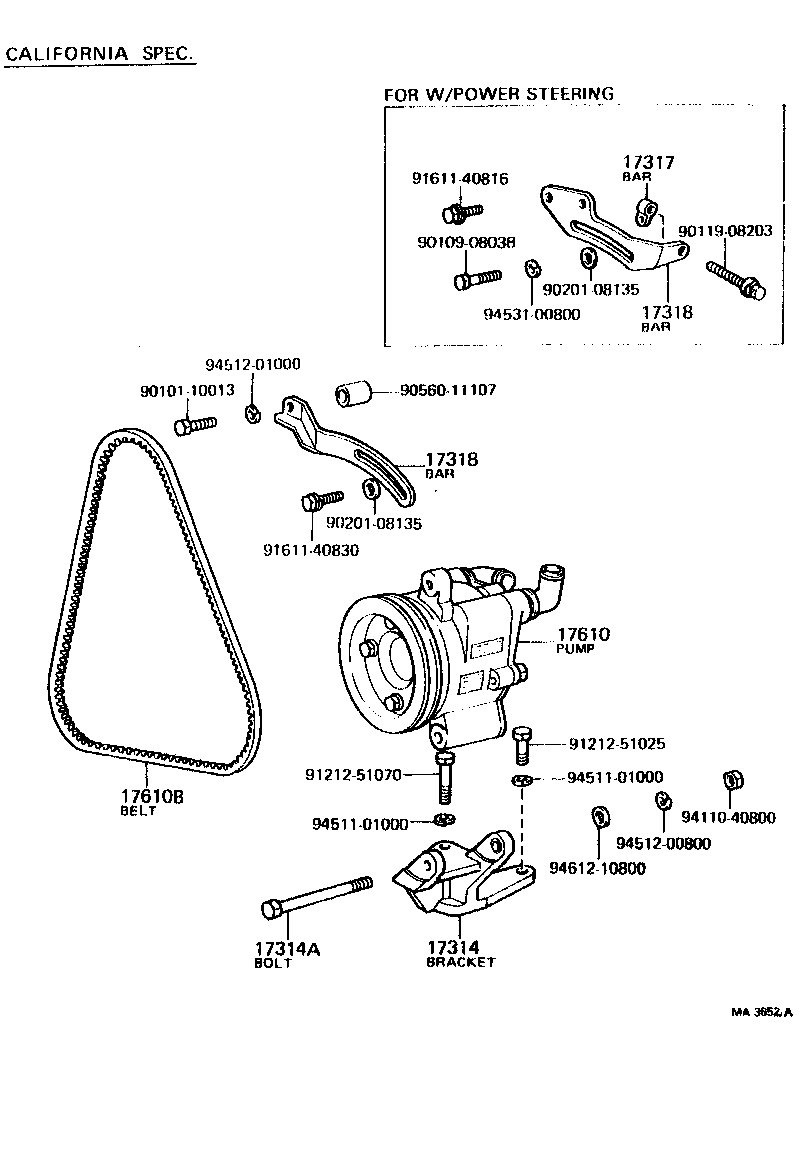

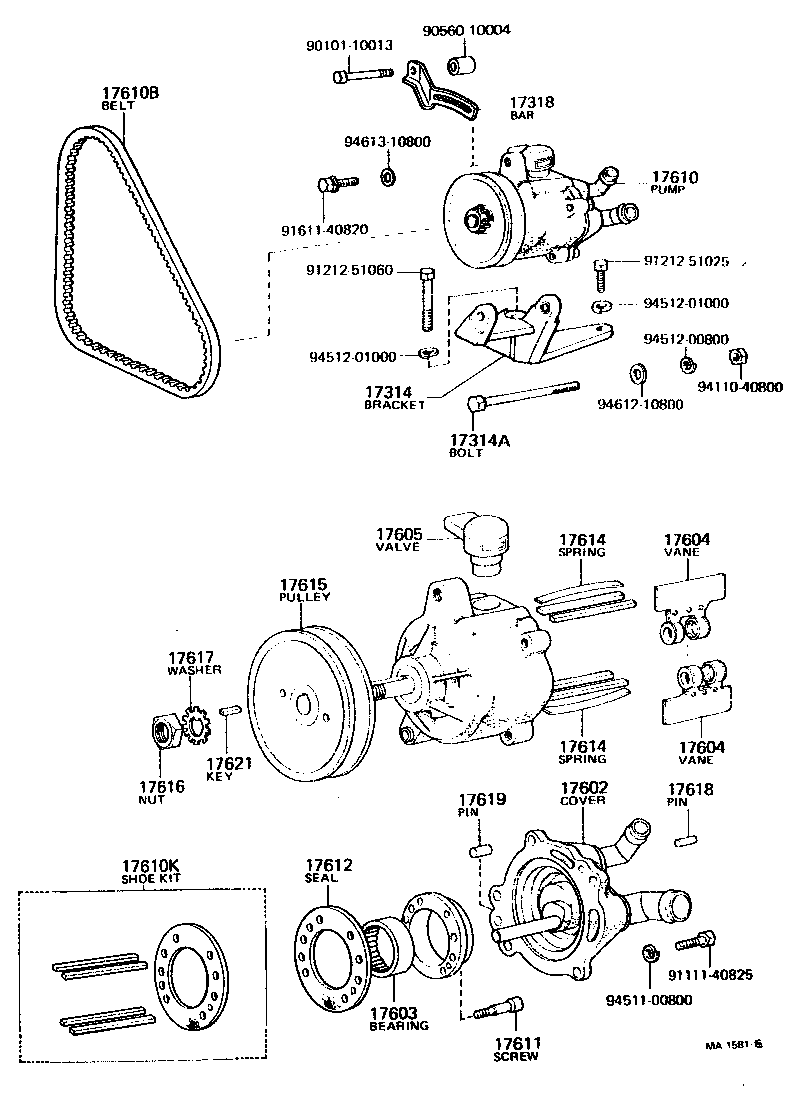

Air Pump
20 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 17314 | Bracket, Air Pump |
| 17314A | Bolt, Hexagon(FOR AIR PUMP BRACKET SETTING) |
| 17317 | Bar, Air Pump Adjusting, NO.1 |
| 17318 | Bar, Air Pump Adjusting, NO.2 |
| 17602 | Cover Sub-assy, Housing |
| 17603 | Bearing, Rear |
| 17604 | Vane Sub-assy |
| 17605 | Valve Sub-assy, Relief |
| 17610 | Pump Assy, Air |
| 17610B | Belt, V(FOR AIR PUMP) |
| 17610K | Shoe Kit, Carbon |
| 17611 | Screw, Rotor Ring |
| 17612 | Seal, Rear(FOR AIR PUMP) |
| 17614 | Spring, Shoe(FOR AIR PUMP) |
| 17615 | Pulley(FOR AIR PUMP) |
| 17616 | Nut, Pulley Lock |
| 17617 | Washer, Pulley Lock |
| 17618 | Pin, Knock, A(FOR AIR PUMP) |
| 17619 | Pin, Knock, B(FOR AIR PUMP) |
| 17621 | Key(FOR AIR PUMP PULLEY) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
