Toyota Land Cruiser

1969-03 → 1980-07 · chassis BJ40,FJ4#,55 · catalogue 791410 · United States

Discontinued model Data version 1985-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold Air Injection System

25 part groups · 5 illustrations

Illustrations

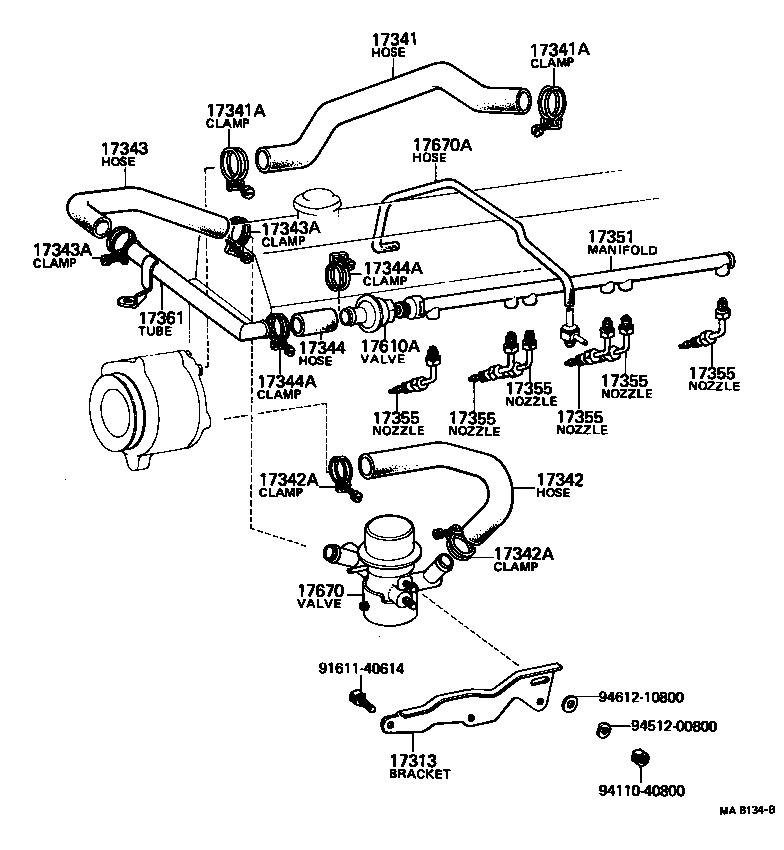

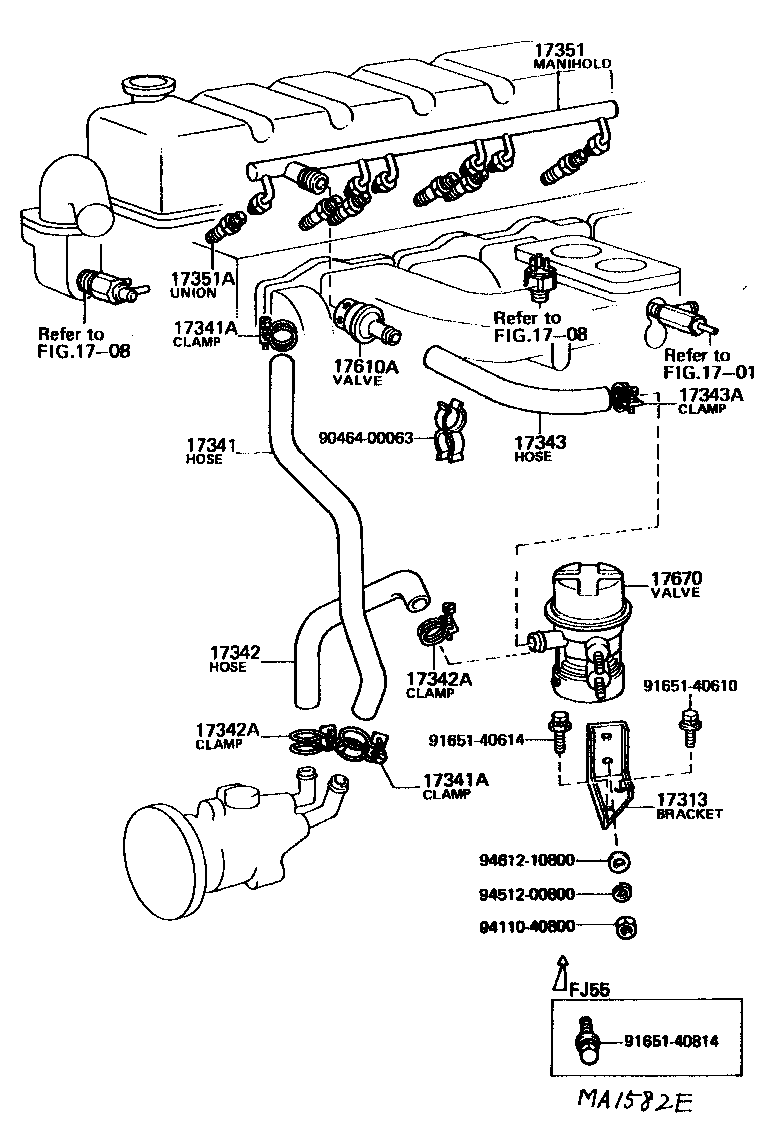

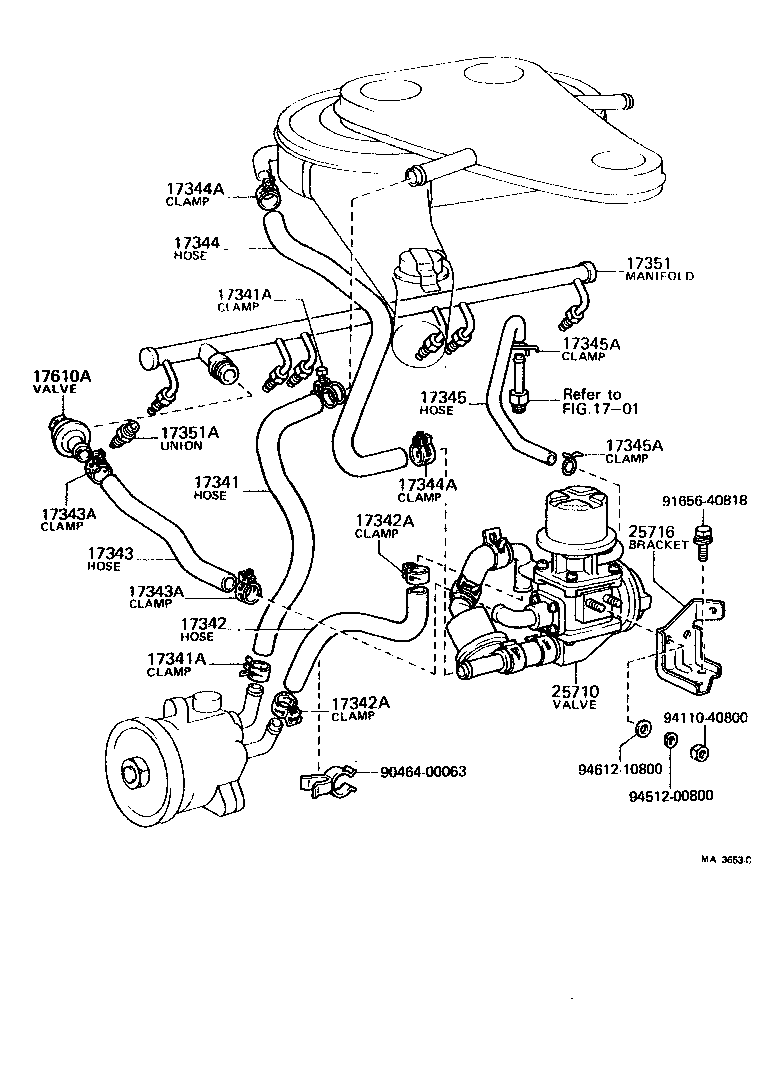

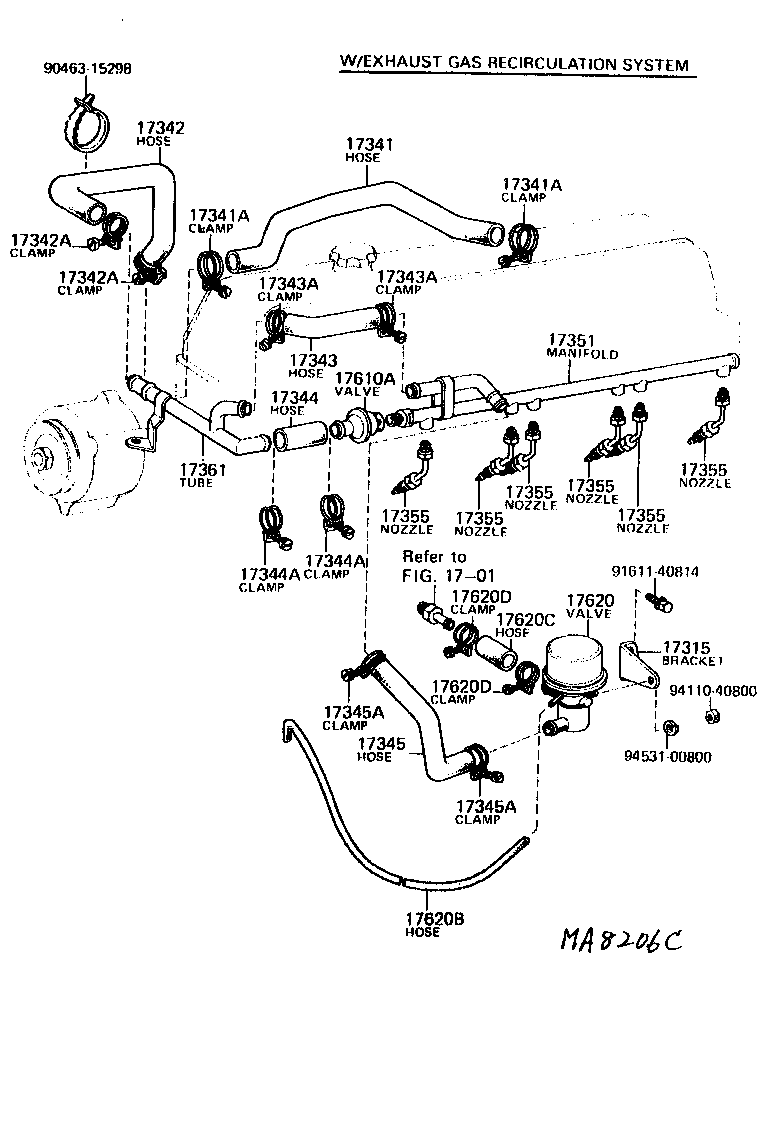

Figure MA8205B MA8205B 1972-09 → 1973-09 Figure MA8134B MA8134B 1973-09 → 1975-01 Figure MA8206C MA8206C 1973-09 → 1975-01 Figure MA1582E MA1582E 1975-01 → 1979-01 Figure MA3653C MA3653C 1979-01 → 1980-07

Part groups

PNCDescription
17313 Bracket, Air By-pass Valve
17315 Bracket, Anti-afterburn Valve
17341 Hose, NO.1(FOR AIR INJECTION SYSTEM)
17341A Clamp OR Clip, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)
17342 Hose, NO.2(FOR AIR INJECTION SYSTEM)
17342A Clamp OR Clip, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2)
17343 Hose, NO.3(FOR AIR INJECTION SYSTEM)
17343A Clamp OR Clip, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3)
17344 Hose, NO.4(FOR AIR INJECTION SYSTEM)
17344A Clamp OR Clip, NO.4(FOR AIR INJECTION SYSTEM HOSE, NO.4)
17345 Hose, NO.5(FOR AIR INJECTION SYSTEM)
17345A Clamp OR Clip, NO.5(FOR AIR INJECTION SYSTEM HOSE, NO.5)
17351 Manifold, Air Injection
17351A Union, Air Injection
17355 Nozzle, Air Injection
17361 Tube, Air
17610A Valve, Check(FOR AIR INJECTION SYSTEM)
17620 Valve Assy, Anti-afterburn
17620B Hose(FOR ANTI-AFTERBURN VALVE)
17620C Hose(FOR ANTI-AFTERBURN VALVE TO UNION)
17620D Clamp(FOR ANTI-AFTERBURN VALVE TO UNION)
17670 Valve Assy, Air By-pass
17670A Hose(FOR CARBURETOR HEAT INSULATOR TO AIR BY-PASS VALVE)
25710 Valve Assy, Air Switching
25716 Bracket, Air Switching Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
