Toyota Land Cruiser

1969-03 → 1980-07 · chassis BJ40,FJ4#,55 · catalogue 791410 · United States

Discontinued model Data version 1985-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

21 part groups · 14 illustrations

Illustrations

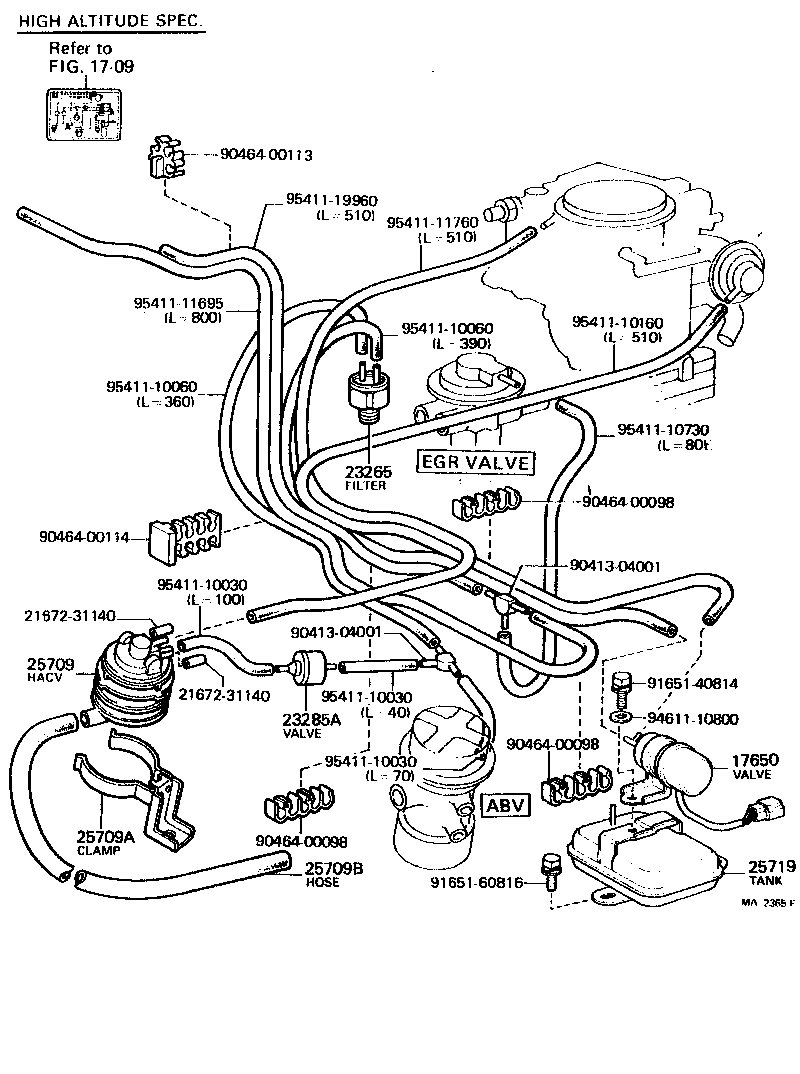

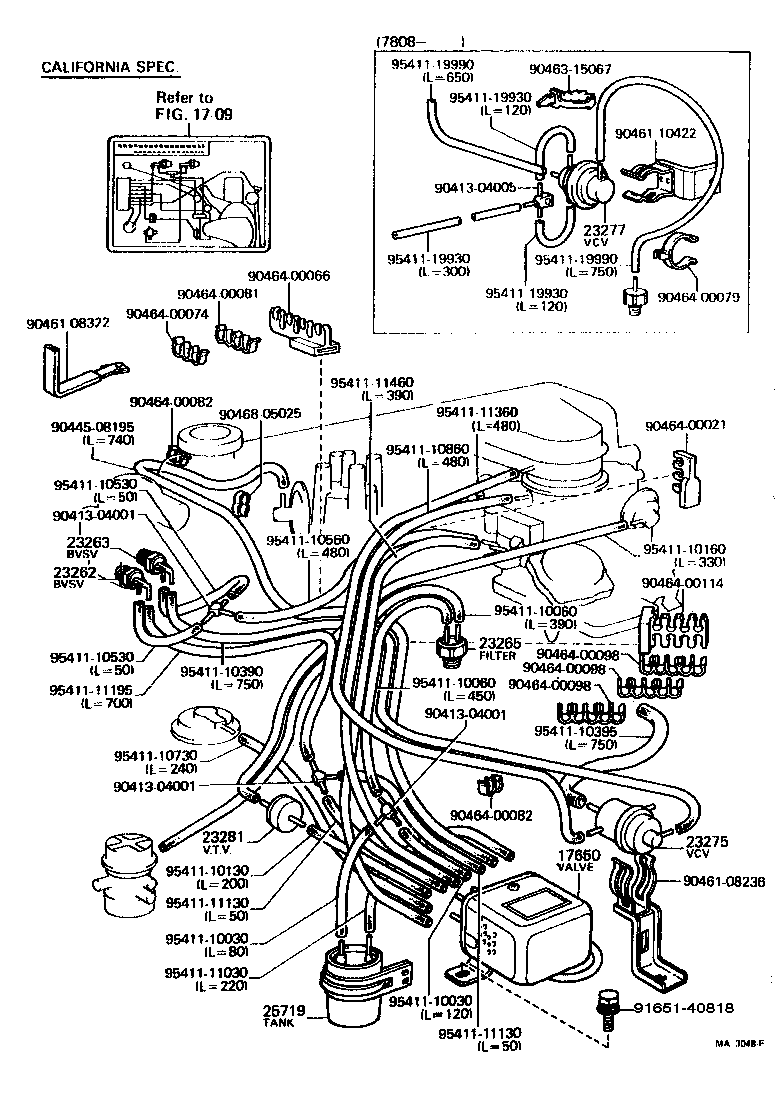

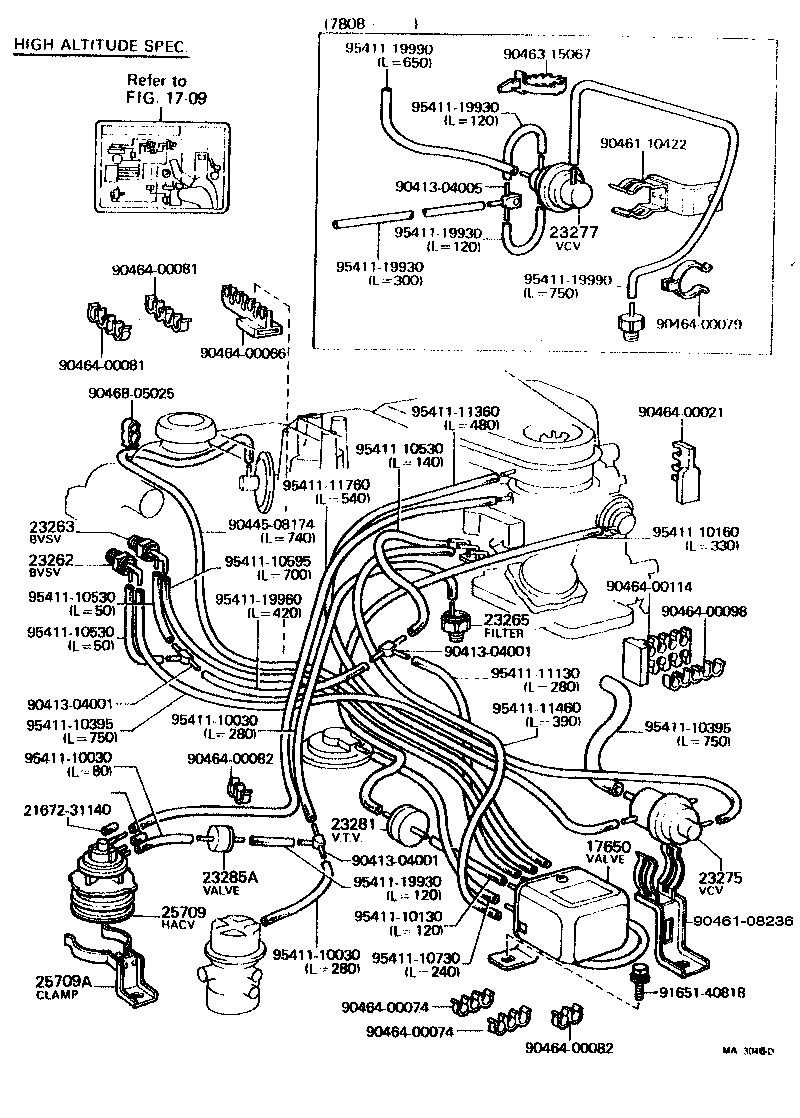

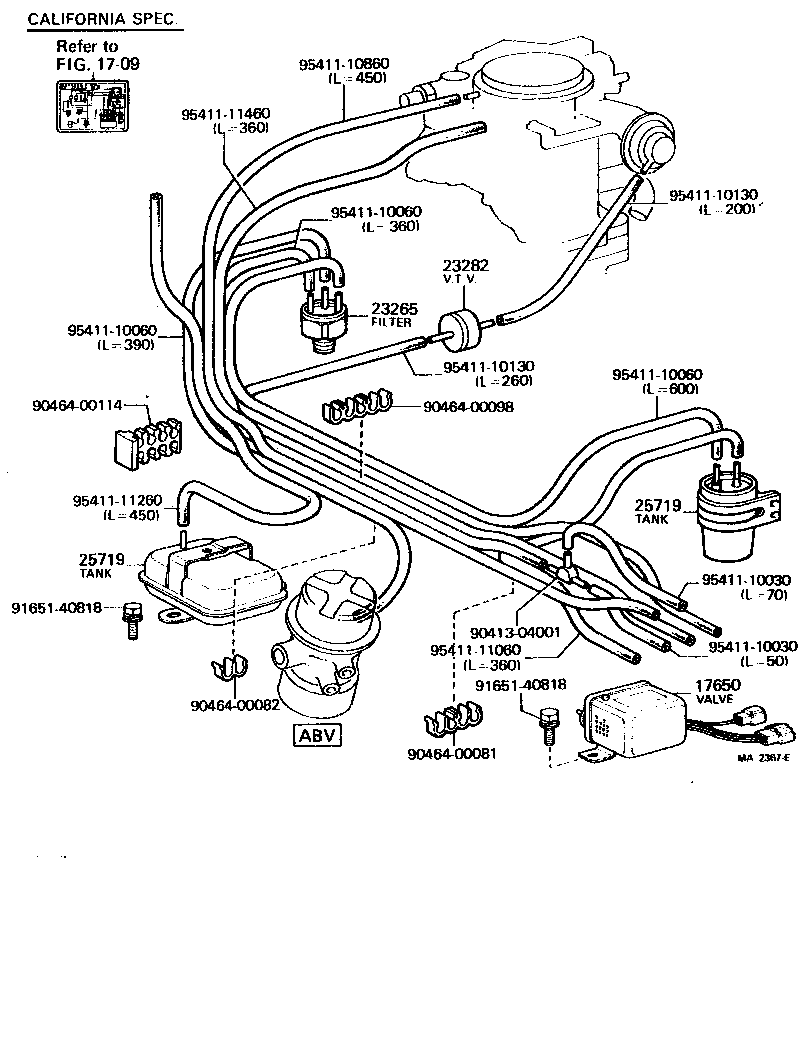

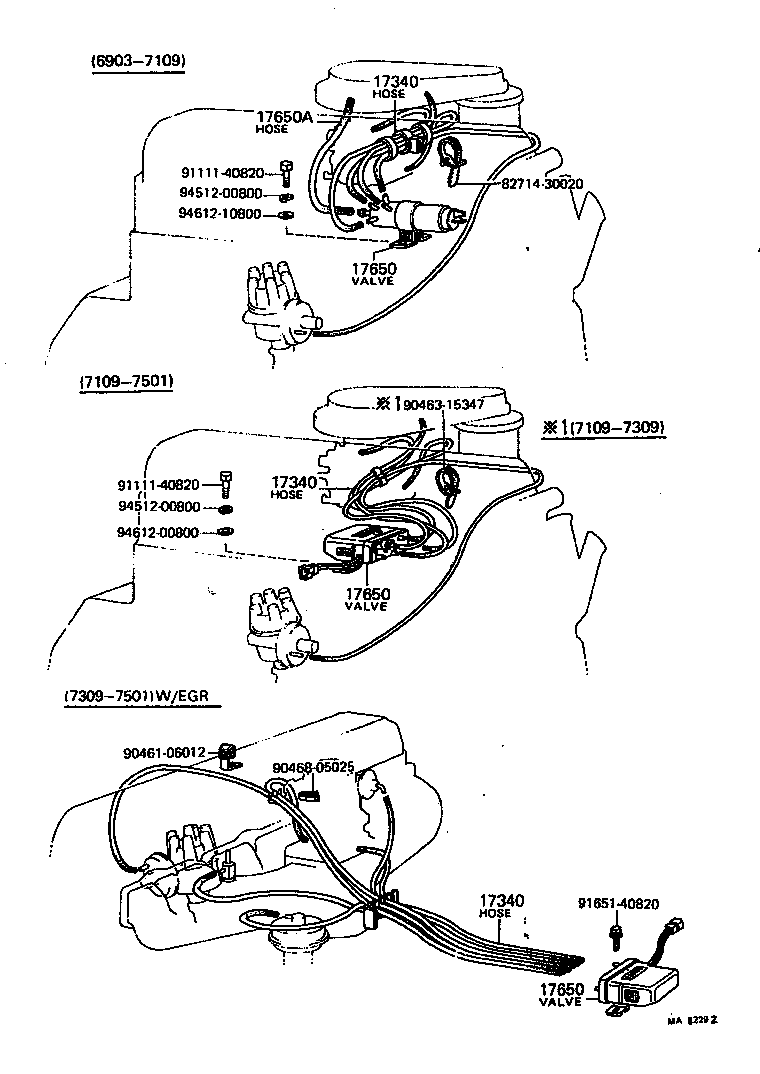

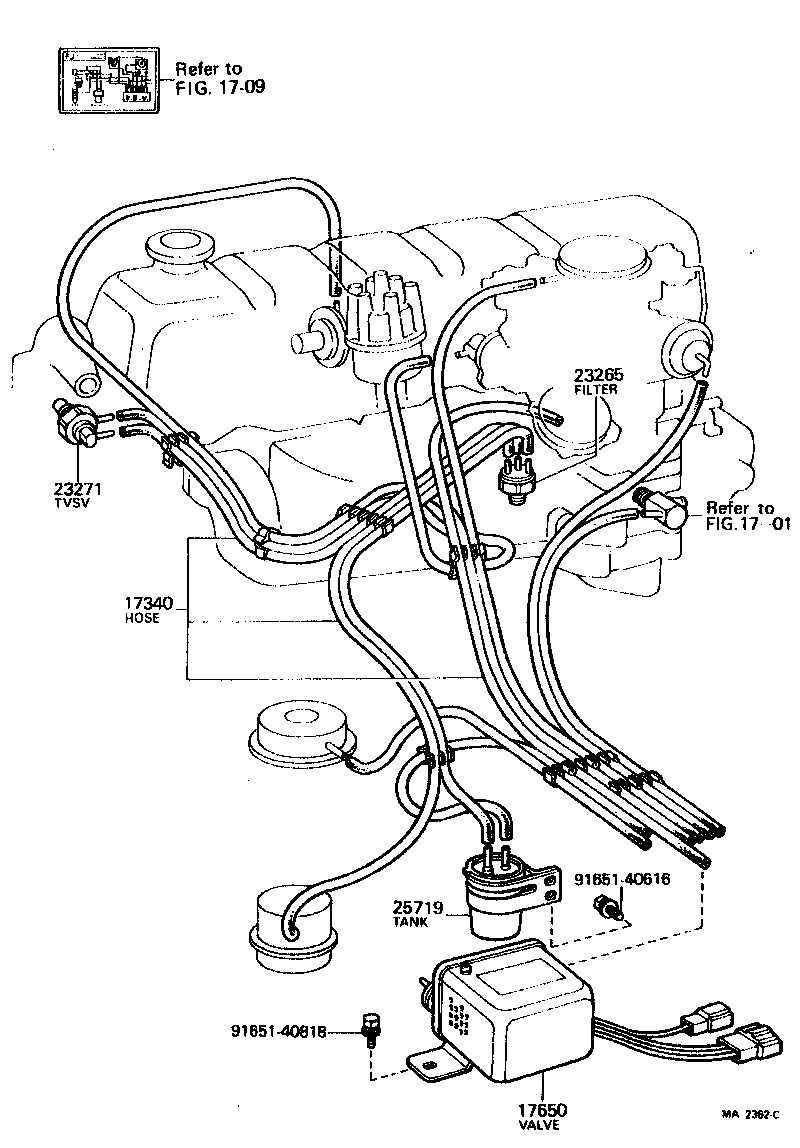

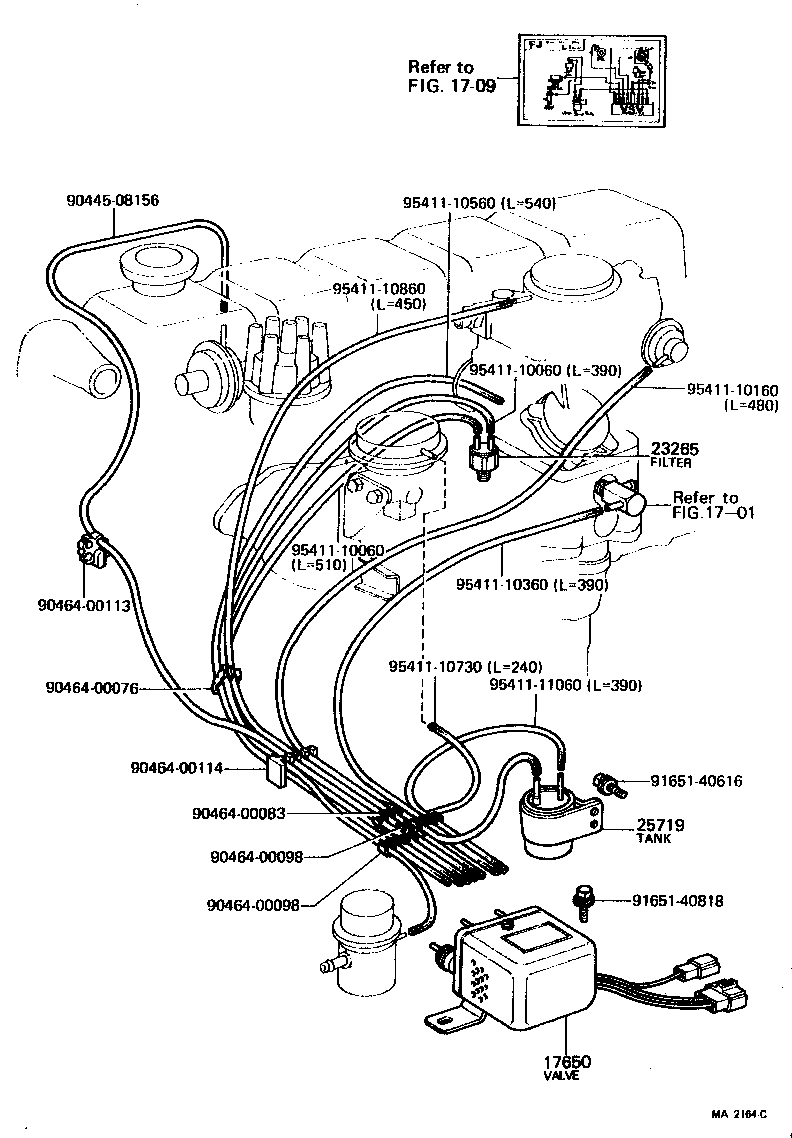

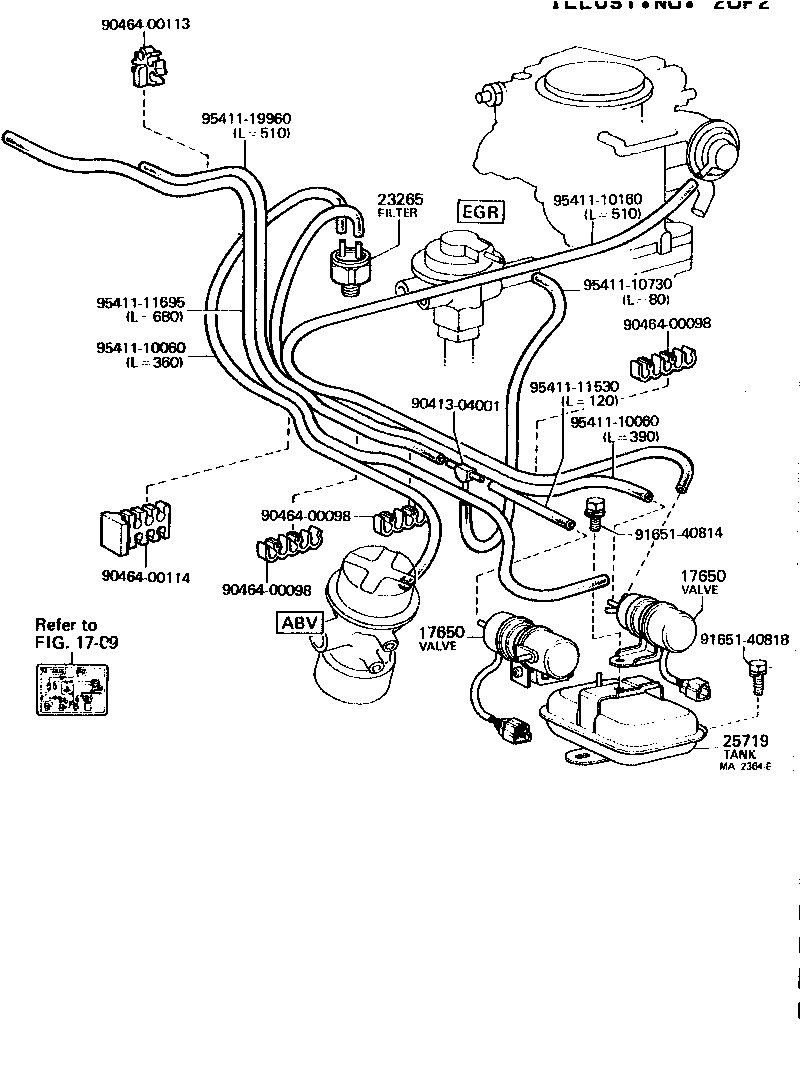

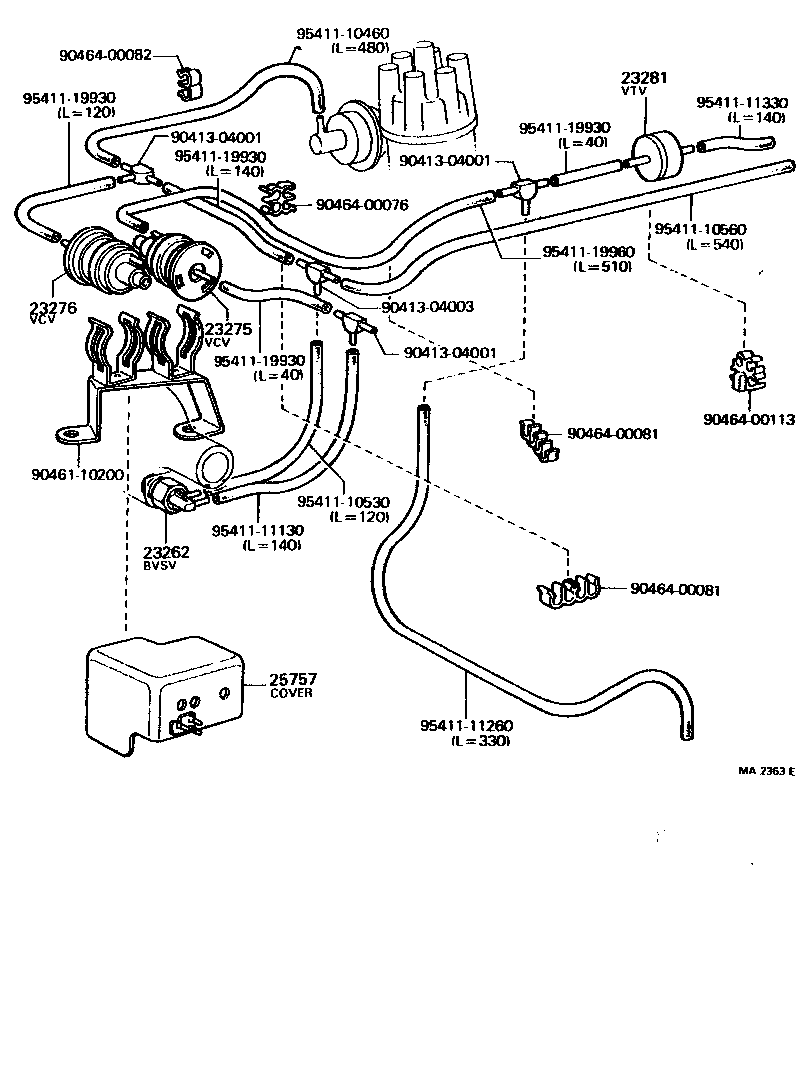

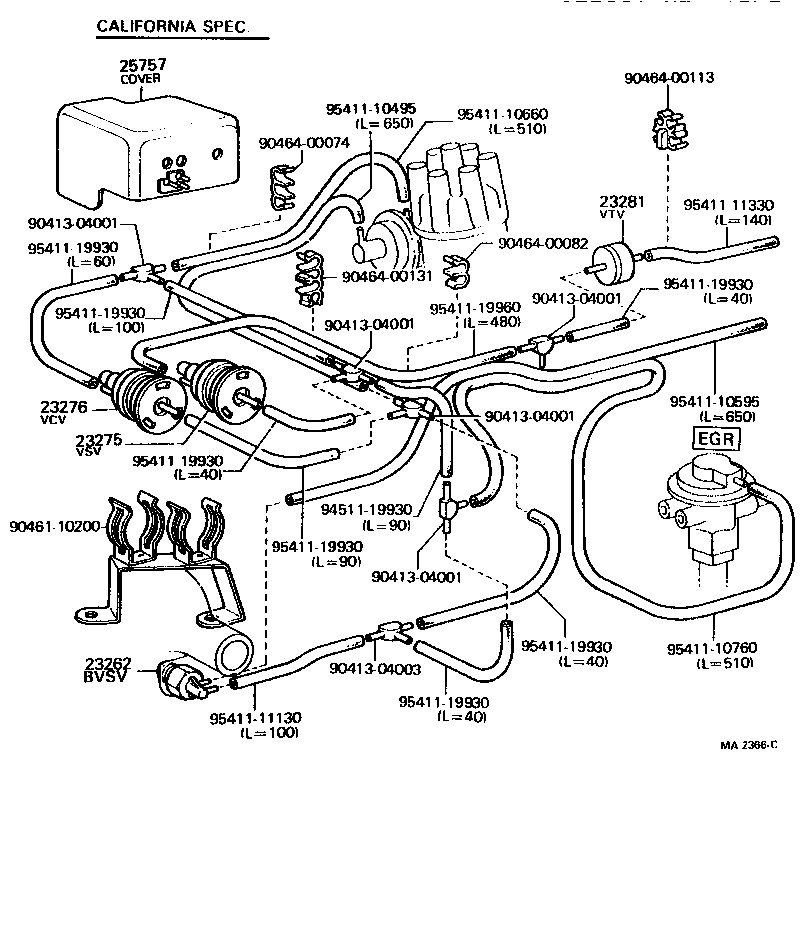

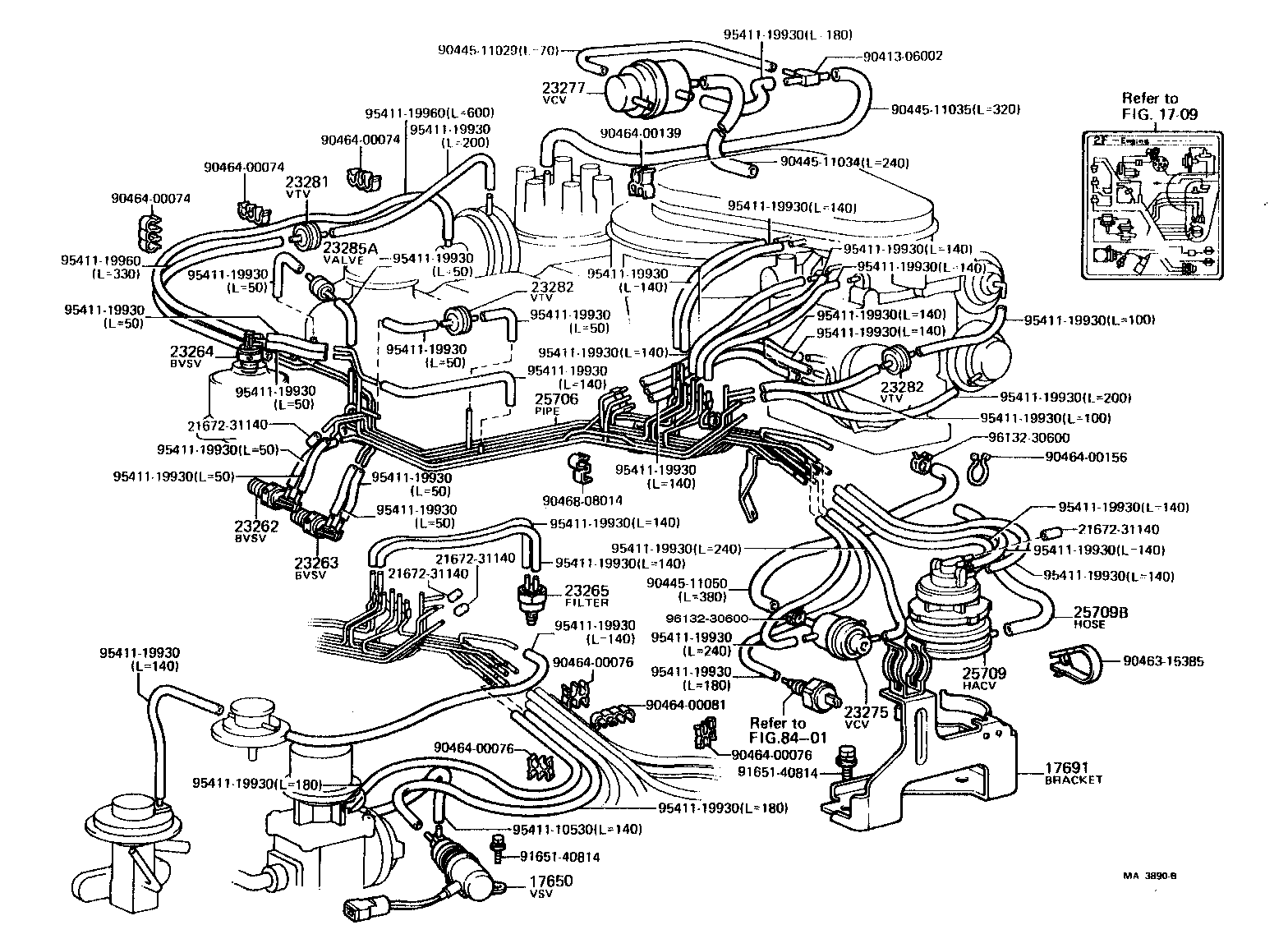

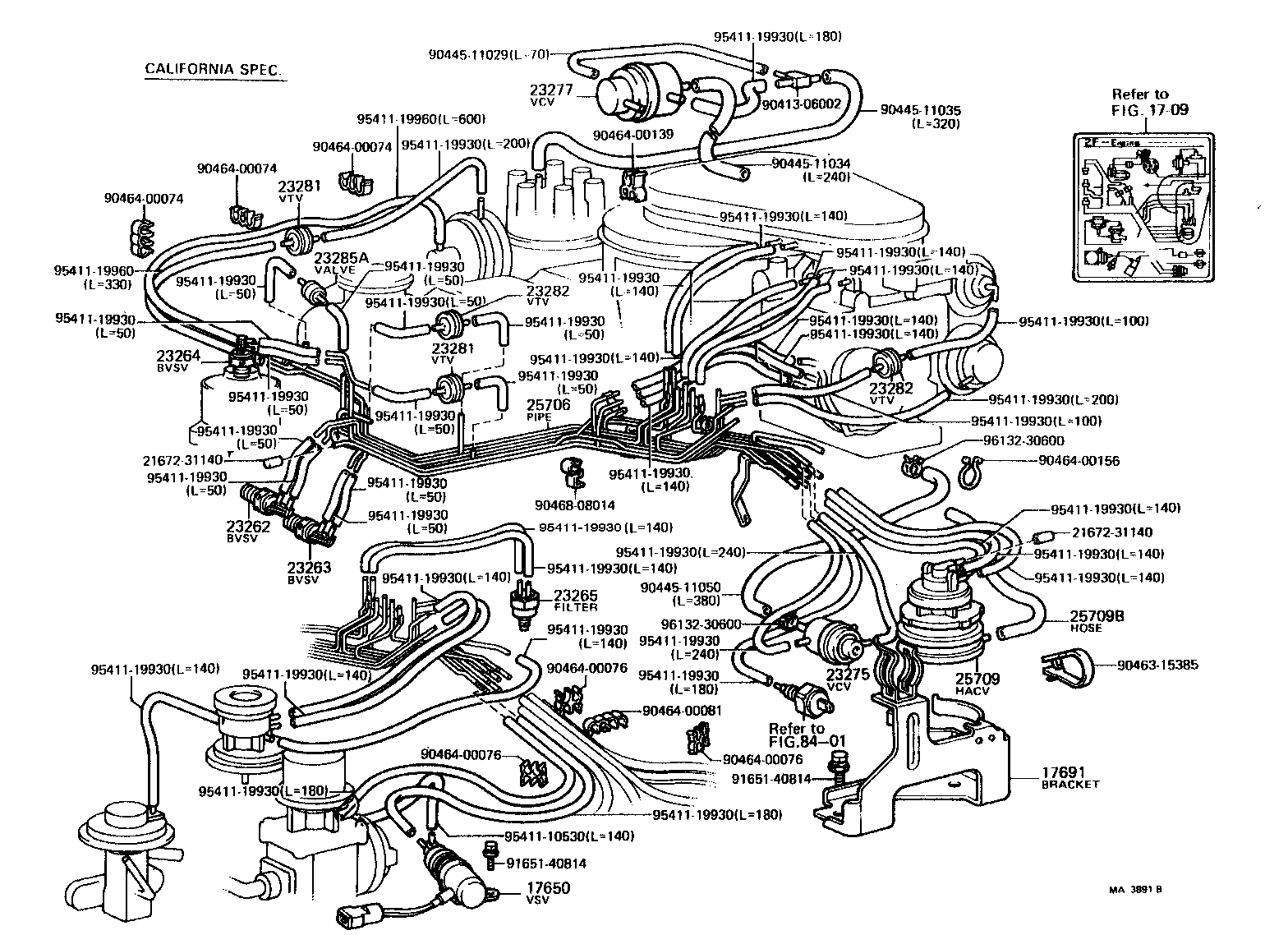

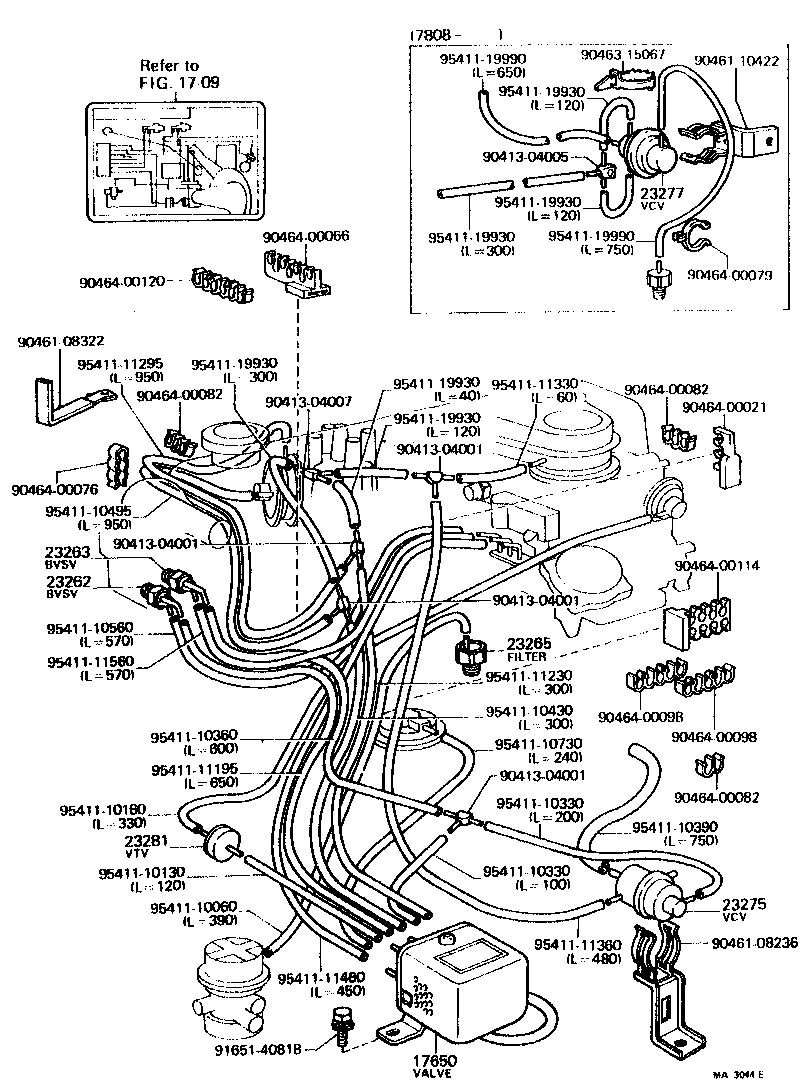

Figure MA9502 MA9502 1969-03 → 1980-07 Figure MA8229Z MA8229Z 1969-03 → 1975-01 Figure MA2362C MA2362C 1975-01 → 1976-01 Figure MA2164C MA2164C 1976-01 → 1976-08 Figure MA2363E MA2363E 1976-08 → 1977-09 Figure MA2364E MA2364E 1976-08 → 1977-09 Figure MA2365F MA2365F 1976-08 → 1977-09 Figure MA2366C MA2366C 1976-08 → 1977-09 Figure MA2367E MA2367E 1976-08 → 1977-09 Figure MA3044E MA3044E 1977-09 → 1979-01 Figure MA3046D MA3046D 1977-09 → 1979-01 Figure MA3048F MA3048F 1977-09 → 1979-01 Figure MA3890B MA3890B 1979-01 → 1980-07 Figure MA3891B MA3891B 1979-01 → 1980-07

Part groups

PNCDescription
17340 Hose Assy, Vacuum Switching Valve
17650 Valve Assy, Vacuum Switching
17650A Hose(FOR VACUUM SWITCHING VALVE)
17691 Bracket, Vacuum Control Valve, NO.1
23262 Valve, Bimetal Vacuum Switching, NO.1
23263 Valve, Bimetal Vacuum Switching, NO.2
23264 Valve, Bimetal Vacuum Switching, NO.3
23265 Filter, Gas, NO.1
23271 Valve, Thermostatic Vacuum Switching, NO.1
23275 Valve, Vacuum Control, NO.1
23276 Valve, Vacuum Control, NO.2
23277 Valve, Vacuum Control, NO.3
23281 Valve, Vacuum Transmitting, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23285A Valve, Check, NO.1
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25709 Valve Sub-assy, High Altitude Compensator
25709A Clamp(FOR HIGH ALTITUDE COMPENSATOR VALVE)
25709B Hose(FOR HIGH ALTITUDE COMPENSATOR VALVE)
25719 Tank, Vacuum Surge
25757 Cover, Vacuum Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
