Toyota Land Cruiser

1969-03 → 1980-07 · chassis BJ40,FJ4#,55 · catalogue 791410 · United States

Discontinued model Data version 1985-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Pipe & Clamp

12 part groups · 6 illustrations

Illustrations

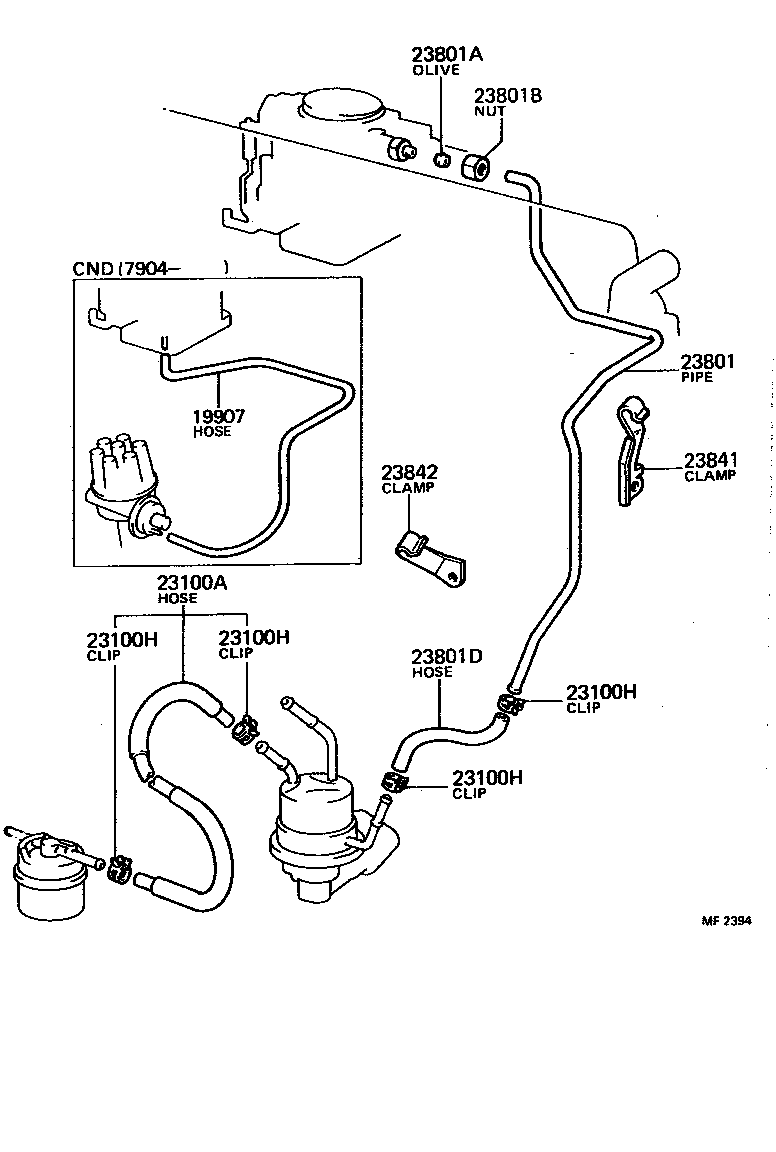

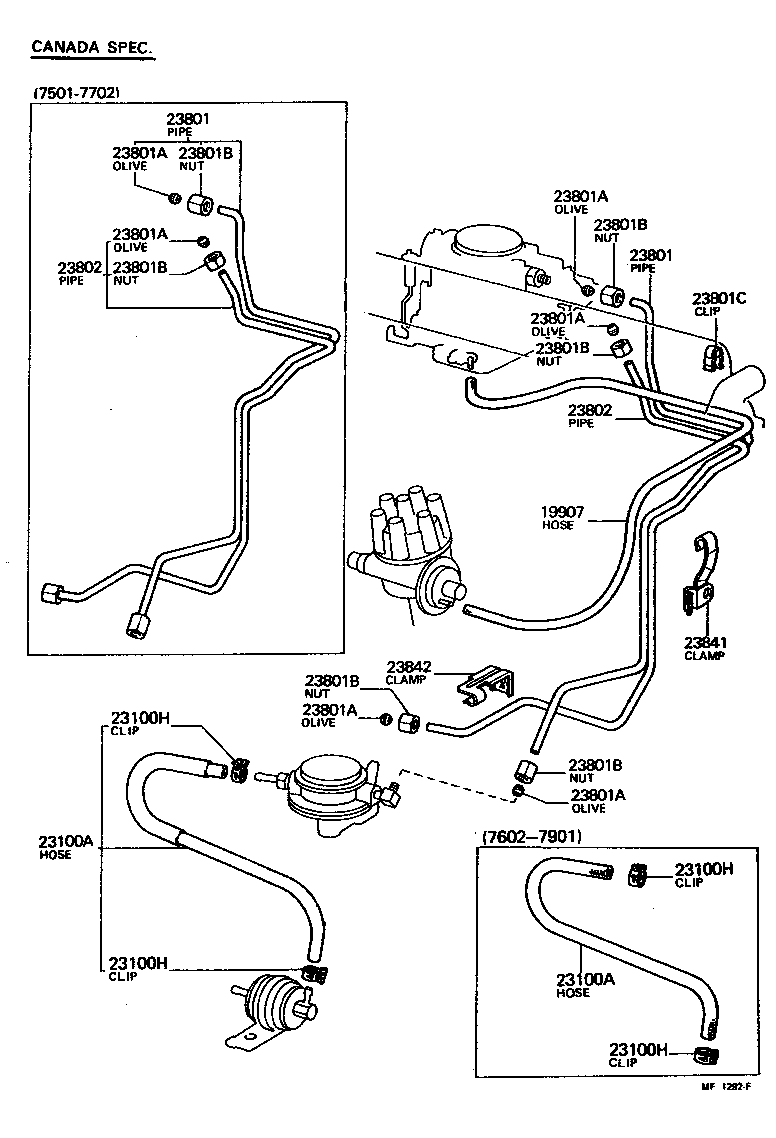

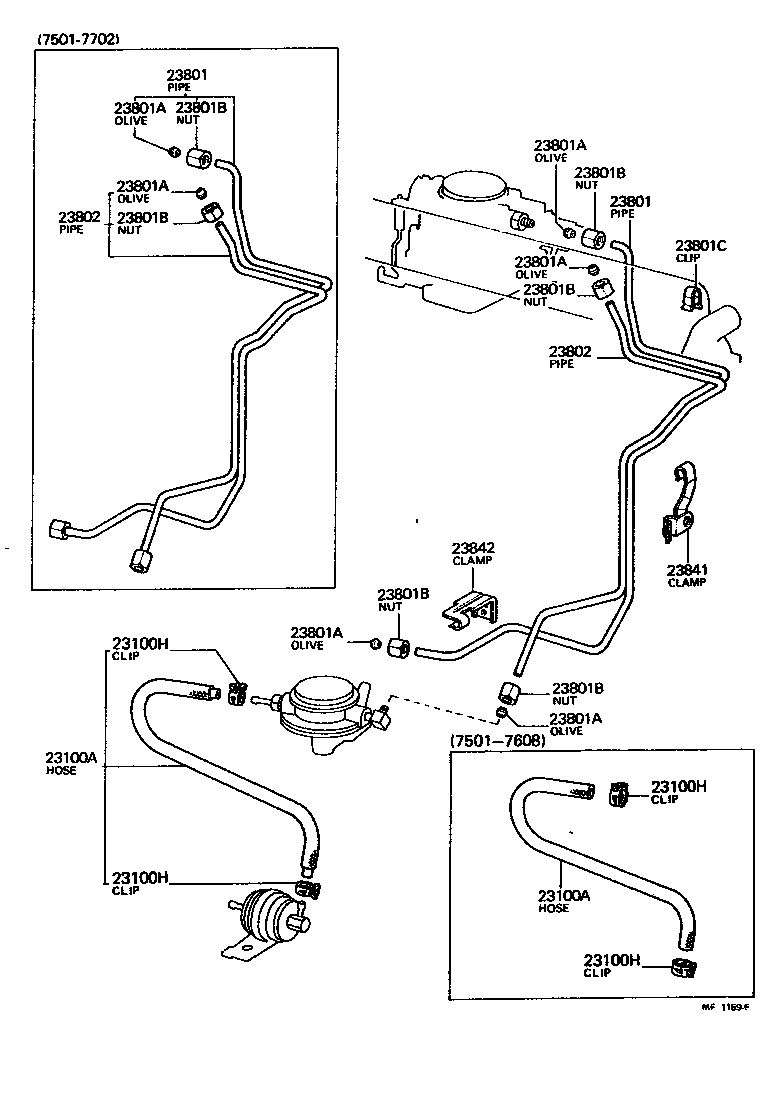

Figure MF8084A MF8084A 1969-03 → 1975-01 Figure MF1159F MF1159F 1975-01 → 1976-02 Figure MF1159F MF1159F 1976-02 → 1980-07 Figure MF2394 MF2394 1979-01 → 1979-04 Figure MF2394 MF2394 1979-04 → 1980-07 Figure MF1292F MF1292F 1976-02 → 1979-04

Part groups

PNCDescription
19907 Hose, Vacuum, NO.1
23100A Hose, Fuel
23100H Clip(FOR FUEL HOSE)
23801 Pipe OR Hose Sub-assy, Carburetor Fuel, NO.1
23801A Olive(FOR FUEL PIPE)
23801B Nut, Union(FOR FUEL PIPE)
23801C Clip(FOR CARBURETOR FUEL HOSE)
23801D Hose, Fuel Pipe, NO.1
23802 Pipe OR Hose Sub-assy, Carburetor Fuel, NO.2
23841 Clamp, Fuel Pipe(HOSE), NO.1
23842 Clamp, Fuel Pipe(HOSE), NO.2
23845 Insulator, Fuel Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
