Toyota Land Cruiser

1969-03 → 1980-07 · chassis BJ40,FJ4#,55 · catalogue 791410 · United States

Discontinued model Data version 1985-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Filter

13 part groups · 3 illustrations

Illustrations

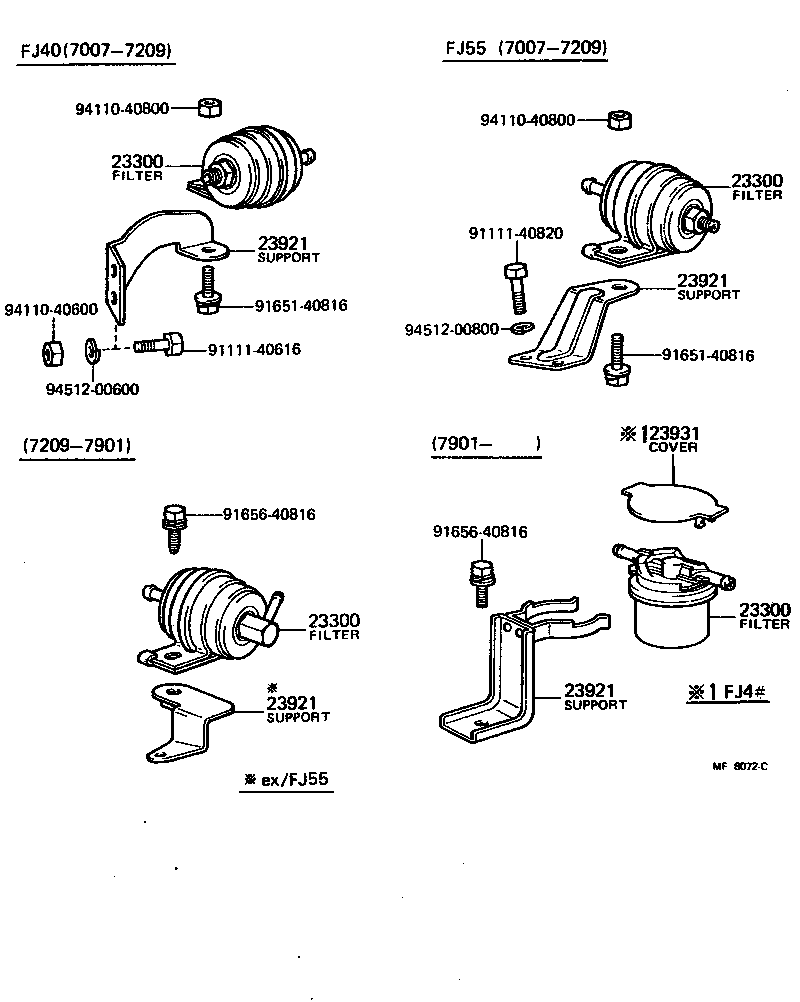

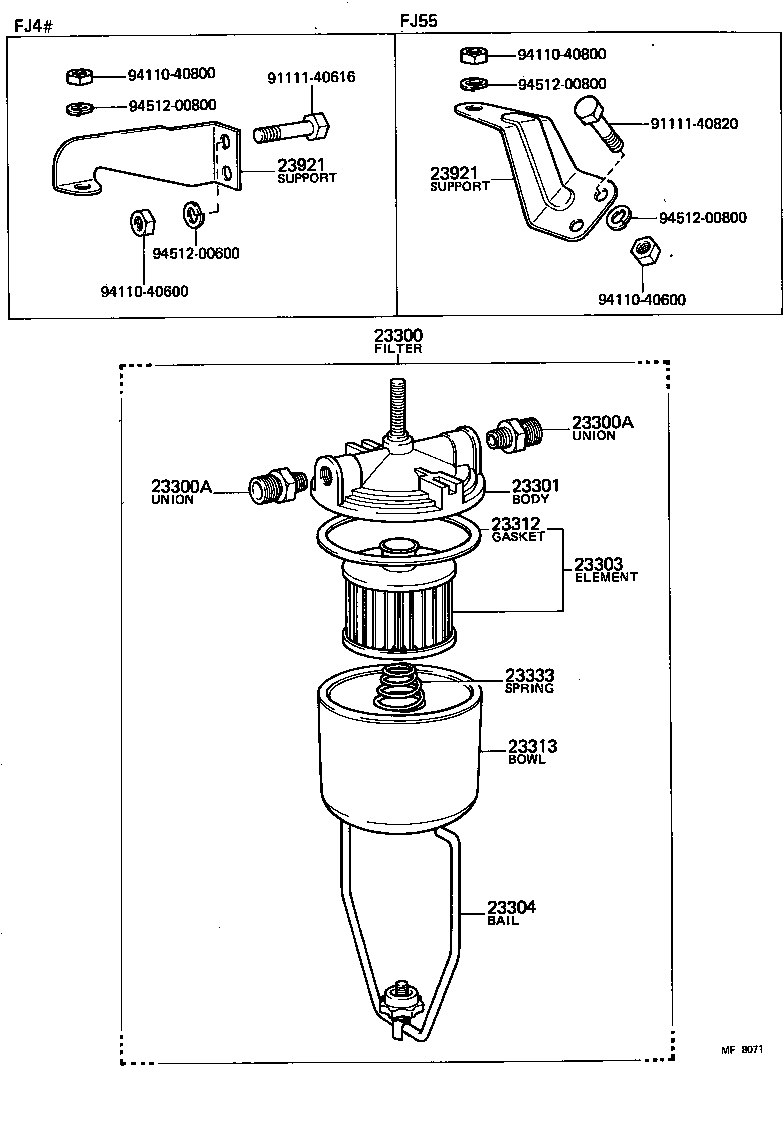

Figure MF1350E MF1350E 1978-03 → 1980-07 Figure MF8071 MF8071 1969-03 → 1970-07 Figure MF8072C MF8072C 1970-07 → 1980-07

Part groups

PNCDescription
23300 Filter Assy, Fuel
23300A Union, Nipple(FOR FUEL FILTER INLET)
23300D Filter Assy, Fuel(FOR DIESEL)
23301 Body Sub-assy, Fuel Filter
23303 Element Sub-assy, Fuel Filter
23304 Bail Sub-assy, Filter Bowl
23312 Gasket, Filter Bowl
23313 Bowl OR Cylinder, Fuel Filter
23319 Screw, Fuel Pipe Follow
23333 Spring, Filter Element Set
23351 Plug, Air Vent
23353 Ring, O(FOR AIR VENT PLUG)
23921 Support, Fuel Filter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
