Toyota Land Cruiser
1969-03 → 1980-07 · chassis BJ40,FJ4#,55 · catalogue 791410 · United States
Discontinued model
Data version 1985-05

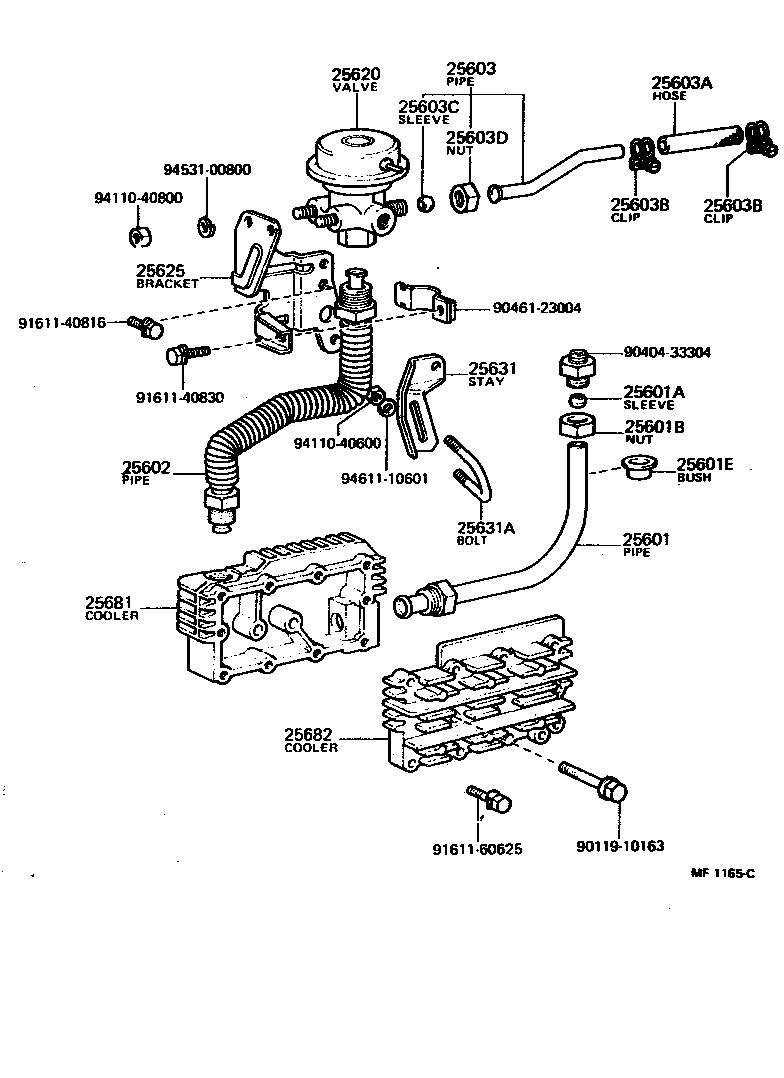

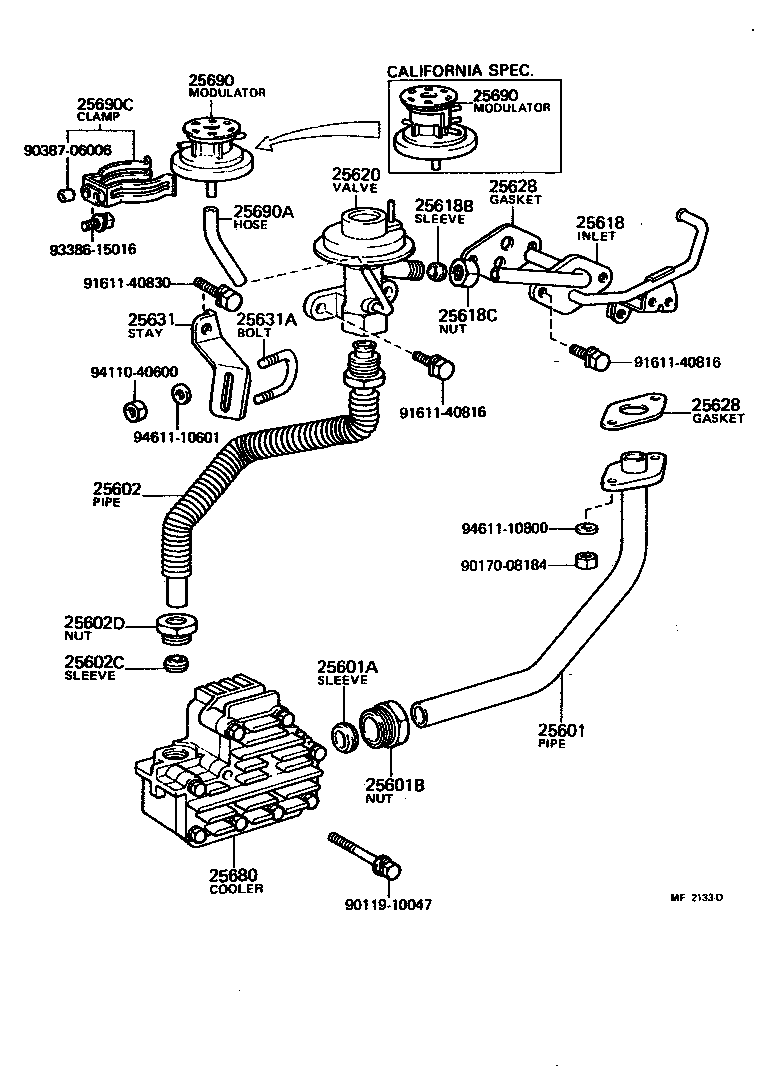

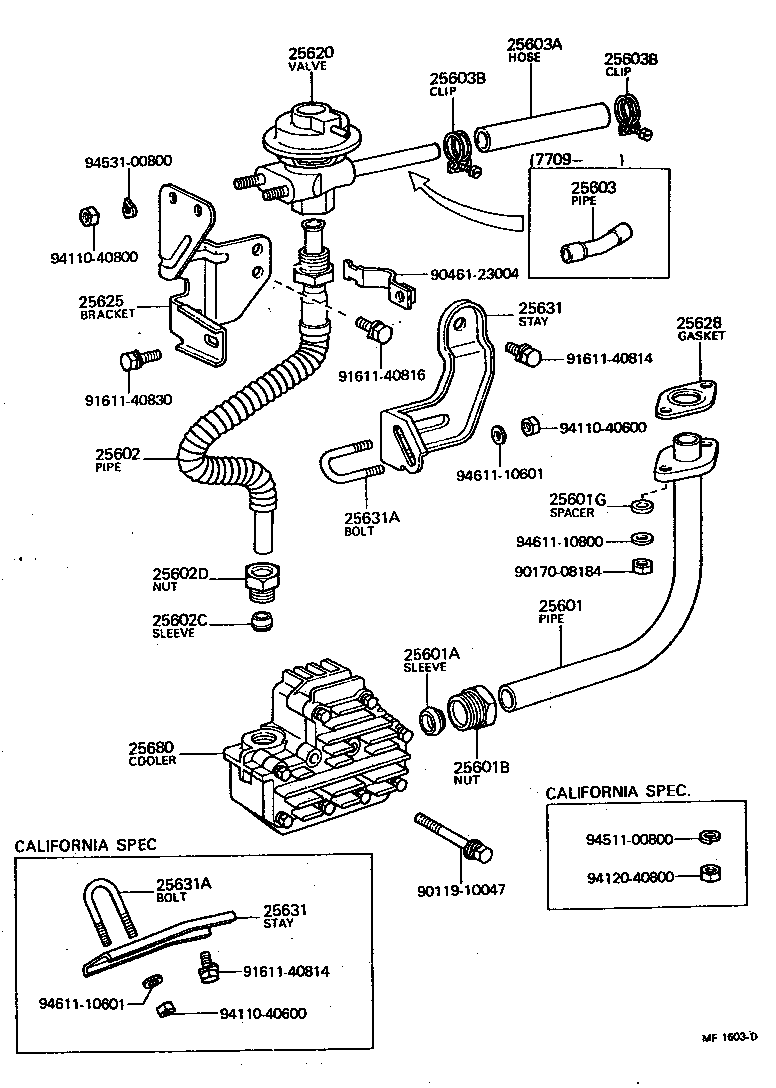

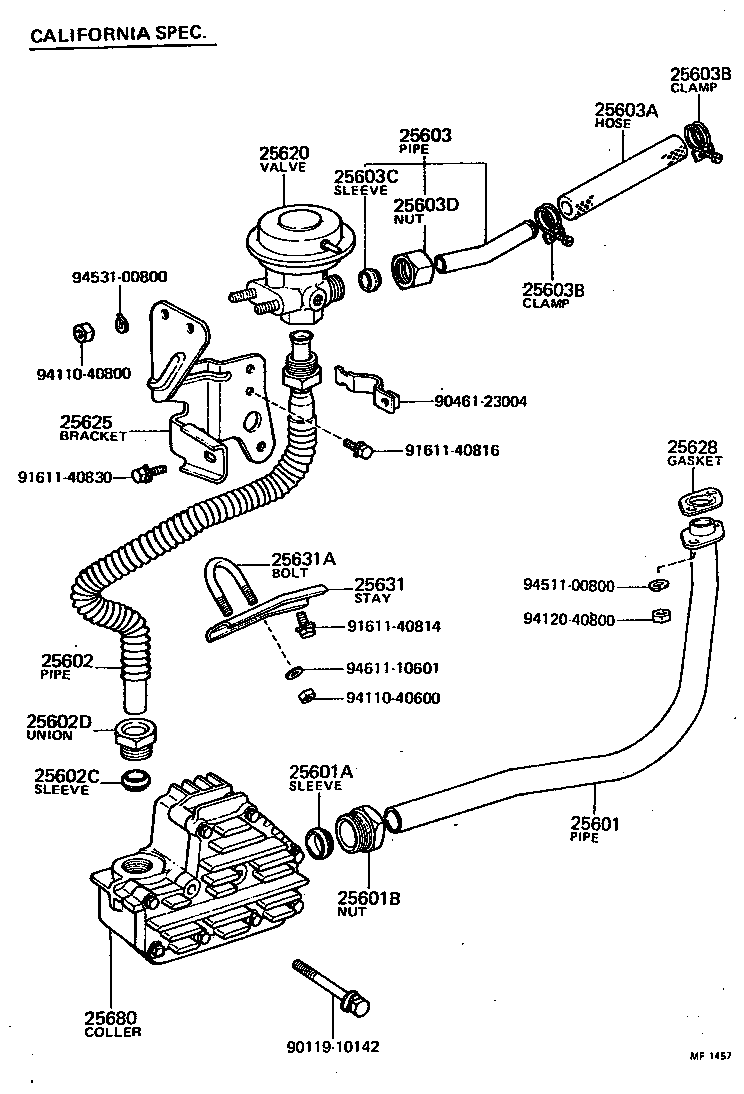

Exhaust Gas Recirculation System
29 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 25601 | Pipe Sub-assy, Egr, NO.1 |
| 25601A | Sleeve, Ball, Egr Pipe, NO.1 |
| 25601B | Nut, Union, Egr Pipe, NO.1 |
| 25601E | Bush(FOR EGR PIPE, NO.1) |
| 25601G | Spacer(FOR EGR PIPE, NO.1) |
| 25602 | Pipe Sub-assy, Egr, NO.2 |
| 25602C | Sleeve, Ball(FOR EGR PIPE, NO.2) |
| 25602D | Nut, Union(FOR EGR PIPE, NO.2) |
| 25603 | Pipe Sub-assy, Egr, NO.3 |
| 25603A | Hose(FOR EGR PIPE, NO.3) |
| 25603B | Clip(FOR EGR PIPE, NO.3) |
| 25603C | Sleeve, Ball(FOR EGR PIPE NO.3) |
| 25603D | Nut, Union(FOR EGR PIPE NO.3) |
| 25608 | Cooler Sub-assy, Egr |
| 25618 | Inlet, Egr |
| 25618B | Sleeve, Ball(FOR EGR INLET) |
| 25618C | Nut, Olive E(FOR EGR INLET) |
| 25620 | Valve Assy, Egr |
| 25625 | Bracket, Egr Valve |
| 25628 | Gasket, Egr Inlet |
| 25631 | Stay, Egr Pipe, NO.1 |
| 25631A | Bolt(FOR EGR PIPE CLAMP) |
| 25680 | Cooler Assy, Egr |
| 25681 | Cooler, Egr, NO.1 |
| 25682 | Cooler, Egr, NO.2 |
| 25685 | Gasket, Egr Cooler, NO.1 |
| 25690 | Modulator Assy, Egr Vacuum |
| 25690A | Hose(FOR EGR VACUUM MODULATOR) |
| 25690C | Clamp(FOR EGR VACUUM MODULATOR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
