Toyota Land Cruiser
1969-03 → 1980-07 · chassis BJ40,FJ4#,55 · catalogue 791410 · United States
Discontinued model
Data version 1985-05

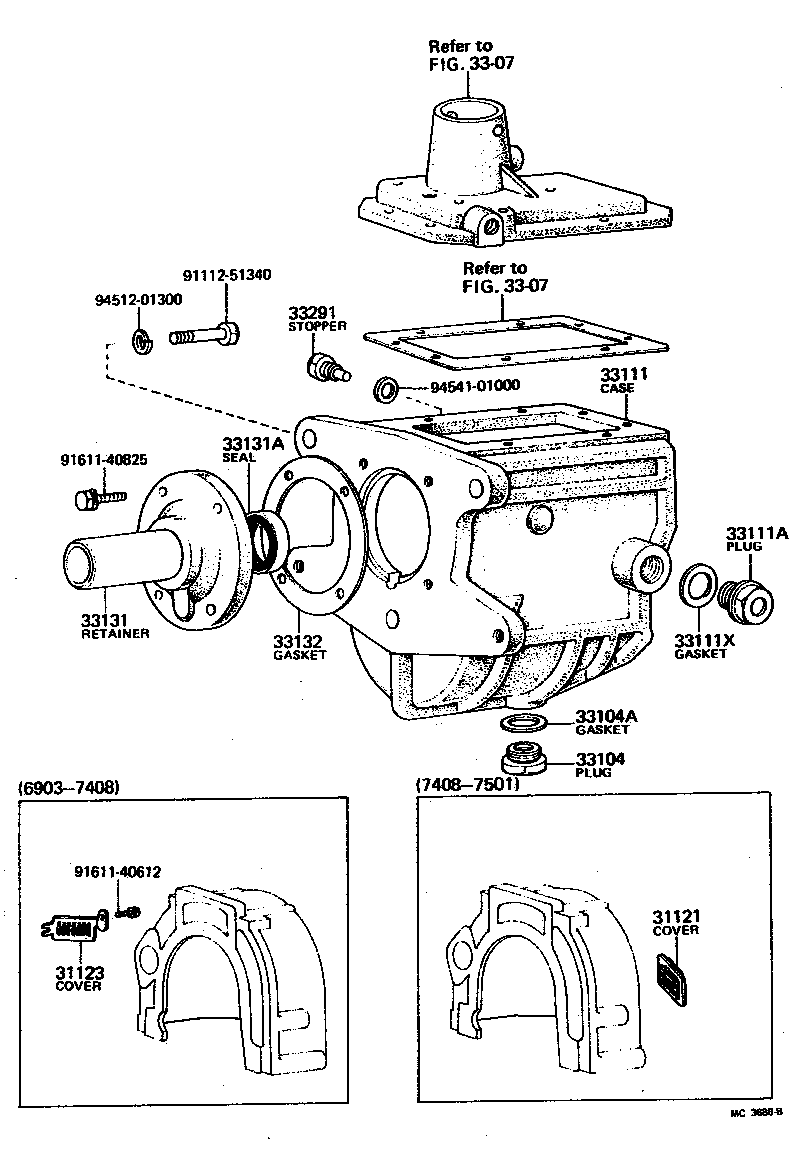

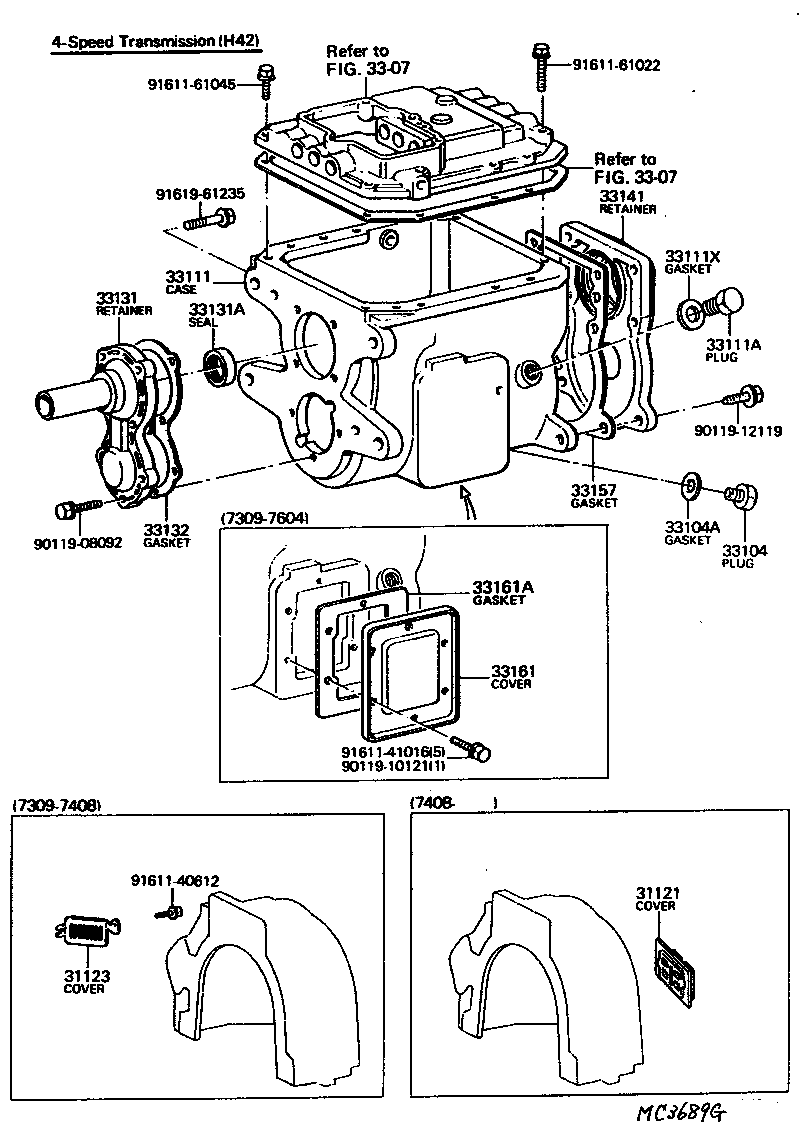

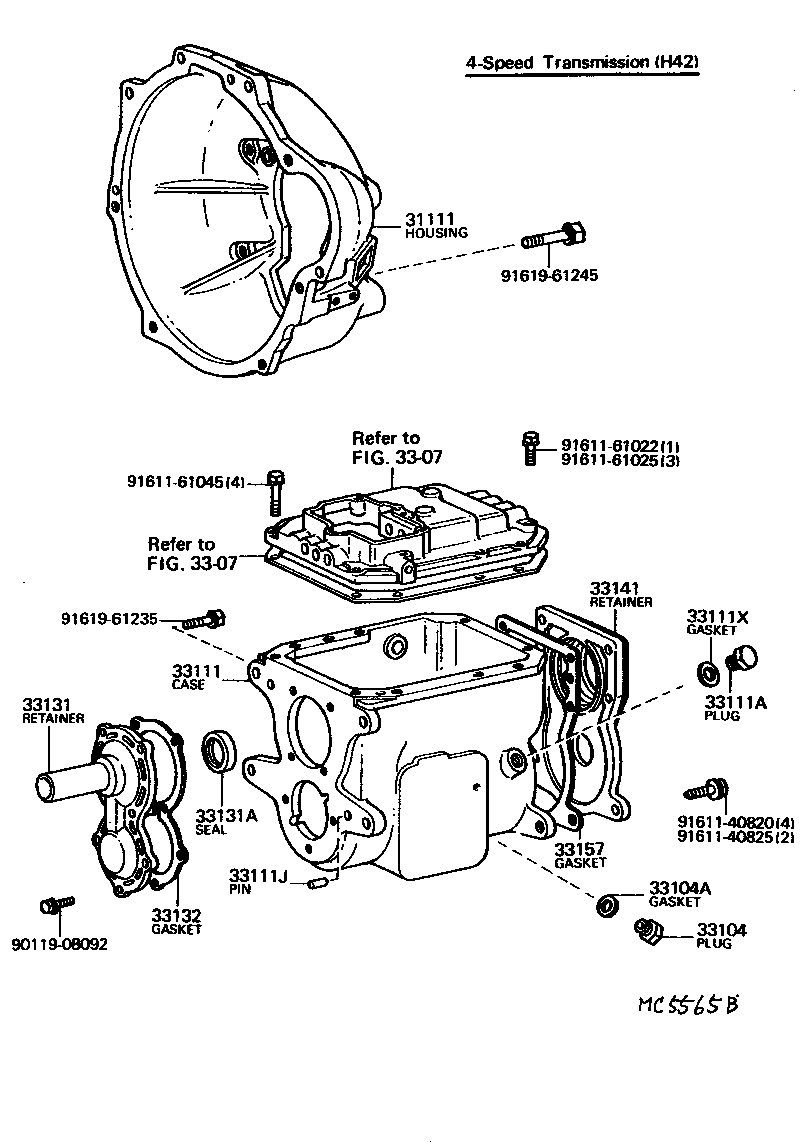

Clutch Housing & Transmission Case (MTM)
17 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 31111 | Housing, Clutch |
| 31121 | Cover, Clutch Housing, NO.1 |
| 31123 | Cover, Clutch Housing, NO.2 |
| 33104 | Plug Sub-assy, Drain(MTM) |
| 33104A | Gasket, Drain Plug(MTM) |
| 33111 | Case, Manual Transmission |
| 33111A | Plug, Manual Transmission Case |
| 33111J | Pin, Straight(FOR MANUAL TRANSMISSION CASE) |
| 33111X | Gasket, Transmission Case Plug |
| 33131 | Retainer, Bearing, Front(MTM) |
| 33131A | Seal, Oil(FOR TRANSMISSION FRONT BEARING RETAINER) |
| 33132 | Gasket, Front Bearing Retainer(MTM) |
| 33141 | Retainer, Transmission Bearing, Rear |
| 33157 | Gasket, Transmission Case, NO.2 |
| 33161 | Cover, Manual Transmission Power Take-off |
| 33161A | Gasket, Transmission Power Take-off Cover(MTM) |
| 33291 | Stopper, Shift Fork |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
