Toyota Land Cruiser

1969-03 → 1980-07 · chassis BJ40,FJ4#,55 · catalogue 791410 · United States

Discontinued model Data version 1985-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transfer Direct Clutch, Low Brake & Support

17 part groups · 2 illustrations

Illustrations

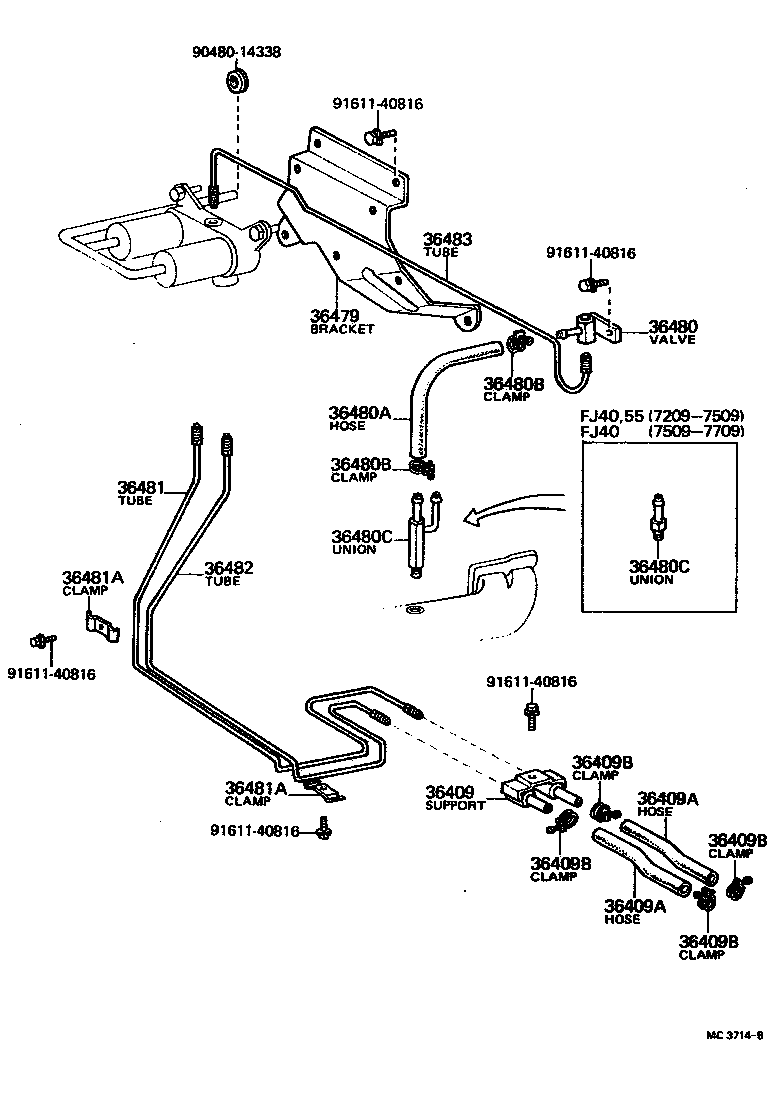

Figure MC3713A MC3713A 1969-03 → 1972-09 Figure MC3714B MC3714B 1972-09 → 1977-09

Part groups

PNCDescription
36409 Support Sub-assy, Vacuum Tube Union
36409A Hose (FOR VACUUM TUBE)
36409B Clamp, Vacuum Tube
36460 Valve Assy, Vacuum Shift
36460K Valve Kit, Vacuum Shift
36470 Wire Assy, Vacuum Shift Valve
36471 Knob, Front Drive Shift
36479 Bracket, Vacuum Shift Valve
36480 Valve Assy, Vacuum Check(FOR FRONT DRIVE)
36480A Hose (FOR VACUUM CHECK VALVE)
36480B Clamp (FOR VACUUM CHECK VALVE)
36480C Union (FOR VACUUM CHECK VALVE)
36481 Tube, Front Drive Vacuum, NO.1
36481A Clamp (FOR FRONT DRIVE VACUUM TUBE)
36482 Tube, Front Drive Vacuum, NO.2
36483 Tube, Front Drive Vacuum, NO.3
36483A Seat, Union(FOR DRIVE VACUUM TUBE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
