Toyota Land Cruiser

1969-03 → 1980-07 · chassis BJ40,FJ4#,55 · catalogue 791410 · United States

Discontinued model Data version 1985-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

15 part groups · 3 illustrations

Illustrations

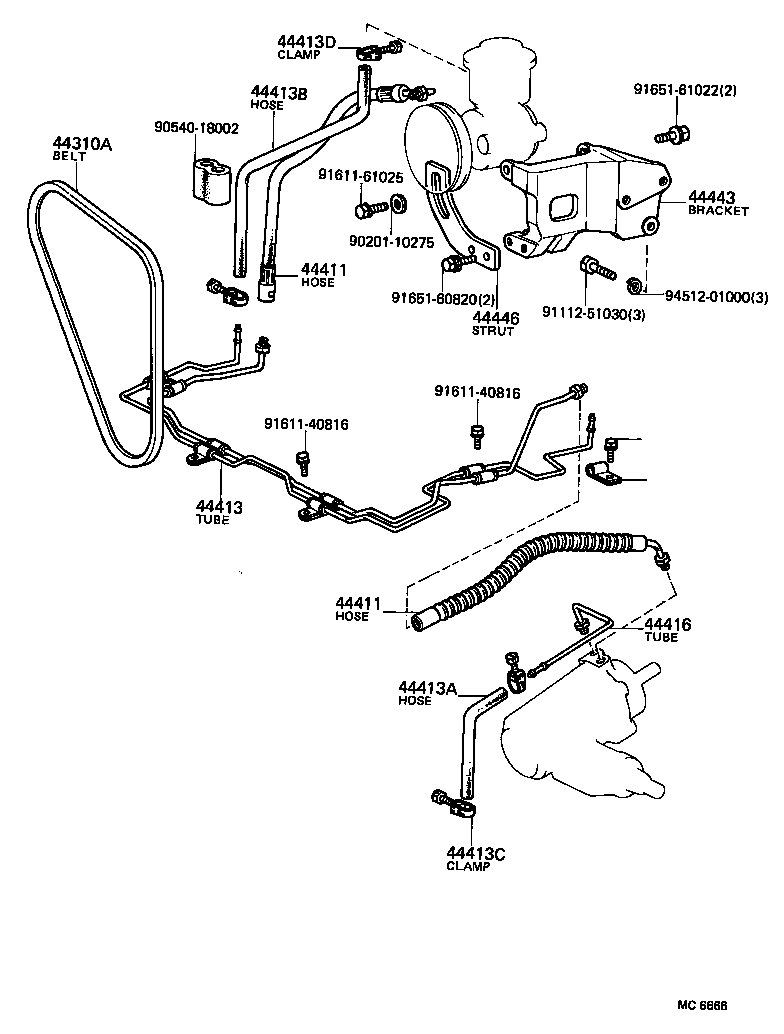

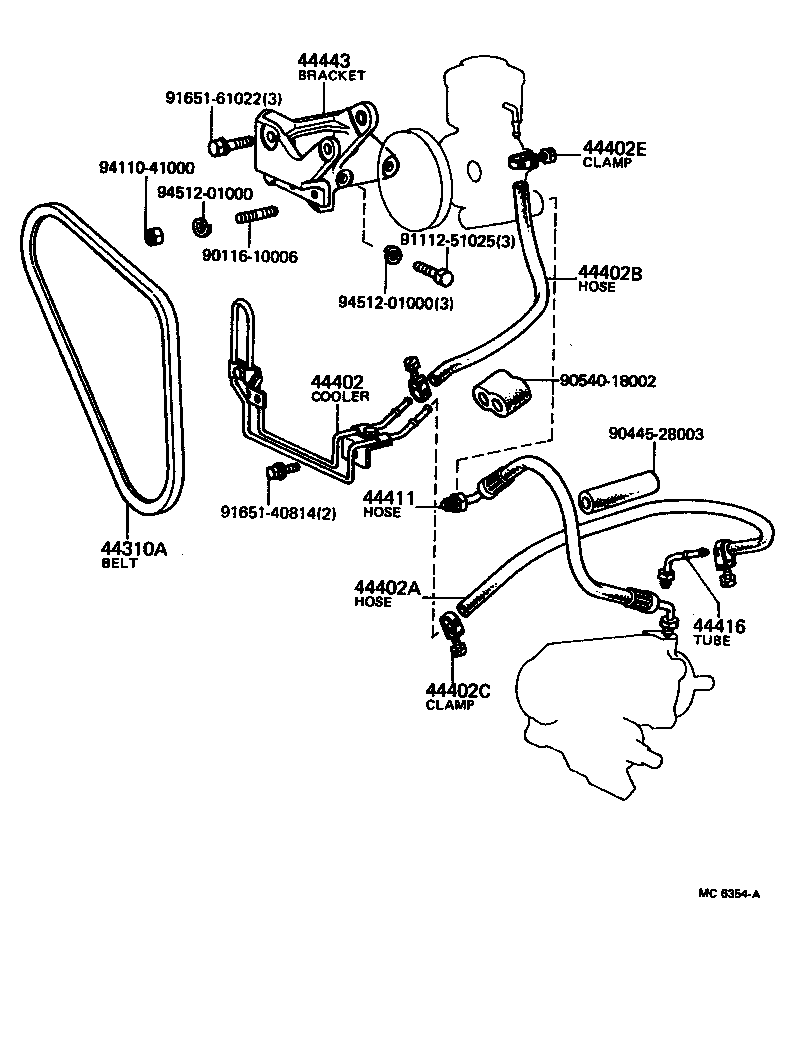

Figure MC6353 MC6353 1979-01 → 1980-07 Figure MC6666 MC6666 1979-09 → 1980-07 Figure MC6354A MC6354A 1979-01 → 1980-07

Part groups

PNCDescription
44310A Belt, V(FOR VANE PUMP)
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44402A Hose, Power Steering Oil Cooler Inlet
44402B Hose, Power Steering Oil Cooler Outlet
44402C Clamp, Power Steering Oil Cooler Inlet Hose
44402E Clamp, Power Steering Oil Cooler Outlet Hose
44411 Hose, Pressure Feed
44413 Tube, Pressure Feed, NO.1
44413A Hose(FOR RETURN TUBE OUTLET)
44413B Hose(FOR RESERVOIR TANK INLET)
44413C Clamp(FOR RETURN TUBE OUTLET HOSE)
44413D Clamp(FOR RESERVOIR TANK INLET HOSE)
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44443 Bracket, Pump
44446 Strut, Adjusting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
