Toyota Land Cruiser
1969-03 → 1980-07 · chassis BJ40,FJ4#,55 · catalogue 791410 · United States
Discontinued model
Data version 1985-05

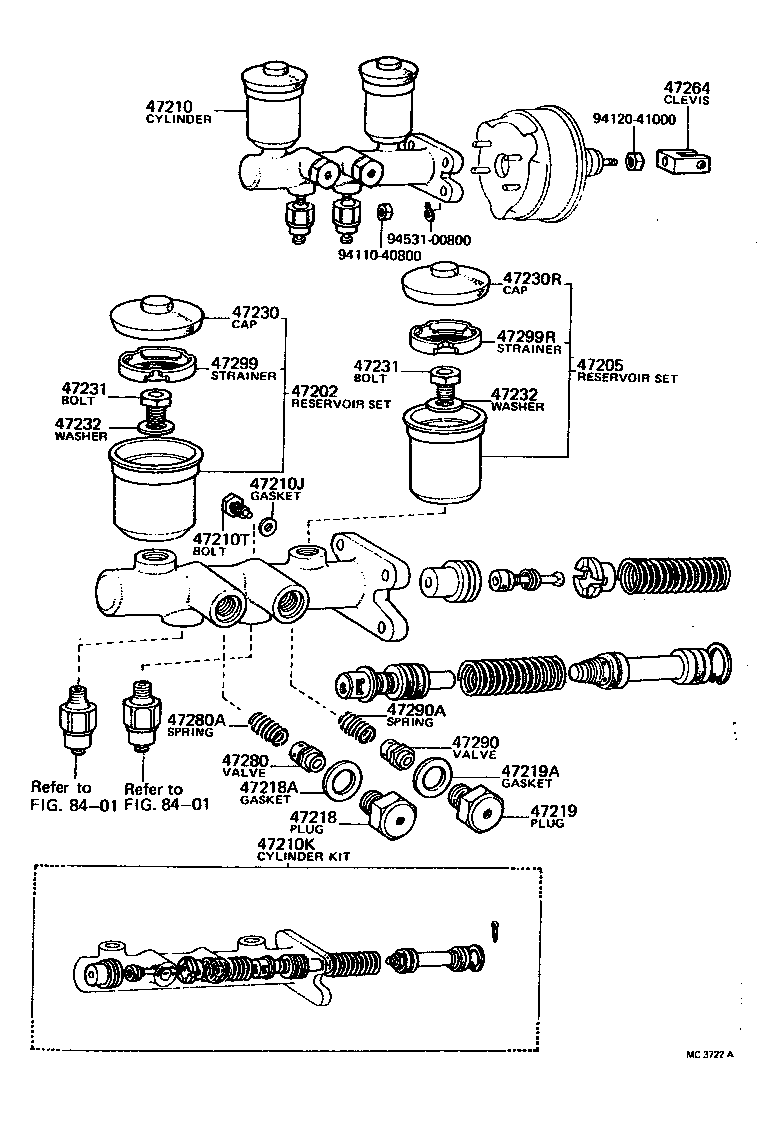

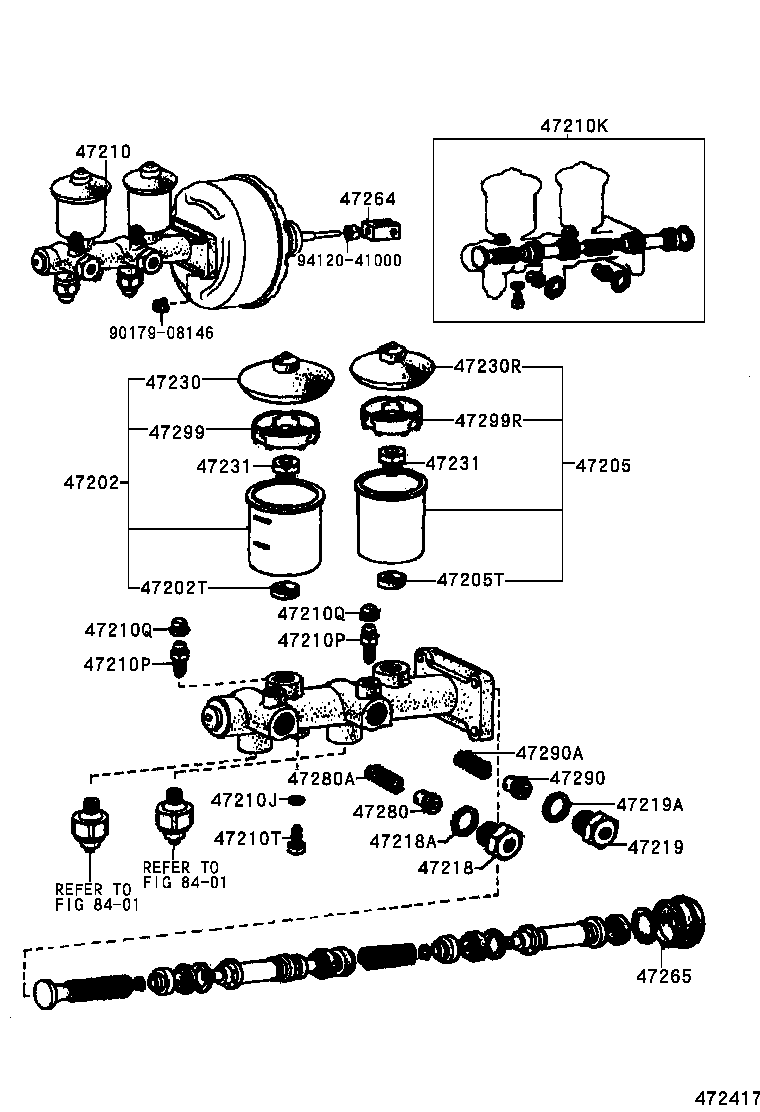

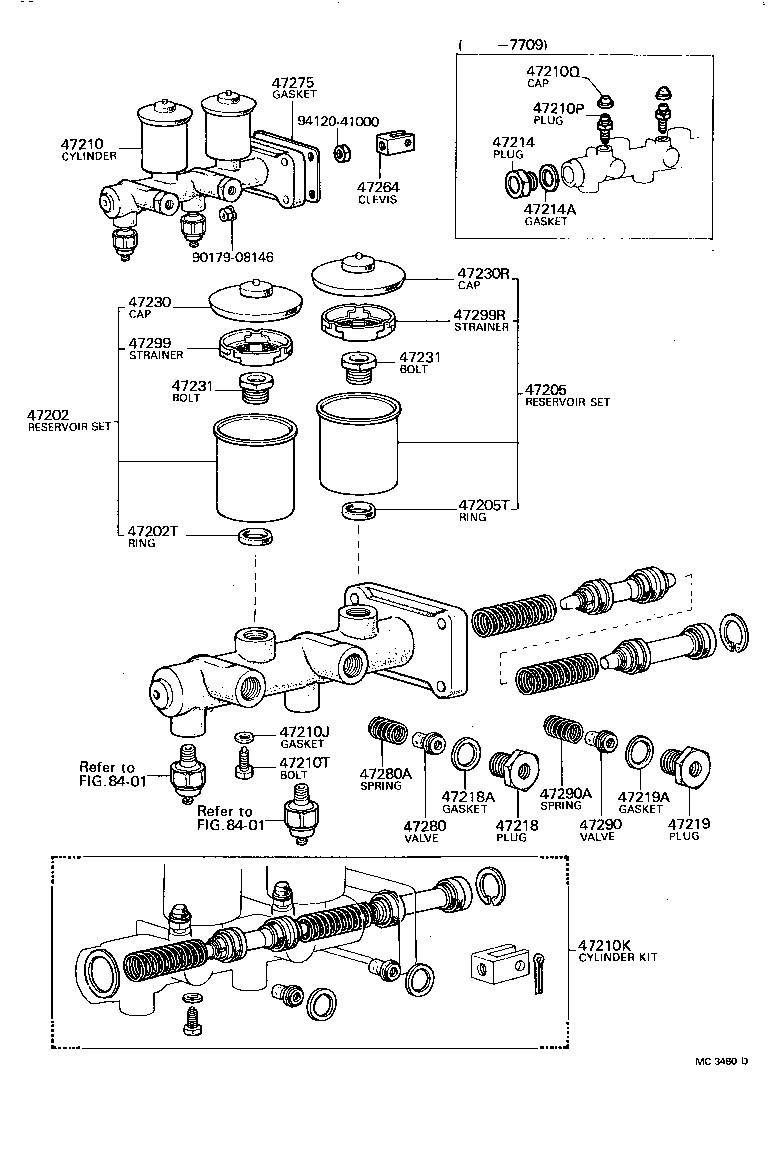

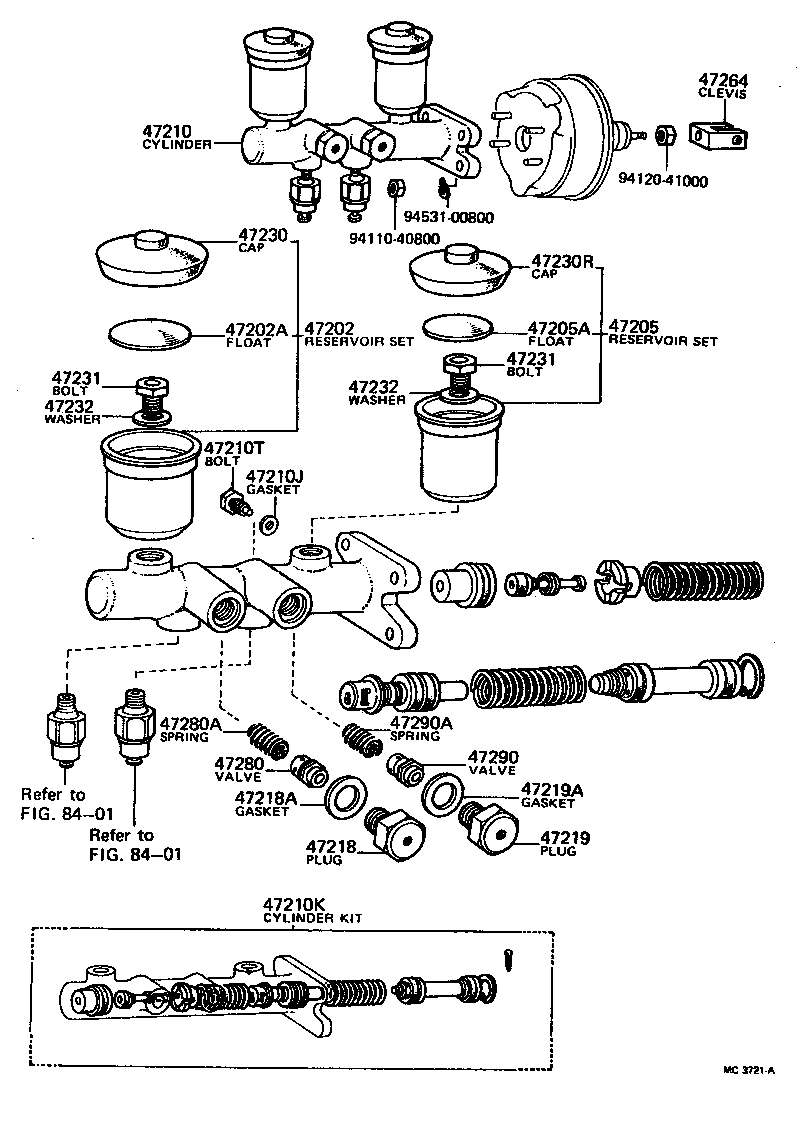

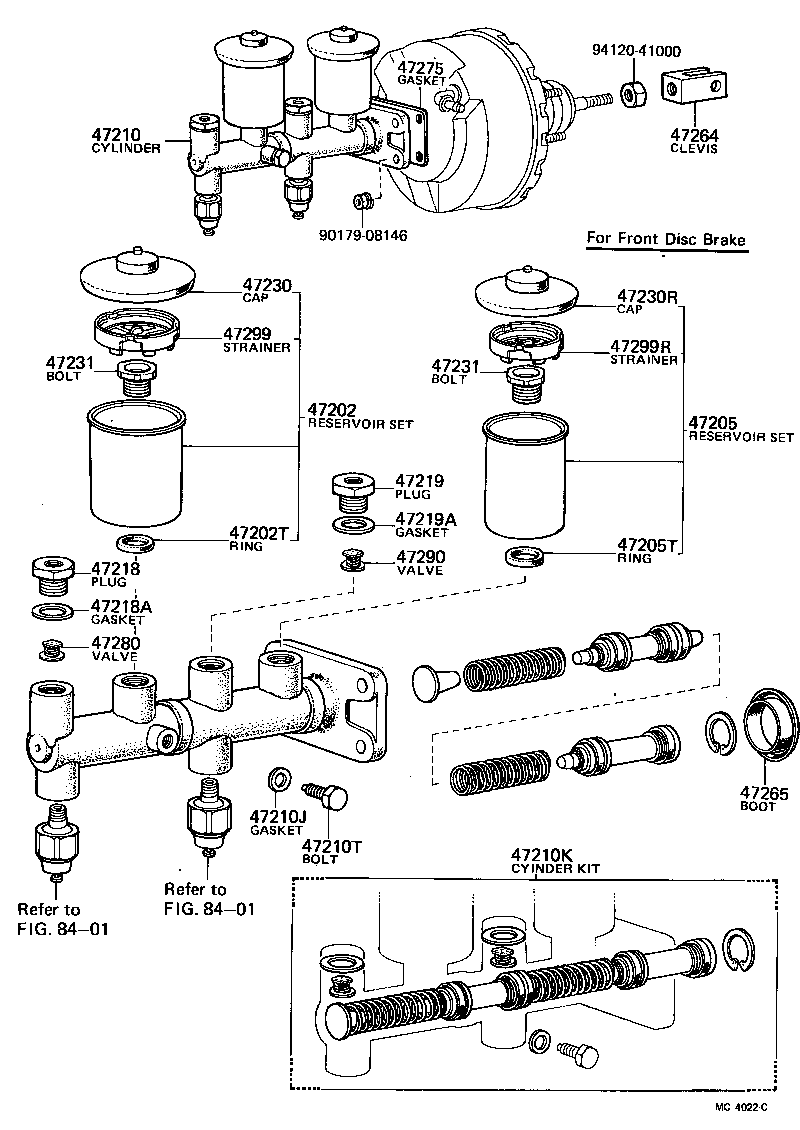

Brake Master Cylinder
35 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 47202 | Reservoir Sub-assy, Brake Master Cylinder |
| 47202A | Float, Master Cylinder Reservoir |
| 47202T | Ring(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.1) |
| 47205 | Reservoir Set, Brake Master Cylinder(FOR REAR SIDE) |
| 47205A | Float, Brake Master Cylinder Reservoir(FOR REAR SIDE) |
| 47205T | Ring(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.2) |
| 47210 | Cylinder Assy, Master, W/O Booster |
| 47210A | Bolt OR Stud Bolt(FOR BRAKE MASTER CYLINDER SETTING) |
| 47210J | Gasket(FOR MASTER CYLINDER) |
| 47210K | Cylinder Kit, Brake Master |
| 47210P | Plug, Bleeder(FOR BRAKE MASTER CYLINDER) |
| 47210Q | Cap, Bleeder Plug(FOR BRAKE MASTER CYLINDER) |
| 47210T | Bolt(FOR BRAKE MASTER CYLINDER) |
| 47214 | Plug, Master Cylinder |
| 47214A | Gasket(FOR MASTER CYLINDER CAP) |
| 47218 | Plug, Master Cylinder Fluid Outlet |
| 47218A | Gasket(FOR FLUID OUTLET PLUG) |
| 47219 | Plug, Master Cylinder Fluid Outlet(FOR REAR SIDE) |
| 47219A | Gasket(FOR FLUID OUTLET PLUG REAR SIDE) |
| 47230 | Cap Assy, Brake Master Cylinder Reservoir Filler |
| 47230R | Cap Assy, Reservoir, NO.2(FOR REAR SIDE) |
| 47231 | Bolt, Brake Master Cylinder Reservoir Set |
| 47232 | Washer, Brake Reservoir Set Bolt |
| 47261 | Rod, Master Cylinder Push |
| 47264 | Clevis, Master Cylinder Push Rod |
| 47265 | Boot, Master Cylinder |
| 47275 | Gasket, Brake Master Cylinder |
| 47280 | Valve Assy, Brake Master Cylinder Outlet Check |
| 47280A | Spring, Compression |
| 47282 | Seat, Outlet Check Valve Seat |
| 47285 | Gasket, Outlet Check Valve Seat |
| 47290 | Valve Assy, Master Cylinder Outlet(FOR REAR SIDE) |
| 47290A | Spring, Compression(FOR FLUID OUTLET REAR SIDE) |
| 47299 | Strainer, Brake Master Cylinder Reservoir |
| 47299R | Strainer, Master Cylinder Reservoir, Rear |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
